Series 16i/18i/160i/180i - PA Operators manual Page 718

Operators manual

Page of 756

/ 756

APPENDIX

B–63124EN/01

H. OPERATION OF PORTABLE

TAPE READER

711

No. DescriptionsName

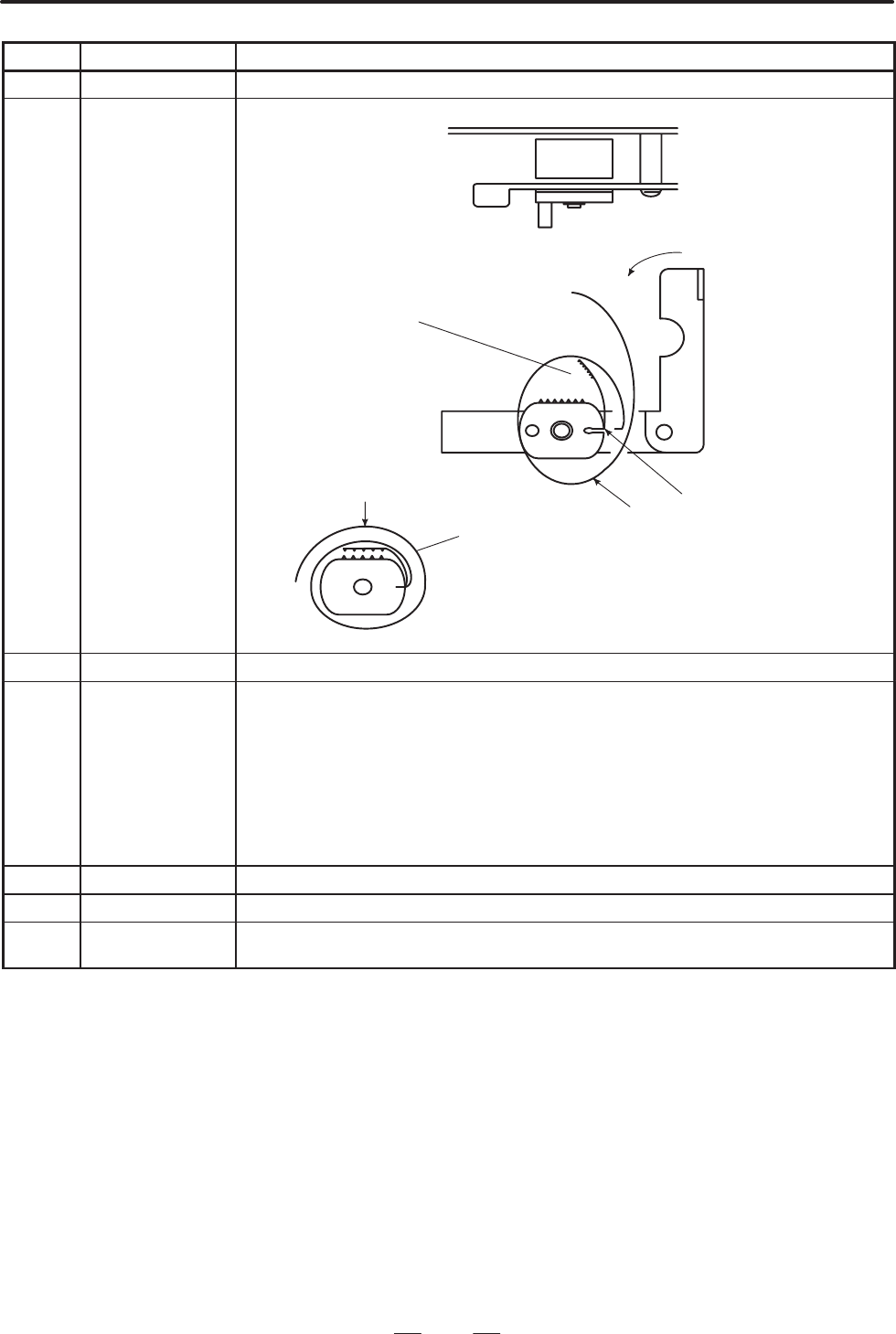

7 Winder Used to advance or rewind the tape.

Metal A

Fastener

(usually kept open)

When removing the rolled tape, reduce the

internal diameter by pushing the fastener.

Push

Paper tape

Insert

9 Cover lock Be sure to use the lock for fastening the cover before carrying the tape reader.

10 Lowering lock lever

When the tape reader is raised, the latch mechanism is activated to fix the tape reader.

Thus, the tape reader is not lowered. The latch is locked with the lowering lock lever.

The latch is therefore not unlocked even when the tape reader is raised with the handle.

When the latch is locked, the lever is horizontal. To store the tape reader in the box,

push the lever to release the lock, then raise the tape reader with the handle to unlock

the latch.

When the latch is unlocked, the tape reader can be stored in the box.

When storing the tape reader, secure it with the cover lock.

11 Cable storage Used to store rolled power and signal cables. The cable length is 1.5 m.

12 Photoamplifier For the tape reader.

Reader/punch

interface adapter

200 VAC input and 5 VDC output power and reader/punch interface adapter PCB.
