B–63833EN/03

9. CONNECTION TO FANUC I/O Link

154

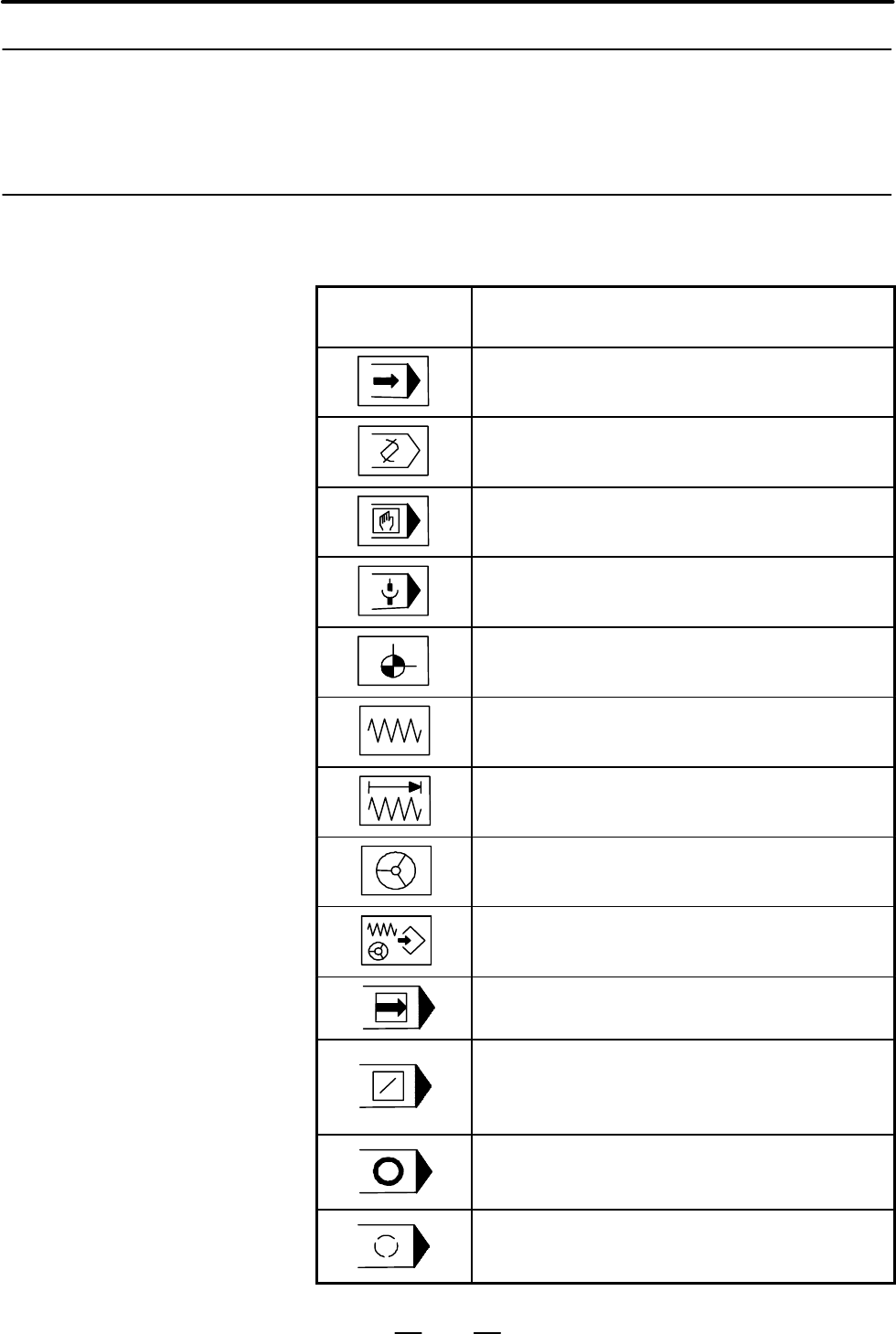

Symbol

indication

Meaning of key

AUTO mode selection signal; Sets automatic operation

mode.

EDIT mode selection signal; Sets program edit opera-

tion mode.

MDI

mode

selection;

Sets

MDI

mode.

DNC operation mode; Sets DNC operation mode.

Reference position return mode selection; Sets refer-

ence position return mode.

JOG feed mode selection; Sets jog feed mode.

Step

feed

mode

selection;

Sets

step

feed

mode.

Manual handle feed mode selection; Sets manual han-

dle feed mode.

Teach–in jog (reach–in handle) mode selection signal;

Sets teach–in jog (teach–in handle) mode.

Single block signal; Executes program one by one. This

key is used to check a program.

Block delete (optional block skip); Skips the execution

of the blocks starting with the first block prefixed with /

and ending with the end of block (;) when this button is

pressed during automatic operation.

Program stop(output only); Turns on the LED on the

button when automatic operation is stopped by M00

specified in the program.

Optional stop; Stops automatic operation after execu-

tion of the block of a program where M01 is specified in

the program.

9.4.8

Key Symbol Indication

on Machine Operator’s

Panel

9.4.8.1

Meaning of key symbols
