D. OPTICAL FIBER CABLE

B–63833EN/03

398

pull it. Because the combined tensile strength of the two cords is

only 14 kg, however, avoid applying too great a force to the cable

during installation, regardless of whether you have taken the

protective measures.

Optical connector

Reinforcing cover

Wire with a hook

Tension member

Optical connector

Reinforcing cover

Tape

2 cords combined

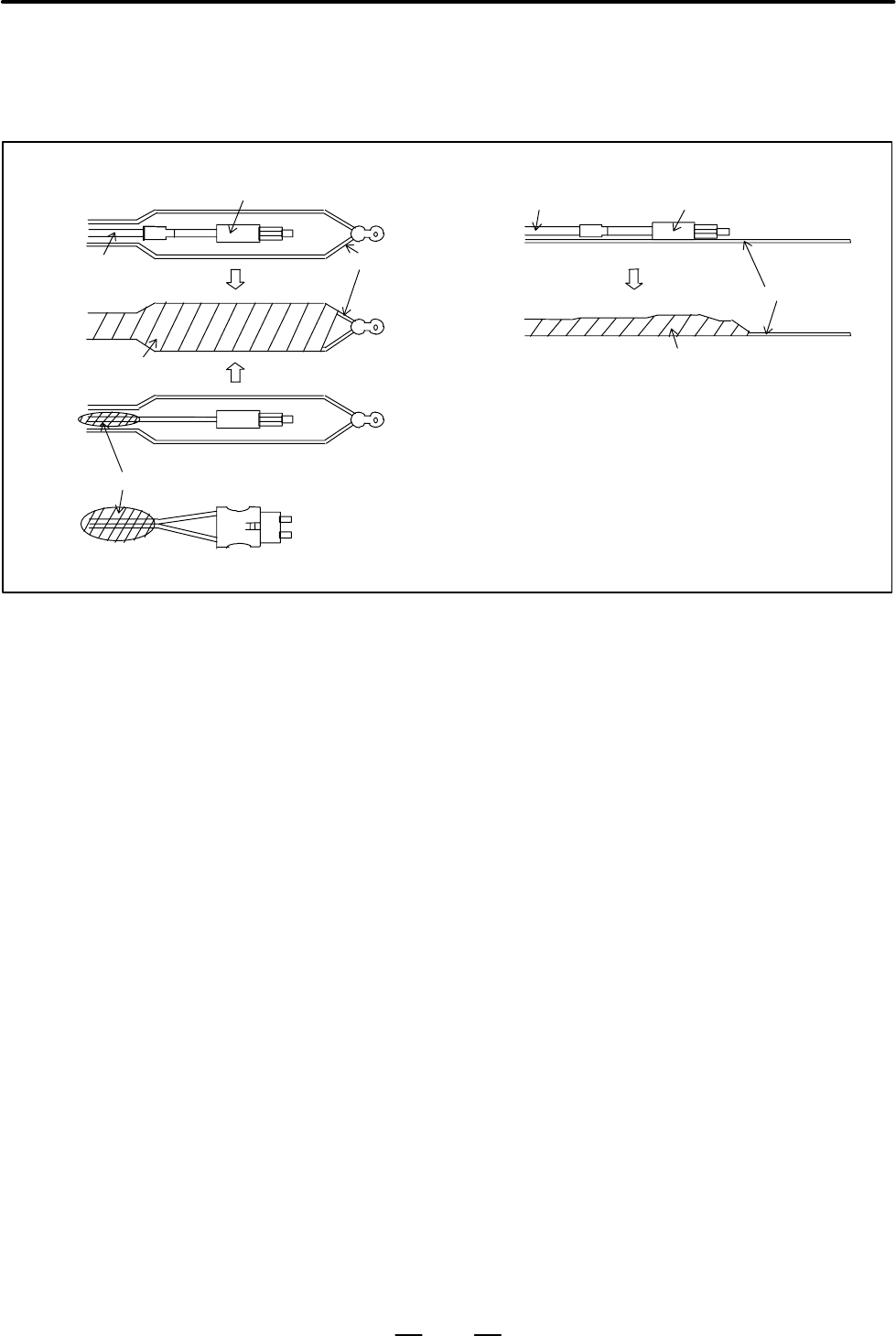

Fig. D.4 Prior to installing a cable

D Take care to keep both parts of the optical connector (cable side and

PCB side) clean. If they become dirty, wipe them with tissue paper or

absorbent cotton to remove dirt. The tissue paper or absorbent cotton

may be moistened with ethyl alcohol. Do not use any organic solvent

other than ethyl alcohol.

D Fix the reinforcing cover of the external cable or the cord binding

portion of the internal cord type cable by using a cable clamp, as shown

in Fig. D.5, to prevent the weight of the optical fiber cable from being

applied directly to the connecting part of the optical connector.

(Recommended cable clamp):

Recommended cable clamps are listed below. Use a clamp that

grasps the optical cable lightly; the clamp should not apply

excessive pressure to the cable.

For an external cable:

CKN–13SP (with sponge)(Kitagawa Industry Co., Ltd.)

For an internal cord type cable:

MN–1 (Kitagawa Industry Co., Ltd.)
