Series 0i/0i Mate - Model B Connection manual (Hardware) Page 89

Connection manual (Hardware)

Page of 437

/ 437

B–63833EN/03

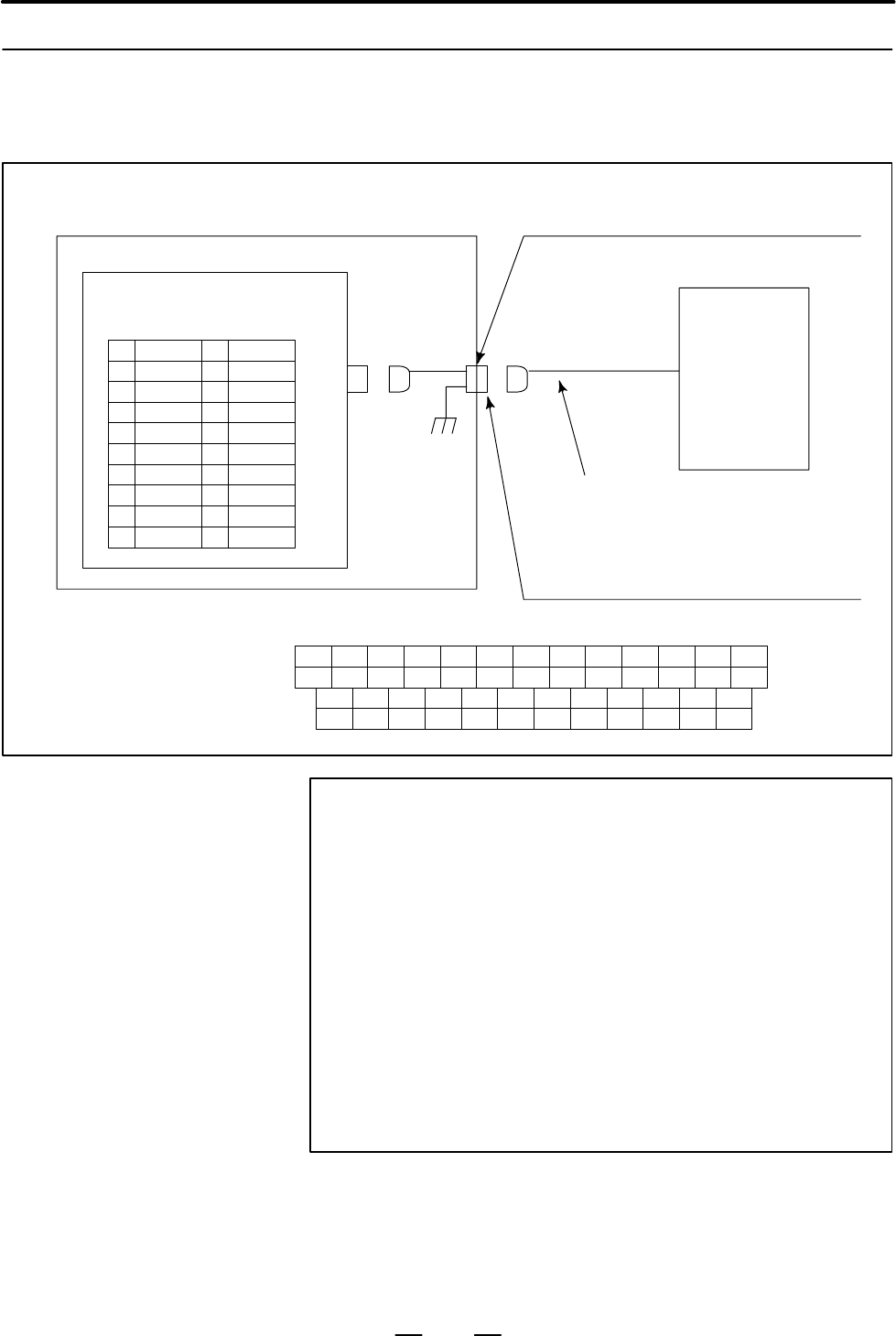

5. CONNECTION TO CNC PERIPHERALS

+24V

JD5A, JD5B

(PCR–EV20MDT)

Relaying connector

Connector: DBM–25S (Japan Aviation

Electronic Inc., Ltd.)

Lock metal: D20418–J9 (Japan Aviation

Electronic Inc., Ltd.)

Cable side connector

Connector: DBM–25P (Japan Aviation Elec-

tronic Inc., Ltd.)

Cover: DB–C2–J9 (Japan Aviation Electronic

Inc., Ltd.)

CNC

Relaying

cable

Accessory for

Handy File

FANUC

Handy File

8 9 10 11 12 13

14 15 16 17 18 19

20 21 22 23 24

+24

RELAYING CONNECTOR

SIGNAL LAYOUT

NOTE

1 Machine tool builder shall furnish relay connector and relay

cable.

2 Use a totally shielded cable for the signal cable.

Recommended cable specification:

A66L–0001–0284#10P

3 Open all terminals other than illustrated.

4 Set suitable parameters on reader/puncher interface for

FANUC Handy File. The baud rate is 4800 baud in

standard.

5 Connect the FANUC Handy File to either JD5A or JD5B. Do

not use both pins; the power capacity may exceed that of

+24V and blow the fuse.

5.3.5

FANUC Handy File

Connection
