B–63833EN/03

4. POWER SUPPLY CONNECTION

When the vertical axis exists, select the DC power supply that has a long voltage

hold time to decrease the amount of vertical axis falling during power–off

(including a power failure).

If the operating voltage drops to less than or equal to 21.6V, the CNC releases

servo activation. Therefore, when the hold time for 24 VDC during AC

power–off is too short, servo activation is released before the breaks are applied

because some peripheral circuit detects power–off. This may increase the

amount of vertical axis falling.

Generally, a power supply with sufficient power capacity tends to increase the

hold time during power–off.

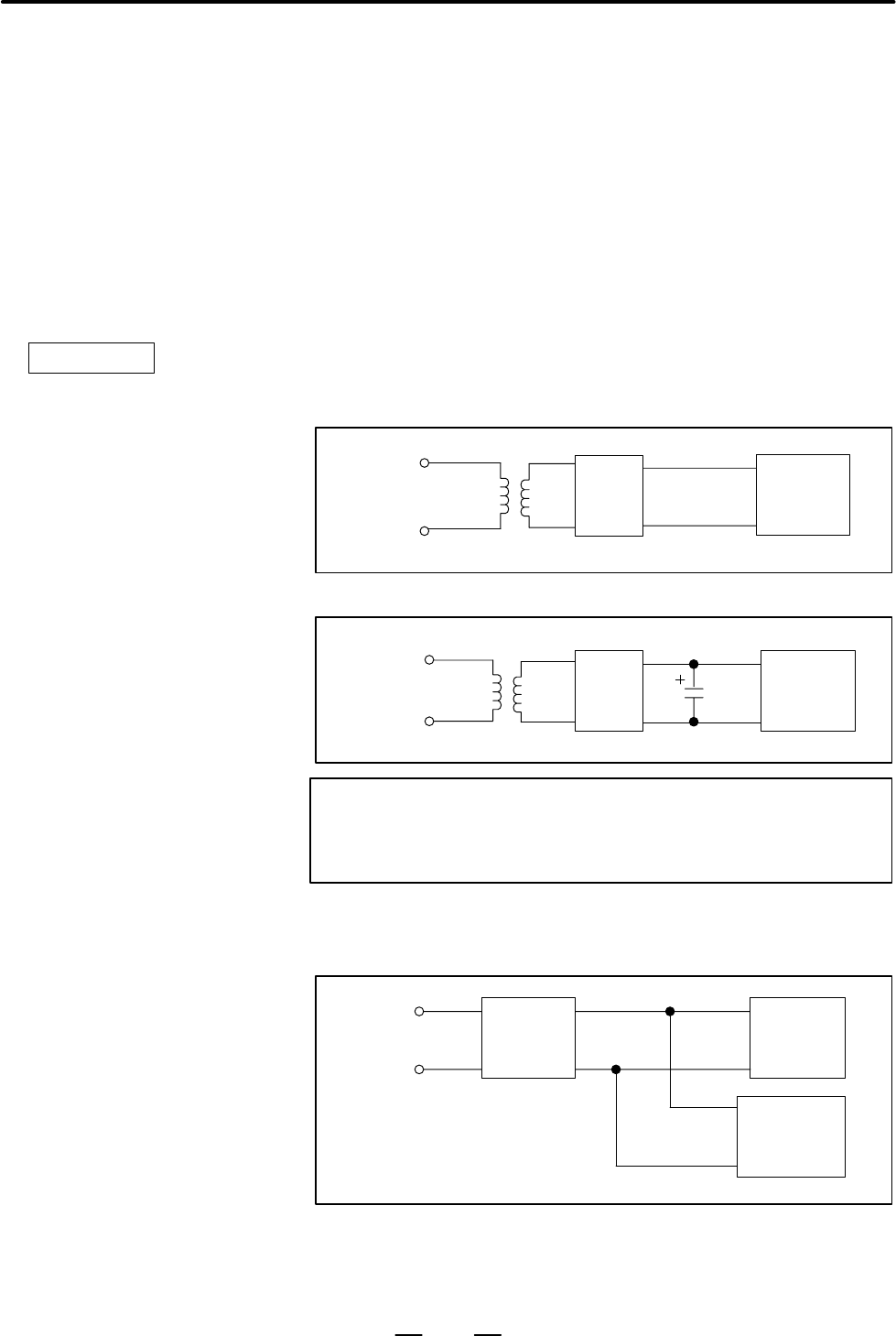

The following circuit configurations are not recommended.

1 Circuit examples that cannot retain the output voltage at an

instantaneous interruption (the voltage reduces to 21.6 V or below)

Example 1

AC input

Rectifier

circuit

CNC unit

Example 2

AC input

Rectifier

circuit

CNC unit

NOTE

The rectifier circuit means a circuit using diodes for

full–wave rectification.

2 Circuit examples that exceed the output voltage specifications (21.6

V to 26.4 V) due to an abrupt load change

Example 1

AC input

Regulated

power

supply

CNC unit

Device with

remarkable

load fluc-

tuations

S Notes to take when the

vertical axis exists

S Circuit configurations

Forbidden
