  2. FANUC AC Servo Software 90B3 / 90B7 Series Angle based Learning Control Specification Manual

FANUC AC Servo Software 90B3 / 90B7 Series Angle based Learning Control Specification Manual Additional Manual Page 4

Additional Manual
Title 90B3 / 90B7 Angle Based
Learning Control Specification Manual
Draw No.
A - 63639E - 119
01 ’04.02.23 K.Maeda Newly designed Sheet 04
Edit Date Design Description / 10
You can apply Spindle Learning control with angle based to rotary axis.

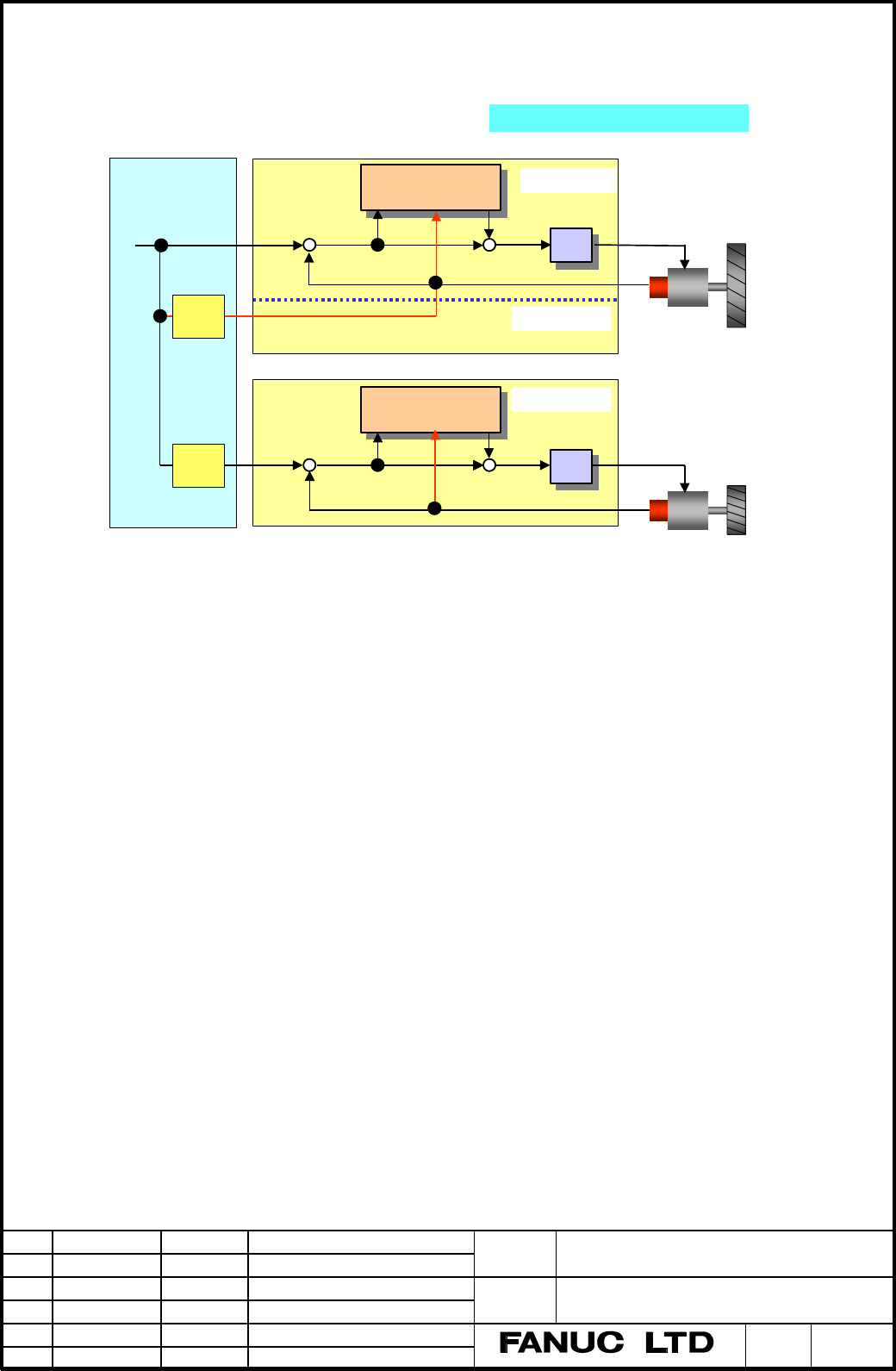

2) Application example in Flexible Synchronous Control
Because master axis refer to reference position, you must give command with same gear ratio to dummy
slave axis. Usual (Time based) Learning control requires High speed cycle cutting (G05) for starting. But
Angle based Learning control can start by PMC signal with th following FSC program.
M50 ; Z and C axes start synchorous control
G01 X100. F40. ; X axis approach
Mxx ; Hob axis rotation
Kp
Kp
Kp
Kp
Command
Master axis
CNC
FSC
Slave axis 2
Gear
Ratio
Servo control or Spindle control
Servo control or Spindle control
Synchronous shaving machine
Learning
controller
Learning
controller
Work
Position error
Reference
Slave axis 1
Learning
controller
Learning
controller
Cutter
Reference
Position error
Gear
Ratio
(Dummy)
