  2. FANUC AC Servo Software 90B3 / 90B7 Series Angle based Learning Control Specification Manual

FANUC AC Servo Software 90B3 / 90B7 Series Angle based Learning Control Specification Manual Additional Manual Page 6

Additional Manual
Title 90B3 / 90B7 Angle Based
Learning Control Specification Manual
Draw No.
A - 63639E - 119
01 ’04.02.23 K.Maeda Newly designed Sheet 06
Edit Date Design Description / 10

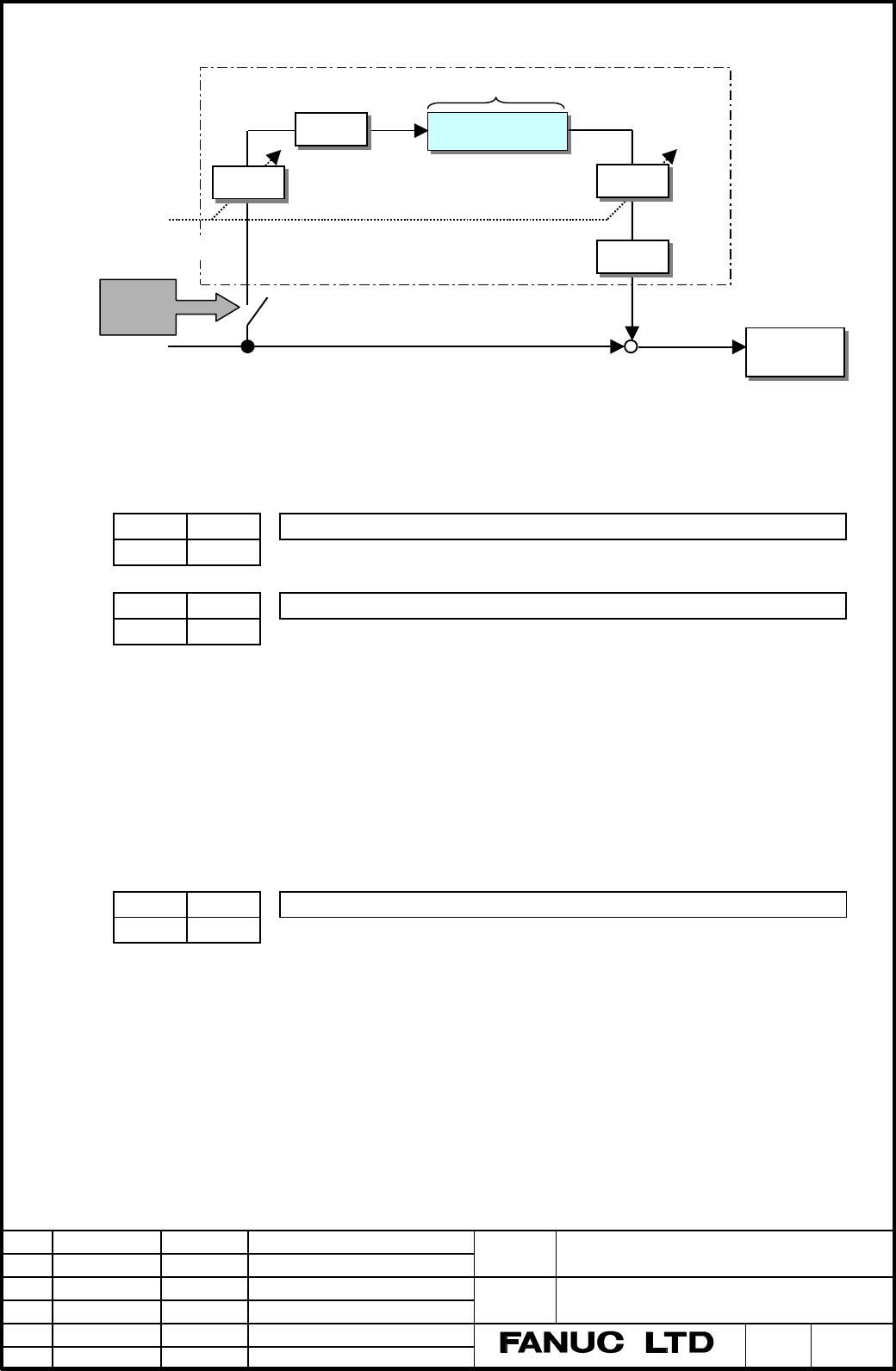

♦ Relation between Angle based Learning controller and Parameters
*1 Fx : Learning band. The higher you set Leaning band, precision is high. But stability is low.
*2 Gx : Dynamic characteristc compensation. Approximation model of controled object.
Parameters
2241
(FS16i )
Expansion coeficient of Angle based Learning period
2654
(FS15i )
2242
(FS16i )
Angle based Learning period
2655
(FS15i )
(Setting range) from 1 to 32767 (greater or equal 16 times of delayed memory number δ
δδ
δ)
(Setting unit) detective unit (case of refering to the other axis, detective init is that axis)
You should set Angle based Learning period by detective unit. If this period is above 32767, you
should set expansion coeficient.
(Angle based Learning period) = (N2241) × (N2242)
If N2241 is zero, servo software handles as 1 internally.
(Example) Case of 3600000 pluses per one rotation, you should set the following.
N2241 = 10000, N2242 = 360
2243
(FS16i )
Minimum time period
2656
(FS15i )
(Setting range) from 20 to 32767
(Setting unit) msec
(Standard) In case that Maximum speed of reference position is 1500 min
-1
, one
rotation time of 300 min
-1
(one fifth of 1500 min
-1
) is 200 min
-1
. you
should set 200 msec/rev.
In case that Angle based Learning period is one motor rotation, you must set one rotation time of
maximum speed for this parameter. This parameter decides delayed memory number δ
δδ
δ.
In case of sampling 1ms, when this parameter is zero, servo software handles as 200 internally.
When mimimum time period is L, sampling t, delayed memory number δ
δδ
δ is the following.
δ
δδ
δ = L / t < mounting memory (Maximun clamp is 10000)
Delayed Memory
HRV
control
Position error
+
+
Reference
Position
Convert
Fx
N2244
Convert
Gx
N2246
N2247
N2248
N2249
N2243
One rotation = N2241×N2242
G05 or
G320
Previous page
Next page
