B–63665EN/01

4. INTERFACE BETWEEN NC AND PMC

181

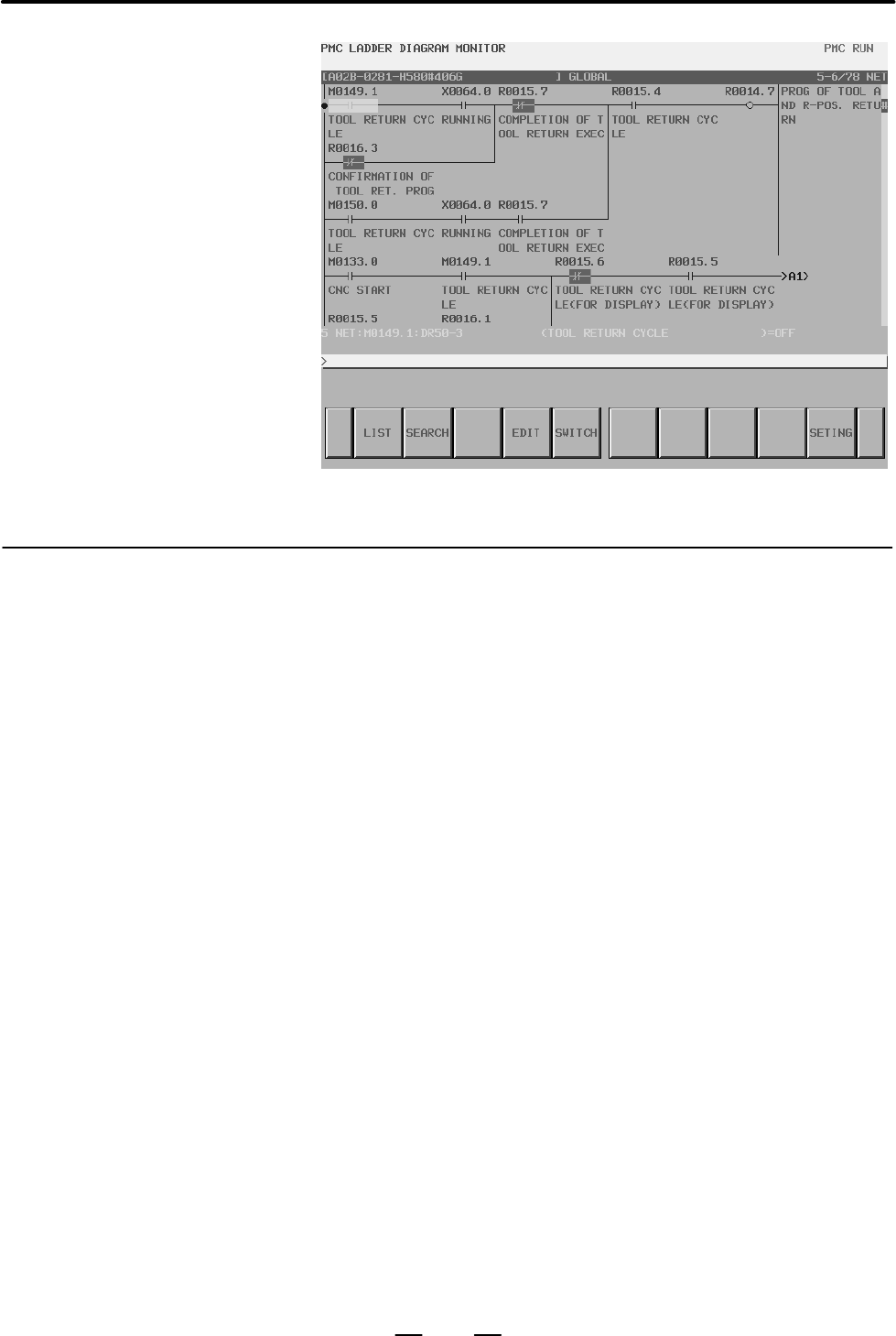

Ladder diagram display screen (search soft keys)

On the ladder diagram editing screen, a ladder program can be edited, and

its operation can be modified. To display the ladder diagram editing

screen, press the [EDIT] soft key on the ladder diagram display screen.

On the ladder diagram editing screen, the following editing operations

can be performed on a ladder program:

D Net–by–net deletion [DELETE]

D Net–by–net movement [CUT] and [PASTE]

D Net–by–net copy [COPY] and [PASTE]

D Changing the address of a contact or coil

“Bit address” + INPUT key

D Modifying a function instruction parameter

“Numeric value/byte address” + INPUT key

D Adding a new net [CREATE]

D Modifying a net figure [MODIFY]

D Reflecting the results of editing [UPDATE]

D Restoring the pre–editing state [RESTOR]

4.3.2.4

Ladder diagram editing

screen
