7. TROUBLESHOOTING

B–63665EN/01

304

This alarm is issued if a fault occurs in any of the fan motors, such as the

stoppage of a fan motor during the operation of the CNC.

Fan motors are installed in the uppermost portion of the CNC control unit.

Each fan motor is attached with an alarm detector circuit, which notifies

the CNC of a fault such as the stoppage of the fan motor, thereby issuing

this alarm.

If this alarm is issued, replace the fan motor.

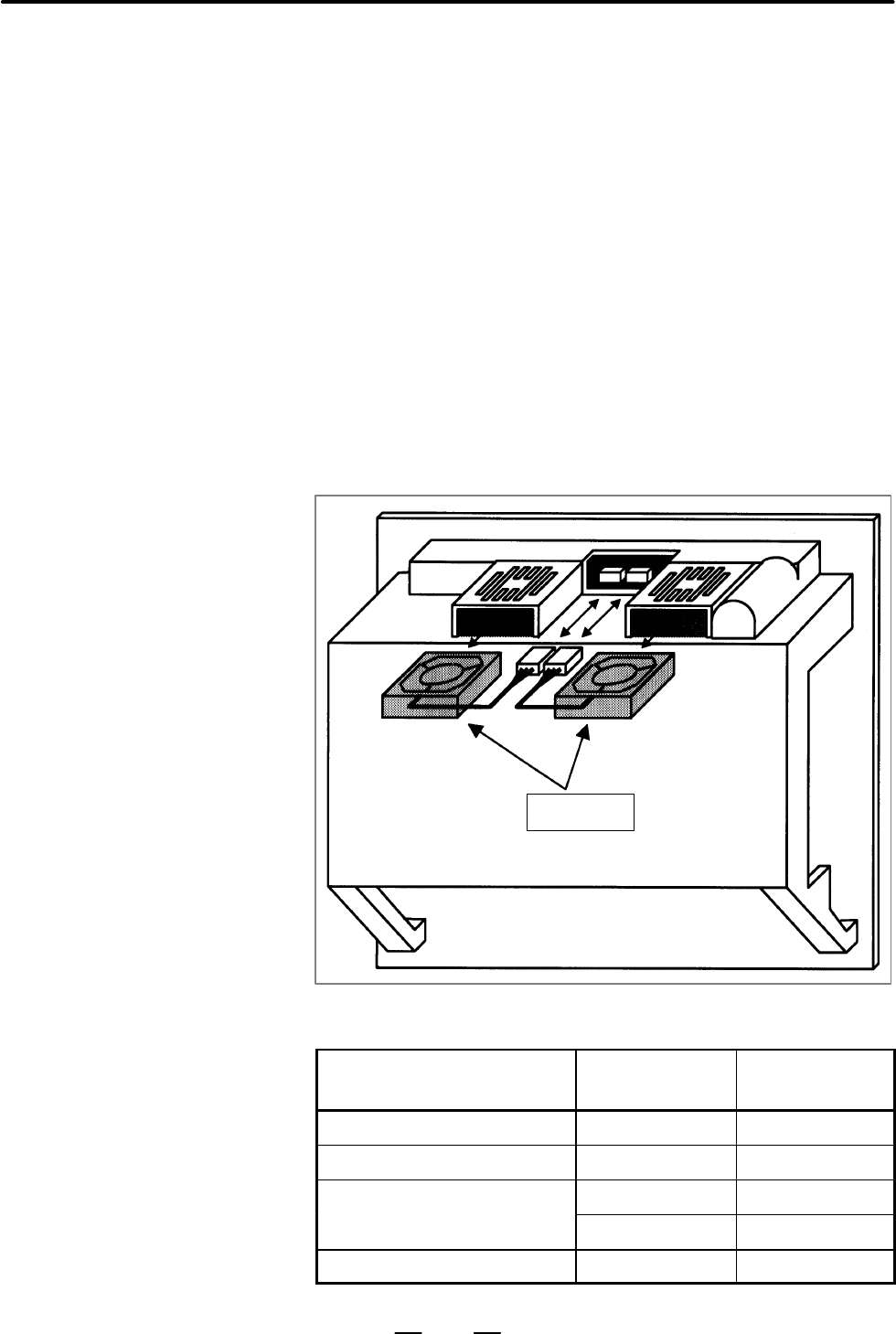

[For the LCD–mounted type]

For units without option slots

Fan motor

Specifications of fan motors

Ordering

information

Quantity

required

Unit without option slots A02B–0236–K120 Two

Unit with two option slots A02B–0281–K121 Two

Unit with three option slots

A02B–0281–K121 Two

A02B–0236–K122 Two

Unit with four option slots A02B–0281–K121 Four

7.20

ALARM 701

(OVERHEAT: FAN

MOTOR)

Causes and actions

D Fan motors
