2.DeviceNet FOR 16i/18i/21i (LCD-MOUNTED TYPE) CONNECTION B-63404EN/03
- 100 -
2.2 INSTALLATION
2.2.1 Environmental Conditions
When using the DeviceNet board, strictly observe the installation
conditions (cabinet internal environment conditions) of the CNC
control unit in which it is mounted.
2.2.2 Leading in Cables
The cables are lead in only from the bottom in the same way as other
regular option PCBs.

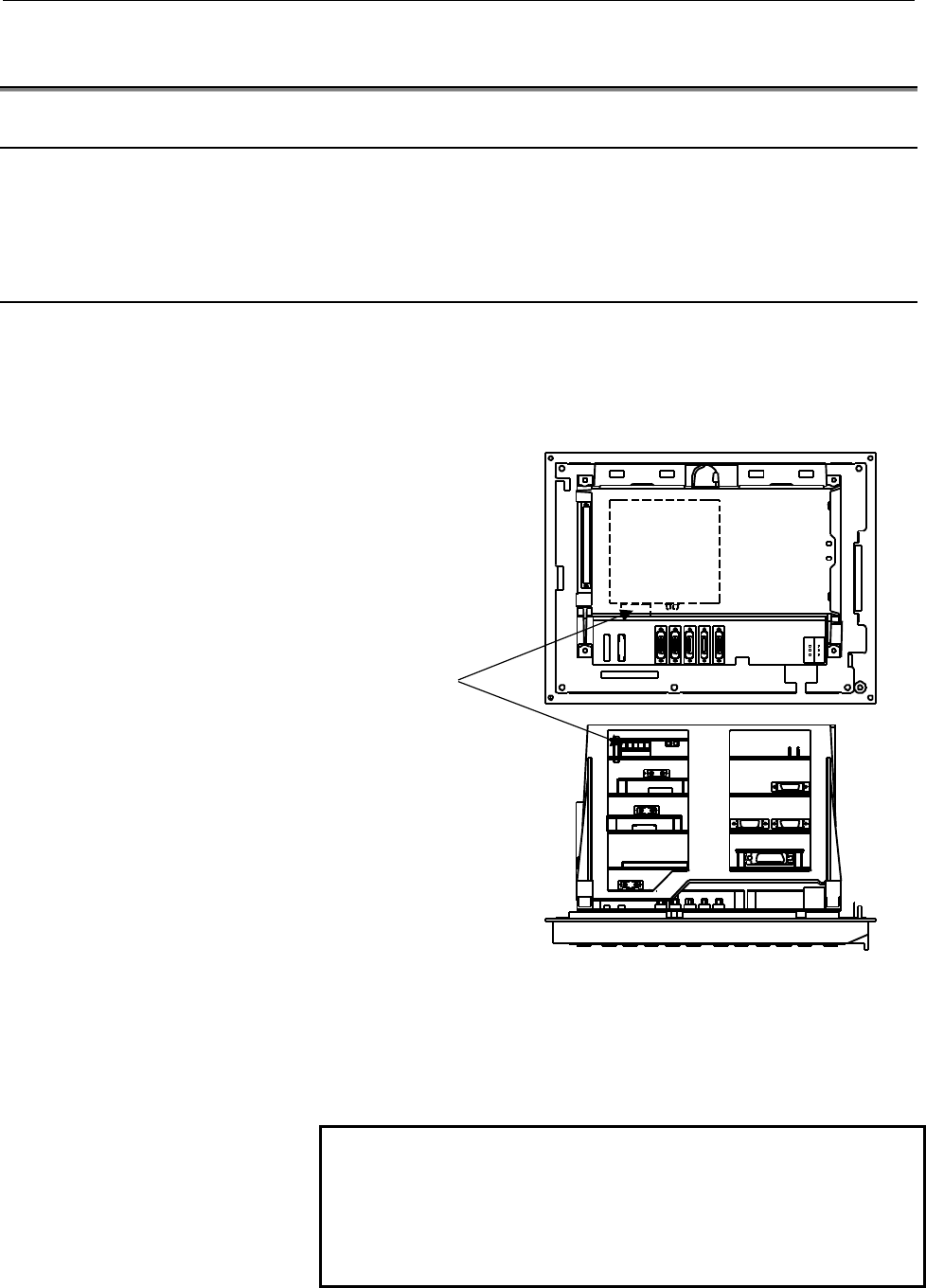

The figure below shows the location of the connector on the
DeviceNet board.
DeviceNet interface
View from rear of unit
View from bottom of unit
Note, however, that the board mounting position in the above figure
and connector locations of boards other than the DeviceNet board
vary from the actual positions. For details of the actual connector
locations of boards other than the DeviceNet board, refer to the
respective Connections Manual.
NOTE
Fit or remove the DeviceNet board into the option
slot with the DeviceNet interface connector removed.
The DeviceNet board cannot be mounted on slot 2
when another optional PCB is mounted at slot 3 on a
3-slot type unit.
