DeviceNet Board Operators manual Page 47

Operators manual
B-63404EN/03 OPERATION 1.DeviceNet FUNCTIONS
- 35 -
Automatic setting of slave parameters
You can automatically set "3 VENDOR ID", "4 DEVICE TYPE" and
"5 PRODUCT CODE" by pressing soft key [INIT] in screen 1.2.3 (b)
in a normal communications state (STATUS display: ENABLE,
CONDITION display: (02) DEVICE BEING SCANNED).
Case of the Series 16i/18i/21i-A/B
When you press soft key [INIT], soft keys [YES] and [NO] are
displayed. (See screens 1.2.3 (e) and (f) below.)

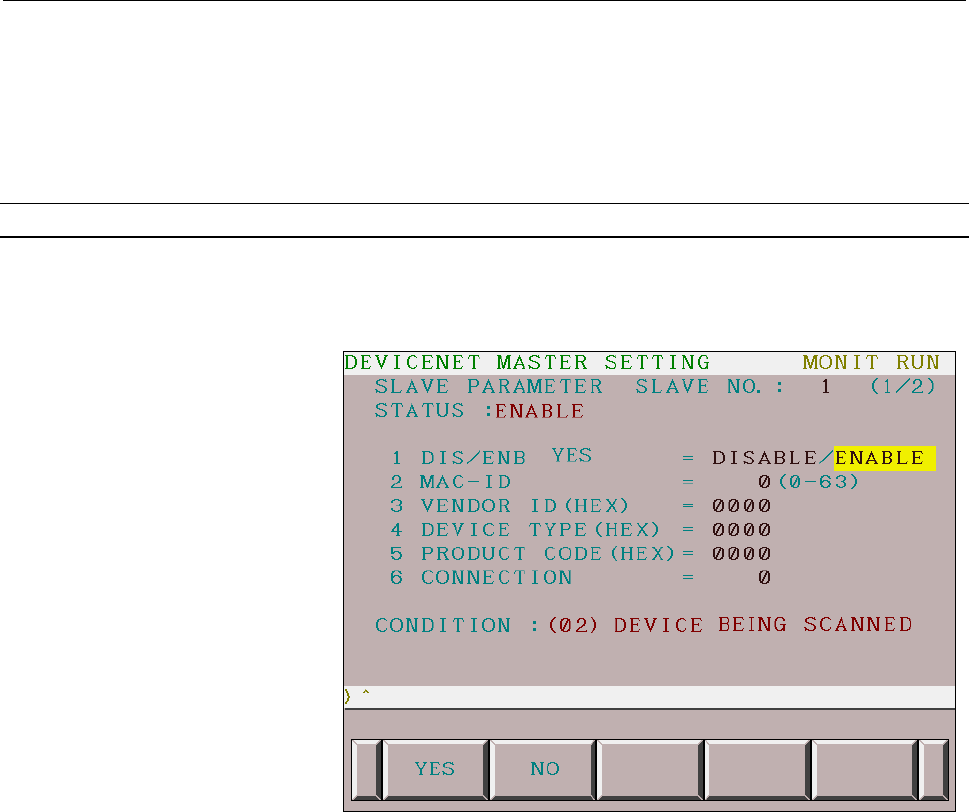

Screen 1.2.3 (e) Case of Series 16i/18i/21i-A/B
Next, press soft key [YES] to automatically set these items.
