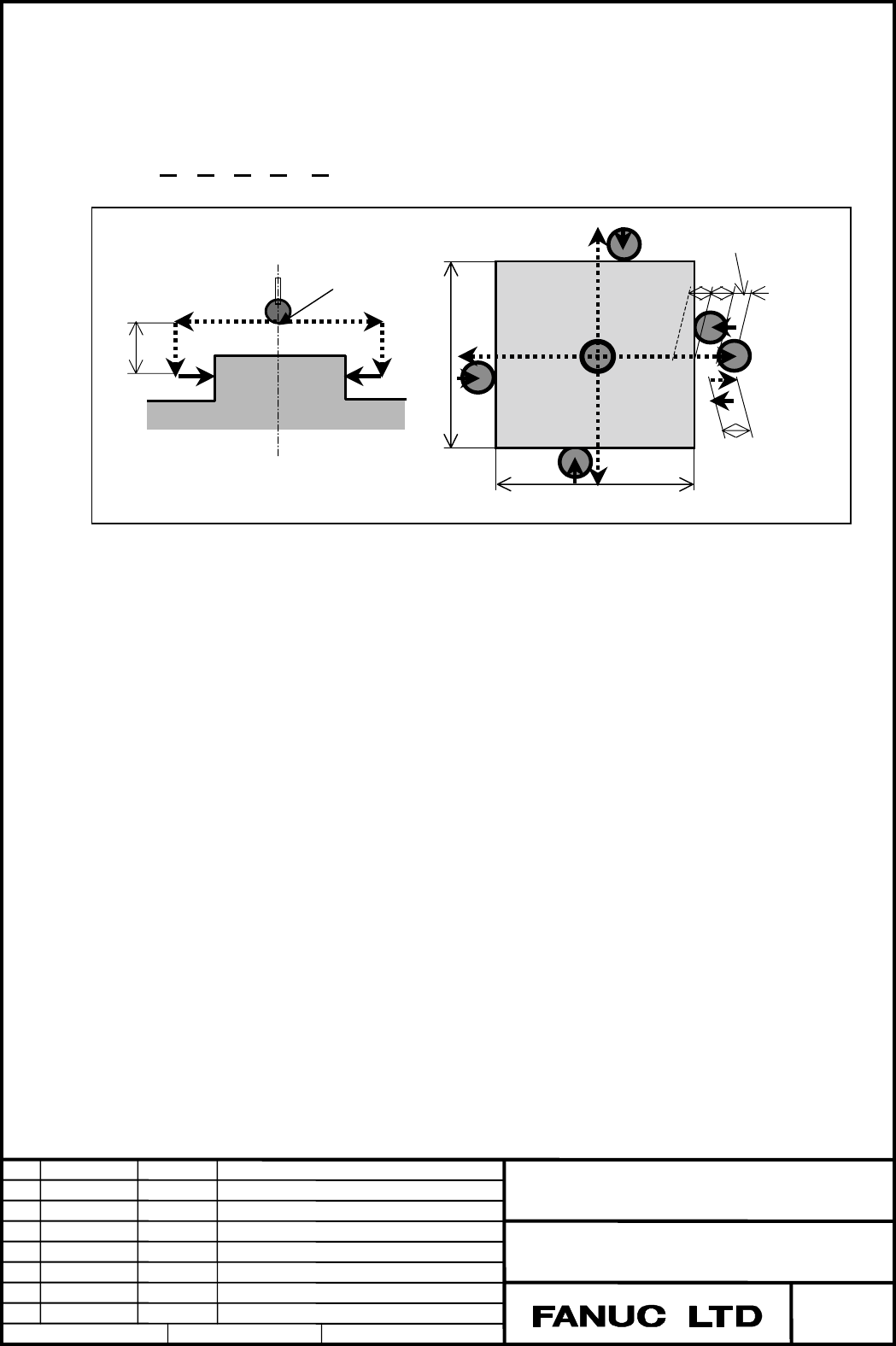

4-6. Outside rectangular measurement (G185)
This is a menu for measuring the center position and length of an outside rectangular.
Create ISO code program in the following form.
G185 Z U V F W ;
Z
: Height for Z axis
Input the height from the measuring start point to the point which will be measured.
U
: Length for X axis
Input the approximate length of outside rectangular for X axis.
V
: Length for Y axis
Input the approximate length of outside rectangular for Y axis
F
: Feed rate for movement
Input the feed-rate for movement on measuring.
W
: Work coordinate system number
Input the work-piece coordinate system number which will be set.
G54
↔
G59 : (
1
: G54,
2
: G55,
3
: G56,
4
: G57,
5
: G58,
6
: G59)
G54.1P1
↔
P48 : (
1001
: G54 P1,
1002
: G54 P2……….
1048
: G54 P48)
Note ) Please be sure to move the probe right over the approximate center of
outside rectangular before executing this cycle.
V
U
α
β
1
st
Measure
Z
Measuring
start
p
oint
Stylus radius
γ
2
nd
Measure
Previous page
Next page
