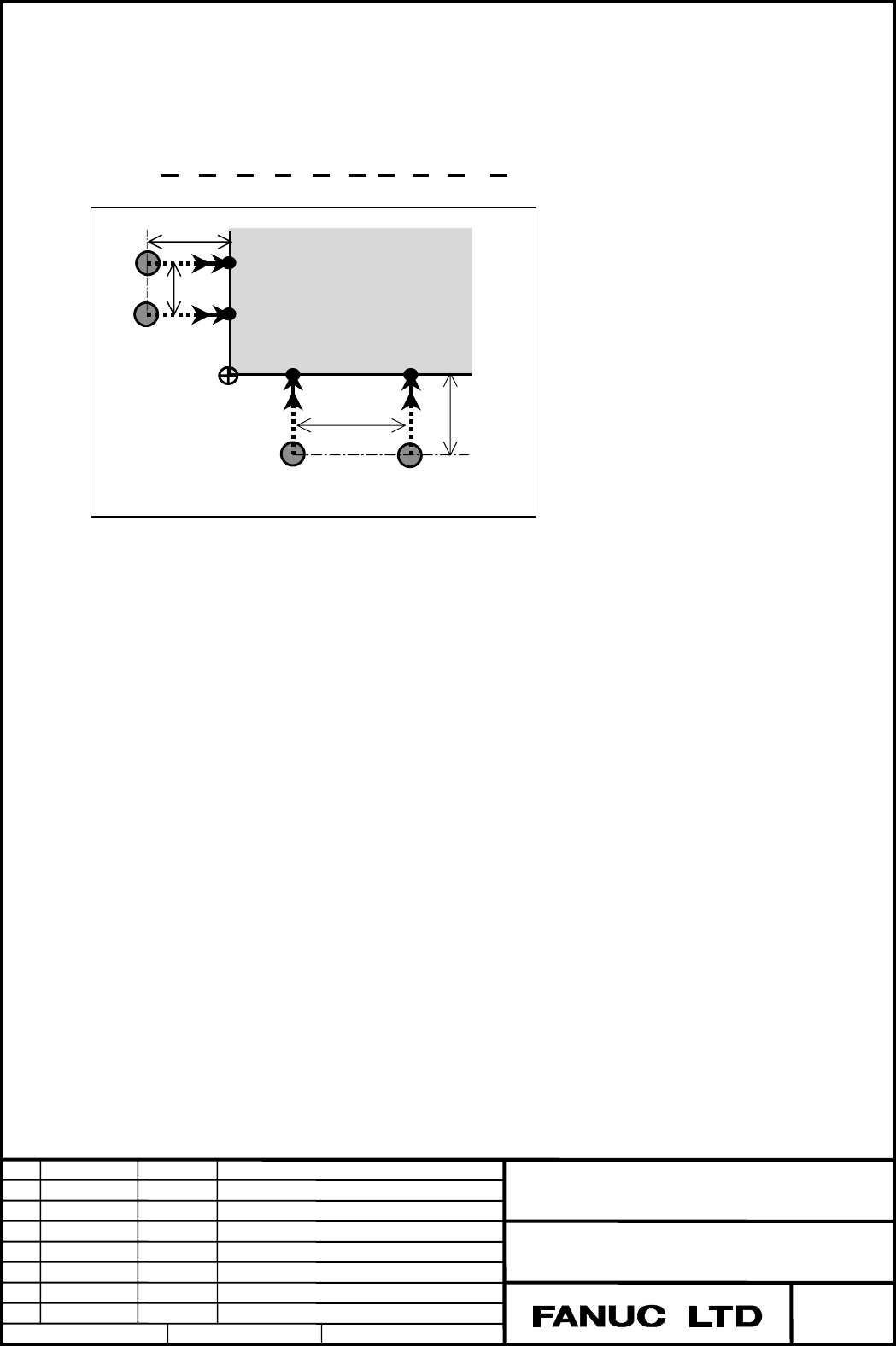

4-8. Outside corner measurement (G187)
This is a menu for measuring an outside corner position.
Create ISO code program in the following form.
G187 A B C D U V I J F W ;
A
: 1
st
measure point X
Input the approximate X coordinate of the first measuring point.
B
: 1
st
measure point Y
Input the approximate Y coordinate of the first measuring point.
C
: 3rd measure point X
Input the approximate X coordinate of the third measuring point.
D
: 3rd measure point Y
Input the approximate Y coordinate of the third measuring point.
U
: Distance for X axis
Input the distance from measuring start point to single surface of X axis.
V
: Distance for Y axis
Input the distance from measuring start point to single surface of Y axis.
I
: Increment for X axis
Input the increment from the first point to the second point for X axis.
J
: Increment for Y axis
Input the increment from the third point to the fourth point for Y axis.
F
: Feed rate for movement
Input the feed-rate for movement on measuring.
2
3
(
C
,
D
)
4
1
(
A
,
B
)
I
J
U
V
Measuring
start point
Previous page
Next page
