OPERATION1. GENERAL

B–63834EN/02

346

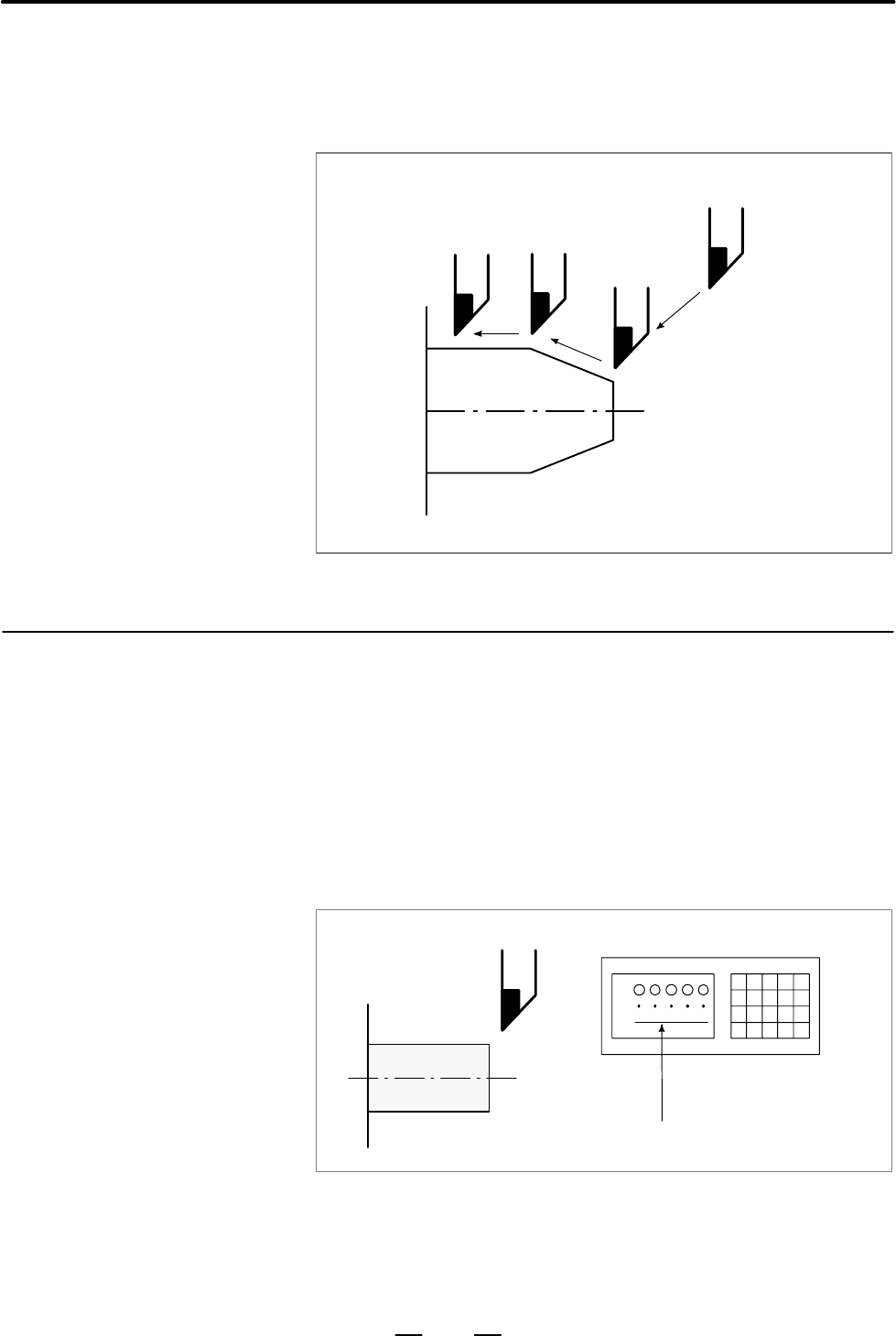

When the cycle start push button is pressed, the tool executes one

operation then stops. By pressing the cycle start again, the tool executes

the next operation then stops. The program is checked in this manner (See

Section III–5.5).

Cycle start

Tool

Workpiece

Fig.1.4.1 (c) Single block

Tool

CRT/MDI

The tool remains stopped, and only the

positional displays of the axes change.

Workpiece

Fig1.4.2 Machine lock

When automatic running is placed into the auxiliary function lock mode

during the machine lock mode, all auxiliary functions (spindle rotation,

tool replacement, coolant on/off, etc.) are disabled (See Section III–5.1).

D Single block

1.4.2

How to View the

Position Display

Change without

Running the Machine

Explanations

D Machine lock

D Auxiliary function lock
