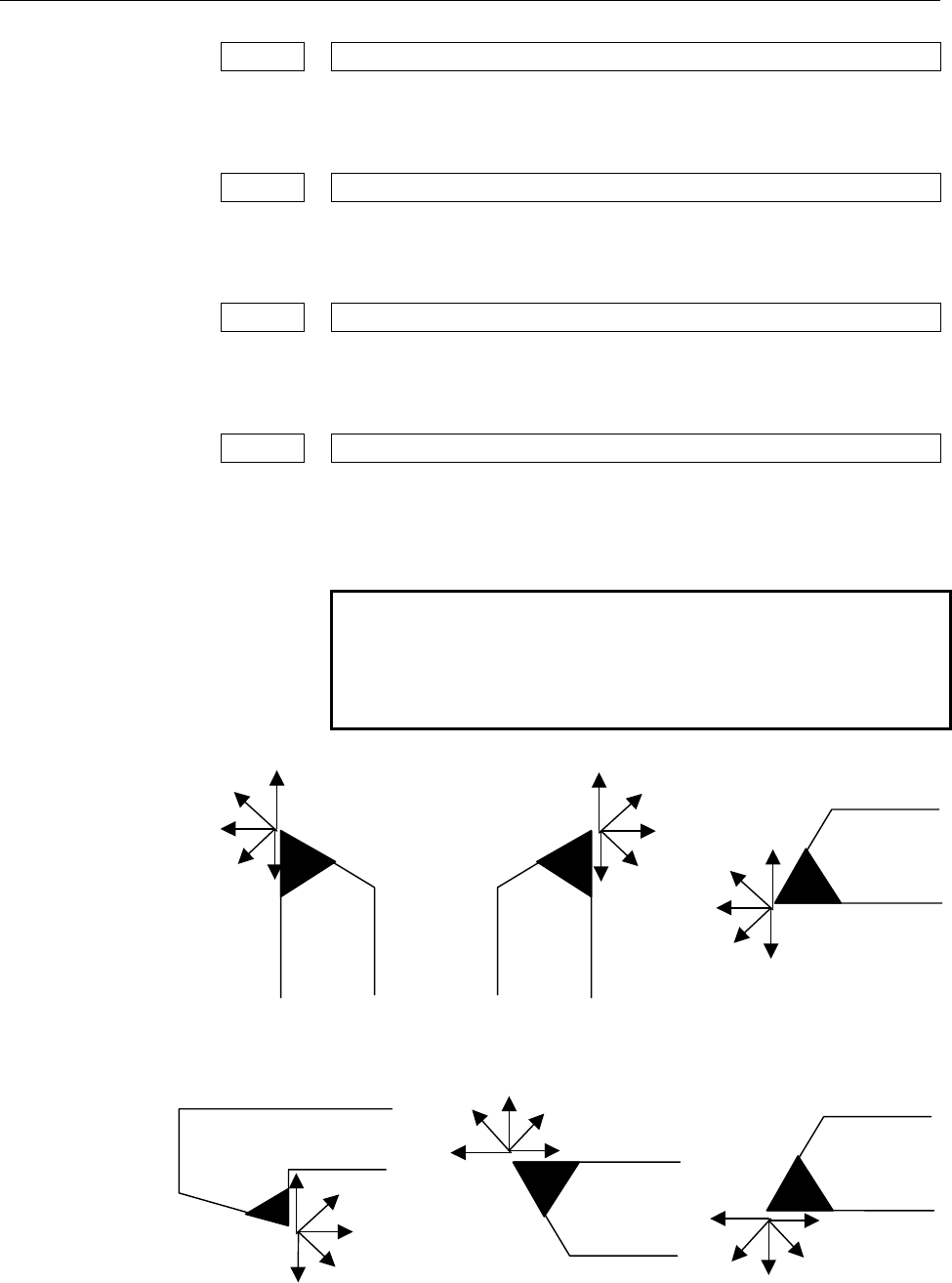

1.MANUAL GUIDE 0i MANUAL GUIDE 0i B-63834EN/02

- 698 -

9802

PCOVR1

PCOVR1 Override of the feed amount when the cutting angle of a tool is greater

than 90 degrees but less than or equal to 135 degrees.

9803

PCOVR2

PCOVR2 Override of the feed amount when the cutting angle of a tool is greater

than 90 degrees but less than or equal to 135 degrees.

9804

PCOVR3

PCOVR3 Override of the feed amount when the cutting angle of a tool is greater

than 180 degrees but less than or equal to 225 degrees.

9805

PCOVR4

PCOVR4 Override of the feed amount when the cutting angle of a tool is greater

than 225 degrees but less than 270 degrees.

Setting range : 0 to 20 Increment : 10%

NOTE

The override is invalid when the cutting angle is 90

degrees, 180 degrees, or 270 degrees.

In order to use this feature, set all parameters of

9802 - 9805 to non zero value.

<4>

<2>

<1>

<3>

Outer (normal)

<4>

<1>

<2>

<3>

Outer (reverse)

<1>

<3>

<2>

<4>

Inner (normal)

<1>

<2>

<3>

<4>

Inner (reverse)

<1>

<2><3>

<4>

Face (normal)

<1>

<2><3>

<4>

Face (reverse)
