FANUC Series 16i /18i /21i -MB/TB
Trouble Diagnosis
Specifications
2001.07.02
M.Kobayashi H.Kochiya
02 2001.10.19 Exchan
g
e Bit ma
p
5.Trouble Diagnosis Graphic Screen
Servo/spindle data is automatically memorized for several seconds before alarm occurs
and display and waveform of data can be displayed in Trouble Diagnosis Graphic Screen.
Maximum 2 kinds of data are displayed in the same time.
5.1.Display
Display procedure
1. Press function key [Message].
2. Press the continuous menu key [>] and press soft key [W.GRPH].
3. Press soft key [G-ADJ.].

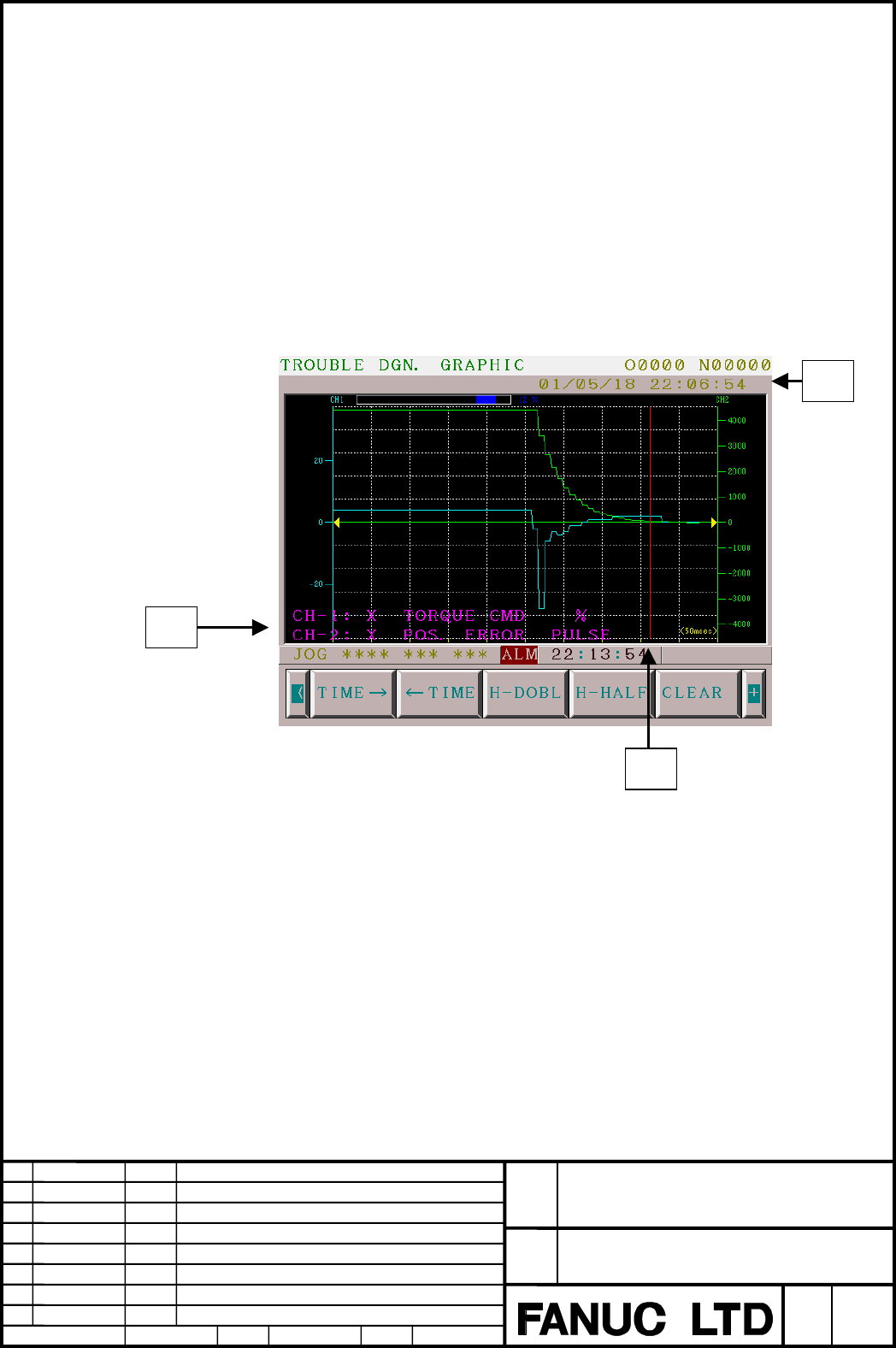

Contents of display
(1) Contents of displayed waveform:
Channel No. : Axis name Data Kind Data unit
(2) Red vertical line shows the position (time) of alarm.
(3) Data and time of alarm
(2)
(1)
(3)
