B–63083EN/02

8. CONNECTING THE PC INTERFACE

111

1. If the hard disk drive is connected to the control unit (CNH1),

disconnect it. (When a personal computer interface connection unit

is installed, the hard disk drive cable is not connected to the main

control unit. Instead, it is connected to the personal computer interface

connection unit.)

2. Remove the screws (× 2) from the control unit.

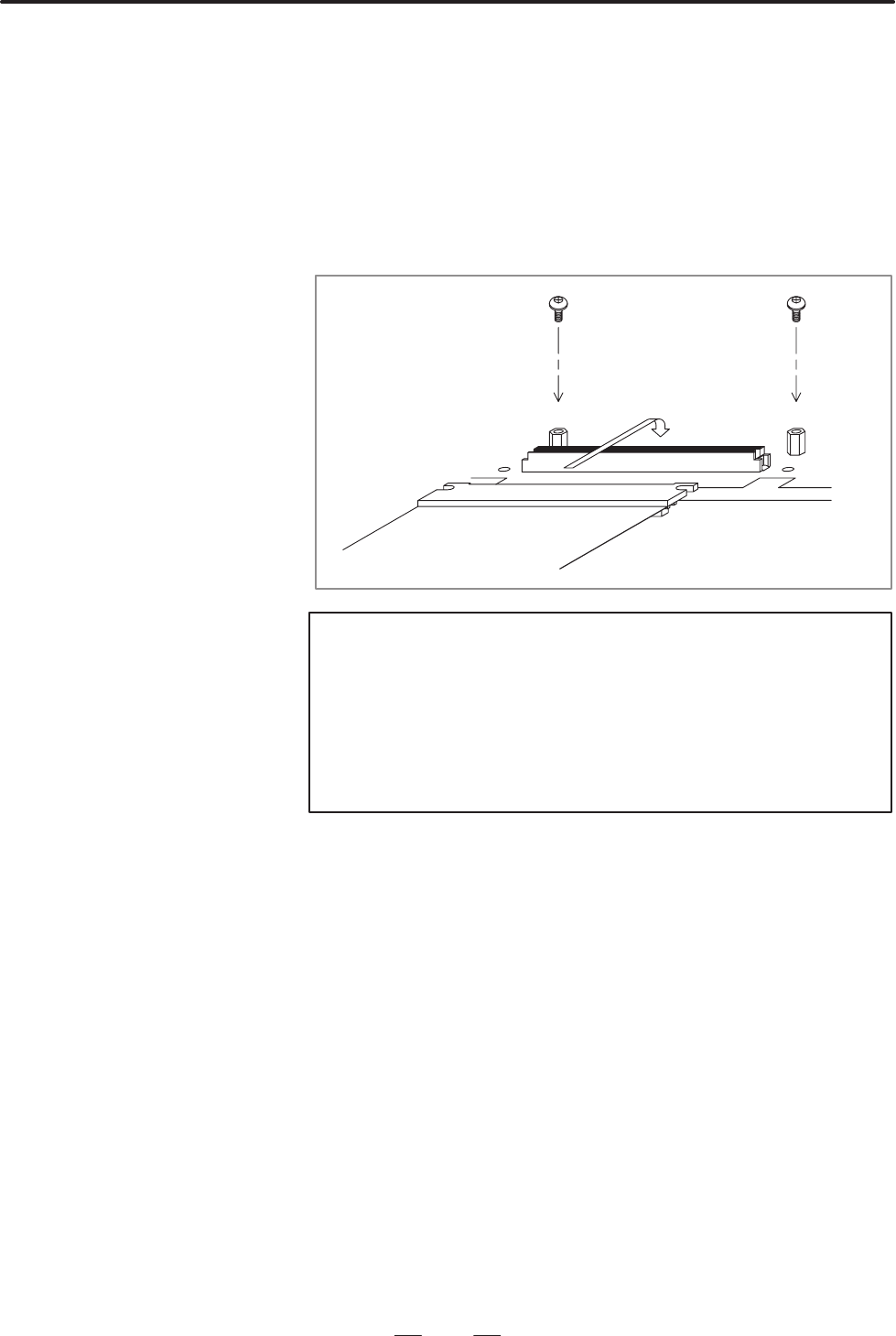

3. Plug the connector (CN1) of the cable from the PC interface connector

panel unit into the connector (CNY1) of the control unit.

4. Tighten the screws (× 2).

CNY1

CN1

NOTE

When a personal computer interface connection unit,

mounted together with a hard disk drive on the MDI unit, is

to be installed on the machine, install it under the control unit

so that the rubber vibration insulators of the hard disk drive

are vertical with respect to the ground, as shown on the

previous page.

Connection method
