Series 21i/210i-Model A Connection manual (Hardware) Page 135

Connection manual (Hardware)

Page of 392

/ 392

B–63083EN/02

9. CONNECTION TO FANUC I/O Link

122

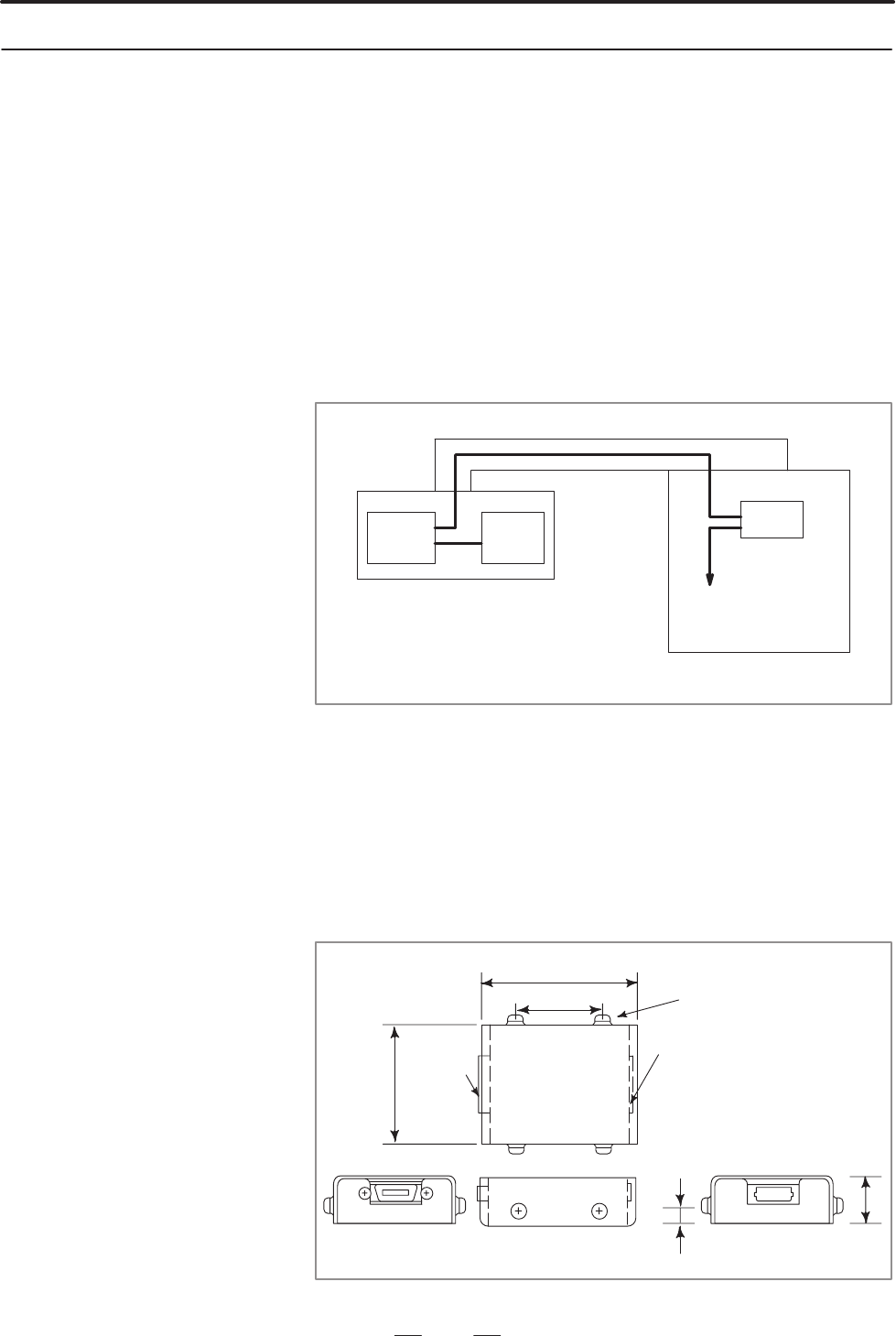

The FANUC I/O Link can be extended to the maximum length of 200 m

with optical fiber cables using an optical I/O Link adapter. The length of

the electrical cable connected to the optical conversion adapter must not

exceed 2 m.

In the following cases, use an optical fiber cable.

D When the cable is more than 15 meters long.

D When the cable is run between different cabinets, and the cabinets

cannot be connected with each other via a ground wire of 5.5 mm

more.

If the power magnetics cabinet includes an I/O Link slave unit, and

cables are connected through a duct to the operator’s panel (as shown

below), the control section I/O Link slave unit can be assumed to be

incorporated in the same cabinet.

Operator’s

panel I/O

CNC

control

section

Operator’s panel

Distribution I/O,

etc.

Other units

Power magnetics cabinet

D When there is concern that the cable is influenced by strong noise; for

example :

When there is a strong electromagnetic noise source beside the cable

such as a welding machine.

When a noise generating cable such as a power cable runs for a long

distance in parallel with the cable.

Optical connector

COP1

connector

for unit

connecting

JD1

66.0

40.0

FANUC

4–M3

Unit : mm

45.0

7.0

18.0

9.2.2

Connection of FANUC

I/O Link Optical Fiber

Cable

External dimension of

optical link adapter
