B–63083EN/02

9. CONNECTION TO FANUC I/O Link

222

Most input signals for the source output type connection unit support a

sink type non–isolated interface. For some input signals, however, either

sink or source type can be selected. (European safety standards demand

the use of sink types.)

The machine’s contacts shall conform to the following specifications:

Capacity: 30 VDC, 16 mA or higher

Intercontact leakage current in closed circuit:

1 mA or less (at 26.4 V)

Intercontact voltage drop in closed circuit:

2 V or less (including the voltage drop in the cables)

Contact

Input signal

Filter and level

conversion cir-

cuit

Receiver

output

signal

Operator’s panel connection unit

Circuit of sink type input receiver

+24V

Machine

Contact

Input signal

Filter and level

conversion cir-

cuit

Receiver

output

signal

Circuit of input receiver for which common voltage can be selected

DICMN1

DICMN2

Machine Operator’s panel connection unit

+24V

Contact

Input signal

Filter and level

conversion cir-

cuit

Receiver

output

signal

+24V

DICMN1

DICMN2

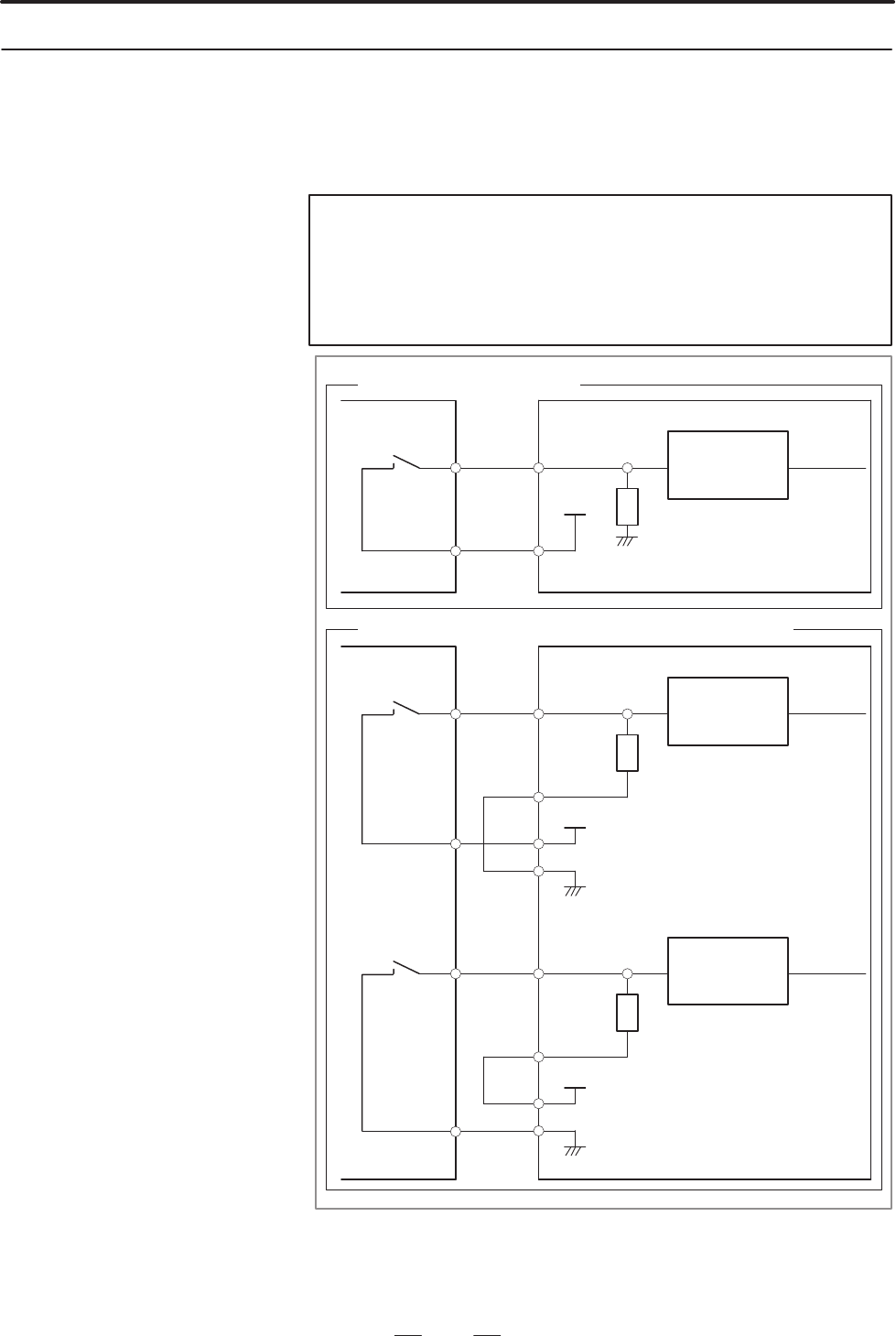

Fig. 9.9.1(a) Receiver circuit

Always connect both DICMN1 and DICMN2 to 24 V or 0 V. Do not leave

them open.

9.9.1

Input Signal

Specifications for

Source Output Type

Connection Unit
