B–63083EN/02

5. CONNECTION TO CNC PERIPHERALS

(1)NC outputs DC1.

(2)The external device starts sending data upon receiving DC1.

(3)NC sends DC3 when NC processing is delayed.

(4)The external device stops sending data to NC after receiving DC3.

The device may send up to 10 characters after receiving DC3. If it

sends more than 10 characters, alarm 087 will occur.

(5)NC reissues DC1 upon completing delayed processing.

(6)The external device restarts data output upon receiving the DC1 code

(the data must be the next data to the preceding.)

(7)NC sends DC3 upon completing data read.

(8)The external device stops sending data.

10ms or longer 10ms or longer

DC3

ER code

DC1 CD3 DC1

1ms or longer

Up to 10 characters

ER(Output)

RS(Output)

SD(Output)

RD(Input)

DR(Input)

CS(Input)

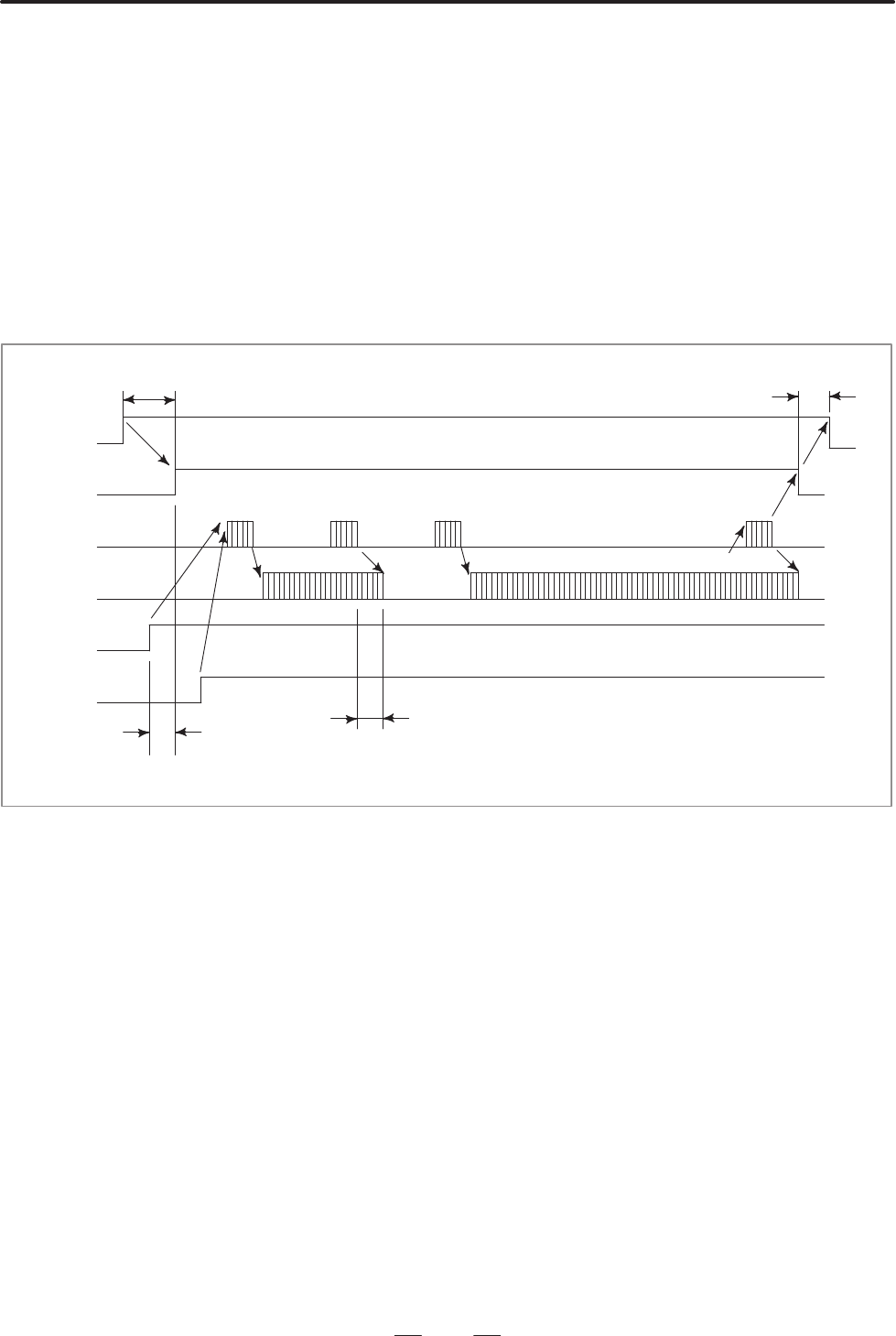

Time chart when the NC

receives data

(Read into memory)
