B–63083EN/02

9. CONNECTION TO FANUC I/O Link

200

- This PCB can raise a confirmation sound when a key is pressed. The

condition to raise an audible alarm is set in 8–bit units, or in *KYCn

units. If *BZMD and common *KYCn are disconnected, a KYnx

input causes a sound to generate. If they are connected, a KYnx input

does not generate the sound.

To generate a confirmation sound for key input, the DO (PMC address

DO + 00.7) “MD07” must have been turned to “1” (see Subsec. 9.7.5).

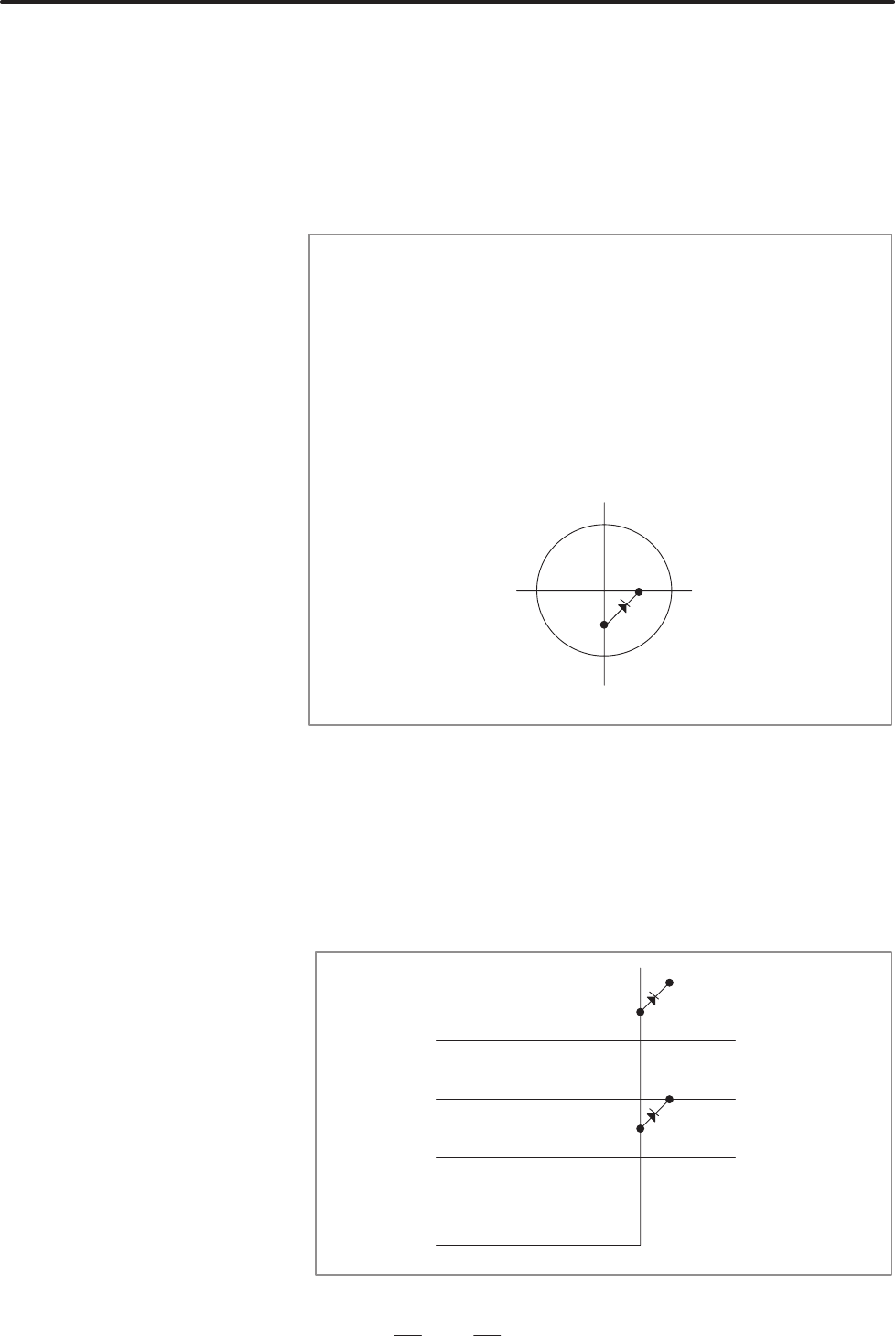

1 A diode is necessary to connect *BZMD and *KYCn, as

shown below.

2 This setting cannot be changed when power is supplied.

3 The sound is generated when the circuit closes between

common signal *KYCn and data signal *KYDx. It does not

sound when the circuit is disconnected. If key switches are

used, the sound is heard at the moment a key is pressed.

It does not sound when a key is released or when a key is

held pressed.

*KYCn

*BZMD

(Example)

If *BZMD is connected to *KYC0 and *KYC2, but disconnected from

*KYC1 and *KYC3, as shown below, closing a switch at key

addresses KY10 to KY17 and KY30 to KY37 causes a confirmation

sound for key input to be heard, but closing a switch at key addresses

KY00 to KY07 and KY20 to KY27 does not.

See item “D Key switch addresses”.

*KYC0

*KYC1

*KYC2

*KYC3

*BZMD
