B–63083EN/02

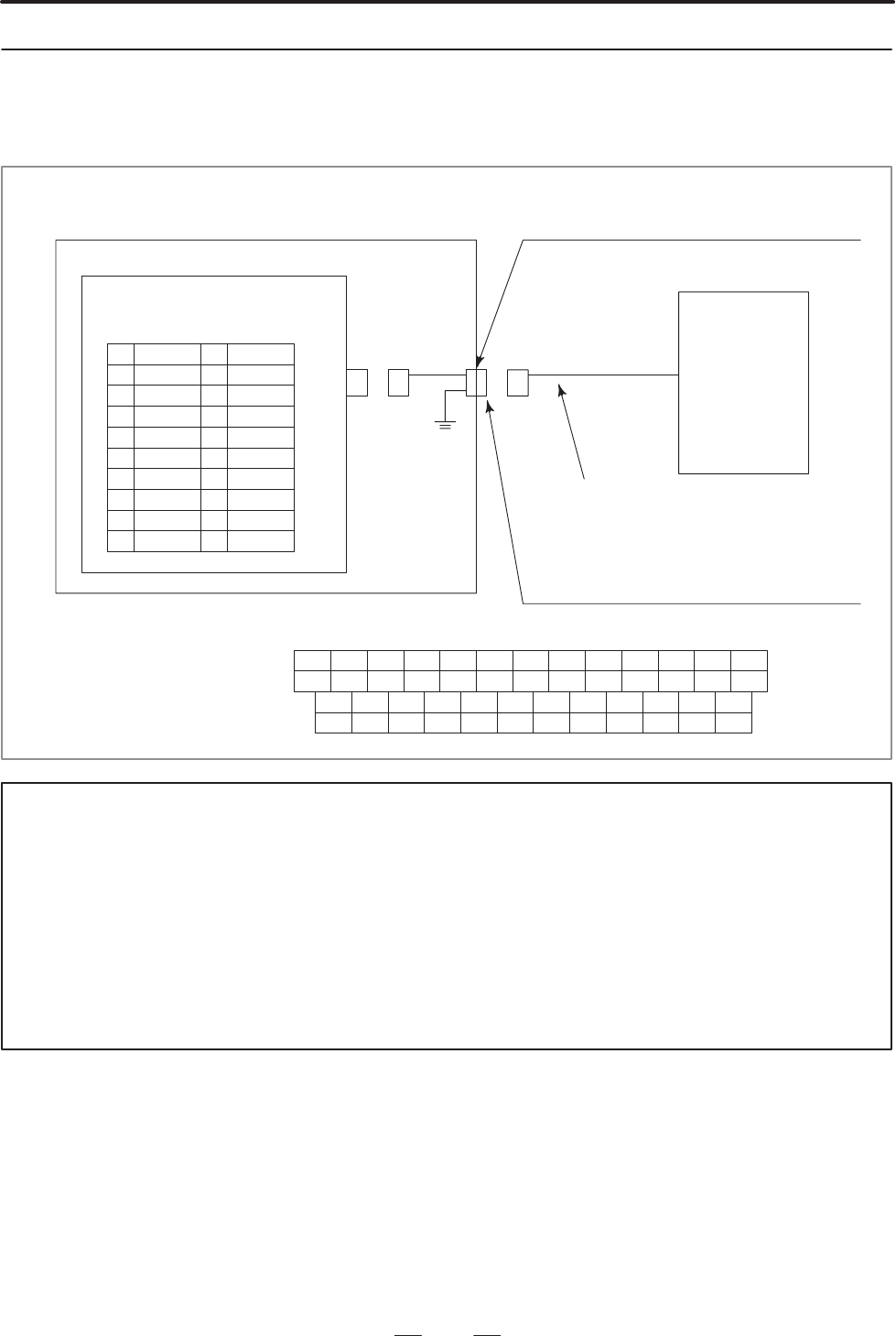

5. CONNECTION TO CNC PERIPHERALS

+24V

JD36A, JD36B

(PCR–E20MDK–SL–A)

Relaying connector

Connector: DBM–25S

(Japan Aviation Electronic Inc., Ltd.)

Lock metal: D20418–J9

(Japan Aviation Electronic Inc., Ltd.)

Cable side connector

Connector: DBM–25P

(Japan Aviation Electronic Inc., Ltd.)

Cover: DB–C2–J9

(Japan Aviation Electronic Inc., Ltd.)

CNC

Relaying

cable

Accessory for

HANDY FILE

FANUC

Handy File

8 9 10 11 12 13

14 15 16 17 18 19

20 21 22 23 24

+24

RELAYING CONNECTOR

SIGNAL LAYOUT

NOTE

1 Machine tool builder shall furnish relay connector and relay cable.

2 Use a totally shielded cable for the signal cable.

Recommended cable specification: A66L–0001–0284#10P

3 Open all terminals other than illustrated.

4 Set suitable parameters on reader/puncher interface for FANUC Handy File. The baud rate is

4800 baud in standard.

5 Connect the FANUC Handy File to either JD36 or JD36B. Do not use both pins; the power

capacity may exceed that of +24V and blow the fuse.

5.2.5

FANUC Handy File

Connection
