FANUC CNC Simulator for PC, Operator's Manual Additional Manual Page 29

Additional Manual
Edit
App
rvDesi
g
.
29
/
41
Date
Design
Descri
p
tion
Data
FANUC CNC Simulator for PC
Oprator’s Manual
A
-90000E/01
Feb.01.2005
Page
Title
Draw
No.
H.Yamada
8.2 CHANGING THE SIZE OF THE CNC DISPLAY
This section explains how to change the size of the CNC display.
You can select between the following two CNC display sizes:
- 10.4 inches
- 15 inches
Right-click the mouse, and a popup menu appears. Position the cursor on [CNC Display
Size (S)], and the available CNC display sizes appear. Click the desired size.
Then, a message appears. Click OK.
The next time the simulator starts, the selected CNC display size will take effect.

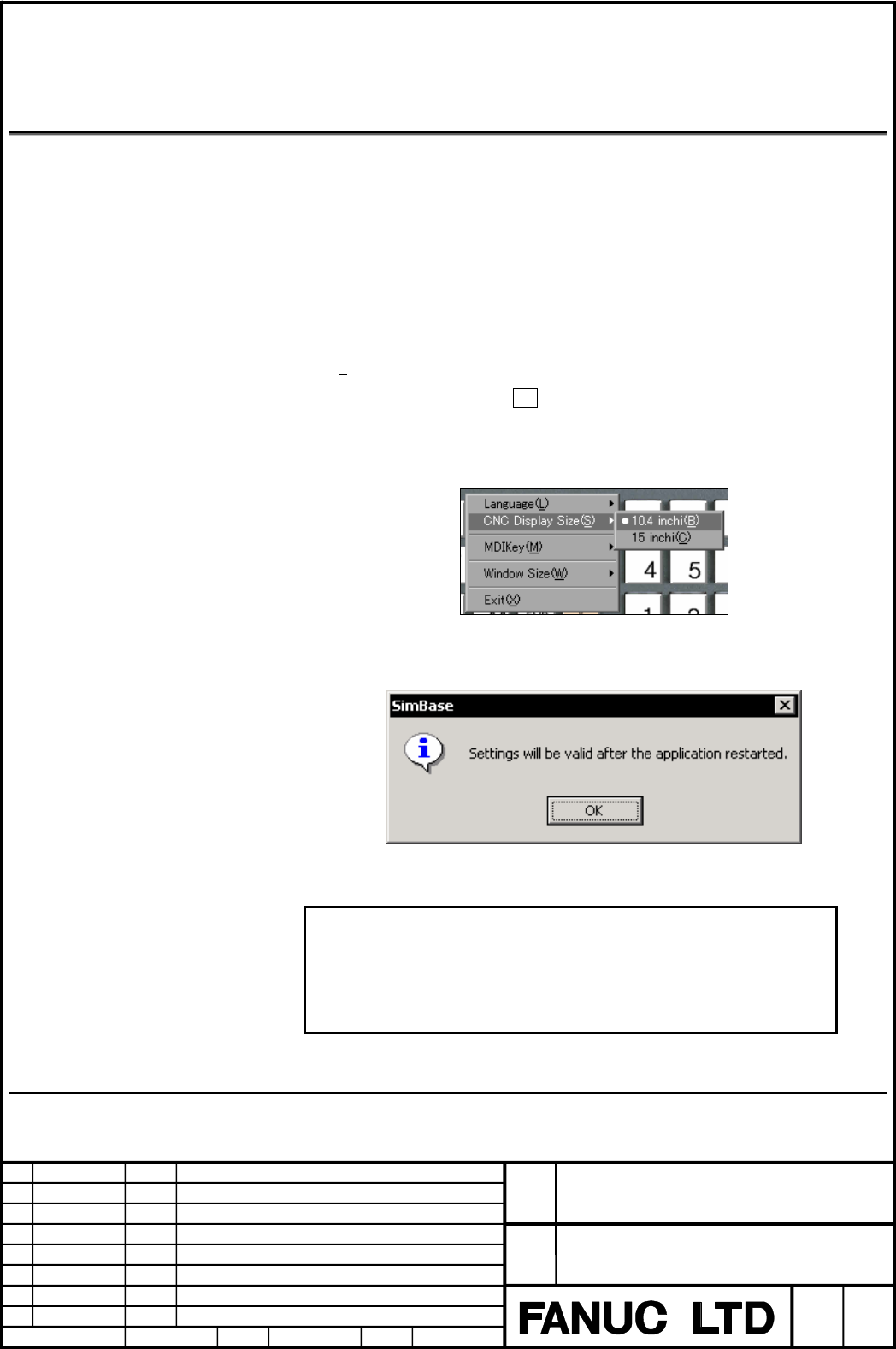

Fig. 8.2 (b) Popup menu: "Change CNC Display Size"
Fig. 8 (c) Message that appears after you change the setting
NOTE
For the CNC display size change to take effect, you must restart
the CNC Simulator.
8.2.1 CNC Display Size and Personal Computer Display Resolution
As the CNC Display Size becomes larger, the CNC Simulator size also becomes larger.
