9.2.6 Deleting Machine Compositions
This section explains how to delete machine compositions.
From the List of Machine Composition Setting, select the machine composition you want to
delete and click the Delete (D) button.
The following confirmation message appears. Click the OK button.
To cancel the deletion, click the Cancel button.

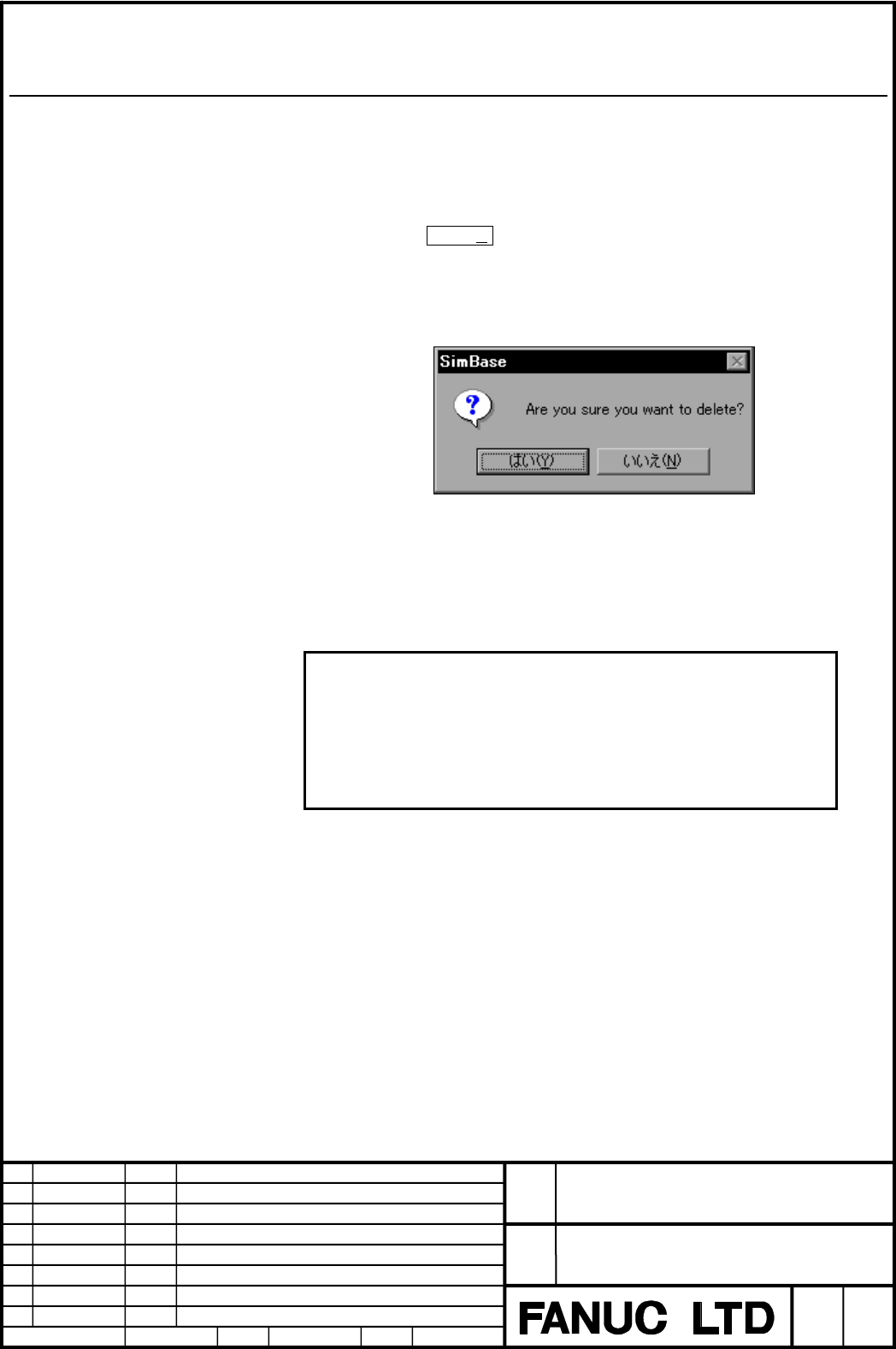

Fig. 9 (i) Deletion confirmation message
If you delete the default machine composition, the simulator will return to the state in which it
was immediately after being installed, with no machine composition being selected.
NOTE
If you delete the default machine composition, the simulator will
return to the state in which it was immediately after being
installed, with no machine composition being selected.
