FANUC CNC Simulator for PC, Operator's Manual Additional Manual Page 30

Additional Manual
Edit
App
rvDesi
g
.
30
/
41
Date
Design
Descri
p
tion
Data
FANUC CNC Simulator for PC
Oprator’s Manual
A
-90000E/01
Feb.01.2005
Page
Title
Draw
No.
H.Yamada

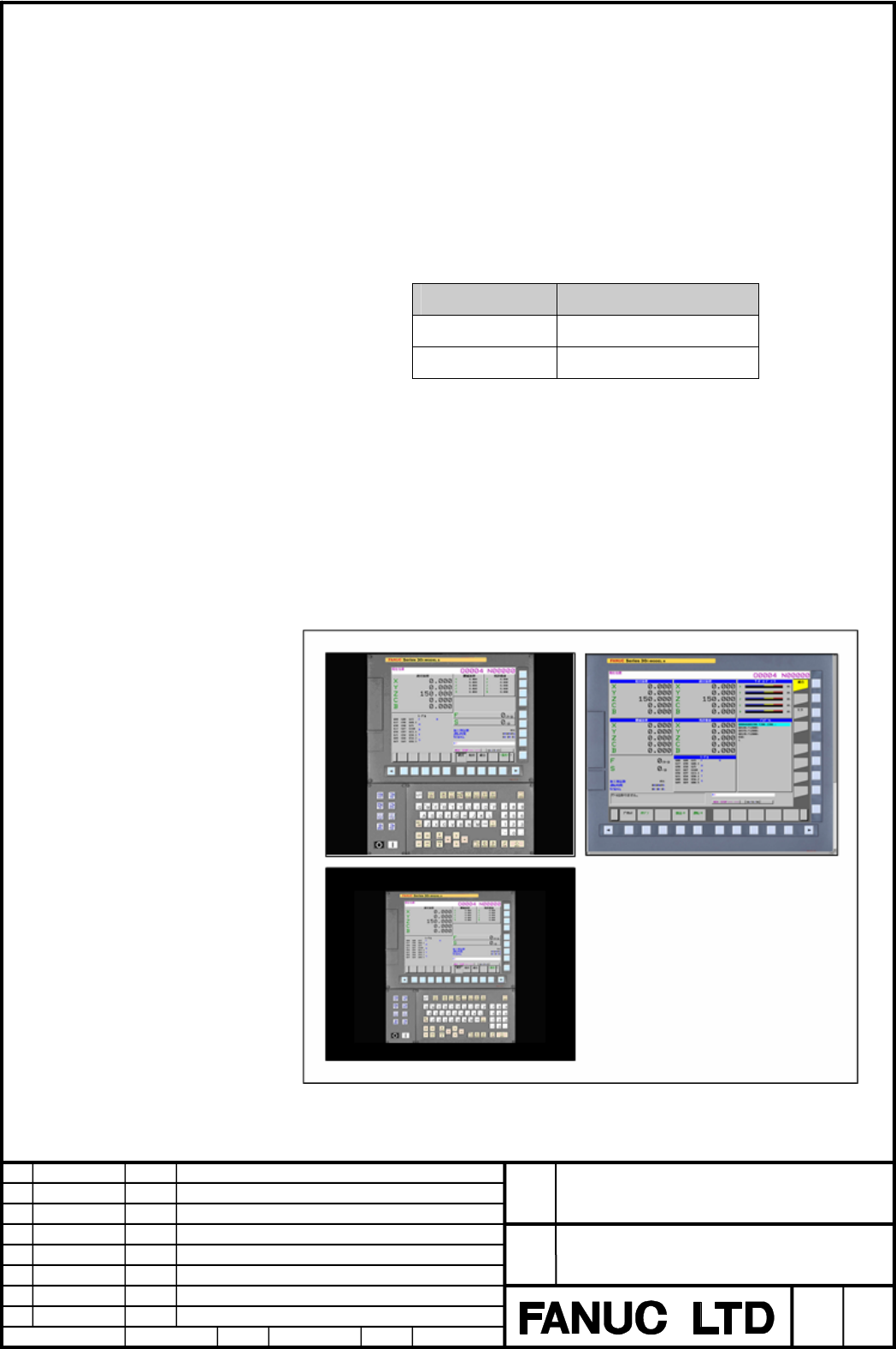

Thus, depending on the resolution of the display, the CNC Simulator may not fit in the
display in its entirety.
We recommend that you set the display resolution according to the CNC display size, as
given in the table below.
Fig. 8 (d) Correspondence between CNC display size and display
resolution
CNC display size Optimum display size
10.4 inch 1280*1024(SXGA)
15 inch 2048*1536(QXGA)
If the simulator does not fit in the screen in its entirety due to low display resolution, scroll
bars are displayed; you can use the scroll bars while using the CNC Simulator.
The upper left drawing in the figure below shows the simulator displayed with an fitting
display size, the upper right one at a lower display resolution, and the lower left one at a
higher display resolution.
Fig. 8 (e) CNC sizes and examples of display at different display resolutions
