FANUC CNC Simulator for PC, Operator's Manual Additional Manual Page 37

Additional Manual
Edit
App
rvDesi
g
.
37
/
41
Date
Design
Descri
p
tion
Data
FANUC CNC Simulator for PC
Oprator’s Manual
A
-90000E/01
Feb.01.2005
Page
Title
Draw
No.
H.Yamada

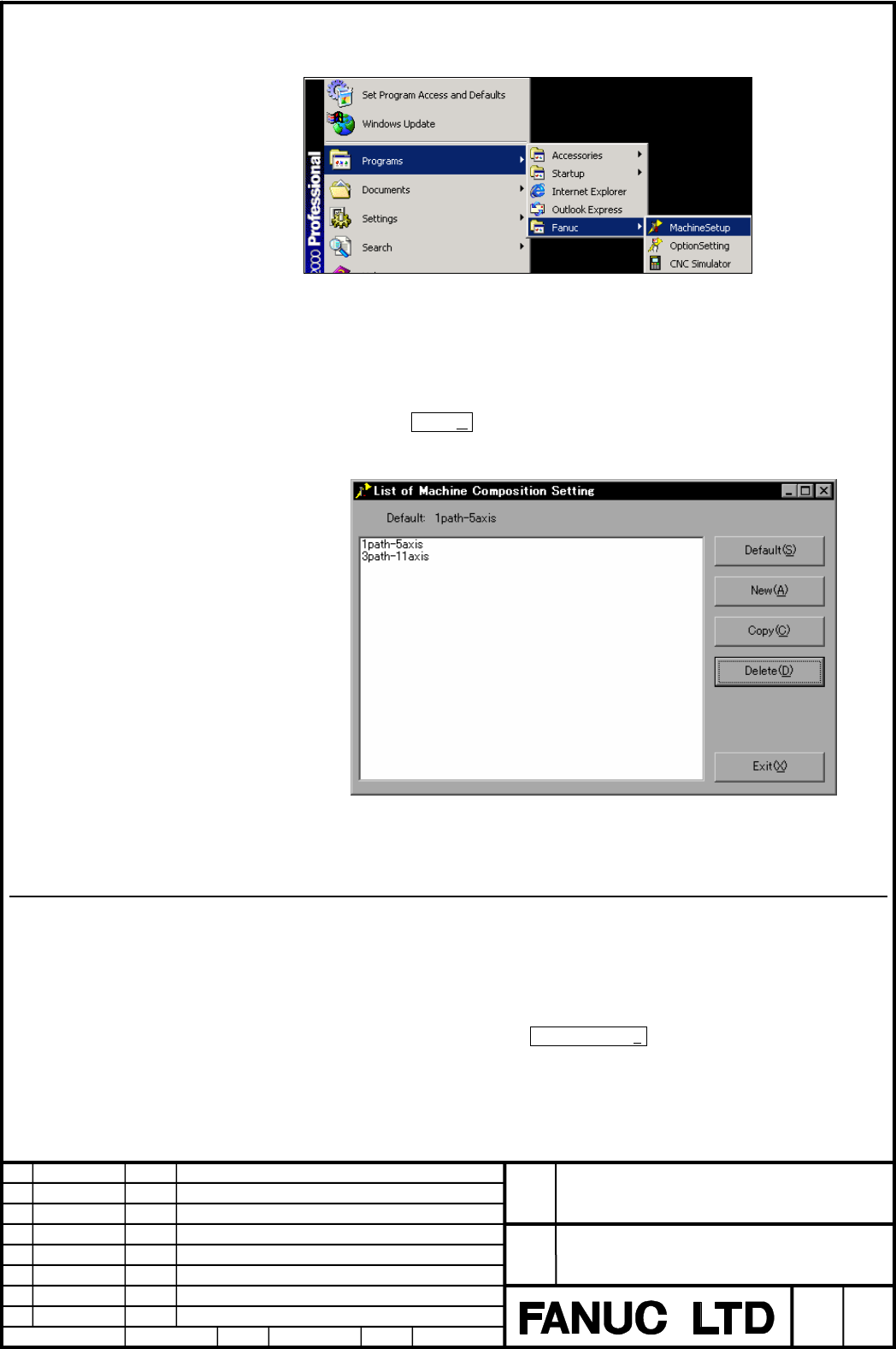

Fig. 9 (c) Start menu: "Machine Composition Setting"
When it has started, the "List of Machine Composition Setting" window, shown below,
appears.
To exit, click the Close (X) button.
Fig. 9 (d) List of Machine Composition Setting window
9.2.3 Switching between Machine Compositions
This subsection explains how to switch the simulator to the desired machine composition.
From the List of Machine Composition Setting, select the machine composition you want to
use with the simulator, and click the Default Setting (S
) button.
The name following "Default: " at the top of the window changes to the selected machine
composition name.
