B-65332EN/01 SPECIFICATIONS 1.OVERVIEW
1
- 3 -
OVERVIEW
Parts supplied by FANUC

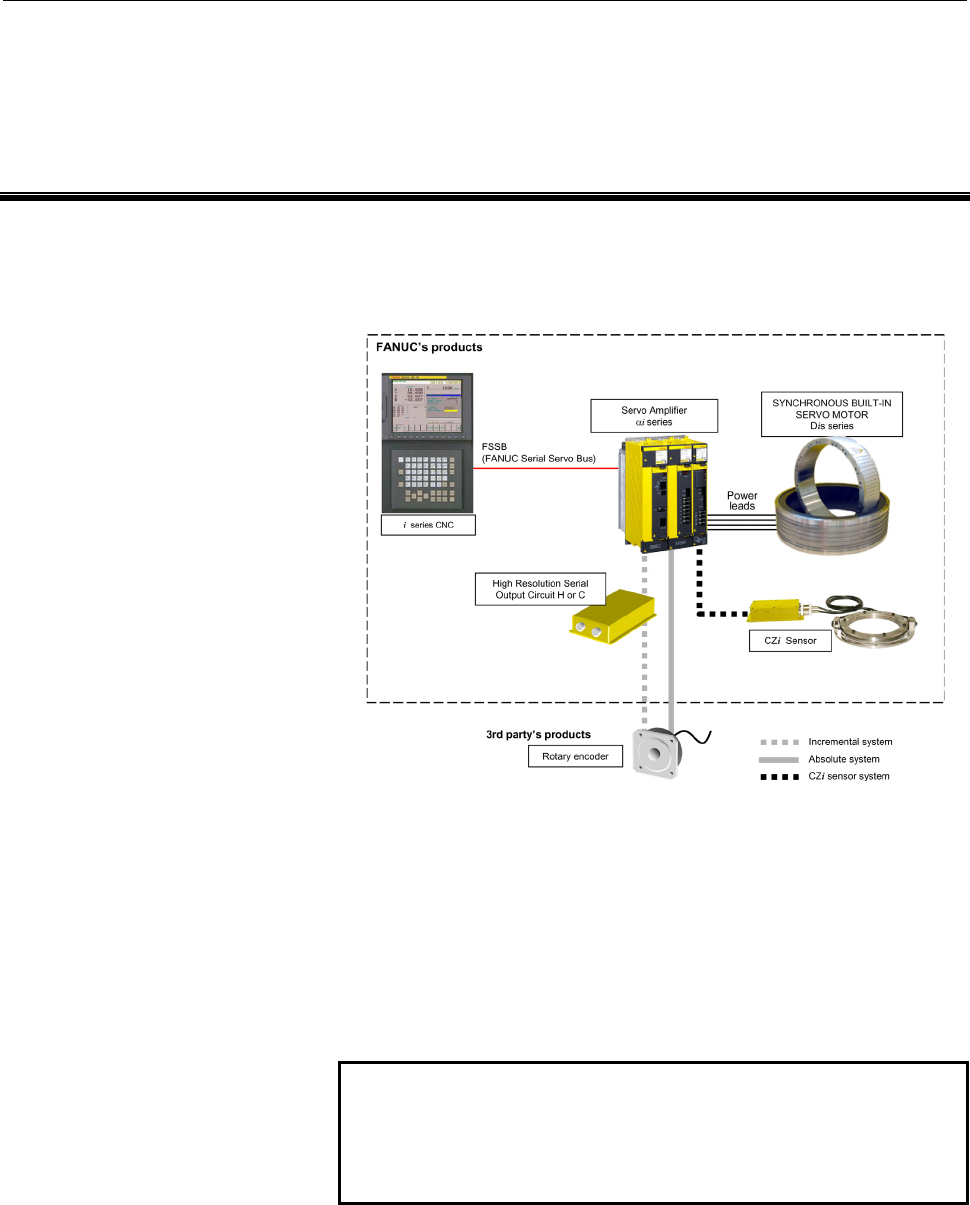

The following shows a typical system configuration of the FANUC
SYNCHRONOUS BUILT-IN SERVO MOTOR Dis series.
the system
- uilt-in Servo Motor (stator and rotor)
CZi Sensor (unnecessary when 3rd party’s encoder is used)
- Resolution Serial Output Circuit H or C
- it
NO
system configuration of the machine. For details,
see Part II,"CONFIGURATIONS AND
SELECTION."
FANUC supplies the following parts according to
configuration of your machine:
- CNC system (CNC, PMC, amplifier, and others)
Synchronous B
-
High
Signal cables (such as a cable between the Serial Output Circu
and amplifier)
TE
Some parts may be unnecessary depending on the
