Descriptions
1.HANDLING THE MOTOR HANDLING, DESIGN, AND ASSEMBLY B-65332EN/01
Transporting a rotor
WARNING
1 Do not remove the corrugated cardboard and tin
plates attached during packing unless the need
arises.
2 Ensure that no magnetic materials (including a tool)
are brought closer to the rotor and that the rotor is
away from magnetic materials. If a magnetic
material such as iron is brought closer to the rotor,
the magnetic material and the rotor can pull each
other with a force of up to 2N/cm
2
, resulting in a
serious injury.

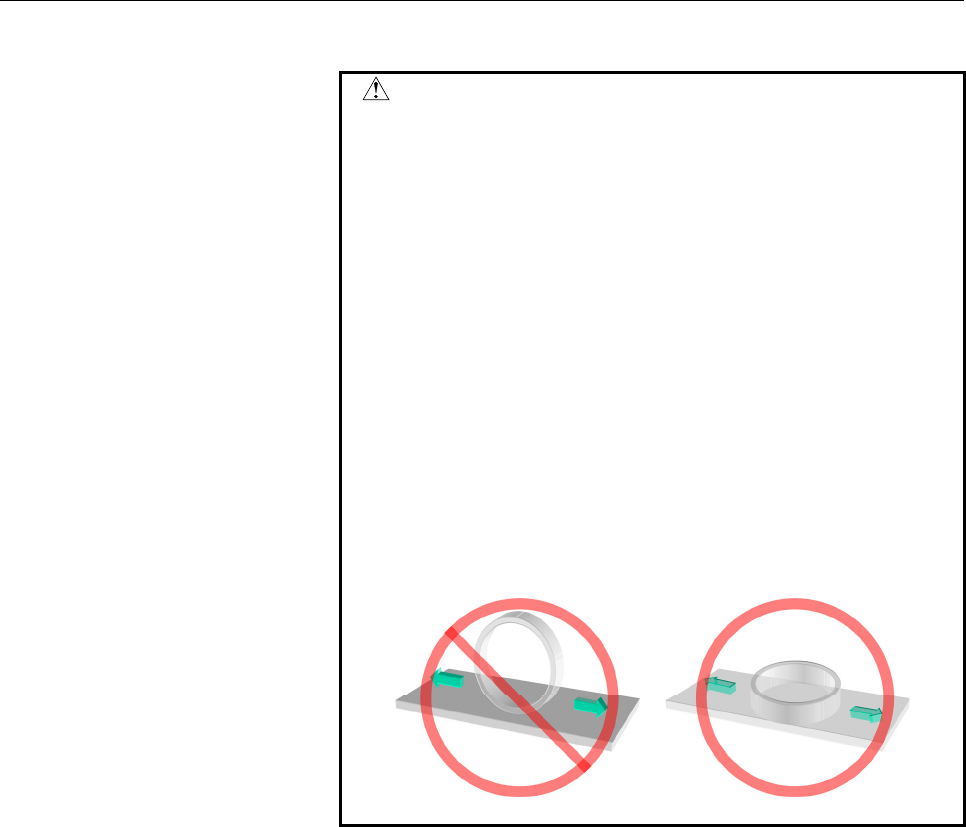

3 When moving a rotor on the surface of a magnetic
material such as a machine installation face or
work table, be sure not to face the magnet side of
the rotor to the magnetic material. Otherwise, the
rotor can be pulled to the magnetic material to
catch your hand, resulting in a serious injury.
Because of an enormous pulling force.
