Descriptions
B-65332EN/01 HANDLING, DESIGN, AND ASSEMBLY 1.HANDLING THE MOTOR
1.2 Rotor
WARNING
For a rotor, many very powerful magnets are used.
So, a rotor can cause medical appliances such as
a pacemaker and AICD to malfunction. Ensure that
persons wearing these medical appliances do not
get closer to a rotor. If a person wearing any of
those medical appliances must get closer to a
rotor, the person must be at least 30 cm away from
the rotor.

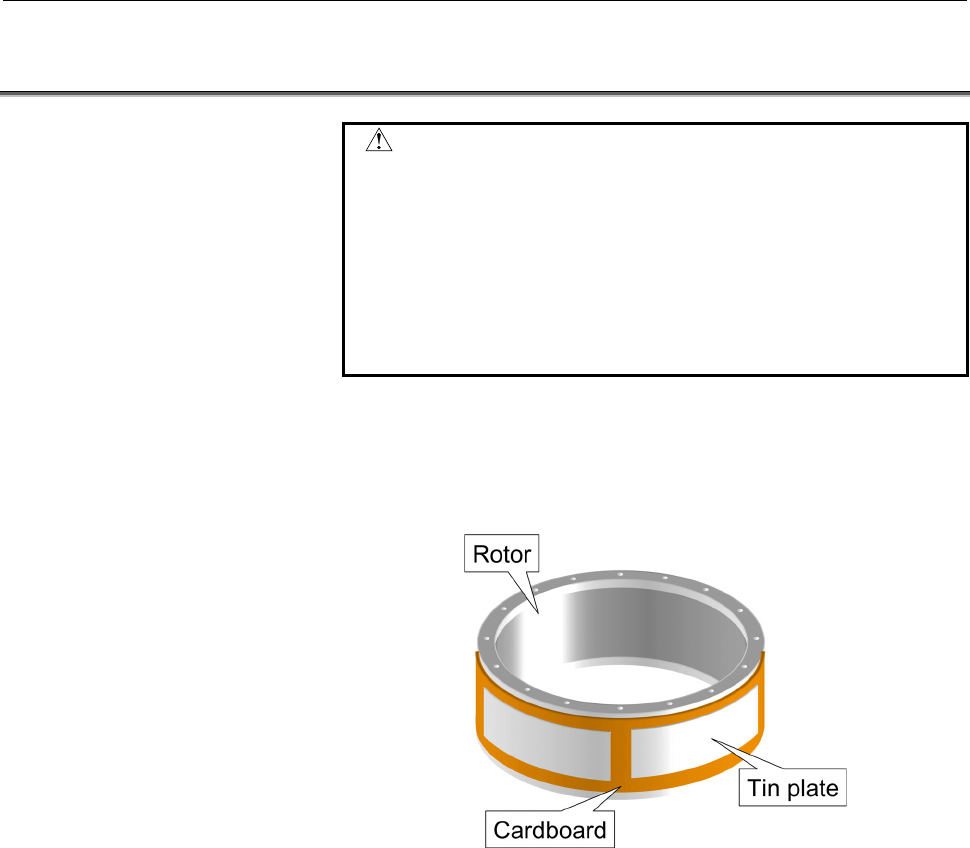

Storing a rotor
When a rotor is shipped from FANUC, it is packed so that it does not
affect the outside. Until a rotor is assembled to a machine, keep the
in plates and cushioning corrugated cardboard attached to it. t
or other storage requirements, see the description of stators. F
