1.AXIS CONTROL B-63323EN-1/03

- 68 -

1.3.6 Interpolated pitch error compensation

Overview

In stored pitch error compensation, the pitch error compensation pulse

at each pitch error compensation point is output in the interval between

that point and the next compensation point, as shown in the figure

below.

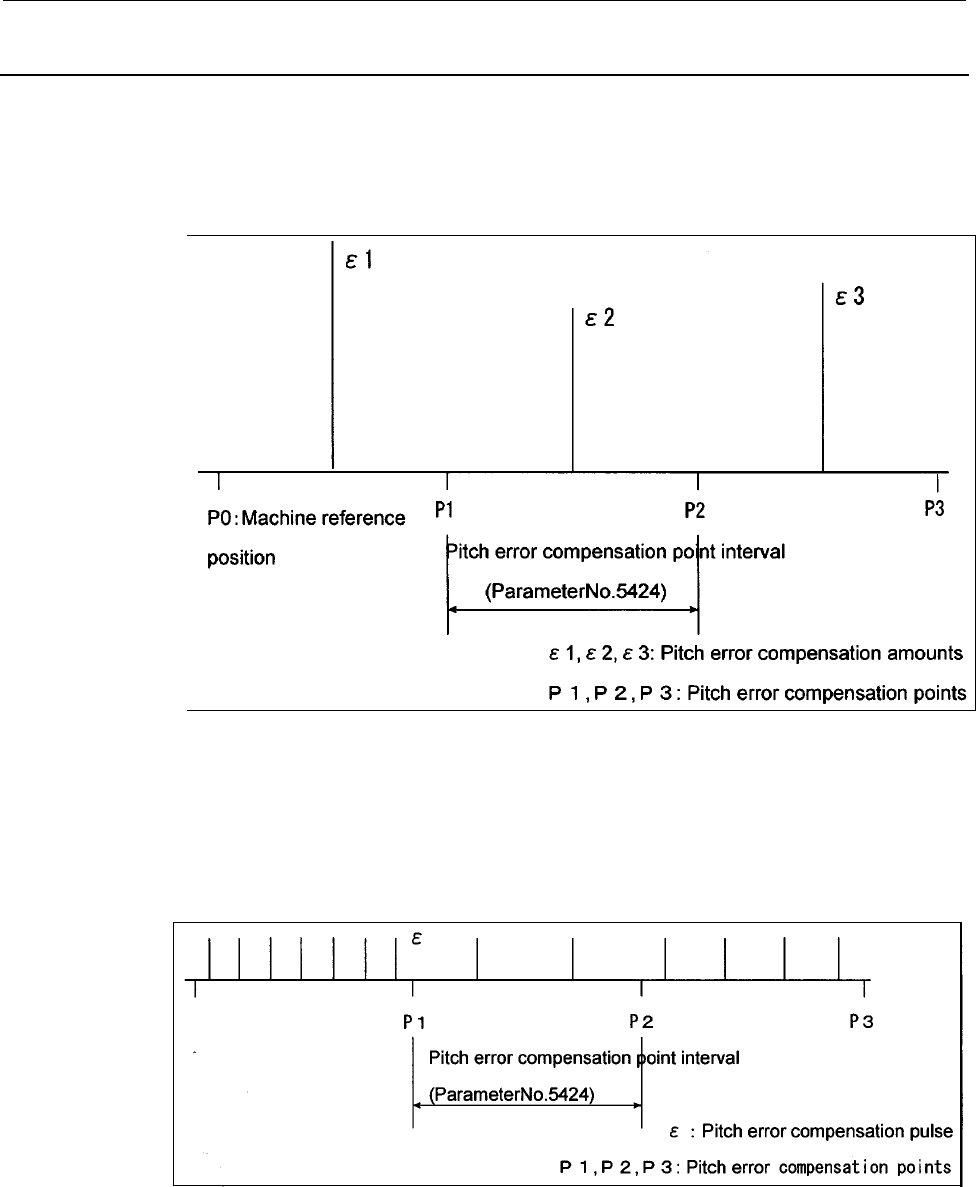

Fig. 1.4.6 (a) Stored Pitch Error Compensation

In interpolated pitch error compensation, the compensation amount at

each error compensation point is divided into pulses at equal intervals

in the interval between that point and the next point on the travel axis

and output, as shown in the figure below.

Fig. 1.4.6 (b) Interpolated Pitch Error Compensation Method

When interpolated pitch error compensation is used, the following

parameters are assigned the same values as those in stored pitch error

compensation.

- Number of the pitch error compensation point of the reference

position on each axis - - - - - No.5420

Contents Summary of Series 15i/150i - Model A Connection manual (Function)

Page 1GE Fanuc Automation Europe Computer Numerical Controls Series 15i / 150i - MODEL A Connection Manual (Function) B-63323EN-1/03 TECHNOLOGY AND MORE
Page 2
Page 3B-63323EN-1/03 DEFINITION OF WARNING, CAUTION, AND NOTE DEFINITION OF WARNING, CAUTION, AND NOTE This manual includes safety precautions for protecting the user and preventing damage to the machine. Precautions are classified into Warning and Caution according to their bearing on safety. Also, suppl
Page 4B-63323EN-1/03 PREFACE PREFACE Contents of this document This manual describes all the NC functions required to enable machine tool builders to design their CNC machine tools. The following items are explained for each function. 1. General Describes feature of the function. Refer to Operator’s manua
Page 5PREFACE B-63323EN-1/03 Signal description Relation of interface signals among the CNC, the PMC and the machine tool is shown below: G000 - X000 - CNC F000 - PMC Y000 - Machine tool NOTE For the signals, a single data number is assigned to 8 bits. Each bit has a different meaning. - Expression of sig
Page 6B-63323EN-1/03 PREFACE Parameter description Parameters are classified by data type as follows : Data type Valid data range Remarks Bit Bit axis 0 or 1 Bit spindle Integer In some parameters, signs are Integer axis 0 to }999999999 ignored. Integer spindle Real Standard parameter Real axis See settin
Page 7PREFACE B-63323EN-1/03 Related Manuals for Series 15i/150i- MODEL A The table below lists manuals related to MODEL A of Series 15i and Series 150i. In the table, this manual is marked with an asterisk(*). Table 1 (a) Manuals Related to the Series 15i, 150i Manual name Specification number DESCRIPTIO
Page 8B-63323EN-1/03 TABLE OF CONTENTS (Volume 1 of 3) TABLE OF CONTENTS (Volume 1 of 3) 1 AXIS CONTROL.....................................................................................1 1.1 NUMBER OF CONTROLLED AXES .............................................................2 1.2 SETTING EACH AXIS .
Page 9TABLE OF CONTENTS (Volume 1 of 3) B-63323EN-1/03 1.6.2 Workpiece Coordinate System/Addition of Workpiece Coordinate System Pair ................................................................................................................... 159 1.6.3 Rotation Axis Roll-over.......................
Page 10B-63323EN-1/03 TABLE OF CONTENTS (Volume 1 of 3) 2.4 ALARM SIGNALS ......................................................................................319 2.5 INTERLOCK ..............................................................................................322 2.6 MODE SELECTION.............
Page 11TABLE OF CONTENTS (Volume 1 of 3) B-63323EN-1/03 5.7 PROGRAM RESTART...............................................................................493 5.8 BLOCK RESTART .....................................................................................499 5.9 RETRACE...............................
Page 12B-63323EN-1/03 TABLE OF CONTENTS (Volume 2 of 3) TABLE OF CONTENTS (Volume 2 of 3) 7 FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL..........................................................................................615 7.1 FEEDRATE CONTROL ..............................................
Page 13TABLE OF CONTENTS (Volume 2 of 3) B-63323EN-1/03 9.1 SPINDLE SPEED FUNCTION (S CODE OUTPUT) ..................................735 9.2 SPINDLE SERIAL OUTPUT/SPINDLE ANALOG OUTPUT ......................737 9.3 SPINDLE CONTROL ............................................................................
Page 14B-63323EN-1/03 TABLE OF CONTENTS (Volume 2 of 3) 11.3 INCH/METRIC CONVERSION ................................................................1094 11.4 DIAMETER SPECIFICATION AND RADIUS SPECIFICATION ..............1097 11.5 CUSTOM MACRO ................................................................
Page 15TABLE OF CONTENTS (Volume 3 of 3) B-63323EN-1/03 TABLE OF CONTENTS (Volume 3 of 3) 12 DISPLAY/SET/EDIT .........................................................................1175 12.1 DISPLEY/SET..........................................................................................1176 12.1.1 C
Page 16B-63323EN-1/03 TABLE OF CONTENTS (Volume 3 of 3) 12.2.3 Memory Protection Keys................................................................................... 1251 12.2.4 Program Encryption........................................................................................... 1252 12.2.5 Back
Page 17B-63323EN-1/03 1.AXIS CONTROL 1 AXIS CONTROL -1-
Page 181.AXIS CONTROL B-63323EN-1/03 1.1 NUMBER OF CONTROLLED AXES General Series 15i/150i Item Standard Multiaxis specification specification Number of basic controlled axes 3 Extension of the number of 10 maximum 24 maximum controlled axes (total) (including 2 Cs axes) Number of basic simultaneous 2 cont
Page 19B-63323EN-1/03 1.AXIS CONTROL 1.2 SETTING EACH AXIS 1.2.1 Axis Name General Those axes (including PMC-controlled axes) that are controlled by the CNC must be named. Axis names can be selected from X, Y, Z, A, B, C, U, V, and W (with parameter No. 1020). When parallel axis control, synchronization co
Page 201.AXIS CONTROL B-63323EN-1/03 Parameter 1020 Program axis name for each axis The programmed axis name of each controlled axis is set according to the following table: Axis Setting name X 88 Y 89 Z 90 A 65 B 66 C 67 U 85 V 86 W 87 NOTE
Page 21B-63323EN-1/03 1.AXIS CONTROL 1021 Subscripts of the axis names of parallel, synchronization control, and tandem control axes To distinguish the axes controlled in parallel operation mode, synchronization control mode, and tandem c
Page 221.AXIS CONTROL B-63323EN-1/03 1.2.2 Increment System General The increment system depends on the combination of the least input increment (input increment) and least command increment (output increment). The least input increment is the least increment for the programmed amount of movement. The leas
Page 23B-63323EN-1/03 1.AXIS CONTROL Table. 1.2.2 (b) Increment Least input Least command Maximum stroke system name increment increment 0.01 mm 0.001 mm 99999.999 mm IS-B 0.001 inch 0.0001 inch 9999.9999 inch 0.01 deg 0.001 deg 99999.999 deg 0.001 mm 0.0001 mm 9999.9999 mm IS-C 0.0001 inch 0.00001 inch 99
Page 241.AXIS CONTROL B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 1006 DIA NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective. - . (%/ !% "% !$ !" ' 0: Radius spec
Page 25B-63323EN-1/03 1.AXIS CONTROL #7 #6 #5 #4 #3 #2 #1 #0 1013 IM0 ( !" #$ $ % $ ! %" !$ % $ !% ! #$ !% #$% $ ! %& ' %% % $
Page 261.AXIS CONTROL B-63323EN-1/03 1.2.3 Rotation Axis Specification General Whether an axis is to be set as a linear axis or rotation axis can be specified on an axis-by-axis basis with bit 0 (ROT) of parameter No. 1006. For an axis set as a rotation axis by ROT, the inch/metric conversion function is d
Page 27B-63323EN-1/03 1.AXIS CONTROL ) 56 !" #$ $ $ !$ !%% "% %9 !$ !9 % ! " ! %% % % % & ' : * , )' 5% %* % % , ;% % % $ !$ !%% % < #$ $
Page 281.AXIS CONTROL B-63323EN-1/03 1260 Angular displacement about the rotation axis when the connected motor rotates one turn NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective. 5 @%"
Page 29B-63323EN-1/03 1.AXIS CONTROL 5425 Angular displacement per rotation in rotation-axis pitch error compensation NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective. [Input type] Parameter input [Data type] Realaxis [Unit of data] m
Page 301.AXIS CONTROL B-63323EN-1/03 1.2.4 Controlled Axes Detach General These signals release the specified control axes from control. When attachments are used (such as a detachable rotary table), these signals are selected according to whether the attachments are mounted. The signals can also be used f
Page 31B-63323EN-1/03 1.AXIS CONTROL Controlled axis detach status signals MDTCH1, MDTCH2, ... [Classification] Output signal [Function] These signals notify the PMC that the corresponding axes have been released from control. These signals are provided for each control axis; the affixed numb
Page 321.AXIS CONTROL B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 1005 RMB B 5( ;% !$ !" #$ $ $ !% % !$ 5(*4B%" %&)1,/ & ' / & )' & Caution CAUTION When a 2-axis or 3-axis a
Page 33B-63323EN-1/03 1.AXIS CONTROL 1.2.5 Outputting the Movement State of an Axis General The movement state of each axis can be output to the PMC. Signal Axis moving signals MV1, MV2, ... [Classification] Output signal [Function] These signals indicate that a control axis is moving. The si
Page 341.AXIS CONTROL B-63323EN-1/03 CAUTION 1 These signals maintain their existing condition during a stop, indicating the direction of the axes’ movement before being stopped. 2 In the case of manual handle interrupt and simultaneous automatic and manual operation, the direction depends on the sum of bo
Page 35B-63323EN-1/03 1.AXIS CONTROL 1.2.6 Mirror Image General Mirror image can be applied to each axis, either by signals or by parameters (setting input is acceptable). All movement directions are reversed during automatic operation along axes to which a mirror image is applied. X B A B’ Y 0 When MI1 si
Page 361.AXIS CONTROL B-63323EN-1/03 Mirror image check signal MMI1, MI2, ... [Classification] Output signal [Function] These signals indicate the mirror image condition of each axis. The mirror image is set by taking the logical sum of the signal from the MDI panel and the input signal of th
Page 37B-63323EN-1/03 1.AXIS CONTROL Caution CAUTION 1 When programmable mirror image and ordinary mirror image are specified at the same time, programmable mirror image is applied first. 2 No programmable mirror image affects mirror image check signals. 3 Even when the mirror image is applied, commands wh
Page 381.AXIS CONTROL B-63323EN-1/03 1.2.7 Follow-up General If the machine moves in the state in which position control on controlled axes is disabled (during servo-off, emergency stop, or servo alarm), feedback pulses are accumulated in the error counter. The CNC reflects the machine movement correspondi
Page 39B-63323EN-1/03 1.AXIS CONTROL Parameter #7 #6 #5 #4 #3 #2 #1 #0 1800 FVF 1 ;; !" #$ $ % "% "%%#$ /%%""% & ' % % "% "%%#* !$ ! ! $ /%%""% ,& )' "% "%%#* !$ ! $ $ /%
Page 401.AXIS CONTROL B-63323EN-1/03 1.2.8 Servo Off (Mechanical handle) General Place the controlled axes in the servo off state; that is, they stop the current to the servo motor, which disables position control. However, the position detection feature functions continuously, so the current position is n
Page 41B-63323EN-1/03 1.AXIS CONTROL Parameter #7 #6 #5 #4 #3 #2 #1 #0 1802 SVF ) ; !" #$ $ %/ $ /%%"" & ' % %/ $ /%%"" & )' $ /%%"" & Caution CAUTION 1 In general, interlock is applie
Page 421.AXIS CONTROL B-63323EN-1/03 1.2.9 Position Switch General Position switch signals can be output to the PMC while the machine coordinates along a controlled axes are within a specified ranges. Using parameters, specify arbitrary controlled axes and machine coordinate operating ranges for which posi
Page 43B-63323EN-1/03 1.AXIS CONTROL - Setting the correspondence between position switch signals and controlled axes 5270 Controlled axis for which the tenth position switch function is performed (PSWA01) 5271 Controlled axis for which the 2-nd position switch function is performed (PSWA02) 5272 Controlle
Page 441.AXIS CONTROL B-63323EN-1/03 - Setting of position switch operating ranges - Maximum value 5280 Maximum value of the operating range of the 1-st position switch (PSW101) 5281 Maximum value of the operating range of the 2-nd position switch (PSW102) 5282 Maximum value of the operating range of the 3
Page 45B-63323EN-1/03 1.AXIS CONTROL - Minimum value 5290 Minimum value of the operating range of the 1-st position switch (PSW201) 5291 Minimum value of the operating range of the 2-nd position switch (PSW202) 5292 Minimum value of the operating range of the 3-rd position switch (PSW203) 5293 Minimum valu
Page 461.AXIS CONTROL B-63323EN-1/03 1.2.10 Vertical Axis Drop Prevention Function Overview If the machine is brought to an emergency stop and the power for a servo motor is turned off, the machine applies a brake to the axis corresponding to the stopped servo motor. If the power for the servo motor of a v
Page 47B-63323EN-1/03 1.AXIS CONTROL amplifier. If a nonvertical axis and vertical axis are connected to the same multiaxis amplifier, enable the vertical axis drop prevention function even for the nonvertical axis, and set the nonvertical axis with the same delay time as for the vertical axis. - 31 -
Page 481.AXIS CONTROL B-63323EN-1/03 1.3 ERROR COMPENSATION 1.3.1 Stored Pitch Error Compensation Overview If pitch error compensation data is specified, pitch errors of each axis can be compensated in detection unit per axis. Pitch error compensation data is set for each compensation position at the inter
Page 49B-63323EN-1/03 1.AXIS CONTROL Procedure for displaying and setting the pitch error compensation data 1 Set the following parameters: - Number of the pitch error compensation position at the reference position (for each axis): Parameter(No.5420) - Number of the pitch error compensation position havin
Page 501.AXIS CONTROL B-63323EN-1/03 Explanation - Specifying the compensation position To assign the compensation positions for each axis, specify the positive direction or the negative direction in reference to the compensation position No. of the reference position. If the machine stroke exceeds the spe
Page 51B-63323EN-1/03 1.AXIS CONTROL Parameter Setting value 5420 : Compensation number for the reference position 40 5421 : Smallest compensation position number 33 5422 : Largest compensation position number 56 5423 : Compensation magnification 1 The compensation amount is output at the compensation posi
Page 521.AXIS CONTROL B-63323EN-1/03 Reference position 0.0 45.0 315.0 (61) (68) (60) (62) (67) (+) 90.0 270.0 (63) (66) (64) (65) 135.0 225.0 Compensation values are output at the 180.0 positions indicated by . Therefore, set the parameters as follows: Parameter Setting value 5420 : Compensation number fo
Page 53B-63323EN-1/03 1.AXIS CONTROL Parameter 5420 Number of pitch error compensation point of reference position for each axis NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective.
Page 541.AXIS CONTROL B-63323EN-1/03 5421 Number of pitch error compensation point with the largest negative value for each axis NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective.
Page 55B-63323EN-1/03 1.AXIS CONTROL 5422 Number of pitch error compensation point with the largest positive value for each axis NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective.
Page 561.AXIS CONTROL B-63323EN-1/03 5424 Interval of pitch error compensation points for each axis NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective. [Input type] Parameter input [Data type] Realaxis [Unit of data] mm, inch, degree (m
Page 57B-63323EN-1/03 1.AXIS CONTROL 5425 Angular displacement per rotation in rotation-axis pitch error compensation NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective. 7 8 ) $)
Page 581.AXIS CONTROL B-63323EN-1/03 Caution CAUTION - Compensation value range Compensation values can be set within the range from -7 x compensation magnification (detection unit) to +7 x compensation magnification (detection unit). The compensation magnification can be set for each axis within the range
Page 59B-63323EN-1/03 1.AXIS CONTROL Reference item Series15i/150i-MA Operator’s Manual II-9.7 Dipaly and setting the (Operation) pitch error (B-63324EN-1) compensation data - 43 -
Page 601.AXIS CONTROL B-63323EN-1/03 1.3.2 Backlash Compensation General - Backlash compensation Function for compensating for lost motion on the machine. Set a compensation value in parameter No. 1851, in detection units from 0 to +-9999 pulses for each axis. - Backlash compensation for each rapid travers
Page 61B-63323EN-1/03 1.AXIS CONTROL Procedures for measuring the backlash compensation amounts during cutting feed and rapid traverse - Backlash compensation amount during cutting feed 1 Set the backlash compensation amount during cutting feed (parameter No. 1851) to "0." 2 Move the machine to the measure
Page 621.AXIS CONTROL B-63323EN-1/03 - Backlash compensation amount during rapid traverse 1 Set the backlash compensation amount during rapid traverse (parameter No. 1849) to "0." 2 Move the machine to the measurement point by rapid traverse. Mount a dial gauge and set the pointer to "0." G00 G90 X0 ; X100
Page 63B-63323EN-1/03 1.AXIS CONTROL Operation examples In these examples, the following are assumed: Backlash compensation amount during cutting feed A = 40 Backlash compensation amount during rapid traverse B = 20 α = (A - B)/2 = 10 Initial backlash direction = Minus • = Machine position. 1 Reference pos
Page 641.AXIS CONTROL B-63323EN-1/03 4 Rapid traverse followed by rapid traverse in the opposite direction G00 X100.0 ; Current compensation amount=-B=-20 Accumulated compensation amount=10 0 100 200 300 Rapid traverse 10 5 Rapid traverse followed by cutting feed in the opposite direction G01 X200.0 Ff; Cu
Page 65B-63323EN-1/03 1.AXIS CONTROL 7 Cutting feed followed by cutting feed in the opposite direction G01 X200.0 Ff; Current compensation amount=-A=-40 Accumulated compensation amount=0 0 100 200 300 Cutting feed 0 8 Cutting feed followed by rapid traverse in the same direction G00 X100.0 ; Current compen
Page 661.AXIS CONTROL B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1804 RBK : ;4 7:< : = $ * 0 1 0 1851 Backlash compensation for each axis
Page 67B-63323EN-1/03 1.AXIS CONTROL Note NOTE When backlash compensation is applied separately for cutting feed and rapid traverse, jog feed is regarded as cutting feed. - 51 -
Page 681.AXIS CONTROL B-63323EN-1/03 1.3.3 Straightness Compensation General For a machine tool with a long stroke, deviations in straightness between axes may deteriorate machining accuracy. For this reason, when an axis moves, other axes are compensated in detection units to improve straightness. This im
Page 69B-63323EN-1/03 1.AXIS CONTROL on the travel axis is output. In the above figure, while the travel axis is moving from compensation point a to compensation point b, the compensation amount (Beta - Alpha)/(b - a) is output to the compensation axis when the pitch error compensation on the travel axis i
Page 701.AXIS CONTROL B-63323EN-1/03 5502 Compensation point number b of straightness compensation move axis 1 5503 Compensation point number c of straightness compensation move axis 1 5504 Compensation point number d of straightness compensation move axis 1 5511 Compensation point number a of straightness
Page 71B-63323EN-1/03 1.AXIS CONTROL 5562 Compensation corresponding to compensation point number b of move axis 2 5563 Compensation corresponding to compensation point number c of move axis 2 5564 Compensation corresponding to compensation point number d of move axis 2 5571 Compensation corresponding to c
Page 721.AXIS CONTROL B-63323EN-1/03 Note NOTE 1 The straightness compensation function can be used after a moving axis and its compensation axis have returned to the reference position. 2 After setting parameters for straightness compensation, be sure to turn off the NC power. 3 Set parameters for straigh
Page 73B-63323EN-1/03 1.AXIS CONTROL 1.3.4 Interpolated straightness compensation Compensation data, which is set using 128-point straightness compensation data, is divided into parts at equal intervals in each compensation point interval and output. Explanation - Compensation methods With the 128-point st
Page 741.AXIS CONTROL B-63323EN-1/03 - Compensation data Compensation data is set using 128 straightness compensation points. Parameter #7 #6 #5 #4 #3 #2 #1 #0 5426 IPC [Input type] Parameter input [Data type] Bitaxis #6 IPC Specifies whether to use the interpolating straightness compensation function. 0:
Page 75B-63323EN-1/03 1.AXIS CONTROL WARNING WARNING 1 If the feedrate is high, multiple compensation pulses may be output at one time depending on the straightness compensation amount. 2 To use this function, the stored pitch error compensation option is required in addition to this function option. 3 The
Page 761.AXIS CONTROL B-63323EN-1/03 1.3.5 128 straightness compensation points Overview In straightness compensation, compensation data is set as the compensation amounts at the individual compensation points, in the same way as in stored pitch error compensation. This enables fine compensation. Up to fiv
Page 77B-63323EN-1/03 1.AXIS CONTROL The following relationships hold: i δ = φ + (γ-α) ii π = φ + (β-α) and π, δ are automatically calculated from α, β, γ, and φ. Therefore, no parameters need be set for them. - Display and setting of straightness compensation data The setting of 128-point straightness com
Page 781.AXIS CONTROL B-63323EN-1/03 Examples The following explains the method of setting parameters for the travel and compensation axes, as well as effective magnifications. The parameters for travel and compensation axes can be set as follows. 1) A single compensation axis can be set for a single trave
Page 79B-63323EN-1/03 1.AXIS CONTROL As described above, a compensation axis can be set as a travel axis. If a compensation axis is set as such, the amount of travel due to compensation on the travel axis is not subject to compensation. 4) A single compensation axis cannot have two or more travel axes. Tab
Page 801.AXIS CONTROL B-63323EN-1/03 5492 Axis number of compensation axis 2 for straightness compensation move axis 2 5493 Axis number of compensation axis 3 for straightness compensation move axis 3 5494 Axis number of compensation axis 4 for straightness compensation move axis 4 5495 Axis number of comp
Page 81B-63323EN-1/03 1.AXIS CONTROL 5591 Straightness compensation multiplier of move axis 1 5592 Straightness compensation multiplier of move axis 2 5593 Straightness compensation multiplier of move axis 3 5594 Straightness compensation multiplier of move axis 4 5595 Straightness compensation multiplier
Page 821.AXIS CONTROL B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 5580 SMT [Input type] Parameter input [Data type] Bit #1 SMT The parameters (No. 5591 to No. 5595) for straightness compensation multiplier: 0: Are effective only for the first move axis when two or more move axes are set using the same axis numb
Page 83B-63323EN-1/03 1.AXIS CONTROL Caution CAUTION 1 If the feedrate is high, multiple compensation pulses may be output at the same time depending on the straightness compensation amount. 2 To use this function, the stored pitch error compensation option is required in addition to this function option.
Page 841.AXIS CONTROL B-63323EN-1/03 1.3.6 Interpolated pitch error compensation Overview In stored pitch error compensation, the pitch error compensation pulse at each pitch error compensation point is output in the interval between that point and the next compensation point, as shown in the figure below.
Page 85B-63323EN-1/03 1.AXIS CONTROL - Number of the most distant pitch error compensation point on the side of each axis - - - - - No.5421 - Number of the most distant pitch error compensation point on the + side of each axis - - - - - No.5422 - Pitch error compensation magnification for each axis - - - -
Page 861.AXIS CONTROL B-63323EN-1/03 1.3.7 Cyclic second pitch error compensation Overview When a rotary table is rotated using a gear, there are two cycles of the occurrence of pitch errors: One cycle is the same as that of the rotation of the rotary table while the other is the same as that of the rotati
Page 87B-63323EN-1/03 1.AXIS CONTROL Although a rotary table is used as an example here, cyclic second pitch error compensation can be used in the same way when the machine is moved along a linear axis using a gear. For example, in a configuration such as that shown in Fig. 1.3.7 (c), stored pitch error co
Page 881.AXIS CONTROL B-63323EN-1/03 - Pitch error with a 360° cycle 180° ε A 0° 360° 20° Fig. 1.3.7 (e) - Pitch error after superimposition in portion A Pitch error with the cycle of the rotation of the gear ε : Pitch error in portion A ε A Fig. 1.3.7 (f) Synchronous Second Pitch Error The above figure (F
Page 89B-63323EN-1/03 1.AXIS CONTROL Parameter 5430 Number of the farthest second cyclical pitch error compensation point in the negative direction for each axis [Input type] Parameter input [Data type] Integeraxis [Valid data range] From 0 through 1279 or from 0 through 3071 depending on the number of con
Page 901.AXIS CONTROL B-63323EN-1/03 5433 Magnification for second cyclical pitch error compensation for each axis [Input type] Parameter input [Data type] Integeraxis [Valid data range] 0 - 100 Set a magnification for second cyclical pitch error compensation for each axis. When 1 is set as the magnificati
Page 91B-63323EN-1/03 1.AXIS CONTROL CAUTION CAUTION 1 Using the appropriate parameters, set the number of the most distant cyclic second pitch compensation point on the - side of each axis and the number of the most distant cyclic second pitch compensation point on the + side of each axis. If the settings
Page 921.AXIS CONTROL B-63323EN-1/03 1.3.8 Gradient Compensation Overview By compensating for those errors in tools such as feed screws that depend on the position of the machine system in detection units, machining precision can be improved and mechanical life can be prolonged. In gradient compensation, t
Page 93B-63323EN-1/03 1.AXIS CONTROL a, b, c, d : Compensation point numbers. (Pitch error compensation point numbers are used. Parameters Nos. 5461 to 5464) α, β, γ, ε: Compensation amounts at compensation points a, b, c, and d (parameters Nos. 5471 to 5474) In Fig. 1.3.8 (a), a, b, c, and d are 1, 3, 60,
Page 941.AXIS CONTROL B-63323EN-1/03 Alarm and message Number Message Contents PW0102 ILLEGAL PARAMETER (I-COMP.) The parameter for setting slope compensation is incorrect. This alarm occurs in the following cases: • When the number of pitch error compensation points on the axis on which slope compensation
Page 95B-63323EN-1/03 1.AXIS CONTROL 1.3.9 Bidirectional Pitch Error Compensation Overview In bidirectional pitch error compensation, different pitch error compensation amounts can be set for travel in the positive direction and that in the negative direction, so that pitch error compensation can be perfor
Page 961.AXIS CONTROL B-63323EN-1/03 ParameterNo.5421 ParameterNo.5422 ↓ ↓ Set of pitch error compensation data for Set of n data items the positive direction ParameterNo.5427 ↓ Set of pitch error compensation data Set of n data items for the negative direction ↑ The pitch error compensation data numbers i
Page 97B-63323EN-1/03 1.AXIS CONTROL Table 1.3.9 (b) Positive-direction pitch error data Compensation 20 21 22 23 24 25 26 27 point number Compensation -1 +1 0 +1 +1 +2 -1 -1 amount to be set As pitch error data, always set incremental values as viewed in the negative direction (direction toward the left i
Page 981.AXIS CONTROL B-63323EN-1/03 - Compensation example If, in the setting example given in the previous section, the machine moves from 0.0 to 40.0, from 40.0 to -40.0, and from -40.0 to 0.0 for a manual reference position return, pitch error compensation pulses are output as follows: Machine coordina
Page 99B-63323EN-1/03 1.AXIS CONTROL Parameter #7 #6 #5 #4 #3 #2 #1 #0 5426 BDP [Input type] Parameter input [Data type] Bitaxis ;2 : , .$ $ $ + 0 + 0 8 + 5420 Number of pitch error compensation point of reference position for each axis
Page 1001.AXIS CONTROL B-63323EN-1/03 5422 Number of pitch error compensation point with the largest positive value for each axis [Input type] Parameter input [Data type] Integeraxis [Valid data range] From 0 through 1279 (or from 10000 through 11279) or from 0 through 3071 (or from 10000 through 13071) dep
Page 101B-63323EN-1/03 1.AXIS CONTROL 5425 Angular displacement per rotation in rotation-axis pitch error compensation [Input type] Parameter input [Data type] Realaxis [Unit of data] mm, inch, degree (machine unit) [Minimum unit of data] Depend on the increment system of the applied axis [Valid data range]
Page 1021.AXIS CONTROL B-63323EN-1/03 5428 Pitch error compensation value at the reference position when a movement is made to the reference position in the direction opposite to the reference position return direction [Input type] Parameter input [Data type] Integeraxis [Unit of data] detection unit [Valid
Page 103B-63323EN-1/03 1.AXIS CONTROL 1.3.10 Nano Interpolation Type Error Compensation - Overview This function enables the servo output of interpolation-type pitch error compensation, third-dimensional error compensation, and interpolation-type straightness compensation to be performed with a detection un
Page 1041.AXIS CONTROL B-63323EN-1/03 - CAUTION CAUTION 1 Even when this parameter is set to 1, the measurement unit of already set compensation data remains to be the detection unit. So, it is unnecessary to change the compensation data. 2 Even when this function is enabled, the servo output for the follow
Page 105B-63323EN-1/03 1.AXIS CONTROL 1.3.11 Smooth Backlash Compensation Ordinary backlash compensation outputs all backlash compensation pulses at a point where the direction of axis movement is reversed. (Fig. 1.3.11(a)) (Direction reversed) Axis movement direction Total amount of backlash compensation a
Page 1061.AXIS CONTROL B-63323EN-1/03 - When ‘Smooth backlash compensation’ is required Usually, relationship between motor position and actual machine position can be shown as Fig.1.3.11(c). In this case, conventional backlash compensation (compensation pulse is outputted at once when direction changes) is
Page 107B-63323EN-1/03 1.AXIS CONTROL Backlash compensation is too much at this point Fig. 1.3.11(e) In order to avoid overcompensation just after change of direction, we have developed smooth backlash compensation function, which realizes to output backlash compensation value gradually, depending on the di
Page 1081.AXIS CONTROL B-63323EN-1/03 If cutting-/rapid traverse-specific compensation is enabled (parameter RBK (bit 6 of parameter No. 1804) = 1) is enabled, the total amount (B2) of backlash compensation performed before the second-stage backlash compensation output ends becomes equal to the backlash com
Page 109B-63323EN-1/03 1.AXIS CONTROL NOTE Once this parameter is re-set, it is necessary to switch the power off and on again. #6 RBK Specifies whether to perform cutting-/rapid traverse-specific backlash compensation as follows: 0: Do not perform. 1: Perform. #7 #6 #5 #4 #3 #2 #1 #0 5426 HPE [Input type]
Page 1101.AXIS CONTROL B-63323EN-1/03 1847 Distance at which the second stage of smooth backlash compensation ends [Input type] Parameter input [Unit of data] Integer axis [Valid data range] Detection unit [Valid data range] 0 to 999999999 This parameter specifies the distance where the second stage of smoo
Page 111B-63323EN-1/03 1.AXIS CONTROL 1851 Amount of backlash compensation for an individual axis [Input type] Parameter input [Unit of data] Integer axis [Valid data range] Detection unit [Valid data range] -9999 to 9999 This parameter specifies the amount of backlash compensation for an individual axis. W
Page 1121.AXIS CONTROL B-63323EN-1/03 1.3.12 Addition of 5000 Pitch Error Compensation Points - Overview This function can add 5000 points for stored, interpolation-type, bidirectional, and cyclic second pitch error compensation. The added points are used as compensation point numbers 5000 to 9999. The exis
Page 113B-63323EN-1/03 1.AXIS CONTROL - CAUTION CAUTION 1 Stored pitch error compensation cannot be used across a standard compensation point (numbers 0 to 1279 or, in a system having more than 10 controlled axes, numbers 0 to 3071) and an expansion compensation point (numbers 5000 to 9999) for the same axi
Page 1141.AXIS CONTROL B-63323EN-1/03 1.3.13 Thermal Growth Compensation along Tool Vector Outline The thermal growth compensation along tool vector, in added to the compensation is input by using the external data input signal. The thermal growth compensation along tool vector is applied with following 5 t
Page 115B-63323EN-1/03 1.AXIS CONTROL 4. After all the signals are read, the control unit drives the read end signal THREND high. 5. When THREND goes high, the PMC drives the strobe signal THSTB low. 6. When the strobe signal THSTB goes low, the control unit drives the read end signal THREND low. After comp
Page 1161.AXIS CONTROL B-63323EN-1/03 D : Thermal growth along tool axis data ( G178 to G179 ) ε : Amount of thermal growth compensation along tool axis (1) When data is positive( D > 0 : When the tool length is an extension ) +Z εx ( along the X axis ) εz ( along the Z axis ) +X ε D ( Direction of thermal
Page 117B-63323EN-1/03 1.AXIS CONTROL Signals Thermal growth compensation start signal THML [Classification] Input signal [Function n Thermal growth compensation becomes effective when this signal is turned on. When this signal is turned off, thermal growth compensation is stopped. This signal becom
Page 1181.AXIS CONTROL B-63323EN-1/03 Thermal growth compensation data THD00 to THD15 [Classification] Input signal [Function n Compensation is applied to the corresponding axis, and the tool moves. An offset value in the range 0 to }9,999 is to be specified in binary, using the detection unit. T
Page 119B-63323EN-1/03 1.AXIS CONTROL 6083 Linear axis 3 for three-dimensional cutter compensation and so forth (first group) -9 Set the rotation axis and linear axes to perform three-dimensional cutter compensation/spindle unit compensation/in
Page 1201.AXIS CONTROL B-63323EN-1/03 6089 Angle of inclination for the rotation axis for three-dimensional cutter compensation and so forth (second group) 7 8 9 $ $ &
Page 121B-63323EN-1/03 1.AXIS CONTROL -The rotation axis rotates about an axis that perpendicularly intersects the plane formed by linear axis 1 and linear axis 2. -When the rotation axis rotates from the positive direction of linear axis 1 to the positive direction of linear axis 2, the rotation axis is sa
Page 1221.AXIS CONTROL B-63323EN-1/03 6104 Reference angle for the rotation axis for three-dimensional cutter compensation and so forth (first group) 6105 Reference angle for the rotation axis for three-dimensional cutter compensation and so forth (second group) 7 8
Page 123B-63323EN-1/03 1.AXIS CONTROL Parameter Nos. 6106 to 6107 The direction of a compensation vector is set by setting an angular displacement (RA, RB) from the direction of linear axis 3. RA: Rotation is performed in the plane formed by linear axis 2 and linear axis 3. When rotation is performed from t
Page 1241.AXIS CONTROL B-63323EN-1/03 7517 Offset value for angular displacement of a rotation axis 7 8 9 $ $ & ?
Page 125B-63323EN-1/03 1.AXIS CONTROL ;' A B , $ $ - $ )$ - - $ ) $ .$ * .0 0: Detection unit 1: 1/1
Page 1261.AXIS CONTROL B-63323EN-1/03 NOTE 8 Machine Zero Point Shift is available for the same or different axis when this function is effective. 9 The positions of rotary axes which define the direction of the tool axis are the positions on the machine coordinates. 10 The thermal growth along tool axis da
Page 127B-63323EN-1/03 1.AXIS CONTROL 1.4 THREE-DIMENSIONAL ERROR COMPENSATION Overview In ordinary pitch error compensation, compensation is applied to a specified compensation axis (single axis) using the position information for that axis. For example, pitch error compensation is applied to the X-axis us
Page 1281.AXIS CONTROL B-63323EN-1/03 individual axes at the individual vertexes be Cnx, Cny, and CNz (where n is a number between 1 and 8). Let the interior division ratio on the X-axis at P be x. Here, x is standardized in the range of 0 to 1 as follows: Cx = C1x ⋅ (1 − x )(1 − y )(1 − z ) + C 2 x ⋅ x (1
Page 129B-63323EN-1/03 1.AXIS CONTROL A3 : Third compensation axis P.... : Compensation data (-128 - 127) (Example) % N100001A1P1A2P2A3P3 N100002A1P-2A2P3A3P4 N100003A1P0A2P0A3P0 … N115624A1P0A2P0A3P0 N115625A1P0A2P0A3P0 % - Input of compensation data using G10 Compensation data can be changed from a machin
Page 1301.AXIS CONTROL B-63323EN-1/03 Three-dimensional error compensation screen Compensation amount Compensation amount (current) - Compensation amount Compensation point numbers are displayed, as well as compensation data for the individual compensation axes. - Compensation amount (current) The error com
Page 131B-63323EN-1/03 1.AXIS CONTROL - Punching of compensation data (1) Place the system in EDIT mode. (2) Click soft key [Punch]. (3) Enter the file number and name as required, according to the specifications of the output device. (4) Click soft key [Three-dimensional error compensation]. (5) The punchi
Page 1321.AXIS CONTROL B-63323EN-1/03 5446 Number of the three-dimensional error compensation point at the reference position (1-st axis) 5447 Number of the three-dimensional error compensation point at the reference position (2-nd axis) 5448 Number of the three-dimensional error compensation point at the r
Page 133B-63323EN-1/03 1.AXIS CONTROL Caution CAUTION The setting of compensation data using programmable parameter input (G10L51) must be specified in canned cycle cancel mode, as with ordinary programmable parameter input (G10L50). (If the setting of data is specified in canned cycle mode, a cyclic operat
Page 1341.AXIS CONTROL B-63323EN-1/03 1.5 SETTINGS RELATED TO SERVO CONTROLLED AXES Typical units handled through the servo interface include: - Digital controlled AC servo motor - Motor feedback: Serial coder (1) 1,000,000 pulses/rev absolute pulse coder (2) 65,536 pulses/rev absolute pulse coder (3) 10,00
Page 135B-63323EN-1/03 1.AXIS CONTROL 1.5.1 Servo Parameter Overview This section explains the main servo parameters. For an explanation of servo parameters not mentioned here, refer to the "AC Servo Motor α series Parameter Manual (B-65150E)". - Command multiply (CMR), detection multiply (DMR), and referen
Page 1361.AXIS CONTROL B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1800 IVO SAK CIN CCI RFW FVF CVR ! " # ! " $ %& $ &
Page 137B-63323EN-1/03 1.AXIS CONTROL 2 # !! ,!+ -$ %& 3 4)5( $ & 3 4.4( ! $ / !# 6 7
Page 1381.AXIS CONTROL B-63323EN-1/03 @ > ! ! ">** ! ! # !$ %& ! ">** ! ! ! %$ & ! $ NOTE Even when the system
Page 139B-63323EN-1/03 1.AXIS CONTROL C ! + $ %& ! $ & ! $ / # % ( !
Page 1401.AXIS CONTROL B-63323EN-1/03 2 < D ! # + # + , # - $ %& ' & / # + & # %
Page 141B-63323EN-1/03 1.AXIS CONTROL @ <F 8'$ %& $ & 3 $ 1 # $ 1820 Command multiplier for each axis (CMR) [Input type] Param
Page 1421.AXIS CONTROL B-63323EN-1/03 1822 Value of the denominator of a command multiplier for each axis (optional command multiplier) [Input type] Parameter input [Data type] Integeraxis [Valid data range] 0 - 9999 Specify the value of the denominator of a command multiplier for each axis. The optional co
Page 143B-63323EN-1/03 1.AXIS CONTROL 1828 Positioning deviation limit for each axis while it is moving ! 7 3 ! %+GGGGGGGG ! 7 !$ ! 7
Page 1441.AXIS CONTROL B-63323EN-1/03 1832 Feed-stop position deviation for each axis ! 7 3 ! %+GGGGGGGG + 7$ ! 7 ! 7 +
Page 145B-63323EN-1/03 1.AXIS CONTROL 1844 Grid shift amount of the reference position shift function [Input type] Parameter input [Data type] Integeraxis [Unit of data] detection unit [Valid data range] -999999999 - 999999999 Distance to the first grid point found since the deceleration dog is turned off w
Page 1461.AXIS CONTROL B-63323EN-1/03 1850 Grid shift/reference position shift for each axis [Input type] Parameter input [Data type] Integeraxis [Unit of data] detection unit [Valid data range] 0 - 99999999 Specify the grid shift for each axis. The grid position can be shifted by the amount specified in th
Page 147B-63323EN-1/03 1.AXIS CONTROL 1.5.2 Absolute Position Detection Overview Even after the CNC is turned off, the pulse coder, which is backed up by a battery, retains the position. This eliminates the need to perform a reference position return when the CNC is turned on. Signal Absolute position detec
Page 1481.AXIS CONTROL B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1815 APC APZ [Input type] Parameter input [Data type] Bitaxis 2 < D ! # + # + , # -
Page 149B-63323EN-1/03 1.AXIS CONTROL Number Message Contents OT0036 BATTERY DOWN (ABS PCDR) Low absolute position detector battery voltage Replace the battery without switching off the power to the NC. Refer to PART III, "MAINTENANCE" in Operator’s Manual (Operation) for an explanation of battery replaceme
Page 1501.AXIS CONTROL B-63323EN-1/03 1.5.3 FSSB Setting General Connecting the CNC control section to servo amplifiers via a high- speed serial bus (FANUC Serial Servo Bus, or FSSB), which uses only one fiber optics cable, can significantly reduce the amount of cabling in machine tool electrical sections.
Page 151B-63323EN-1/03 1.AXIS CONTROL Explanation - Slave In an FSSB-based system, a fiber optics cable is used to connect the CNC to servo amplifiers and pulse modules. These amplifiers and pulse modules are called slaves. The two-axis amplifier consists of two slaves, and the three-axis amplifier consists
Page 1521.AXIS CONTROL B-63323EN-1/03 Fig. 1.5.3 (b) With the default setting, several functional restrictions are imposed. Usually, perform automatic setting from the FSSB setting screen before operating the servo motor, since the default setting function is for temporary setting during installation. - Res
Page 153B-63323EN-1/03 1.AXIS CONTROL 4 Click soft key "Set" to perform automatic setting. If the settings are invalid, a warning is generated. correct the settings. By means of this operation, parameter Nos. 1023, 1027, 1028, 1080 to 1089, and 1092 to 1097 are automatically set. In addition, 1 is set for t
Page 1541.AXIS CONTROL B-63323EN-1/03 - Manual setting After 1 is set for parameter FMD (bit 0 of No. 1090) or after automatic setting is performed (1 is set for parameter ASE (bit 1 of No. 1090), FSSB setting parameter Nos. 1023, 1027, 1028, 1080 to 1089, and 1092 to 1097 can be set directly through MDI in
Page 155B-63323EN-1/03 1.AXIS CONTROL FSSB data display The FSSB setting screen displays FSSB-based amplifier and axis information. This information can also be specified by the operator. 1 Press the function key. 2 To display [FSSB], press the next menu page key several times. 3 Pressing the [FSSB
Page 1561.AXIS CONTROL B-63323EN-1/03 letter such as L (first axis), M (second axis) or N (third axis) indicating the placing of the axis in the amplifier. • The following items are displayed as amplifier information: - SERIES : servo amplifier series - UNIT : servo amplifier unit type - CUR. : maximum rati
Page 157B-63323EN-1/03 1.AXIS CONTROL - Axis setting screen The axis setting screen displays the information shown below: Fig. 1.5.3 (e) The axis setting screen displays the following items: • AXIS This item is the placing of the NC controlled axis. • NAME This item indicates the name of the corresponding c
Page 1581.AXIS CONTROL B-63323EN-1/03 Consecutive odd and even numbers are displayed for the master and slave axes for tandem control. • EGB The values set for parameter No. 1096 are displayed. Consecutive odd and even numbers are displayed for the slave and dummy axes that are assumed when the EGB function
Page 159B-63323EN-1/03 1.AXIS CONTROL FSSB data setting procedure On an FSSB setting screen (other than the amplifier maintenance screen), pressing the [(OPRT)] soft key displays the following soft keys: Fig. 1.5.3 (g) To enter data, place the machine in MDI mode or the emergency stop state, position the cu
Page 1601.AXIS CONTROL B-63323EN-1/03 - Axis setting screen On the axis setting screen, the following items can be specified: • M1 : connector number for pulse module 1 For an axis that uses pulse module 1, enter a connector number using a number in the range of between 1 and the maximum number of axes for
Page 161B-63323EN-1/03 1.AXIS CONTROL • A duplicate value is specified for M2. • A duplicate value is specified for SPOS. • A duplicate value is specified for CS. • A duplicate value is specified for TNDM. • An invalid master/slave axis pair is specified for TNDM. • A duplicate value is specified for EGB. •
Page 1621.AXIS CONTROL B-63323EN-1/03 1089 Address conversion table value (ATR) for slave 10 NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective. ! ! * % ! @ 5 2% 24 1
Page 163B-63323EN-1/03 1.AXIS CONTROL NOTE 1. When using the electronic gear box (EGB) function Although EGB and dummy axes do not require amplifiers, assume that they are connected to dummy amplifiers. Thus, as the address conversion table value for an non-existing slave, set the value equal to the setting
Page 1641.AXIS CONTROL B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 1092 DSP [Input type] Parameter input [Data type] Bitaxis #0 DSP Usually, do not directly enter any value, because this parameter is specified on the FSSB setting screen. This parameter need not be specified in the manual setting mode. 0: Two axe
Page 165B-63323EN-1/03 1.AXIS CONTROL #6 PM1 Specifies whether to use the first pulse module. 0: Do not use. 1: Use. #7 PM2 Specifies whether to use the second pulse module. 0: Do not use. 1: Use. - 149 -
Page 1661.AXIS CONTROL B-63323EN-1/03 1023 Servo axis number of each axis NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective. [Input type] Parameter input [Data type] Integeraxis [Valid data range] 0 - Max axes Specify the number of the
Page 167B-63323EN-1/03 1.AXIS CONTROL 1027 Spindle number of a spindle positioning 1028 Spindle number of a Cs contour control axis ! 7 ! %+2 Set the axis attribute for each control axis, in combination with parameter No. 1023. Specify the control axis on
Page 1681.AXIS CONTROL B-63323EN-1/03 1094 Connector number of the 1-st pulse module 1095 Connector number of the second pulse module ! 7 ! %+@ This parameter is automatically specified when the FSSB setting mode is the automatic setting mode (bit 0 of par
Page 169B-63323EN-1/03 1.AXIS CONTROL 1097 Master and slave numbers for tandem control (on the FSSB setting screen only) [Input type] Parameter input [Data type] Integeraxis [Valid data range] 0-8 When performing tandem control, set consecutive odd and even numbers for the master and slave axes. Usually, do
Page 1701.AXIS CONTROL B-63323EN-1/03 Example of axis configuration and parameter setting - Example1 Fig. 1.5.3 (h) Fig. 1.5.3 (i) The connection of slaves (servo amplifiers) and controlled axes is determined by parameter Nos. 1023 and 1080 to 1089. In the example shown in Fig. 1.6.3. (h), slaves 2, 3, and
Page 171B-63323EN-1/03 1.AXIS CONTROL - Example2 Fig. 1.5.3 (j) Example of axis configuration and parameter setting when the simple electronic gearbox (EGB) function is used (EGB slave axis = C-axis; EGB dummy axis = C-axis Although slave 8 does not exit, it is assumed that an ordinary amplifier exists for
Page 1721.AXIS CONTROL B-63323EN-1/03 Example3 If the system has 11 or more controlled axes, parameter No. 1110 to No. 1109 and No. 1110 to No. 1119 as well as parameter No. 1080 to No. 1089 are added as address conversion table value parameters.Shown below are example parameter settings for the following c
Page 173B-63323EN-1/03 1.AXIS CONTROL Alarm and message Number Message Contents SV0060 FSSB:OPEN READY TIME OUT The FSSB was not in a ready to open state during initialization. A probable cause is an axis card malfunction. SV0061 FSSB:ERROR MODE The FSSB entered the error mode. Probable causes are an axis c
Page 1741.AXIS CONTROL B-63323EN-1/03 1.6 SETTINGS RELATED TO COORDINATE SYSTEMS 1.6.1 Machine Coordinate System General A machine coordinate system uses a machine-specific point as its origin. The machine coordinate system is set so that the reference position has the coordinates set in parameter No. 1240
Page 175B-63323EN-1/03 1.AXIS CONTROL 1.6.2 Workpiece Coordinate System/Addition of Workpiece Coordinate System Pair General A coordinate system used for machining a workpiece is referred to as a workpiece coordinate system. A workpiece coordinate system is to be set with the CNC beforehand (setting a workp
Page 1761.AXIS CONTROL B-63323EN-1/03 (2) Programming by G10 or G92 (G50) (3) Using external data input (refer to 15.2) Workpiece coordinate Workpiece coordinate Workpiece coordinate Workpiece coordinate system 1 (G54) system 2 (G55) system 3 (G56) system 4 (G57) ZOFS2 ZOFS3 ZOFS4 ZOFS1 Workpiece coordinate
Page 177B-63323EN-1/03 1.AXIS CONTROL 1221 Offset of the origin of workpiece coordinate system 1 (G54) 1222 Offset of the origin of workpiece coordinate system 2 (G55) 1223 Offset of the origin of workpiece coordinate system 3 (G56) 1224 Offset of the origin of workpiece coordinate system 4 (G57) 1225 Offse
Page 1781.AXIS CONTROL B-63323EN-1/03 1.6.3 Rotation Axis Roll-over General The roll-over function prevents coordinates for the rotation axis from overflowing. The roll-over function is enabled by setting bit 2 of parameter ROL 1009 to 1. In the absolute mode, the specified value is converted to the remaind
Page 179B-63323EN-1/03 1.AXIS CONTROL 4= 6 % + ( 59 : 29 $ +
Page 1801.AXIS CONTROL B-63323EN-1/03 Reference item Series15i/150i-MA Operator’s Manual II-19.7 Rotation axes roll over (Programming) (B-63324EN) - 164 -
Page 181B-63323EN-1/03 1.AXIS CONTROL 1.6.4 Cutting/Rapid Traverse In-position Check Overview The cutting-/rapid traverse-specific in-position check enables an effective area for the in-position check to be reduced for a cutting feed block, in which a high precision is required. It also enables the effectiv
Page 1821.AXIS CONTROL B-63323EN-1/03 Cutting feed Cutting feed effective area Cutting feed Cutting feed in-position check Fig. 1.6.4(b) When the Next Block Is a Cutting Feed Block (2) If the next block is a rapid traverse block, an in-position check is made using one of the parameters described b
Page 183B-63323EN-1/03 1.AXIS CONTROL Parameters #7 #6 #5 #4 #3 #2 #1 #0 1800 CIN CCI [Input type] Parameter input [Data type] Bit #4 CCI Specifies what parameter is to be used to specify a cutting feed effective area as follows: 0: Parameter common to rapid traverse (No. 1827) 1: Parameter dedicated to cut
Page 1841.AXIS CONTROL B-63323EN-1/03 1827 Effective area for an individual axis [Input type] Parameter input [Data type] Integer axis [Unit of data] Detection unit [Valid data range] 0 to 99999999 This parameter specifies an effective area for an individual axis. If a difference between the machine positio
Page 185B-63323EN-1/03 1.AXIS CONTROL 1.7 PARALLEL AXIS CONTROL General When a machine tool is provided with multiple heads and multiple tables, and multiple, identical workpieces are machined at the same time, multiple controlled axes having the same axis name can be operated at the same time by the use of
Page 1861.AXIS CONTROL B-63323EN-1/03 - Tool length compensation and tool offset in a parallel axis To apply tool length compensation to each axis, specify a difference between an H code number and the offset number assigned to the H code number, namely, a bias, for each axis in a parameter. A tool offset c
Page 187B-63323EN-1/03 1.AXIS CONTROL (2) Absolute command - Rapid traverse and linear interpolation The absolute coordinates of the end point are identical for all parallel axes. In other words, if the start points differ, the amounts of travel on the parallel axes differ. - Circular interpolation and heli
Page 1881.AXIS CONTROL B-63323EN-1/03 Signals Parking signals PK1, PK2 , ... [Classification] Input signals [Function] Ignores a programmed command for a parallel axis to disable motion. A parking signal is assigned to each controlled axis, with the number suffixed to each signal name indicati
Page 189B-63323EN-1/03 1.AXIS CONTROL Parameter 1021 Subscripts of the axis names of parallel, synchronization control, and tandem control axes ; 5 ! 3. !5 To distinguish the axes controlled in parallel operation mode, synchronizati
Page 1901.AXIS CONTROL B-63323EN-1/03 6021 Bias set for the tool length compensation number for each axis % ; 5 " For parallel operation, set a bias for the tool length compensation number for each axis. Namely, th
Page 191B-63323EN-1/03 1.AXIS CONTROL 1.8 TANDEM CONTROL General If sufficient torque cannot be obtained with one motor (when driving a large table, for example), two motors can be used to produce movement along one axis. The master axis alone is used for positioning, and the slave axis is used only to gene
Page 1921.AXIS CONTROL B-63323EN-1/03 Master Slave axis axis Pulse Pulse Power line coder Power line coder Servo Servo amplifier amplifier PWM PWM Rotor Rotor Current position Current position loop loop PRM.1980 Velocity PRM.1980 Velocity Preload (L) + feedback Preload (M) + feedback + + Inverted? Inverted?
Page 193B-63323EN-1/03 1.AXIS CONTROL Explanation - Axis configuration in tandem control The limitations below are imposed on axis configuration in tandem control. (1) Up to four sets of tandem control can be used. (2) Tandem control is handled as involving two controlled axes, but is handed as involving on
Page 1941.AXIS CONTROL B-63323EN-1/03 the tandem connection of two motors through a mechanism such as a gear can be reduced. This function, however, does not reduce the backlash inherent to a mechanical system, such as that between a ball screw and table. For example, by setting X for the master axis and -X
Page 195B-63323EN-1/03 1.AXIS CONTROL - Notes on tandem control stability The key to tandem control stability is that feedback capability is available. The feedback capability allows the master to move the slave or vice versa through the connected transmission mechanism. If this capability is not available,
Page 1961.AXIS CONTROL B-63323EN-1/03 Parameter - Setting data (parameter) When set for tandem control axes, the parameters to be set for each axis are divided into three types: (1) Parameters in which the same data must be set for the master axis and slave axis (2) Parameters that must be set for the maste
Page 197B-63323EN-1/03 1.AXIS CONTROL Master axis Slave axis No.1815#1 1 0 No.1816 01110000 01110000 No.1891 4000 12500 No.1896 4000 4000 No.1977 0 4 No.1978 0 1000 - Parameters that need to be set for the master axis only Parameter No. Description 0012#0 Mirror image 1004#2 Input multiplied by 10 1005#4 Ex
Page 1981.AXIS CONTROL B-63323EN-1/03 - Parameters in which the same data is set for the master axis and slave axis Parameter No. Description 1012#3-#0 Least command increment 1005#0 Whether to perform reference position return 1005#1 Reference position return method 1005#2 Reference position return perform
Page 199B-63323EN-1/03 1.AXIS CONTROL #7 #6 #5 #4 #3 #2 #1 #0 1817 TDM [Input type] Parameter input [Data type] Bitaxis 43 * % + 0 ( 59 0 ( 29 ( % " 0 ( 1875 Load-inertia
Page 2001.AXIS CONTROL B-63323EN-1/03 1980 Pre-load value for each axis (Tcmd offset) # 8A=>= &2>=2&2>=2 " , ( * 0 " "
Page 201B-63323EN-1/03 1.AXIS CONTROL 1.9 SYNCHRONOUS CONTROL General When one axis is driven by two servo motors as in the case of a large gantry machine, a command for one axis can drive two motors synchronously. Moreover, for synchronous error compensation, feedback information from each motor allows a p
Page 2021.AXIS CONTROL B-63323EN-1/03 1.9.1 Configuration of Synchronous Control Axes Master axis and slave axis for synchronous control An axis used as the reference for synchronous control is referred to as a master axis (M-axis). An axis along which movement is made in synchronization with the master axi
Page 203B-63323EN-1/03 1.AXIS CONTROL - Assigning suffixes to axis names A suffix can be assigned to an axis name; examples are X1, X2, XM, and XS. By assigning a suffix to the same axis name, those axes that have the same axis name can be distinguished from each other when displayed on the screen; in addit
Page 2041.AXIS CONTROL B-63323EN-1/03 1.9.2 Synchronous Error Compensation If a synchronous error which is greater than the zero width value set in parameter No. 1912 occurs, a compensation pulse calculation is made to minimize the synchronous error, and the required pulses are added to the command pulses f
Page 205B-63323EN-1/03 1.AXIS CONTROL Synchronization error compensation gain Kd Ks 0 B A Synchronization error A : Synchronous error zero width (parameter No. 1912) B : Synchronous error zero width 2 (parameter No. 1917) (0 < B < A) Kd : Synchronous error compensation gain (parameter No. 1915) Ks : Synchro
Page 2061.AXIS CONTROL B-63323EN-1/03 1.9.3 Synchronization Alignment When the power is turned on, or the emergency stop state is canceled, the master axis and slave axis under synchronous control are not always placed in the same position. At this time, the synchronization alignment function matches the po
Page 207B-63323EN-1/03 1.AXIS CONTROL Until synchronization alignment is completed, synchronous error compensation is not performed. However, a synchronous error alarm check is made. - Synchronization alignment based on manual reference position return When a manual reference position return operation is pe
Page 2081.AXIS CONTROL B-63323EN-1/03 movement at the FL feedrate, the master axis and slave axis stop at their first grid points detected after the reference position proximity signal is set to 0. The reference position proximity signal needs to be set for both the master axis and slave axis. - Synchroniza
Page 209B-63323EN-1/03 1.AXIS CONTROL 1.9.4 Synchronous Error Check A synchronous error is monitored at all times. If an error greater than a certain limit is detected, an alarm is issued, and movement on the axis is stopped. When synchronous error compensation is applied, a check covering positional deviat
Page 2101.AXIS CONTROL B-63323EN-1/03 greater than the value set in parameter No. 7723, an OT513 alarm is issued, and the machine is stopped. This function can check for the machine position shift that can occur when servo position control is turned off as in the case of an emergency stop, servo alarm, or s
Page 211B-63323EN-1/03 1.AXIS CONTROL 1.9.5 Recovery from Excessive Synchronous Error Alarm Two methods of recovery from an excessive synchronous error alarm are available. One uses adjustment mode, and the other uses normal operation. If the input signal is used to switch between synchronous operation and
Page 2121.AXIS CONTROL B-63323EN-1/03 (6) Press the RESET button to reset the adjustment mode alarm. Recovery using normal operation This method is used if the input signal is used to switch between synchronous operation and normal operation. When OT513 is issued, the procedure described below can be used f
Page 213B-63323EN-1/03 1.AXIS CONTROL 1.9.6 Torque Difference Alarm Detection for Synchronous Control If the master and slave axes move independently under synchronous control, the machine may be damaged. To prevent any possible breakdown, an alarm can be issued if the torque command difference between the
Page 2141.AXIS CONTROL B-63323EN-1/03 If it is difficult to read the torque difference absolute value from the Servo Tune screen, the following steps can be used to observe the torque difference absolute value with an oscilloscope. 4 Set parameter Nos. 1726 and 1774 with 0 and 178 respectively. 5 Connect th
Page 215B-63323EN-1/03 1.AXIS CONTROL Signal Synchronous control selection signal SYNC1, SYNC2, ... [Classification] Input signal [Function] Notifies the control unit whether synchronous operation, independent operation, or normal operation is selected under synchronous control and twin tabl
Page 2161.AXIS CONTROL B-63323EN-1/03 Signal address #7 #6 #5 #4 #3 #2 #1 #0 G066 SYNC1 G067 *ACTF1 G158 NSYNCA G384 *NZ1 The above addresses of SYNC1, *ACTF1, and *NZ1 are the signal addresses for the first axis. For the signal addresses for the second axis and subsequent axes, see the Appendix A.1. For de
Page 217B-63323EN-1/03 1.AXIS CONTROL Address bit Symbol Signal name Axis- Master specific only G067 6 VCSKPx Velocity command skip signal G067 7 SCNTRx Spindle contour control mode switching signal G368 OVxX7-0 Override signal for PMC axis control on each axis G384 0 +EXLx Axis-direction-by-axis-dire
Page 2181.AXIS CONTROL B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1010 SYC #0 SYC Specifies whether to use the synchronization function with machine coordinates in the synchronous control function. 0: Not used 1: Used This parameter can be set for a slave axis.
Page 219B-63323EN-1/03 1.AXIS CONTROL #7 #6 #5 #4 #3 #2 #1 #0 1803 MVB CLP ADJ / 0 ) % "& % ""# ' " % ""%" "( 1 "& % ""# ' " ( 1 2" "& % ""# '
Page 2201.AXIS CONTROL B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 1817 SYN [Input type] Parameter input [Data type] Bitaxis / );2 ) % & " % % ""%" "( 1 < % % ""%" "& % ""%" " %" );26 " # 4(4 1 & %
Page 221B-63323EN-1/03 1.AXIS CONTROL 1912 Dead zone for the synchronous error on each axis 9" %" .,= = 3 % "" " " " % *" %" " ( ) % " " # ( 1
Page 2221.AXIS CONTROL B-63323EN-1/03 1917 Synchronous error zero width 2 for an individual axis [Input type] Parameter input [Data type] Integeraxis [Unit of data] detection unit [Valid data range] 0 - 32767 Specify the synchronous error zero width 2 for synchronous error smoothing suppression. Specify thi
Page 223B-63323EN-1/03 1.AXIS CONTROL #7 #6 #5 #4 #3 #2 #1 #0 7601 SRF [Input type] Parameter input [Data type] Bit #4 SRF Specifies how the slave axis and master axis operate with G28, G30, and G53 in synchronous control. 0: Independent movements are made to specified positions on the slave axis and master
Page 2241.AXIS CONTROL B-63323EN-1/03 First axis : X-axis Second axis : Y-axis Third axis : Z-axis Fourth axis : U-axis To synchronize the U-axis with X-axis, set the parameters as follows: X :0 Y :0 Z :0 U :1 7723 Maximum error in synchronous error checking based on machine coordinates [Input type] Paramet
Page 225B-63323EN-1/03 1.AXIS CONTROL 7799 Limit value for synchronization error check based on position deviation [Input type] Parameter input [Data type] Integeraxis [Unit of data] detection unit [Valid data range] 0 - 999999999 Alarm OT513 is issued if the absolute positional deviation difference between
Page 2261.AXIS CONTROL B-63323EN-1/03 (1) Parameters in which the same data must be specified for both the master axis and slave axis Number Meaning of parameter 12#7 Axis detach 1005#0 Reference position return function effective 1005#2 Automatic reference position return (G28) uses the same sequence as ma
Page 227B-63323EN-1/03 1.AXIS CONTROL Number Meaning of parameter 1242 Coordinate data for the third reference position in the machine coordinate system 1243 Coordinate data for the fourth reference position in the machine coordinate system 1260 Travel distance per rotation of a rotation axis 1409#3 Follow-
Page 2281.AXIS CONTROL B-63323EN-1/03 Number Meaning of parameter 1660 Maximum allowable acceleration for acceleration/deceleration before interpolation 1663 Allowable acceleration for each axis for the deceleration based on acceleration of fine HPCC function 1665 Allowable acceleration for each axis for th
Page 229B-63323EN-1/03 1.AXIS CONTROL Number Meaning of parameter 1007#5 Selects the direction of rotation that corresponds to a shorter way in G90 mode for rotary axis control 1008#1 More than one controlled rotary axis 1009#2 Enables rotation axis roll-over 1014#0 Uses the axis as a rotary axis for tool l
Page 2301.AXIS CONTROL B-63323EN-1/03 Number Meaning of parameter 1574 Acceleration rate for acc/dec (for rough machining) 1575 Max acceleration for deceleration based on acceleration (for rough machining) 2020 Positive-direction specification button on software operator’s panel 2021 Negative-direction spec
Page 231B-63323EN-1/03 1.AXIS CONTROL (3) Parameters in which the data to be set may differ between the master axis and slave axis Number Meaning of parameter 1004#6 Axis position is not displayed on the position and program check screens. 1009#4 Set values are not displayed on the workpiece origin offset s
Page 2321.AXIS CONTROL B-63323EN-1/03 (4) Parameters in which data must be set only for the slave axis Number Meaning of parameter 1010#0 Machine coordinate data-based synchronization function is used for synchronization control. 1803#2 Disables synchronous error compensation. 1817#1 Always perform synchron
Page 233B-63323EN-1/03 1.AXIS CONTROL Alarm and message Number Message Contents OT0030 SYNC EXCESS ERROR ALARM 1 The synchronous error amount is greater than the value set to parameter No. 1914 by the synchronous error check. OT0031 SYNCHRONIZE ADJUST MODE The system is in the synchronous control adjustment
Page 2341.AXIS CONTROL B-63323EN-1/03 Note NOTE 1 During synchronous operation, the following operation results according to the setting of bit 4 (SRF) of parameter No. 7601 when automatic reference position return (G28), second, third, or fourth reference position return (G30), or machine coordinate system
Page 235B-63323EN-1/03 1.AXIS CONTROL 1.10 TWIN-TABLE CONTROL General In twin-table control, synchronization operation, single operation, and normal operation can be switched for two or more specified axes by a signal input from the machine side. In synchronization operation, an axis for which a move comman
Page 2361.AXIS CONTROL B-63323EN-1/03 Signal Synchronous control selection signal SYNC1, SYNC2, ... See the description of synchronous control. Parameter #7 #6 #5 #4 #3 #2 #1 #0 7613 TWJ [Input type] Parameter input [Data type] Bit #5 TWJ Specifies how the amount of manual interrupt is refle
Page 237B-63323EN-1/03 1.AXIS CONTROL 7642 M code that causes switching to independent operation during twin table control [Input type] Parameter input [Data type] Integer [Valid data range] 1 - 999999999 Specify the M code that causes switching from synchronous or normal operation to independent operation.
Page 2381.AXIS CONTROL B-63323EN-1/03 Note NOTE 1 In synchronization operation, reference position return movement for the Y axis is also applied to the V axis for an automatic reference position return command (G28) and the second, third, and fourth reference position return commands (G30). After the retur
Page 239B-63323EN-1/03 1.AXIS CONTROL NOTE 7 Pitch error compensation and backlash compensation are applied to the master axis and slave axis independently. 8 Synchronous control selection signals SYNC1, SYNC2, SYNC3, ... can be switched from the PMC side by the use of an M function of a program command. In
Page 2401.AXIS CONTROL B-63323EN-1/03 1.10.1 Tool Length Compensation in Tool Axis Direction with Twin Table Control Overview For a machine that applies twin table control to two heads, tool length compensation along the tool axis can be performed simultaneously for both heads (synchronous operation) or for
Page 241B-63323EN-1/03 1.AXIS CONTROL - Switching between synchronous and independent operation using synchronization control select signals SYNCx Use synchronization control select signals SYNCx to switch between synchronous and independent operation. Table 1.10 (b) Examples of Using Synchronization Contro
Page 2421.AXIS CONTROL B-63323EN-1/03 Table 1.10 (c) M Code Parameter Settings Number Description 7633 M code which turns synchronization off (master axis Mmm independent operation) 7634 M code which turns synchronization on (synchronous Mpp operation) 7642 M code which switches to slave axis independent Ms
Page 243B-63323EN-1/03 1.AXIS CONTROL Table 1.10 (d) Master Head Select Signals and Synchronization Control Select Signals Type of Master head select signal Synchronization operation TLHD2B TLHD2A TLHD1B TLHD1A control Select signal Head 1 0 0 0 1 (2) in Table 1.10 independent (b) operation Synchronous 0 1
Page 2441.AXIS CONTROL B-63323EN-1/03 Signal addresses #7 #6 #5 #4 #3 #2 #1 #0 G066 SYNC1 The above address is the signal address of the first axis. For the signal addresses of the second and subsequent axes, see Appendix A.1 Parameters - Parameter for enabling this function #7 #6 #5 #4 #3 #2 #1 #0 7540 TWN
Page 245B-63323EN-1/03 1.AXIS CONTROL Section 4.29, "Parameters Related to the Five-Axis Control Function" Set the parameters for head 2 in the same way as the parameters for head 1. - Parameters related to a twin table Parameter number Data type Description 7702 Integeraxis Master axis number 7633 Integer
Page 2461.AXIS CONTROL B-63323EN-1/03 - Sample parameter settings For the sample machine configuration shown in Fig. 1.10 (a), set the parameters related to axes as listed below. Parameters set for each axis Parameter Settings Description number X Y V Z W B J C K Axis name 1 2 3 4 5 6 7 8 9 Axis number Bit
Page 247B-63323EN-1/03 1.AXIS CONTROL NOTE 2 Always turn the synchronization control select signals for two rotation axes, contained in one head, on or off simultaneously. (Example) Always turn the synchronization control select signals for the B and C axes on or off simultaneously. Always turn the synchron
Page 2481.AXIS CONTROL B-63323EN-1/03 1.11 CHOPPING FUNCTION General When contour grinding is performed, the chopping function can be used to grind the side face of a workpiece. By means of this function, while the grinding axis (the axis with the grinding wheel) is being moved vertically, a contour program
Page 249B-63323EN-1/03 1.AXIS CONTROL immediately if an emergency stop is applied or if a servo alarm is issued. - Chopping activated by signal input Before chopping can be started, the chopping axis, reference position, upper dead point, lower dead point, and chopping feedrate must be set using the paramet
Page 2501.AXIS CONTROL B-63323EN-1/03 - Modifying chopping data During chopping, point R, the upper dead point, lower dead point, and chopping feedrate can be modified by specifying a G81.1 command. In this case, the chopping data set in the parameters is also updated. - Chopping after the upper dead point
Page 251B-63323EN-1/03 1.AXIS CONTROL Once movement to the lower dead point has been completed, the previous chopping delay compensation is set to 0, and chopping delay compensation is performed based on the new data. (2) When the lower dead point is changed during movement from the upper dead point to the
Page 2521.AXIS CONTROL B-63323EN-1/03 Previous upper dead point Changing the lower dead point Previous lower dead point New lower dead point The tool first moves to the upper dead point, then to the new lower dead point. Once movement to the upper dead point has been completed, the previous chopping delay c
Page 253B-63323EN-1/03 1.AXIS CONTROL Point R Upper dead point L2 L4 L6 L1 L3 L5 Lower dead point Time Displacement between the tool and the upper dead point: L2, L4, L6 Displacement between the tool and the lower dead point: L1, L3, L5 @Compensation starts when: |L3 - L2| < (parameter No.1881) Compensation
Page 2541.AXIS CONTROL B-63323EN-1/03 - Reset during chopping When a reset is performed during chopping, the tool immediately moves to point R, after which chopping mode is canceled. If an emergency stop or servo alarm occurs during chopping, mode is canceled, and the tool stops immediately. - Stopping chop
Page 255B-63323EN-1/03 1.AXIS CONTROL - Look-ahead acceleration/deceleration before interpolation For a chopping axis, look-ahead acceleration/deceleration before interpolation is not applicable. Example G90 G81.1 Z100. Q-25. R10. F3000 ; - Perform rapid traverse to position the tool to Z110. (point R). - T
Page 2561.AXIS CONTROL B-63323EN-1/03 Signals Chopping hold signal*CHLD [Classification] InputSignals [Function] Stops chopping. [Operation] When this signal is set to 0, the CNC operates as described below. (1) When G81.1 is not specified, no operation is performed. (2) When G81.1 is specified, cho
Page 257B-63323EN-1/03 1.AXIS CONTROL Chopping feedrate override signals *CHP1-*CHP8 [Classification] Input signal [Function] Overrides the chopping feedrate. [Operation] The actual feedrate during chopping becomes the specified feedrate multipled by the override value specified with this signal.
Page 2581.AXIS CONTROL B-63323EN-1/03 Signal address #7 #6 #5 #4 #3 #2 #1 #0 G044 *CHLD CHPST *CHP8 *CHP4 *CHP2 *CHP1 F157 CHPCYL CHPMD Parameter #7 #6 #5 #4 #3 #2 #1 #0 1001 CAF [Input type] Setting input [Data type] Bit #7 CAF Specifies whether to enable chopping axis and rate data to be set on the settin
Page 259B-63323EN-1/03 1.AXIS CONTROL 1193 Upper limit for chopping " # $ $ %& ' % %(&& %)
Page 2601.AXIS CONTROL B-63323EN-1/03 1197 Maximum feedrate during chopping " # ,$ ,$ ,% & " %-& %)
Page 261B-63323EN-1/03 1.AXIS CONTROL Alarm and message Number Message Contents PS0472 ILL-COMMAND IN G81.1 MODE Either G81.1 was instructed again while in the chopping mode, or a move instruction was issued to the chopping axis. To change the chopping conditions, cancel G80 and specify G81.1 again. Referen
Page 2621.AXIS CONTROL B-63323EN-1/03 1.12 ELECTRONIC GEAR BOX Overview This function rotates a workpiece in synchronization with a rotating tool, or moves a tool in synchronization with a rotating workpiece to enable the highly precise machining of gears and screws. The rate of synchronization can be speci
Page 263B-63323EN-1/03 1.AXIS CONTROL βj : Slave-axis address j :Slave-axis travel indicated in units of the minimum travel increments (the range of valid settings for usual axis movement applies) When j = 0, the specified command is regarded as being a command for the slave-axis speed, described below. In
Page 2641.AXIS CONTROL B-63323EN-1/03 2. Canceling synchronization by a reset For an axis for which a parameter is set to allow synchronization to be canceled by a reset, RSH, bit 0 of No. 7612, is set to 0, allowing synchronization to be canceled by a reset. When a manual absolute signal is on, the absolut
Page 265B-63323EN-1/03 1.AXIS CONTROL 1.12.2 Description of Commands Compatible with Those for a Hobbing Machine A command compatible with that for a hobbing machine can be used as a synchronization command. Such a command cannot be used when a canned-cycle option is provided. During machining, the hobbing
Page 2661.AXIS CONTROL B-63323EN-1/03 Explanation - Synchronization start Specify P and Q to use helical gear compensation. In this case, if only one of P and Q is specified, an alarm (PS0594) is generated. When a G81 command is issued to change to synchronization mode, the EGB mode confirmation signal for
Page 267B-63323EN-1/03 1.AXIS CONTROL P : Twisted angle of the gear with sign (degrees) π : Ratio of the circumference of a circle to its diameter T : Number of teeth Q : Module (mm) or diametral pitch (1/inch) Use P, T, and Q specified in the G81 block. NOTE An axial feed axis refers to the rotation center
Page 2681.AXIS CONTROL B-63323EN-1/03 - Compensation direction in helical gear compensation Parameter HDR (bit 2 of No. 7612) When the HDR bit is set to 1 (a) (b) (c) (d) +Z +C +C +C +C C : +, Z : +, P : + C : +, Z : +, P : - C : +, Z : -, P : + C : +, Z : -, P : - Compensation direction : + Compensation di
Page 269B-63323EN-1/03 1.AXIS CONTROL 1.12.3 Configuration Examples of Controlled Axes - Gear grinder Spindle : EGB master axis serving as a tool axis First axis : X Second axis : Y Third axis : C axis (EGB slave axis serving as a workpiece axis) Fourth axis : C axis (EGB dummy axis, which cannot be used as
Page 2701.AXIS CONTROL B-63323EN-1/03 - Dressing example When the following configuration is used in a gear grinder U axis Rotating grinding wheel V axis V-axis motor Limit switch 1 Limit switch 2 O9500 ; N01 G01 G91 U Q F100; Approach of dressing axis N02 Maa S100; With Maa, the PMC rotates the grinding wh
Page 271B-63323EN-1/03 1.AXIS CONTROL NOTE If the V-axis (linear axis) is synchronized with the spindle as in the case of dressing, the range of movement of the V-axis is determined by the rotation of the spindle. Accordingly, to perform dressing by back and forth movement along the V-axis over a certain ra
Page 2721.AXIS CONTROL B-63323EN-1/03 1.12.4 Retraction Function - Retraction function caused by an external signal When retract signal RTRCT is set to 1 (on the rising edge of the signal), retraction is performed according to the retract value set in parameter No. 7796 and the feedrate set in parameter No.
Page 273B-63323EN-1/03 1.AXIS CONTROL - Flowchart of retraction function processing by a servo or spindle alarm Servo axis out of order Spindle out of order Servo amplifier error Spindle amplifier out of order Start deceleration stop Start deceleration stop for for spindle : PMC spindle : spindle amplifier
Page 2741.AXIS CONTROL B-63323EN-1/03 1.12.5 Automatic phase matching function with electronic gear box In the EGB (electronic gear box), when synchronization start or cancellation is specified, synchronization is not started or canceled immediately. Instead, acceleration/deceleration is executed first. The
Page 275B-63323EN-1/03 1.AXIS CONTROL Explanation - Acceleration/deceleration type Spindle speed Synchronization Synchronization start command cancellation command Workpiece -axis speed Synchronization Acceleration state Deceleration G81R1 command execution Acceleration Synchronization-set G80R1 command exe
Page 2761.AXIS CONTROL B-63323EN-1/03 - Acceleration/deceleration plus automatic phase matching type Spindle speed Synchronization Synchronization start command cancellation command Workpiece -axis speed Synchro- Synchro- Acceleration nization nization Deceleration state state G81R2 command execution Accele
Page 277B-63323EN-1/03 1.AXIS CONTROL CAUTION Automatic phase matching, specify the speed in parameter No. 5984 and the movement direction in parameter PHD, bit 1 of No. 7712. In phase matching, rapid-traverse linear acceleration/deceleration (with the time constant specified in parameter No. 1620) is perfo
Page 2781.AXIS CONTROL B-63323EN-1/03 NOTE 6 The acceleration/deceleration plus automatic phase matching type can be executed by the PHS parameter, bit 0 of No. 7712, without specifying an R2 command in a G81 or G80 block. 7 In automatic synchronization cancellation due to the following causes, deceleration
Page 279B-63323EN-1/03 1.AXIS CONTROL EGB mode confirmation signal EGBM1, EGBM 2< F070#3>, ... [Classification] Output signal [Function] Reports that synchronization is being executed by EGB. This signal is output to a slave axis. EGBMx x : 1 ..... First axis synchronized by EGB 2 ..... Second axis
Page 2801.AXIS CONTROL B-63323EN-1/03 Data Description number 7712 # 0 Specify whether acceleration/deceleration is performed in EGB synchronization start/cancellation if an R command is not specified in a G81/G80 block. In synchronization start, when acceleration/deceleration is performed, automatic phase
Page 281B-63323EN-1/03 1.AXIS CONTROL 4. Specify the amount of travel per rotation about a rotation axis for a slave axis in a parameter No. 1260. 5. Make the specification for a dummy axis in the following way. 1816#4, #5, #6 Detection multiplication (DMR) Set bit 4, bit 5, and bit 6 of No. 1816 to 1 (DMR=
Page 2821.AXIS CONTROL B-63323EN-1/03 1023 Servo axis number of each axis [Input type] Parameter input [Data type] Integeraxis [Valid data range] 0 - Max axes Specify the number of the servo axis that corresponds to each control axis. Normally, set each servo and control axis to the same numbers. The contro
Page 283B-63323EN-1/03 1.AXIS CONTROL #7 #6 #5 #4 #3 #2 #1 #0 7612 HDR RSH * 7. "> 4 %
Page 2841.AXIS CONTROL B-63323EN-1/03 #2 HDR Helical gear compensation direction (Usually, set 1.) Example: When the rotation direction of the C-axis is the negative (-) direction, and a left-twisted helical gear is cut: 0: Set a negative (-) value in P. 1: Set a positive (+) value in P. When the HDR bit is
Page 285B-63323EN-1/03 1.AXIS CONTROL #7 #6 #5 #4 #3 #2 #1 #0 7712 PHD PHS * 7. > 4 , 4 ;<* = "
Page 2861.AXIS CONTROL B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 7711 EHF * 78 ;>A 4 4 =
Page 287B-63323EN-1/03 1.AXIS CONTROL 5997 Number of pulses from the position detector per EGB slave axis rotation # ''''''''' Set the number of pulses from the position detector per EGB slave axis rotation. Specify the nu
Page 2881.AXIS CONTROL B-63323EN-1/03 (Example 2) If the spindle-to-detector gear ratio is changed to 2/3 in the above example (three spindle rotations for two detector rotations) In this case, the number of pulses per spindle rotation is: × There is a remainder. In this case, change
Page 289B-63323EN-1/03 1.AXIS CONTROL 5994 Axial-feed axis number in helical compensation . ! NOTE When this parameter is set to 0, the Z-axis is set as the axial-feed axis. When t
Page 2901.AXIS CONTROL B-63323EN-1/03 7795 Retract feedrate " # ,$ ,$ ,% & " %-& %) *$.!.
Page 291B-63323EN-1/03 1.AXIS CONTROL 7729 Acceleration for workpiece axis acceleration/deceleration " # , , " %& %)
Page 2921.AXIS CONTROL B-63323EN-1/03 1.13 EGB AXIS SKIP FUNCTION General In the synchronization mode supported by an electronic gear box (EGB), this function enables a skip signal or high-speed skip signal (both referred to as a skip signal) for an EGB slave axis. This function has the following features:
Page 293B-63323EN-1/03 1.AXIS CONTROL NOTE 1 Only a single EGB slave axis may be specified for this function. If no axis is specified or if two or more axes are specified, alarm PS152 is output. 2 If P is omitted, alarm PS152 is output. 3 If R is omitted, the number of input skip signals is not written in t
Page 2941.AXIS CONTROL B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 7210 9S8 9S7 9S6 9S5 9S4 9S3 9S2 9S1 * 9S1 to 9S8 A skip signal to be used for G31.8 (EGB skip command) is set. Corresponding skip signal Parameter High-speed skip signal DI signal ( HSS(No.7200#4)=1) ( HSS(No.72
Page 295B-63323EN-1/03 1.AXIS CONTROL Alarm and message Number Message Contents PS0114 VARIABLE NO. OUT OF RANGE An illegal No. was specified in a local variable, common variable or a system variable in a custom macro. A non-existent custom macro variable No. was specified in the EGB axis skip function (G31
Page 2961.AXIS CONTROL B-63323EN-1/03 1.14 TURNING MODE AND COMPENSATION CLAMP OF DUAL POSITION FEEDBACK Overview For axes controlled by the dual position feedback function, turning mode and compensation clamp are newly available. For details on the dual position feedback function, refer to the "FANUC AC SE
Page 297B-63323EN-1/03 1.AXIS CONTROL Signals Dual position feedback turning mode select signal HBTRN [Classification] Input signal [Function] Selects turning mode. [Operation] When this signal is set to 1, turning mode of dual position feedback is entered. Dual position feedback compensation clamp
Page 2981.AXIS CONTROL B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 1930 STH * 7. 2> 2 9: 0: Disabled. 1: Enabled. - 282 -
Page 299B-63323EN-1/03 1.AXIS CONTROL 1.15 DECELERATION STOP AT POWER FAILURE Overview If a power failure occurs during axis movement, this function decelerates and stops the tool according to a certain acceleration value set for each axis in parameter No. 1670 to prevent the machine from being damaged by a
Page 3001.AXIS CONTROL B-63323EN-1/03 Signal Power failure deceleration signal PWFL [Classification] Input signal [Function] Posts the detection of a power failure. [Operation] When this signal is set to 1, the control unit operates an follows: Immediately performs deceleration stop according to an
Page 301B-63323EN-1/03 1.AXIS CONTROL 1.16 HIGH SPEED HRV MODE Overview Higher speed and higher precision HIGH SPEED HRV control can be performed by using the servo control card, the servo amplifier, and Separate Detector I/F Unit supporting HIGH SPEED HRV control. Format G05.4 Q1 ; Turns HIGH SPEED HRV mod
Page 3021.AXIS CONTROL B-63323EN-1/03 Restrictions HIGH SPEED HRV mode is disabled under any of the following conditions, even if an attempt is made to turn it on: - Automatic operation is stopped - PMC axis control axis - Axis on which a chopping operation is in progress - Axis for which the setup type of
Page 303B-63323EN-1/03 1.AXIS CONTROL Diagnosis - HIGH SPEED HRV status The HIGH SPEED HRV status can be checked using diagnostic data. #7 #6 #5 #4 #3 #2 #1 #0 3022 HRVOK HRVON A : B.// : B.0/ 2 : B.8/ % : B.//+/.%& * 6
Page 3041.AXIS CONTROL B-63323EN-1/03 1.17 SETUP OF FSSBs IF USING HIGH SPEED HRV CONTROL It is possible to use HIGH SPEED HRV control for up to eight axes (24 axes for systems having 11 or more controlled axes) by using the servo control card supporting HIGH SPEED HRV control and the slave (servo amplifier
Page 305B-63323EN-1/03 1.AXIS CONTROL NOTE If the number of controlled axes is four or less, it is available to use HIGH SPEED HRV control with one Separate Detector I/F Unit. In this case, the Requirements for performing HIGH SPEED HRV control must be satisfied. For these requirements, refer to “NOTES” of
Page 3061.AXIS CONTROL B-63323EN-1/03 Display of FSSB data The slave numbers on the amplifier setup screen each consist of a number that indicates an FSSB (either 1 or 2), a hyphen (-), and the number of the slave unit connected to that FSSB. The slave numbers are listed, starting with that of the slave uni
Page 307B-63323EN-1/03 1.AXIS CONTROL Parameters 1120 Address translation table value (ATR) for slave 1 (second FSSB) 1121 Address translation table value (ATR) for slave 2 (second FSSB) 1122 Address translation table value (ATR) for slave 3 (second FSSB) 1123 Address translation table value (ATR) for slave
Page 3081.AXIS CONTROL B-63323EN-1/03 NOTE 1 A total of up to ten slave units (eight amplifiers and two Separate Detector I/F Units) can be connected to the first and second FSSBs. (For systems having 11 or more controlled axes, a total of up to 30 slave units, 24 amplifiers and six Separate Detector I/F Un
Page 309B-63323EN-1/03 1.AXIS CONTROL Notes NOTE Requirements for performing HIGH SPEED HRV control If HIGH SPEED HRV control is to be used, the system must satisfy the following requirements, such as the required number of slaves, type, and connection method: 1 If five slaves (amplifiers for four axes, and
Page 3101.AXIS CONTROL B-63323EN-1/03 1.18 LOADING OF MULTIPLE SERVO PROGRAMS Overview This function allows two or more servo programs of a standard and application series to be stored in FROM at the same time and is used for different servo DSPs. Using this function, it is possible to load a standard serie
Page 311B-63323EN-1/03 1.AXIS CONTROL Alarm and message Number Message Description SV0455 SERVO SOFTWARE NOT FOUND The specified servo program cannot be found. The setting of parameter No. 1043 is not correct, or the servo program does not exist. Reference item FANUC AC SERVO MOTOR α series PARAMETER B-6515
Page 3122.PREAPARATIONS FOR OPERATION B-63323EN-1/03 2 PREAPARATIONS FOR OPERATION - 296 -
Page 313B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION 2.1 EMERGENCY STOP If you press Emergency Stop button on the machine operator’s panel, the machine movement stops in a moment. Red EMERGENCY STOP Figure 2.1 (a) Emergency stop For how to use the emergency stop button, see the manual provided by the machin
Page 3142.PREAPARATIONS FOR OPERATION B-63323EN-1/03 Reset caused by an emergency stop *ESP Emergency stop Reset SA Alarm issued upon an emergency *ESP *ESP, RRW, reset key Emergency stop Reset SA Fig. 2.1(b) Differences between the Causing of a Reset by an Emergency Stop and the Issue of an Alarm upon an E
Page 315B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION Emergency stop limit switch +X -X +Y -Y +Z -Z +4 -4 Relay power Emergency stop EMG SK Spark killer Fig. 2.1 (c) Connection of emergency stop limit switch The distance from the position where the dynamic brake is applied to that where the tool stops moving
Page 3162.PREAPARATIONS FOR OPERATION B-63323EN-1/03 Signal address #7 #6 #5 #4 #3 #2 #1 #0 G000 *ESP Parameter #7 #6 #5 #4 #3 #2 #1 #0 2001 ENR [Input type] Parameter input [Data type] Bit
Page 317B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION 2.2 READY SIGNALS Overview The ready signals are set to 1 when the power to the CNC is turned on and operation is ready. Signal CNC Ready Signal MA [Classification] Output signal [Function] The CNC ready signal reports that the CNC is ready. [Outp
Page 3182.PREAPARATIONS FOR OPERATION B-63323EN-1/03 Power on Power off Ready signal (MA) 60 to 100 msec Servo ready signal (SA) Brake on Servo alarm Servo alarm (Overload) Reset Reset Emergency stop 1 to 2 seconds About 1 second Fig. 2.2 (a) Time chart for servo ready signal Signal address #7 #6 #5 #4 #3 #
Page 319B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION 2.3 OVERTRAVEL CHECK 2.3.1 Overtravel Signal Overview When the tool tries to move beyond the stroke end set by the machine tool limit switch, the tool decelerates and stops because of working the limit switch and an OVER TRAVEL is displayed. Signal Overtr
Page 3202.PREAPARATIONS FOR OPERATION B-63323EN-1/03 The following shows the deceleration distance at overtravel. (i) Rapid traverse V Command pulse deceleration Servo system delay VR t *+Lα limit switch t1 t2 TR L1=VR(t1+t2+TR/2+TS)-1/6000 kmm, inch l................... (1) L1 : Deceleration distance VR :
Page 321B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION Signal address #7 #6 #5 #4 #3 #2 #1 #0 G064 *-L1 *+L1 The above is the signal address of the first axis. For the signal addresses of the second and subsequent axes, see the address table of the BMI interface for the Series 15i in Section A.1. Alarm and me
Page 3222.PREAPARATIONS FOR OPERATION B-63323EN-1/03 2.3.2 Stored Stroke Check 1 General When the tool tries to exceed a stored stroke check, an alarm is displayed and the tool is decelerated and stopped. When the tool enters a forbidden area and an alarm is generated, the tool can be moved in the reverse d
Page 323B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION Stroke check release signal RLSOT [Classification] Input signal [Function] Selects whether the stored stroke check 1 are checked. [Operation] When this signal is set to 1, stroke limit 1 is not checked. Signal address #7 #6 #5 #4 #3 #2 #1 #0 G384
Page 3242.PREAPARATIONS FOR OPERATION B-63323EN-1/03 5220 Positive (+) direction coordinate of stored stroke limit 1 of each axis I ! " # $ " / 3 * " 4 5 ( * " $ * / 6 " 7 *
Page 325B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION 5261 Coordinate II along each axis in the minus direction of stored stroke limit 1 ! " # $ " / 3 * " 4 5 ( * " $ * / 6 " 7 *
Page 3262.PREAPARATIONS FOR OPERATION B-63323EN-1/03 2.3.3 Stroke Check 2 General Three areas which the tool cannot enter can be specified with stored stroke check 1, stored stroke check 2, and stored stroke check 3. (X,Y,Z) (I,J,K) (1) Forbidden area is inside. (X,Y,Z) (I,J,K) (2) Forbidden area is outside
Page 327B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION G 22X_ Y_ Z_ I_ J_ K_ ; (X,Y,Z) (I,J,K) X>I, Y>J, Z>K X-I>ζ Y-J>ζ Z-K>ζ ζ : Movement value / 8 msec 2.0mm when speed is 15m/min. Fig. 2.3.3 (b) Creating or changing the forbidden area using a program When setting the area by parameters, points A and B in
Page 3282.PREAPARATIONS FOR OPERATION B-63323EN-1/03 tool, setting the forbidden area for the longest tool requires no re- setting and results in safe operation. The position of the B tool after reference position return b A a Area boundary Fig. 2.3.3 (d) Setting the forbidden area - Forbidden area over lap
Page 329B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION - Releasing the alarms If the enters a forbidden area and an alarm is generated, the tool can be moved only in the backward direction. To cancel the alarm, move the tool backward until it is outside the forbidden area and reset the system. When the alarm
Page 3302.PREAPARATIONS FOR OPERATION B-63323EN-1/03 5222 Positive (+) direction coordinate of stored stroke limit 2 of each axis ! " ) $ " / 3 * " 4 5 ( * " $ * / 6 " 7 *
Page 331B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION Note NOTE 1 In setting a forbidden area, if the two points to be set are the same, the area is as follows: (1) When the forbidden area is stored stroke check 1, all areas are forbidden areas. (2) When the forbidden area is stored stroke check 2 or stored
Page 3322.PREAPARATIONS FOR OPERATION B-63323EN-1/03 2.3.4 Stroke Limit Check Prior to Performing Movement General During automatic operation, before the movement specified by a given block is started, whether the tool enters the inhibited area defined by stored stroke limit 1 or 2 is checked by determining
Page 333B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION Example 2) Inhibited area defined by End point stored stroke limit 2 a The tool is stopped at point a according Start point to stored stroke limit 2. Inhibited area defined by stored stroke limit 2 End point Immediately upon movement commencing from the s
Page 3342.PREAPARATIONS FOR OPERATION B-63323EN-1/03 - Polar coordinate interpolation mode In polar coordinate interpolation mode, no check is made. - Three-dimensional coordinate conversion In three-dimensional coordinate conversion mode, no check is made. - PMC axis control No check is made for a movement
Page 335B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION 2.4 ALARM SIGNALS Overview When the CNC placed in the alarm state, an alarm is displayed on the screen, and the alarm-on signal is set to 1. The alarm type signal corresponding to the type of an issued alarm is set to 1. The speed control servo alarm igno
Page 3362.PREAPARATIONS FOR OPERATION B-63323EN-1/03 - When the corresponding alarm is released by a CNC reset or alarm cancellation All-axis VRDY OFF alarm ignore signal DVAL See the description of the VRDY OFF alarm ignore signal in Section 2.8. Battery voltage drop alarm signal BATL [Clas
Page 337B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION Parameter #7 #6 #5 #4 #3 #2 #1 #0 8000 NAP ! " ) $ " % # ) * + + + )+ $ + Reference item Series15i/150i- Connecti
Page 3382.PREAPARATIONS FOR OPERATION B-63323EN-1/03 2.5 INTERLOCK General This signal disables machine movement along axes. When this signal is input during movement along axes, the tool movement is decelerated, then stopped. Signal All axes Interlock signal *IT [Classification] Input signal [Funct
Page 339B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION NOTE The overtravel amount of the motor after turning *IT to "0" is represented by the following formula. Qmax = Fm ~1/60 ~(A/1000+Tc/1000+Ts/1000) Qmax : Overtravel quantity (mm or inch) Fm : Feedrate (mm/min or inch/min) Tc : Cutting time constant (ms)
Page 3402.PREAPARATIONS FOR OPERATION B-63323EN-1/03 If an axis is interlocked while its movement is being commanded (the move amount is not 0, inclusive of the tool offset), all axes movements are prevented. If a moving axis is interlocked, all axes stop moving after being decelerated, and they start movin
Page 341B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION Cutting block start interlock signal *CSL [Classification] Input signal [Function] Disables the start of the execution of move command blocks other than positioning blocks in automatic operation. [Operation] While this signal is set to 0, the exec
Page 3422.PREAPARATIONS FOR OPERATION B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 1000 XIK ! " # $ " % : -!? / , 0 4+ '# * . 5 * + /+ ,+
Page 343B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION 2.6 MODE SELECTION Overview The mode selection signals set the basic operation modes of the control unit. The mode selection signals include input signals used by an external device to notify the control unit of a desired operation mode, and output signal
Page 3442.PREAPARATIONS FOR OPERATION B-63323EN-1/03 If a combination of selection signals not listed in the table above is entered, the previous operation mode remains set for a certain period (T1) after input of the combination. After time T1, the state in which neither automatic operation mode nor manual
Page 345B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION switching, or while the previous operation is being continued after switching upon the completion of block execution. So, during that period, the signal output to confirm the selection mode continues to post in the previous operation mode. Signals Manual
Page 3462.PREAPARATIONS FOR OPERATION B-63323EN-1/03 Jog feed selection signal J [Classification] Input signal [Function] Selects jog feed mode. Manual operation such as jog feed, manual reference position return, and manual numeric value specification is performed. [Operation] See "Operation mode
Page 347B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION DNC operation selection confirmation signal MT [Classification] Output signal [Function] Indicates that DNC operation mode is selected. [Output condition] See "Operation mode selection method" and "Operation at the time of operation mode switchin
Page 3482.PREAPARATIONS FOR OPERATION B-63323EN-1/03 Simultaneous automatic and manual operation selection confirmation signal MMOVL [Classification] Output signal [Function] Indicates that simultaneous automatic and manual operation mode is selected. [Output condition] See "Operation mode selection
Page 349B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION 2015 Time that invalid mode selected status is ignored ! " # $ " ! 3 * " 6 " 0: !* 8 * 8 * * 8
Page 3502.PREAPARATIONS FOR OPERATION B-63323EN-1/03 2.7 STATUS OUTPUT SIGNAL General The table below lists the status output signals for notifying the state of the CNC. See the sections listed in the table for details of each signal. Signal name Symbol Reference item Alarm signal AL 2.4 Battery alarm signa
Page 351B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION Signal address #7 #6 #5 #4 #3 #2 #1 #0 F001 RPD - 335 -
Page 3522.PREAPARATIONS FOR OPERATION B-63323EN-1/03 2.8 VRDY OFF ALARM IGNORE SIGNAL General The German VDE safety standard requires that the motor be deactivated when the safety guard is opened. By using the VRDY OFF alarm ignore signal, however, the CNC can be restarted without resetting, even if the saf
Page 353B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION Parameter #7 #6 #5 #4 #3 #2 #1 #0 1800 IVO SAK ! " # $ " % > )? ) * + * 8 )+ 6$C;AA $6' + 6$C;AA * /$6'
Page 3542.PREAPARATIONS FOR OPERATION B-63323EN-1/03 Caution CAUTION 1 If a reset is caused while DVALn or DVAL is set to 1 when bit 7 (IVO) of parameter No. 1800 is set to 0, the reset state is not cleared until DVALn or DVAL is set to 1. To exit from the reset state in this case, set bit 7 (IVO) of parame
Page 355B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION 2.9 ABNORMAL LOAD DETECTION Overview When the machine collides, or if a defective or damaged tool is used, a load torque greater than that applied in normal feed and cutting is applied to the servo and spindle motors. This function detects the load torque
Page 3562.PREAPARATIONS FOR OPERATION B-63323EN-1/03 Parameter setting The method of setting the parameters to use the abnormal load detection function is described below. (1) Servo axis The abnormal load detection function is available. Is the abnormal load Bit 0 (ABD) of parameter detection function used?
Page 357B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION Signal Servo axis abnormal load detection signal AQSV [Classification] Output signal [Function] Notifies the PMC of an abnormal load detected on the servo axis. [Output condition] This signal is set to 1 in the following case: - When an abnormal l
Page 3582.PREAPARATIONS FOR OPERATION B-63323EN-1/03 NOTE No spindle axis subject to speed control can be stopped from the CNC. If necessary, stop a spindle axis subject to speed control from the PMC by using output signal AQSPn (n = 1 to 4). Signal address #7 #6 #5 #4 #3 #2 #1 #0 F155 AQSP2 AQSP1 AQSV F154
Page 359B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION #7 #6 #5 #4 #3 #2 #1 #0 1957 TDO ! " # $ " % / 9 $; ) * + , * / E E #7 #6 #5 #4 #3 #2 #1 #0 1958 ABD ! " # $ " % /
Page 3602.PREAPARATIONS FOR OPERATION B-63323EN-1/03 1996 Retract amount on detecting an irregular load ! " # $ " ! / 3 * " 6 " 0&:<>< If an abnormal load is detected, the direction of the motor rotation can be reversed. This parameter sets the amou
Page 361B-63323EN-1/03 2.PREAPARATIONS FOR OPERATION Spindle parameter #7 #6 #5 #4 #3 #2 #1 #0 3015 SPM ! " # $ " % )#( ) ** * * E * 8 8 8 3247 Time constant for the magnetic flax
Page 3622.PREAPARATIONS FOR OPERATION B-63323EN-1/03 3250 Observer gain 2 for monitoring the spindle load (for the main side) ! " # $ " ! 6 " 0&:<>< 8 9 3341 Threshold value for the detection of an irregular load on the spindle ! " #
Page 363B-63323EN-1/03 3.MANUAL OPERATION 3 MANUAL OPERATION - 347 -
Page 3643.MANUAL OPERATION B-63323EN-1/03 3.1 JOG FEED/INCREMENTAL FEED General - Jog feed In the jog mode, turning a feed axis and direction selection signal to "1" on the machine operator’s panel continuously moves the tool along the selected axis in the selected direction. - Incremental feed In the incre
Page 365B-63323EN-1/03 3.MANUAL OPERATION Feed Axis and Direction Selection Signal +J1, +J2, ... , -J1, -J2, ... [Classification] Input signal [Function] Selects a desired feed axis and direction in jog feed or incremental feed. The sign (+ or -) in the signal name indicates the
Page 3663.MANUAL OPERATION B-63323EN-1/03 Jog mode or incremental feed mode +J1 1st axis +J1 is Axis is fed again after signals ineffectiv have turned to "0" once. e during NOTE 3 If the control unit is reset while the feed axis and direction selection signals are set to "1" or if a feed axis and direction
Page 367B-63323EN-1/03 3.MANUAL OPERATION *JV0-*JV15 Override value 12 8 4 0 (%) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0.01 1 1 1 1 1 1 1 1 1 1 1 1 0 1 0 1 0.10 1 1 1 1 1 1 1 1 1 0 0 1 1 0 1 1 1.00 1 1 1 1 1 1 0 0 0 0 0 1 0 1 1 1 10.00 1 1 0 1 1 0 0 0 1 1 1 0 1 1 1 1 100.00 0 1 1
Page 3683.MANUAL OPERATION B-63323EN-1/03 WARNING After the power is turned on, the stroke limit function does not work until the reference position return is completed. During this period, the control unit ignores the RT signal, if it is set to "1", and keeps moving the tool at a feedrate selected by the m
Page 369B-63323EN-1/03 3.MANUAL OPERATION Signal address #7 #6 #5 #4 #3 #2 #1 #0 G006 RT G014 *JV7 *JV6 *JV5 *JV4 *JV3 *JV2 *JV1 *JV0 G015 *JV15 *JV14 *JV13 *JV12 *JV11 *JV10 *JV9 *JV8 G020 DIST7 DIST6 DIST5 DIST4 DIST3 DIST2 DIST1 DIST0 G021 DIST15 DIST14 DIST13 DIST12 DIST11 DIST10 DIST9 DIST8 G022 DIST23
Page 3703.MANUAL OPERATION B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1400 RPD ! " #$ % " &$ % " 1423 J
Page 371B-63323EN-1/03 3.MANUAL OPERATION 1625 FL feedrate for each axis for acceleration/deceleration during jog feed ' ( )*)* !)+ , - ' . !
Page 3723.MANUAL OPERATION B-63323EN-1/03 Note NOTE Time constant and method of automatic acceleration/ deceleration for manual rapid traverse are the same as G00 in programmed command. Reference item Series15i/150i-MA Operator’s Manual II-3.2 Jog feed (Operation) II-3.3 Incremental feed (B-63324EN-1) - 356
Page 373B-63323EN-1/03 3.MANUAL OPERATION 3.2 MANUAL HANDLE FEED General In the manual handle feed mode, the tool can be minutely moved by rotating the manual pulse generator. Select the axis along which the tool is to be moved with the handle feed axis selection signal. The minimum distance the tool is mov
Page 3743.MANUAL OPERATION B-63323EN-1/03 Manual handle feed axis selection Feed axis HSnD HSnC HSnB HSnA 0 0 0 0 No selection (None of axis is fed) 0 0 0 1 1st axis 0 0 1 0 2nd axis 0 0 1 1 3rd axis 0 1 0 0 4th axis 0 1 0 1 5th axis 0 1 1 0 6th axis 0 1 1 1 7th axis 1 0 0 0 8th axis 1 0 0 1 9th axis 1 0 1
Page 375B-63323EN-1/03 3.MANUAL OPERATION Manual handle feed amount Distance traveled (increment feed) selection signal MP4 MP2 MP1 0 0 0 Least input increment x 1 0 0 1 Least input increment x 10 0 1 0 Least input increment x 100 0 1 1 Least input increment x 1000 1 0 0 Least input increment x 10000 1 0 1
Page 3763.MANUAL OPERATION B-63323EN-1/03 Parameter 1413 Maximum number of buffered manual handle feed pulses [Input type] Parameter input [Data type] Integer [Valid data range] 0-4 The permissible flow amount is set. If such a handle feed that momentarily exceeds the rapid traverse rate is specified, the h
Page 377B-63323EN-1/03 3.MANUAL OPERATION 1418 Magnification n of manual handle feed ! . ! #0### Set the magnification rate for when movement selection signals MP1 and MP2 for manual handle feed are 1. Travel amount select signal Amount of travel
Page 3783.MANUAL OPERATION B-63323EN-1/03 3.3 MANUAL HANDLE CONNECTED TO I/O LINK General Instead of an ordinary manual handle connected to the main CPU board, a manual handle connected to the I/O Link (operator’s panel unit, distributed I/O) can be used. - Method of setting I/O-Link-connected manual handle
Page 379B-63323EN-1/03 3.MANUAL OPERATION Parameter #7 #6 #5 #4 #3 #2 #1 #0 2070 IH3 IH2 IH1 [Input type] Parameter input [Data type] Bit # 9& )@0 A0 " #$ < " +B ", &$ ( " NOTE When this
Page 3803.MANUAL OPERATION B-63323EN-1/03 2071 Address value of the first I/O-Link-connected manual handle NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective. ! . ! #0&?
Page 381B-63323EN-1/03 3.MANUAL OPERATION 2073 Address value of the third I/O-Link-connected manual handle NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective. ! . ! #0&?
Page 3823.MANUAL OPERATION B-63323EN-1/03 3.4 MANUAL HANDLE INTERRUPTION General Rotating the manual pulse generator during automatic operation can increase the distance traveled by the amount corresponding to the handle feed. The axis to which the handle interrupt is applied is selected using the manual ha
Page 383B-63323EN-1/03 3.MANUAL OPERATION 3.5 THREE-DIMENSIONAL HANDLE FEED Three-dimensional handle feed includes three special handle feed modes, a function for changing the tool length compensation in the longitudinal direction of the tool, and two screen display functions. The three-dimensional handle f
Page 3843.MANUAL OPERATION B-63323EN-1/03 Handle feed interruption in the longitudinal direction of the tool In tool axis direction handle feed, the tool is moved in the tool axis direction by the rotation of the manual pulse generator. B C Longitndinal direction of the tool Z Workpiecie C B Y X Tool axis d
Page 385B-63323EN-1/03 3.MANUAL OPERATION - Rotary axes B and C (with the Z-axis representing the tool axis) Z Zp Hp B Yp Y Xp C X Xp=Hp×sin(B)×cos(C) Yp=Hp×sin(B)×sin(C) Zp=Hp×cos(B) - Rotary axes A and C (with the Z-axis representing the tool axis) Z Hp Zp A Yp Xp Y C X Xp=Hp×sin(A)×sin(C) Yp=-Hp×sin(A)×c
Page 3863.MANUAL OPERATION B-63323EN-1/03 - Rotary axes A and B (with the X-axis representing the tool axis) X Xp Hp B Zp Z Yp A Y Xp=Hp×cos(B) Yp=Hp×sin(B)×sin(A) Zp= -Hp×sin(B)×cos(A) -Rotary axes A and B (with the A-axis being the master and the Z-axis representing the tool axis) Z B Hpz A HPzb Zp Y Xp X
Page 387B-63323EN-1/03 3.MANUAL OPERATION -Rotation axes A and B (with the B-axis being the master axis and the Z-axis representing the tool axis) Z A Hpz B Hpza Zp Y X Xp Yp Hpz : Hp when the machine position of the A-axis is 0 and the machine position of the B-axis is 0 Hpza: Hp when rotation is performed
Page 3883.MANUAL OPERATION B-63323EN-1/03 (3) In parameter No. 7551 and No. 7552, the axis numbers of the first manual pulse generator are set as the axes for tool axis right-angle direction handle feed mode. (4) Manual handle feed axes are selected for the axis numbers set in parameter No. 7551 and No. 755
Page 389B-63323EN-1/03 3.MANUAL OPERATION - When handle feed is performed in the transverse direction of the tool (in the Y-axis direction) Z HP (Y direction) Xp B Yp Y X C When three-dimensional handle feed in the transverse direction of the tool (in the Y-axis direction) is performed with the B- and C-axe
Page 3903.MANUAL OPERATION B-63323EN-1/03 - When handle feed is performed in the transverse direction of the tool (in the Y-axis direction) Z Hp (Y direction) A Y C Zp Yp Xp X Xp=-Hp×cos(A)×sin(C) Yp=Hp×cos(A)×cos(C) Zp=Hp×sin(A) - Rotation axes A and B (with the X-axis representing the tool axis) - When ha
Page 391B-63323EN-1/03 3.MANUAL OPERATION - When handle feed is performed in the transverse direction of the tool (in the Z-axis direction) X Hp(Z direction) B Z A Xp Zp Yp Y Xp=Hp×sin(B) Yp=-Hp×cos(B)×sin(A) Zp=Hp×cos(B)×cos(A) Rotational Handle Feed Around the Center of the Tool Tip Select the mode of rot
Page 3923.MANUAL OPERATION B-63323EN-1/03 (4) Manual handle feed axes are selected for the axis numbers set in parameter No. 7554 and No. 7555. - Pulse distribution to basic axes In the case of rotation around tool tip, linear axis movement (Xp, Yp, Zp) calculated by the equation below is output simultaneou
Page 393B-63323EN-1/03 3.MANUAL OPERATION - Rotation axes A and C (with the Z-axis representing the tool axis) Z Ap Zp T1 Yp T2 A Y C Xp X Cp T1 : Tool rotation center position T2 : Tool rotation center position after movement Ap, Cp : Angular displacement of the rotation axis Movement amount of linear axis
Page 3943.MANUAL OPERATION B-63323EN-1/03 Movement amount of linear axis Xp=L× [cos(B+Bp)-cos(B)] Yp=L× [sin(B+Bp)×sin(A+Ap)-sin(B)×sin(A)] Zp=-L× [sin(B+Bp)×cos(A+Ap)-sin(B)×cos(A)] Angular displacement of the rotation axis Ap=Hp or Bp=Hp Changing tool length compensation in the longitudinal direction of t
Page 395B-63323EN-1/03 3.MANUAL OPERATION Tool holder offset The length unique to the machine tool from the rotation center of a rotary axis (A and B axes, A and C axes, B and C axes) around which the tool axis rotates to the tool mounting position is called the "tool holder offset." This tool holder offset
Page 3963.MANUAL OPERATION B-63323EN-1/03 Precautions during 3-dimensional handle feed / interruption function (1) Interruption by 3-dimensional handle feed/interruption function is effective when manual handle interruption is added on at the same time. (2) When performing interruption by the 3-dimensional
Page 397B-63323EN-1/03 3.MANUAL OPERATION (2) Tool direction Z axis, rotary axes B and C axes B C Z Workpiece C B Y X (3) Tool direction X axis, rotary axes A and B axes A B Z A Workpiece X B Y - 381 -
Page 3983.MANUAL OPERATION B-63323EN-1/03 (4) Tool direction Z axis, rotary axes A and B axes (A-axis master) A B Z Y B Workpiece X A (5) Tool direction Z axis, rotary axes A and B axes (B-axis master) B A Z Workpiece B X Y A (4) Only the first manual pulse generator can be used in the 3- dimensional handle
Page 399B-63323EN-1/03 3.MANUAL OPERATION (6) Do not change parameters relating to the 3-dimensional handle feed/interruption in the 3-dimensional handle feed/interruption mode. (7) 3-dimensional handle interruption is not possible in the high- precision contour control mode. Three-dimensional handle feed/i
Page 4003.MANUAL OPERATION B-63323EN-1/03 Axis name Parameter(No.7543) A2 2 B1 1 B2 2 Setting 0: Axis that does not belong to any head 1: Axis that belongs to the head of the first combination 2: Axis that belongs to the head of the second combination 3: Axis that belongs to the heads of both of the first a
Page 401B-63323EN-1/03 3.MANUAL OPERATION (3) In the parameters, set the first handle feed axis selection signal values for performing three-dimensional handle feed/interrupt operation. Three-dimensional handle feed/interrupt setting for the head of the first combination Parameter Type of three-dimensional
Page 4023.MANUAL OPERATION B-63323EN-1/03 condition is also satisfied, three-dimensional handle interrupt operation is performed. (1) The manual handle interrupt function is enabled. (The simultaneous automatic and manual operation selection signal (MOVL) is set to 1, and a cutting mode is set.) - Parallel
Page 403B-63323EN-1/03 3.MANUAL OPERATION (6) During twin table control, independent operation with the slave axis based on the three-dimensional handle feed/interrupt function is possible. Signal Tool axis direction handle feed mode signal ALNGH [Classification] Input signal [Function] This signal
Page 4043.MANUAL OPERATION B-63323EN-1/03 Tool axis direction tool length compensation amount modification handle mode signal CNGTL [Classification] Input signal [Function] Selects tool axis direction tool length compensation amount modification handle mode. [Operation] If this signal is set to 1 wh
Page 405B-63323EN-1/03 3.MANUAL OPERATION Parameter #7 #6 #5 #4 #3 #2 #1 #0 1014 RAP RAM ! " # " ! ! $ % &
Page 4063.MANUAL OPERATION B-63323EN-1/03 #1 RAP Specifies whether the rotation axis used for tool axis direction tool length compensation, three-dimensional handle feed, and designation direction tool length compensation is an ordinary rotation axis. 0: Ordinary rotation axis. 1: Parameter axis. The rotati
Page 407B-63323EN-1/03 3.MANUAL OPERATION 1029 Axis number of the linear axis to which a rotation axis belongs [Input type] Parameter input [Data type] Integeraxis [Valid data range] 0 - Max axes When a rotation axis turns about a linear axis, the linear axis is referred to as an axis to which the rotation
Page 4083.MANUAL OPERATION B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 2202 DTL 1 23 * 42 0 * ! + ! $ % 2
Page 409B-63323EN-1/03 3.MANUAL OPERATION 7515 Master rotation axis number [Input type] Parameter input [Data type] Integer [Valid data range] 0 - Max axes When a machine does not have the rotation axis that turns about the tool axis, the axis number of a rotation axis used as the master axis is set. For ma
Page 4103.MANUAL OPERATION B-63323EN-1/03 Data No. Data 1029 W X Y Z A B 0 0 0 0 2 3 7514 3 7515 5 7516 Angular displacement of a rotation axis ( ! 8 ! 9 !
Page 411B-63323EN-1/03 3.MANUAL OPERATION 7518 Origin offset value of a rotation axis ( ! 8 ! 9 ! - ! * -.. -5
Page 4123.MANUAL OPERATION B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 7550 CLR < 43 0 * # $ % $ '% 4 $ 7551 Value set for the manual handle feed axis selection signals for the first manual hand
Page 413B-63323EN-1/03 3.MANUAL OPERATION HS1E HS1D HS1C HS1B HS1A Setting 0 0 0 0 1 1 0 0 0 1 0 2 0 0 0 1 1 3 0 0 1 0 0 4 0 0 1 0 1 5 0 0 1 1 0 6 0 0 1 1 1 7 0 1 0 0 0 8 0 1 0 0 1 9 0 1 0 1 0 10 0 1 0 1 1 11 0 1 1 0 0 12 0 1 1 0 1 13 0 1 1 1 0 14 0 1 1 1 1 15 1 0 0 0 0 16 1 0 0 0 1 17 1 0 0 1 0 18 1 0 0 1
Page 4143.MANUAL OPERATION B-63323EN-1/03 7553 Value set for the manual handle feed axis selection signals for the first manual handle pulse generator in tool axis direction handle feed/interrupt ! 8 ! #1; ! -
Page 415B-63323EN-1/03 3.MANUAL OPERATION 7555 Value set for the manual handle feed axis selection signals for the first manual handle pulse generator for rotation in a direction other than the tool axis direction in tool tip center rotation handle feed/interrupt [Input type] Parameter input [Data type] Int
Page 4163.MANUAL OPERATION B-63323EN-1/03 7557 Distance from the center of tool rotation to the tool tip ! ( " - . 8 ! 9 ! -
Page 417B-63323EN-1/03 3.MANUAL OPERATION - Parameters under parallel axis control and twin table control #7 #6 #5 #4 #3 #2 #1 #0 7540 PHH ' 77 # # * $ % $ '% $ 5
Page 4183.MANUAL OPERATION B-63323EN-1/03 Data No. Description Head 1 Head 2 7551 7753 Value set for the manual handle feed axis selection signals for the first manual pulse generator in the first axis direction in tool axis normal direction handle feed/interrupt 7552 7754 Value set for the manual handle fe
Page 419B-63323EN-1/03 3.MANUAL OPERATION 7715 Master axis number of the rotation axis of head 2 in parallel axis control and twin table control ! 8 ! # 5 ! 0 " *
Page 4203.MANUAL OPERATION B-63323EN-1/03 7718 Origin offset value of the rotation axis of head 2 in parallel axis control and twin table control ( ! 8 ! 9 !
Page 421B-63323EN-1/03 3.MANUAL OPERATION 7754 Value to be set for the handle feed axis selection signals for the first manual handle pulse generator in the second axis direction for tool axis normal direction handle feed/interrupt of head 2 in parallel axis control and twin table control
Page 4223.MANUAL OPERATION B-63323EN-1/03 7756 Value to be set for the handle feed axis selection signals for the first manual handle pulse generator for tool axis direction rotation of the tool tip center of head 2 in parallel axis control and twin table control ! 8
Page 423B-63323EN-1/03 3.MANUAL OPERATION 7758 Value to be set for the manual handle feed axis selection signals for the first manual handle pulse generator for modification to the tool axis direction tool length compensation value of head 2 in parallel axis control and twin table control
Page 4243.MANUAL OPERATION B-63323EN-1/03 7760 Tool holder offset value for tool axis direction tool length compensation of head 2 in parallel axis control and twin table control ( " - .
Page 425B-63323EN-1/03 3.MANUAL OPERATION 3.6 MANUAL INTERRUPTION FUNCTION FOR THREE- DIMENSIONAL COORDINATE CONVERSION When the handle of the manual pulse generator is rotated in the three- dimensional coordinate conversion mode, this function adds the travel distance specified by the manual pulse generato
Page 4263.MANUAL OPERATION B-63323EN-1/03 7 When feed in the tool axis direction or the direction perpendicular to the tool axis or rotation around the tool tip center is not selected for the manual operation or the manual interruption using the manual pulse generator when the ALNGH, RGHTH, and RNDH input s
Page 427B-63323EN-1/03 3.MANUAL OPERATION 3. A cutting mode (G code mode for cutting such as G01, G02, or G03) is set. 4. None of the tool axis direction, tool axis right-angle direction, and tool tip center rotation three-dimensional handle feed/interrupt functions is selected. 5. Playback is not being per
Page 4283.MANUAL OPERATION B-63323EN-1/03 3.7 MANUAL NUMERIC COMMAND General The manual numeric command function allows data programmed by MDI to be executed in the jog mode. Whenever the system is ready for jog feed, a manual numeric command can be executed. The following eight functions are supported: (1)
Page 429B-63323EN-1/03 3.MANUAL OPERATION - Linear interpolation (G01) The amount of travel is given as a numeric value, preceded by an address such as X, Y or Z. This is always regarded as being an incremental command, regardless of whether G90 or G91 is specified. Axial movements are always performed in t
Page 4303.MANUAL OPERATION B-63323EN-1/03 NOTE The 2nd, 3rd or 4th reference position return function is optional. If this option is not selected, the warning "FORMAT ERROR" is generated, and G30 cannot be entered. If neither of P2, P3 or P4 are specified in address P when this option is selected, a "START
Page 431B-63323EN-1/03 3.MANUAL OPERATION - Jog feed When a manual numeric command is specified while the tool is being moved along an axis by using a feed axis and direction selection switch, the axial movement is interrupted, and the manual numeric command is executed. For this reason, the tool cannot be
Page 4323.MANUAL OPERATION B-63323EN-1/03 3.8 MANUAL ARBITRARY-ANGLE FEED This function allows a tool to be manually moved in any direction in any plane. Since the feedrate, feed direction, and feed plane can be changed at any time, simple surface cutting can be performed manually. Explanation - Selecting a
Page 433B-63323EN-1/03 3.MANUAL OPERATION Signal The signals listed below are used with manual arbitrary-angle feed. Type of selection Signal symbol Mode selection AGJ, MAGJ Selection of axes along which the tool is to AJP1A, AJP1B, AJP1C, AJP1D, be moved AJP2A, AJP2B, AJP2C, AJP2D Selection of tool movemen
Page 4343.MANUAL OPERATION B-63323EN-1/03 Manual arbitrary-angle feed axis selection Axis AJPnD AJPnC AJPnB AJPnA 0 0 0 0 (Use prohibited) 0 0 0 1 First axis 0 0 1 0 Second axis 0 0 1 1 Third axis 0 1 0 0 Fourth axis 0 1 0 1 Fifth axis 0 1 1 0 Sixth axis 0 1 1 1 Seventh axis 1 0 0 0 Eighth axis 1 0 0 1 Nint
Page 435B-63323EN-1/03 3.MANUAL OPERATION Signal Weight (degrees) AJA0 1/16 AJA1 1/8 AJA2 1/4 AJA3 1/2 AJA4 1 AJA5 2 AJA6 4 AJA7 8 AJA8 16 AJA9 32 AJA10 64 AJA11 128 AJA12 256 [Operation] The CNC reads an angle when strobe signal AJSTB is set to 1. After being read, an angle is held until AJSTB is set to 1
Page 4363.MANUAL OPERATION B-63323EN-1/03 NOTE 1 If +AJ and -AJ are set to 1 at the same time, both are ignored. 2 If the feed signal is set to 1 before the manual arbitrary-angle feed mode is selected, the signal is ignored. After manual arbitrary-angle feed mode is set, the signal must be set to 0 and the
Page 437B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT 4 REFERENCE POSITION ESTABLISHMENT - 421 -
Page 4384.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 4.1 MANUAL REFERENCE POSITION RETURN General The tool is moved in the direction specified in parameter ZMI (bit 5 of No. 1006) for each axis by turning the feed axis and direction select signal to "1" in the manual reference position return mode, and
Page 439B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT unchanged, then the tool stops at the first grid point (electric grid point). (6) Upon confirmation that the current position is in the in-position area, the reference position return end signal (ZP1, ZP2, ZP3,0) and the reference position establishm
Page 4404.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 JOG mode ZRN +J1 *DEC1 *NZ1 Grid ZP1 ZRF1 Feedrate Rapid traverse rate FL rate Fig. 4.1 (b) Installation conditions for deceleration limit switch When installing the deceleration limit switch for manua
Page 441B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT (2) LDA: Distance between deceleration limit switch released position and reference position LDA: Move amount of 1/2 revolution of motor Since the above conditions do not include the limit switch operation variations, this point must also be consider
Page 4424.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 Signal Manual reference position return selection signal ZRN [Classification] Input Signal [Function] This signal selects manual reference position return. Manual reference position return is a kind of jog feed. Therefor, to select manual re
Page 443B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT Feed Axis and Direction Selection Signal For details about this signal, see "Feed Axis and Direction Selection Signal" in Sec. 3.1. Here, only notes on use of reference position return are given. NOTE 1 The direction of reference position return is p
Page 4444.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 NOTE 2 When reference position return is selected, an axis whose reference position return end signal is already "1" or an axis whose reference position return end signal was set "1" upon completion of reference position return is locked, and movemen
Page 445B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT Reference position return end signals ZP1, ZP2, ... [Classification] Output Signal [Function] These signals report that the tool is at the reference position on a controlled axis. These signals are provided for axes in a one-to-one corr
Page 4464.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 Second reference position return end signals ZP21, ZP22, ... Third reference position return end signals ZP31, ZP32, ... Fourth reference position return end signals ZP41, ZP42, ... [Classification] Output Si
Page 447B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT Parameter #7 #6 #5 #4 #3 #2 #1 #0 1005 PLZ ALZ ZRN ! " # " " "$ $
Page 4484.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 = > " ) $ " ,) % $ " #7 #6 #5 #4 #3 #2 #1 #0 1200 NZA < 4 ,(,
Page 449B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT 1417 Rapid traverse ratio during the period from the power on to manual reference position return % 0 " A @ "" % #, " $ ! /
Page 4504.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 Alarm And message Number Message Contents PS0181 ZERO RETURN NOT FINISHED A move instruction was issued to an axis in which the zero return instruction was instructed once after the power was turned ON. Execute operation after zero return by manual o
Page 451B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT 4.2 SETTING THE REFERENCE POSITION WITHOUT DOGS General On a machine tool equipped with an absolute-position detector, this function makes a movement by jog feed to a point near a reference position specified for each axis, then sets a machine refere
Page 4524.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 Manual reference position return mode +J1 or -J1 Grid # # # # # # ZP1 Feedrate FL rate Fig. 4.2 (a) The following figure shows the positional relation between the reference position and the point to which the tool is positioned by manual continuous f
Page 453B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT the direction specified with the feed axis and direction selection signal. The completion signal for reference position return is then set to 1. Reference position resetting The controlled axis for which parameter GRD (bit 6 of parameter No. 1007) is
Page 4544.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 Alarm And message Number Message Contents PS0181 ZERO RETURN NOT FINISHED A move instruction was issued to an axis in which the zero return instruction was instructed once after the power was turned ON. Execute operation after zero return by manual o
Page 455B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT 4.3 REFERENCE POSITION SHIFT General When reference position return is performed using a grid method, the reference position can be shifted by a parameter-set distance without having to move the deceleration dog. This function is enabled by setting b
Page 4564.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 4 In subsequent reference position return, the machine stops at the reference position. Direction of reference position return Stop position (reference position shift amount=0) Deceleration dog Reference position Grid point Grid shift amount Referenc
Page 457B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT Signal Reference position adjustment signal RAST1, RAST2, ... [Classification] Input Signal [Function] Automatically sets a reference position shift amount in grid-based reference position return so that a position reached by manual mov
Page 4584.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1008 SFD [Input type] Parameter input [Data type] Bitaxis : 1 ! %" " ) ! ,) - !
Page 459B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT Alarm And message - Diagnosis display 3008 Display of the distance to the first grid point after the deceleration dog is turned off [Data type] Real axis [Unit of data] machine unit Caution CAUTION 1 The reference position shift function is enabled o
Page 4604.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 4.4 REFERENCE POSITION RETURN General The G28 command positions the tool to the reference position, via the specified intermediate point, along the specified axis, then sets the completion signal for reference position return (see Section 4.1) to 1.
Page 461B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT 1240 Coordinates of the first reference position in the machine coordinate system [Input type] Parameter input [Data type] Realaxis [Unit of data] mm, inch, degree (machine unit) [Minimum unit of data] Depend on the increment system of the applied ax
Page 4624.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 4.5 2ND REFERENCE POSITION RETURN/3RD, 4TH REFERENCE POSITION RETURN General The G30 command positions the tool to the 2nd, 3rd, or 4th reference position, via the specified intermediate point, along the specified axis. Then, it sets the completion s
Page 463B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT - Signal address #7 #6 #5 #4 #3 #2 #1 #0 F064 ZP41 ZP31 ZP21 The address above is the signal address for the first axis. For the signal addresses for the second axis and subsequent axes, see the address table in Appendix A.1. Parameter 1241 Coordinat
Page 4644.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 1243 Coordinates of the fourth reference position in the machine coordinate system 0 " 6 6" % * 3 > " " " @ "" %
Page 465B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT 4.6 FLOATING REFERENCE POSITION RETURN General It is possible to return the tool to the floating reference position by commanding the G30.1. The floating reference position is located on the machine and can be a reference position of some sort of mac
Page 4664.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 Signal Floating reference position return end signal FRP1, FRP2, ... [Classification] Output signal [Function] Notify the system that the tool is at the floating reference position on a controlled axis. A floating reference position ret
Page 467B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT 1244 Floating reference position in G30.1 0 " 6 6" % * 3 > " " " @ "" % G"% " *
Page 4684.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 4.7 LINEAR SCALE WITH REFERENCE MARKS General A scale having reference marks at constantly varying intervals can be created by combining two virtual scales with different one-rotation signal intervals. The created scale is referred to as a linear sca
Page 469B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT J O G m o d e Z R N + J 1 R e fe re n c e m a rk Z R F 1 F e e d ra te F L s p e e d Fig. 4.7 (b) Timing Chart of Operation for Establishing a Reference Position Procedure for establishing a reference position through automatic operation If an automa
Page 4704.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 Signal Reference position establishment signals ZRF1, ZRF2, ... [Classification] Output signal [Function] The signal indicates whether a reference position of the corresponding axis has been established by a reference position return. I
Page 471B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT Parameter #7 #6 #5 #4 #3 #2 #1 #0 1002 DC4 [Input type] Parameter input [Data type] Bit 8 ?: ! $% 9 ) 4 ! ! "! " % 9
Page 4724.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 1896 Capacity of the reference counter for each axis [Input type] Parameter input [Data type] Integeraxis [Unit of data] detection unit [Valid data range] 0 - 999999999 In case of using a distance coded linear scale, specifies the mark 1 interval for
Page 473B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT 5227 Distance between the origin of the linear scale having reference marks and the reference position % 0 " " @ "" % #GGGGGGGGG#GGGGGGGGG Specifies the distance between the
Page 4744.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 Parameter No.5227 (reference position) = Position of A + 5.0 = {(Distance of position A and position B)/(Interval of the mark1 – Interval of the mark2)} * (Interval of the mark1) + 5.0 = 9965000 [Setting of parameterNo.5227] Following procedure can b
Page 475B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT Caution CAUTION 1 In the following cases, the operation for establishing a reference position is not performed, but movement to the reference position occurs: - If axial movement is made in REF mode after the reference position is established - If an
Page 4764.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 Note NOTE 1 If an automatic reference position return (G28) is specified before a reference position is established, the operation for establishing a reference position is performed as described above. Then, reference position return is performed. 2
Page 477B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT 4.7.1 Enhancement of Distance Coded Linear Scale Overview The distance coded linear scale interface can now be used for the following controlled axes: Rotation axis Synchronization control axis PMC control axis In addition, the range of parameter No.
Page 4784.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 - Requirements when this function is used with synchronization control axes When this function is used with synchronization control axes, the distance coded linear scale used for the master axis and that used for the slave axis must have reference ma
Page 479B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT Scale end Reference mark Master axis *,3 *'3 *83 Start point End point Slave axis J,K J'K J8K Fig. 4.7.1 (b) Example of Measuring Three Points In the above example, the reference mark (1) for the master axis is detec
Page 4804.REFERENCE POSITION ESTABLISHMENT B-63323EN-1/03 Parameter 5228 Distance 2 from the zero point of the distance coded linear scale to reference position % 0 " @ "" % #GGG GGG This parameter is used when the distance fro
Page 481B-63323EN-1/03 4.REFERENCE POSITION ESTABLISHMENT Alarm No. Message Description SV0051 ILLEGAL SYNCHRONOUS AXIS An illegal parameter is set for a synchronization control axis using a distance coded linear axis. OT0448 ILLEGAL PARAMETER (D.C.S.) An illegal parameter is set for an axis using a distanc
Page 4825.AUTOMATIC OPERATION B-63323EN-1/03 5 AUTOMATIC OPERATION - 466 -
Page 483B-63323EN-1/02 5.AUTOMATIC OPERATION 5.1 CYCLE START/FEED HOLD General - Start of automatic operation (cycle start) When automatic operation start signal ST is set to 1 then 0 in which memory (MEM) mode, DNC operation mode (DNC), or manual data input (MDI) mode, the CNC enters the automatic operatio
Page 4845.AUTOMATIC OPERATION B-63323EN-1/03 - Halt of automatic operation (feed hold) When the feed hold signal *SP is set to 0 during automatic operation, the CNC enters the feed hold state and stops operation. At the same time, cycle start lamp signal STL is set to 0 and feed hold lamp signal SPL is set
Page 485B-63323EN-1/02 5.AUTOMATIC OPERATION Signal Cycle start signal ST [Classification] Input signal [Function] Starts automatic operation. [Operation] When signal ST is set to 1 then 0 in memory (MEM) mode, DNC operation mode (DNC) or manual data input (MDI) mode, the CNC enters the cycle start
Page 4865.AUTOMATIC OPERATION B-63323EN-1/03 Automatic operation signal OP Cycle start lamp signal STL Feed hold lamp signal SPL [Classification] Output signal [Function] Posts the operation state of the NC. [Output condition] This signal is set to 1 or 0, according to the state of t
Page 487B-63323EN-1/02 5.AUTOMATIC OPERATION Reference item Series15i/150i-MA Operator’s Manual II-4.2 Memory operation (Operation) II-4.3 MDI operation (B-63324EN-1) II-4.1 DNC operation II-7.1 Check on the diagnosis function Series15i/150i- Maintenance Manual 1.3 Diagnosis function MODEL A (B-63325EN) - 4
Page 4885.AUTOMATIC OPERATION B-63323EN-1/03 5.2 RESET AND REWIND General - RESET The CNC is reset and enters the reset state in the following cases: 1. When the emergency stop signal (*ESP) is set to 0 by setting bit 0 (ENR) of parameter No. 2001 2. When the external reset signal (ERS) is set to 1 3. When
Page 489B-63323EN-1/02 5.AUTOMATIC OPERATION - Reset & rewind When the reset signal and rewind signal RRW are set to 1, a reset occurs, and rewind processing (search for the start of the currently selected main program) is performed. By setting bit 1 (RWM) of parameter No. 2000, the user can choose whether
Page 4905.AUTOMATIC OPERATION B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 2000 RWM RSD ! " # $ % & ' ! #1 RWM The rewinding signal (RWD) is output: 0:
Page 491B-63323EN-1/02 5.AUTOMATIC OPERATION #7 #6 #5 #4 #3 #2 #1 #0 5605 IOR & #4 IOR Specifies whether to cancel the spindle positioning mode upon reset. 0: Do not cancel. 1: Cancel. #7 #6 #5 #4 #3 #2 #1 #0 7000 CLV #6 CLV Specifie
Page 4925.AUTOMATIC OPERATION B-63323EN-1/03 5.3 TESTING A PROGRAM Before machining is started, the automatic running check can be executed. It checks whether the created program can operate the machine as desired. This check can be accomplished by running the machine actually or viewing the position displa
Page 493B-63323EN-1/02 5.AUTOMATIC OPERATION 2. In simultaneous automatic and manual operation a) Command pulses are not output for automatic operation. b) Command pulses are output for manual operation. This signal is valid when bit 6 (MLE) of parameter No. 1005 is set to 1. All-axis machine lock check sig
Page 4945.AUTOMATIC OPERATION B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1005 MLE 6 2 '87 +, $ + +9 &, + 6! &! " : &! Note NOTE 1 Reference point return during machine lock. In a machine lock state, the reference pos
Page 495B-63323EN-1/02 5.AUTOMATIC OPERATION 5.3.2 Dry Run General A cutting command in the program is executed using the feedrate specified in a parameter. This function is used, for example, to check only the movement of the tool with no workpiece mounted. By parameter setting, the user can choose whether
Page 4965.AUTOMATIC OPERATION B-63323EN-1/03 Dry run check signal MDRN [Classification] Output signal [Function] Reports the state of the dry run signal. [Output condition] This signal is set to 1 in the following case: - When dry run signal DRN is set to 1 This signal is set to 0 in the following c
Page 497B-63323EN-1/02 5.AUTOMATIC OPERATION ; 8 + & &, -! ) < & & & + 6! " 8 ! <& + & + / "! 1420 Rapid traverse rate alo
Page 4985.AUTOMATIC OPERATION B-63323EN-1/03 2016 Jog feedrate override clamp value [Input type] Parameter input [Data type] Integer [Unit of data] (Undefined) [Valid data range] 0-0 If an override value greater than the jog feedrate override clamp value is input, it is clamped to this value. Reference item
Page 499B-63323EN-1/02 5.AUTOMATIC OPERATION 5.3.3 Single Block General When single block signal SBK is set to 1 during automatic operation, automatic operation is stopped after execution of the block currently being executed. Then, each time automatic operation is started, a single block is executed. Norma
Page 5005.AUTOMATIC OPERATION B-63323EN-1/03 Signal Single block signal SBK [Classification] Input signal [Function] Enables single block operation. [Operation] When this signal is set to 1, single block operation is performed. When this signal is set to 0, normal operation is performed. Single bloc
Page 501B-63323EN-1/02 5.AUTOMATIC OPERATION 1 ' +, $ , +% +9 ,+ + ! , +% +9! 4 $ /$ +, & ( 5/ $ ++ ,, + &% ! " , +% +9! ) %
Page 5025.AUTOMATIC OPERATION B-63323EN-1/03 5.4 MANUAL ABSOLUTE ON/OFF General When performing manual operation (such as jog feed and manual handle feed), the user can choose whether to reflect a moved distance in the absolute coordinate system. - When manual absolute turns on If manual intervention is per
Page 503B-63323EN-1/02 5.AUTOMATIC OPERATION The tool moves along this path, regardress of absolute command or incremental command Manual Intervention Program tool path Signal Manual absolute Signal ABS [Classification] Input signal [Function] Turns off the manual absolute function. [Operation] When
Page 5045.AUTOMATIC OPERATION B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 2409 ABS . = =, % % /% +, $ + & , % -0 &, + -0" ! ,, " , %
Page 505B-63323EN-1/02 5.AUTOMATIC OPERATION 5.5 OPTIONAL BLOCK SKIP/ADDITION OF OPTIONAL BLOCK SKIP General When a slash followed by a number (/n, where n = 1 to 9) is specified at the head of a block, and optional block skip signals BDT1 to BDT9 are set to 1 during automatic operation, the information con
Page 5065.AUTOMATIC OPERATION B-63323EN-1/03 BDTn "1" "0" Reading by CNC?. . . . . . ; /n N123 X100. Y200. ; N234 . . . . . . Ignored 3. When BDTn, currently set to 1, is set to 0 while the CNC is reading a block containing /n, the block is ignored. BDTn "1" "0" Reading by CNC?. . . . . . ; /n N123 X100. Y2
Page 507B-63323EN-1/02 5.AUTOMATIC OPERATION Optional block skip check Signals , MBDT2-MBDT9 [Classification] Output signal [Function] Notify the PMC of the states of the optional block skip signals BDT1 to BDT9. Nine signals are provided, corresponding to the nine optional block skip si
Page 5085.AUTOMATIC OPERATION B-63323EN-1/03 5.6 SEQUENCE NUMBER COMPARISON AND STOP General During program execution, this function causes a single block stop right after a block with a specified sequence number is executed. Parameter 7681 Sequence number for stoppage upon matching
Page 509B-63323EN-1/02 5.AUTOMATIC OPERATION 5.7 PROGRAM RESTART General A program may be restarted at a block by specifying the sequence number of the block, after automatic operation is stopped because of a broken tool or for holidays. This function can also be used as a high- speed program check function
Page 5105.AUTOMATIC OPERATION B-63323EN-1/03 Output of M, S, T, and B (second auxiliary function) codes for program restart After a block to be restarted is found, M, S, T, and B (second auxiliary function) codes can be output by setting bit 3 (MOP) of parameter No. 7602. 1. Before moving to the machining r
Page 511B-63323EN-1/02 5.AUTOMATIC OPERATION Program restart under way Signal MSRN [Classification] Output signal [Function] Indicates the program is being restarted. [Output condition] The program restart under way signal becomes "1" when: - The program restart signal is set to "0" after the LCD s
Page 5125.AUTOMATIC OPERATION B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 7620 MOA MOP #3 MOP Specifies whether to output M, S, T, and B codes before the tool is moved to the machining restart position after a block to be restarted is found at program restart. 0: Do not output
Page 513B-63323EN-1/02 5.AUTOMATIC OPERATION Warning WARNING As a rule, the tool cannot be returned to a correct position under the following conditions. Special care must be taken in the following cases since none of them cause - Manual operation is performed when the manual absolute mode is OFF - Manual o
Page 5145.AUTOMATIC OPERATION B-63323EN-1/03 CAUTION 2 The M, S, T, and B (second auxiliary function) codes specified in overstore mode are not displayed on the program restart screen. 3 Overstore mode is not canceled when the operation mode is changed to a mode other than the MEM or DNC mode, but no value
Page 515B-63323EN-1/02 5.AUTOMATIC OPERATION 5.8 BLOCK RESTART General The block restart function enables automatic operation to be restarted from the start or an intermediate point of a block if automatic operation has been interrupted in that block due to an abnormality such as a broken tool. Manual opera
Page 5165.AUTOMATIC OPERATION B-63323EN-1/03 Block restart screen On the restart display screen, the following values are indicated. Fig.5.8 (a) (i) (DESTINATION): Absolute coordinates of the tool center at the start point of the interrupted block (ii) (DISTANCE TO GO): Distance from the current position (A
Page 517B-63323EN-1/02 5.AUTOMATIC OPERATION Restart of automatic operation with the block return switch turned on If the cycle start button is pressed while the block return switch is on, the tool length compensation value and the cutter compensation value are recalculated, and automatic operation is resta
Page 5185.AUTOMATIC OPERATION B-63323EN-1/03 - When the tool is moved manually to the start point of the interrupted block while the block return switch is on. - When the interrupted automatic operation is restarted with the cutter compensation mode canceled. - When no vector is available for cutter compens
Page 519B-63323EN-1/02 5.AUTOMATIC OPERATION 7651 Interference allowance when the block is restarted (d) ? ,& /+ ' ,& & + , & 6 : && 0& , ,& , &
Page 5205.AUTOMATIC OPERATION B-63323EN-1/03 - Block containing no move command Operation must not be restarted in a block without a move command. - Restart after single-block stop After a single-block is stopped, operation is restarted at the block after the block that has already been executed by the sing
Page 521B-63323EN-1/02 5.AUTOMATIC OPERATION CAUTION 3 When returning the tool to the start point of the block by a manual operation using the block restart function, the tool is returned to the tip of the vector vertical to the block at its start point. Therefore, if the start point of the interrupted bloc
Page 5225.AUTOMATIC OPERATION B-63323EN-1/03 CAUTION 4 When the tool movement is interrupted during a canned drilling cycle, after which block restart is performed, the tool does not return to the point at which tool movement was interrupted as shown in the figures below. In either case, care must be exerci
Page 523B-63323EN-1/03 5.AUTOMATIC OPERATION 5.9 RETRACE General A tool can retrace the tool path along which the tool has moved. This operation is referred to as retrace. In addition, a tool can move forward again along the path that the tool has retraced. This operation is referred to as re-forward. 1. Re
Page 5245.AUTOMATIC OPERATION B-63323EN-1/03 Signal Retrace signal RVS [Classification] Input signal [Function] Directs the control unit to retrace the tool along the path which the tool was moved in automatic operation (DNC operation and MDI operation
Page 525B-63323EN-1/03 5.AUTOMATIC OPERATION Retrace-in-progress signal RVSL [Classification] Output signal [Function] Notifies the PMC that retrace is in progress. [Operation] This signal turns to "1"when: - Tool is in retrace with the retrace signal RVS turned to "1". This signal turns to "0" - Th
Page 5265.AUTOMATIC OPERATION B-63323EN-1/03 Parameter 1494 Feedrate during reverse movement [Input type] Parameter input [Data type] Real [Unit of data] mm/min, inch/min, degree/min (machine unit) [Minimum unit of data] Depend on the increment system of the reference axis [Valid data range] Refer to the st
Page 527B-63323EN-1/03 5.AUTOMATIC OPERATION Warning WARNING Positioning (G00) When the tool is positioned based on nonlinear interpolation by setting bit 4 (LRP) of parameter No. 1400 to 0, the path followed by the tool for reverse movement does not match that for forward movement. The path for forward ret
Page 5285.AUTOMATIC OPERATION B-63323EN-1/03 5.10 WITHDRAWING AND RETURNING A TOOL General To replace a tool damaged in machining or to check the machining status, the tool can be withdrawn from a workpiece. Further, the tool can be efficiently repositioned to resume the machining. : Position at which a too
Page 529B-63323EN-1/03 5.AUTOMATIC OPERATION operation from the tool withdrawal signal TRESC being set to 1 to the same signal being set to 0 is referred to as tool withdrawal mode. Tool withdrawal mode includes all the retraction, withdrawal, and repositioning operations. When tool withdrawal mode is set,
Page 5305.AUTOMATIC OPERATION B-63323EN-1/03 (3) When the mode is returned to automatic operation mode, and tool return signal TRRTN is set to 1 and then back to 0, the CNC returns the tool to the retraction position by tracing back along the manual operation path. This operation is referred to as return. W
Page 531B-63323EN-1/03 5.AUTOMATIC OPERATION Automatic operation mode (MEM, D, T) Tool withdrawal mode in-progress (TRACT) Tool withdrawal and return completion signal (TRSPS) Automatic operation start signal (ST) Movement for repositioning Tool withdrawal axis move in-progress signal (TRMTN) Fig. 5.10 (e)
Page 5325.AUTOMATIC OPERATION B-63323EN-1/03 Tool withdrawal axis move in-progress signal TRMTN [Classification] Output signal [Function] Used to post notification that an axial movement is in progress in tool withdrawal mode. [Output condition] The signal is held to 1 when: - Movement is in progres
Page 533B-63323EN-1/03 5.AUTOMATIC OPERATION #7 #6 #5 #4 #3 #2 #1 #0 7630 TRC RPS ! "!#$ %# 0: Do not perform retraction. 1: Perform retraction using the set
Page 5345.AUTOMATIC OPERATION B-63323EN-1/03 Alarm and message Number Message Contents OT0132 NOT ON RETURN_POINT The tool did not arrive at the stored return position along the axis, or the position may have deviated by machine lock or mirror image operation during zero return. Reset the machine, and rerun
Page 535B-63323EN-1/03 5.AUTOMATIC OPERATION 5.11 ACTIVE BLOCK CANCEL General Automatic operation can be stopped by inputting block cancel signal BCAN into the control unit during automatic operation. After automatic operation has been halted, automatic operation starting signal STL and automatic operation
Page 5365.AUTOMATIC OPERATION B-63323EN-1/03 Cutter compensation The path after compensation is re-calculated from two consecutive blocks after the position where the operation was stopped. The figure below shows the movement performed when cutter compensation is resumed: Position at which the Path after cu
Page 537B-63323EN-1/03 5.AUTOMATIC OPERATION Signal Block cancel signal BCAN [Classification] Input signal [Function] Cancels the current block in progress. [Operation] When the signal goes to 1 during automatic operation, the block being executed is cancelled, and the automatic operation stops. Bl
Page 5385.AUTOMATIC OPERATION B-63323EN-1/03 Automatic operation in progress signal OP Automatic operation starting signal STL Block cancel signal BCAN Block cancel acknowledgement signal MBCAN Miscellaneous function strobe signal MF Miscellaneous function completion signal MFIN Fig. 5.11 (e) Canceling a Bl
Page 539B-63323EN-1/03 5.AUTOMATIC OPERATION Caution CAUTION Before resuming the operation, check that the tool path and workpiece do not interfere with each other. Reference item Series15i/150i-MA Operator’s Manual II-4.12 Active block cancel (Operation) (B-63324EN-1) - 523 -
Page 5405.AUTOMATIC OPERATION B-63323EN-1/03 5.12 EXACT STOP/EXACT STOP MODE/TAPPING MODE/CUTTING MODE General NC commands can be used to control a feedrate in continuous cutting feed blocks as described below. - Exact stop (G09) The tool is decelerated in a block specifying G09, and an in-position check (*
Page 541B-63323EN-1/03 5.AUTOMATIC OPERATION Y In-position check (2) Tool path in the exact stop mode (1) Tool path in the cutting mode or tapping mode 0 X Fig. 5.12 (a) Tool paths from block (1) to block (2) - 525 -
Page 5425.AUTOMATIC OPERATION B-63323EN-1/03 5.13 DNC OPERATION General In DNC operation, automatic operation is performed by reading a program from an external I/O device through the interface. When a floppy-type external I/O device (such as a Handy File, Floppy Cassette, or FA Card) is connected, the user
Page 543B-63323EN-1/03 5.AUTOMATIC OPERATION Signal address #7 #6 #5 #4 #3 #2 #1 #0 G003 T #7 #6 #5 #4 #3 #2 #1 #0 F003 MT Alarm and message Number Message Contents PS0017 ILLEGAL MODE FOR A GOTO statement or WHILE-DO statement was found in GOTO/WHILE/DO the main program in the MDI or DNC mode. PS0081 EXT D
Page 5445.AUTOMATIC OPERATION B-63323EN-1/03 5.14 REGAINING A MANUAL INTERVENTION AMOUNT DURING AUTOMATIC OPERATION General A manual intervention amount can be regained even during automatic operation, without stopping automatic operation. When a manual intervention amount regain request signal is input, th
Page 545B-63323EN-1/03 5.AUTOMATIC OPERATION Basic procedure for regaining a manual intervention amount during automatic operation During automatic operation, a manual intervention amount can be regained each time an M code for non-buffering is executed. The sequence for regaining a manual intervention amou
Page 5465.AUTOMATIC OPERATION B-63323EN-1/03 )!*)7* )6* )9* )8* )$* )5* )>*)-*)!* M command M Move command Code signals M0-M31 Strobe signal MF Distribution completion signal DEN, IPEN PMC operation ABS switch ABS Manual intervention amount regain request signal MIGET Manual intervention amount regain comp
Page 547B-63323EN-1/03 5.AUTOMATIC OPERATION NOTE 1 Before the completion signal of an M code for non- buffering is returned, an absolute switch signal selection must be made, and MIGET must be set to 1. 2 In the reset state or initial automatic operation state, the MIGET signal must be set to 0. 3 When man
Page 5485.AUTOMATIC OPERATION B-63323EN-1/03 2411 M code 1 which does not put the following block in the buffer register 2412 M code 2 which does not put the following block in the buffer register 2413 M code 3 which does not put the following block in the buffer register 2414 M code 4 which does not put th
Page 549B-63323EN-1/03 5.AUTOMATIC OPERATION 2450 Range of M codes without buffering (1) (lower limit) 2451 Range of M codes without buffering (1) (upper limit) 2452 Range of M codes without buffering (2) (lower limit) 2453 Range of M codes without buffering (2) (upper limit)
Page 5505.AUTOMATIC OPERATION B-63323EN-1/03 5.15 SIMULTANEOUS AUTOMATIC AND MANUAL OPERATION General Simultaneous automatic and manual operation enables manual operation to be performed during automatic operation. Manual operation during simultaneous automatic and manual operation is made possible by manua
Page 551B-63323EN-1/03 5.AUTOMATIC OPERATION An example of switching to simultaneous automatic and manual operation starting with a block during automatic operation is given below 1. Assume that program command Mxx; is used to switch from automatic operation to simultaneous automatic and manual operation, a
Page 5525.AUTOMATIC OPERATION B-63323EN-1/03 when the simultaneous automatic and manual operation mode is selected. So, first specify the parking signal of each axis to select a desired interrupt type, then set the MOVL signal and the signal for manual mode selection to 1. 3. The following timing chart show
Page 553B-63323EN-1/03 5.AUTOMATIC OPERATION Memory operation selection signal MEM Z-axis manual handle interrupt switch Z-axis parking signal PK3 Simultaneous automatic and manual operation selection signal MOVL Manual handle feed selection signal H - Switching between the interrupt types Whether the cutti
Page 5545.AUTOMATIC OPERATION B-63323EN-1/03 - Manual operation in simultaneous automatic and manual operation Automatic operation during simultaneous automatic and manual operation is the same as normal automatic operation. So, manual operation in simultaneous automatic and manual operation is explained he
Page 555B-63323EN-1/03 5.AUTOMATIC OPERATION 4) Interrupt types and indication The table below indicates the relationships between the interrupt types and coordinates. Cutting axis interrupt Setup interrupt type type Absolute coordinates Not updated Updated Relative coordinates Updated Updated Machine coord
Page 5565.AUTOMATIC OPERATION B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 1604 MNJ & +4C . % D% %E % D% % % 1 ) *# 0: Bo
Page 557B-63323EN-1/03 5.AUTOMATIC OPERATION 5.16 DNC OPERATION FROM OPEN CNC SELECTING SIGNAL Overview In DNC operation mode (DNC) or memory operation mode (MEM), setting the DNC operation select signal from the open CNC to "1" enables DNC operation and external memory subprogram calls from the open CNC wh
Page 5585.AUTOMATIC OPERATION B-63323EN-1/03 Parameter 0020 Foreground input device interface number [Input type] Setting input [Data type] Integer [Valid data range] 0 - 16 Set a foreground input device interface number. Reference item Series 15i/150I- Connection Manual 2.6 Mode Selection MODEL A (this man
Page 559B-63323EN-1/03 5.AUTOMATIC OPERATION 5.17 DNC OPERATION FROM MEMORY CARD INTERFACE A file on a memory card can be specified for DNC operation. A file on a memory card can also be called and executed as a subprogram using the external device subprogram call function. Screen display Memory card screen
Page 5605.AUTOMATIC OPERATION B-63323EN-1/03 Parameters 0020 Foreground input device interface number , %% 1!$ %% 3 . # 4 & % 3 . %( ># #7 #6 #5 #4 #3 #2 #1 #0 2
Page 561B-63323EN-1/03 5.AUTOMATIC OPERATION #7 #6 #5 #4 #3 #2 #1 #0 7616 EXT NOTE After setting this parameter, turn the power off then back on. 6 : & % 3 . # @ & % 3 . # !@ &
Page 5626.INTERPOLATION FUNCTION B-63323EN-1/03 6 INTERPOLATION FUNCTION - 546 -
Page 563B-63323EN-1/03 6.INTERPOLATION FUNCTION 6.1 POSITIONING General The G00 command moves a tool to the position in the workpiece system specified with an absolute or an incremental command at a rapid traverse rate. In the absolute command, coordinate value of the end point is programmed. In the increme
Page 5646.INTERPOLATION FUNCTION B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1400 LRP !!"# !$ %& '( ( " )$ " *
Page 565B-63323EN-1/03 6.INTERPOLATION FUNCTION 6.2 LINEAR INTERPOLATION General Tools can move along a line A tools move along a line to the specified position at the feedrate specified in F. The feedrate specified in F is effective until a new value is specified. It need not be specified for each block. -
Page 5666.INTERPOLATION FUNCTION B-63323EN-1/03 (Example) G91 G01 X20.0 C40.0 F300.0 G This changes the unit of the C axis from 40.0 deg to 40mm with metric input. The time required for distribution is calculated as follows: 20 2 + 40 2 ≅ 0 . 14907 min 300 The feed rate for the C axis is 40 deg ≅ 268.3deg /
Page 567B-63323EN-1/03 6.INTERPOLATION FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 2401 G01 #0 G01 Mode at power on and in clear status 0: G00 mode (positioning) 1: G01 mode (linear interpolation) Alarm and message Number Message Contents PS0187 FEED ZERO ( COMMAND ) The cutting fee
Page 5686.INTERPOLATION FUNCTION B-63323EN-1/03 6.3 CIRCULAR INTERPOLATION General The command below will move a tool along a circular arc. "Clockwise"(G02) and "counterclockwise"(G03) on the XpYp plane (ZpXp plane or YpZp plane) are defined when the XpYp plane is viewed in the positive-to-negative directio
Page 569B-63323EN-1/03 6.INTERPOLATION FUNCTION If the difference between the radius at the start point and that at the end point exceeds the permitted value in a parameter (No.2410), an P/S alarm (No.191) occurs. The distance between an arc and the center of a circle that contains the arc can be specified
Page 5706.INTERPOLATION FUNCTION B-63323EN-1/03 End point γe γ(t) (γe − γs) ( t ) γ(t) = γs + Start point θ(t) θ γs Center radius Start point γs γe End point Center θ θ Fig.6.3 (d) Case Where a Spiral Is Produced The arc radius changes linearly with the center angle (t). Spiral interpolation is performed us
Page 571B-63323EN-1/03 6.INTERPOLATION FUNCTION Parameter 1022 Designation of each axis in relation to the basic coordinate system [Input type] Parameter input [Data type] Integeraxis [Valid data range] 0-7 Planes selected for circular interpolation, cutter compensation, and so forth G17: Xp-Yp plane G18: Z
Page 5726.INTERPOLATION FUNCTION B-63323EN-1/03 2410 Arc radius error limit value [Input type] Setting input [Data type] Real [Unit of data] mm, inch (input unit) [Minimum unit of data] Depend on the increment system of the reference axis [Valid data range] 0 - 999999999 Specify a valid limit value as the d
Page 573B-63323EN-1/03 6.INTERPOLATION FUNCTION Note NOTE 1 If I, J, K, and R are specified simultaneously, the specification by R is used and the others are ignored. 2 If an axis not comprising the specified plane is specified, an alarm occurs. For example, if axes X and U parallel to axis X are specified
Page 5746.INTERPOLATION FUNCTION B-63323EN-1/03 6.4 THREADING 6.4.1 Threading Overview A thread can be cut by moving a tool in synchronization with the rotating spindle. The spindle speed is sequentially read from the position coder mounted on the spindle and is converted into a feedrate of cutting feed per
Page 575B-63323EN-1/03 6.INTERPOLATION FUNCTION Signal address #7 #6 #5 #4 #3 #2 #1 #0 F001 THRD Parameter #7 #6 #5 #4 #3 #2 #1 #0 1400 TDR ) < 4 0 # !$ 1 0 # )$ 1 0 # 56
Page 5766.INTERPOLATION FUNCTION B-63323EN-1/03 Warning WARNING If the feed is stopped during threading, without stopping the spindle, the depth of cut increases dangerously. Therefore, the feed hold function is disabled during threading. If an attempt to apply feed hold is made during threading, an operati
Page 577B-63323EN-1/03 6.INTERPOLATION FUNCTION 6.4.2 Threading Based on an Arbitrary Spindle Gear Ratio Overview This function sets M:N as the gear ratio between the spindle and position coder for threading. M and N can be represented using an arbitrary integer from 1 to 9999. Threading To perform threadin
Page 5786.INTERPOLATION FUNCTION B-63323EN-1/03 M : Number of gear teeth on the position coder [teeth] N : Number of gear teeth on the spindle [teeth] L : Thread pitch [machine/rev] P : Number of pulses received by the position coder [pulses] ∆Z:Tool travel distance Then, ∆Z is represented as follows: L M ∆
Page 579B-63323EN-1/03 6.INTERPOLATION FUNCTION (1) 1 For automatic operation M code for spindle gear ratio modification MF FIN Spindle gear ratio modification Writing a gear ratio through the window (ACT) Transfer completion information (W1) (2) For manual operation Gear ratio modification instruction Spin
Page 5806.INTERPOLATION FUNCTION B-63323EN-1/03 Parameter 5611 Number of samples of sampling data for obtaining the mean spindle speed / !& < ( + (+
Page 581B-63323EN-1/03 6.INTERPOLATION FUNCTION Caution CAUTION 1 Never modify the values of the parameters used to set a gear ratio, during machining such as threading. 2 When 0 is set in parameter No. 5847 and No. 5848, the setting of 1 is assumed. Note NOTE 1 This function cannot be used with the spindle
Page 5826.INTERPOLATION FUNCTION B-63323EN-1/03 6.5 SINGLE DIRECTION POSITIONING General For accurate positioning without play of the machine (backlash), final positioning from one direction is available. Overrun Start position Start position End position Temporary stop Fig.6.5 (a) Direction positioning pro
Page 583B-63323EN-1/03 6.INTERPOLATION FUNCTION 6820 Overrun distance and direction of unidirectional positioning (G60) ' , ++ " . ' / &=6;>;&=6;>; 8 '
Page 5846.INTERPOLATION FUNCTION B-63323EN-1/03 6.6 HELICAL INTERPOLATION General Helical interpolation which moved helically is enabled by specifying up to two other axes which move synchronously with the circular interpolation by circular commands. As the feedrate, either a feedrate tangent to an arc or a
Page 585B-63323EN-1/03 6.INTERPOLATION FUNCTION Z Tool path X Y The speed command specifies the feedrate along the tool path. Fig.6.6 (b) Feedrate When Parameter HTG = 1 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1401 HTG 6 C< 4
Page 5866.INTERPOLATION FUNCTION B-63323EN-1/03 6.7 HELICAL INTERPOLATION B General With the speed command for helical interpolation B, parameter HTG (bit 2 of parameter No. 1401) can be used to specify either a feedrate tangential to an arc or a tangential feedrate that includes movement along the linear a
Page 587B-63323EN-1/03 6.INTERPOLATION FUNCTION Z Tool path X Y The speed command specifies the feedrate along the tool path. Fig.6.7 (b) Feedrate When Parameter HTG = 1 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1401 HTG 6 C< 4
Page 5886.INTERPOLATION FUNCTION B-63323EN-1/03 6.8 INVOLUTE INTERPOLATION General An involute curve can be machined using involute interpolation. Cutter compensation C can also be used. The use of involute interpolation eliminates the need to approximate an involute curve with very small straight lines or
Page 589B-63323EN-1/03 6.INTERPOLATION FUNCTION 1483 Lower feedrate limit for the deceleration function based on the acceleration of fine HPCC , -+-+ - " . ' /
Page 5906.INTERPOLATION FUNCTION B-63323EN-1/03 1491 Lower feedrate limit for the deceleration function based on the acceleration during circular interpolation (for normal mode) , -+-+ - " .
Page 591B-63323EN-1/03 6.INTERPOLATION FUNCTION 1663 Allowable acceleration in the deceleration function based on the acceleration of fine HPCC for each axis ' , - - +- - + - - " .
Page 5926.INTERPOLATION FUNCTION B-63323EN-1/03 1665 Allowable acceleration in the deceleration function based on the acceleration during circular interpolation for each axis (for normal mode) ' , - - +- - + - - " .
Page 593B-63323EN-1/03 6.INTERPOLATION FUNCTION 6630 Lower override limit of automatic velocity control during involute interpolation , 5 / !&)!! * ( ( (
Page 5946.INTERPOLATION FUNCTION B-63323EN-1/03 6.9 SPLINE INTERPOLATION General Helical interpolation which moved helically is enabled by specifying up to two other axes which move synchronously with the circular interpolation by circular commands. Alarm and message Number Message Contents PS0990 SPL:ILLEG
Page 595B-63323EN-1/03 6.INTERPOLATION FUNCTION 6.10 POLAR COORDINATE INTERPOLATION General A command programmed in the Cartesian coordinate system is converted into movement along a linear axis (movement of a tool) and movement around a rotation axis (rotation of a workpiece), while contour control is perf
Page 5966.INTERPOLATION FUNCTION B-63323EN-1/03 Parameter 1032 Designation of axis (linear axis) used for polar coordinate interpolation / )&. ' ' 0 ' # 1033 Destination of axis (rotatio
Page 597B-63323EN-1/03 6.INTERPOLATION FUNCTION Alarm and message Number Message Contents PS0213 ILLEGAL USE OF G12.1/G13.1 The axis No. of plane selection parameter No. 1032 (linear axis) and No. 1033 (axis of rotation) in the polar coordinate interpolation mode is out of range (1 to number of controlled a
Page 5986.NTERPOLATION FUNCTION B-63323EN-1/03 6.11 CYLINDRICAL INTERPOLATION General An amount of travel around a rotation axis specified as an angle is internally converted into an amount of travel along a linear axis on the circumference, and linear interpolation or circular interpolation is performed ac
Page 599B-63323EN-1/03 6.NTERPOLATION FUNCTION Parameter #7 #6 #5 #4 #3 #2 #1 #0 1006 DIA ROT ! " # $ ! %& '" (# $) ! % '"
Page 6006.NTERPOLATION FUNCTION B-63323EN-1/03 1022 Designation of each axis in relation to the basic coordinate system [Input type] Parameter input [Data type] Integeraxis [Valid data range] 0-7 Planes selected for circular interpolation, cutter compensation, and so forth G17: Xp-Yp plane G18: Zp-Xp plane
Page 601B-63323EN-1/03 6.NTERPOLATION FUNCTION Alarm and message Number Message Contents PS0610 ILLEGAL G07.1 AXIS An axis which cannot perform cylindrical interpolation was specified. More than one axis was specified in a G07.1 block. An attempt was made to cancel cylindrical interpolation for an axis that
Page 6026.NTERPOLATION FUNCTION B-63323EN-1/03 6.12 CYLINDRICAL INTERPOLATION CUTTING POINT CONTROL Overview The conventional cylindrical interpolation controls the tool center in such a manner that the axis of the tool moving along the path programmed on the curved surface of a cylinder is always directed
Page 603B-63323EN-1/03 6.NTERPOLATION FUNCTION Parameters #7 #6 #5 #4 #3 #2 #1 #0 1006 DIA ROT [Input type] Parameter input [Data type] Bitaxis #0 ROT Specifies whether the axis requires inch/metric conversion. 0: Axis requires inch/metric conversion (linear axis). 1: Axis does not require inch/metric conve
Page 6046.NTERPOLATION FUNCTION B-63323EN-1/03 1022 Designation of each axis in relation to the basic coordinate system [Input type] Parameter input [Data type] Integeraxis [Valid data range] 0-7 Planes selected for circular interpolation, cutter compensation, and so forth G17: Xp-Yp plane G18: Zp-Xp plane
Page 605B-63323EN-1/03 6.NTERPOLATION FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 6004 CYS CYA . /2$ &) & & , " # " (# " 3 /2 &) & & ,
Page 6066.NTERPOLATION FUNCTION B-63323EN-1/03 6112 Limit for changing cylindrical interpolation cutting point compensation in a single block & 8 ) 1 %' + ) ) 6 &)) , (79999999
Page 607B-63323EN-1/03 6.NTERPOLATION FUNCTION 6113 Limit of travel distance moved with the cylindrical interpolation cutting point compensation in the previous block unchanged. [Input type] Parameter input [Data type] Real [Unit of data] mm, inch (input unit) [Minimum unit of data] Depend on the increment
Page 6086.NTERPOLATION FUNCTION B-63323EN-1/03 Reference item Series15i/150i-MA Operator’s Manual II-4.9 Cylindrical interpolation (Programming) (B-63324EN) - 592 -
Page 609B-63323EN-1/03 6.NTERPOLATION FUNCTION 6.13 NORMAL DIRECTION CONTROL General While a tool for which orientation is determined about the rotation axis (C-axis) is moving in the XY plane, the normal direction control function controls the C-axis so that the orientation of the tool is always perpendicu
Page 6106.NTERPOLATION FUNCTION B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1006 NDC [Input type] Parameter input [Data type] Bitaxis 3 0/ &) & " 0: Not normal direction control axis 1: Normal direction control axis Only one axis can be specified as the
Page 611B-63323EN-1/03 6.NTERPOLATION FUNCTION 7794 Limit of the travel distance moved using the normal-direction angle in the previous block & 8 ) 1 %' + ) ) 6 &)) , (79999999
Page 6126.NTERPOLATION FUNCTION B-63323EN-1/03 Reference item Series15i/150i-MA Operator’s Manual II-13.8 Normal direction control (Programming) (B-63324EN) - 596 -
Page 613B-63323EN-1/03 6.NTERPOLATION FUNCTION 6.14 EXPONENTIAL INTERPOLATION General Exponential interpolation exponentially changes the rotation of a workpiece in the movement about the rotation axis. The function also performs linear interpolation with another axis. This enables a tapered groove to be fo
Page 6146.NTERPOLATION FUNCTION B-63323EN-1/03 7685 Interval in exponential interpolation for a linear axis (span value) , & 8 ) 1 % ' + ) ) 6 &)) , 7999999999 > -:%/
Page 615B-63323EN-1/03 6.NTERPOLATION FUNCTION 6.15 SMOOTH INTERPOLATION General Either of two types of machining can be selected, depending on the program command. 1) For those portions where the accuracy of the figure is critical, such as at corners, machining is performed exactly as specified by the prog
Page 6166.NTERPOLATION FUNCTION B-63323EN-1/03 7675 Minimum travel of a block executed with smooth interpolation , & 8 ) 1 %' + ) ) " 6 &)) , 0 ), &
Page 617B-63323EN-1/03 6.NTERPOLATION FUNCTION 7677 Minimum tolerance of a block executed with smooth interpolation , & 8 ) 1 %' + ) ) " 6 &)) , 0 ), &
Page 6186.NTERPOLATION FUNCTION B-63323EN-1/03 6.16 HYPOTHETICAL AXIS INTERPOLATION General Sinusoidal interpolation can be performed by using a circular interpolation axis of helical interpolation as a hypothetical axis and distributing pulses. By using a circular interpolation axis as a hypothetical axis
Page 619B-63323EN-1/03 6.NTERPOLATION FUNCTION 6.17 SPIRAL INTERPOLATION, CONICAL INTERPOLATION General Spiral interpolation is enabled by specifying the circular interpolation command together with a desired number of revolutions or a desired increment (decrement) for the radius per revolution. Conical int
Page 6206.NTERPOLATION FUNCTION B-63323EN-1/03 - Conical interpolation +Z +Y +X Fig. 6.17 (b) Conical interpolation - 604 -
Page 621B-63323EN-1/03 6.NTERPOLATION FUNCTION Parameter 2440 Minimum radius to which a specified feedrate is kept in spiral interpolation or conical interpolation & 8 ) 1 %' + ) ) 6 &
Page 6226.NTERPOLATION FUNCTION B-63323EN-1/03 Alarm and message Number Message Contents PS0280 ILLEGAL COMMAND IN SPIRAL R was specified in the program block; 4 or more axes were specified in the program block; or the direction of the acceleration/deceleration vector on the specified radius is opposite to
Page 623B-63323EN-1/03 6.NTERPOLATION FUNCTION 6.18 NURBS INTERPOLATION General Many computer-aided design (CAD) systems used to design metal dies for automobiles utilize non-uniform rational B-spline (NURBS) to express a sculptured surface or curve for the metal dies. This function enables NURBS curve expr
Page 6246.NTERPOLATION FUNCTION B-63323EN-1/03 not exceed the allowable maximum acceleration of the machine. In this way, the CNC automatically controls the speed in order to prevent excessive strain being imposed on the machine. Parameter 1478 Allowable speed difference for automatic corner deceleration
Page 625B-63323EN-1/03 6.NTERPOLATION FUNCTION Alarm and message Number Message Contents PS1001 ILLEGAL ORDER (NURBS) The specified number of levels is incorrect. PS1002 NO KNOT COMMAND (NURBS) Knot has not been specified, or a block not related to NURBS interpolation was specified in the NURBS interpolatio
Page 6266.NTERPOLATION FUNCTION B-63323EN-1/03 6.18.1 NURBS Interpolation Additional Functions The following functions are added to the NURBS interpolation for the FANUC Series 15i. - Parametric velocity control The maximum speed of each segment is determined by the specified speed and acceleration. For con
Page 627B-63323EN-1/03 6.NTERPOLATION FUNCTION ?%(' ( , ? ?%' ? ?%' ? Fig. 6.18.1(a) - Supporting roll-over If a control point command is issued to a rotation axis to be subjected to roll-over in absolute (G90) mode, a change made due to short-cutting to the relative position of the control point is
Page 6286.NTERPOLATION FUNCTION B-63323EN-1/03 Parameters #7 #6 #5 #4 #3 #2 #1 #0 8412 FDI HIK EST B -& & ) ) 08 & 1 && # 0: Disable. 1: Enable. ( C; -&
Page 629B-63323EN-1/03 6.NTERPOLATION FUNCTION 6.19 3-DIMENSIONAL CIRCULAR INTERPOLATION (G02.4 AND G03.4) Specifying an intermediate and end point on an arc enables circular interpolation in a 3-dimensional space. An arc in a 3-dimensional space is uniquely defined with its start point (current position) a
Page 6306.NTERPOLATION FUNCTION B-63323EN-1/03 Alarms and messages Number Message Contents PS0710 ILLEGAL COMMAND IN 3-D CIR A three-dimensional circular interpolation command (G02.4/G03.4) was issued in a modal state in which no three-dimensional circular interpolation can be used. PS0712 G02.4/G03.4 FORMA
Page 631B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7 FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL - 615 -
Page 6327.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 7.1 FEEDRATE CONTROL The feed functions control the feedrate of the tool. The following two feed functions are available: 1. Rapid traverse When the positioning command (G00) is specified, the tool moves at a rapid traverse rate
Page 633B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.1.1 Rapid Traverse Rate Overview The positioning command (G00) positions the tool by rapid traverse. G00 IP_ ; G00 : G code (group 01) for positioning (rapid traverse) IP_ ; Dimension word for the end point With rapid traverse
Page 6347.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 NOTE 1 The rapid traverse in automatic operation includes all rapid traverses in canned cycle positioning, automatic reference point return, etc., as well as the move command G00. The manual rapid traverse also includes the rapi
Page 635B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL #7 #6 #5 #4 #3 #2 #1 #0 1400 LRP RDR // " ' " " * " ' " ) ' " 0 1/ !
Page 6367.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 7.1.2 Cutting Feedrate Clamp Overview A common upper limit can be set on the cutting feedrate along each axis with parameter No. 1422. If an actual cutting feedrate (with an override applied) exceeds a specified upper limit, it
Page 637B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.1.3 Feed Per Minute General After specifying G94 (in the feed per minute mode), the amount of feed of the tool per minute is to be directly specified by setting a number after F. G94 is a modal code. Once a G94 is specified, i
Page 6387.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 2400 F41 ) 70) " 7" %2=0" ( " " !5 )& ) )&
Page 639B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.1.4 Feed Per Revolution/Feed Per Revolution Without Position Coder Overview - Feed per revolution Specify G95 (feed-per-revolution mode), then directly specify a numeric value, preceded by F, to indicate the amount by which th
Page 6407.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 2405 RSO FPR ? 7 / " " % * $ " 7 "
Page 641B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.1.5 F1-digit Feed General When a one-digit number from 1 to 9 is specified after F, the feedrate set for that number in a parameter (Nos. 1451 to 1459) is used. When F0 is specified, the rapid traverse rate is applied. The fee
Page 6427.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1406 F1O 7)8 '! " * " 5 " " * " 5 "* " !! " 7" "$
Page 643B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 1451 F1 feedrate 1452 F2 feedrate 1453 F3 feedrate 1454 F4 feedrate 1455 F5 feedrate 1456 F6 feedrate 1457 F7 feedrate 1458 F8 feedrate 1459 F9 feedrate $ / ! :" &5&5" $ &
Page 6447.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 1460 Upper feedrate limit for F1 to F4 / ! :" &5&5" $ &% ( " " 3 ; !"" $ /
Page 645B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.1.6 Feedrate Inverse Time Specification Overview Feedrate of the tool can be specified by the move distance of the block and inverse time (FRN). - Linear interpolation iG01 j FRN=1/Time(min)=Speed/Distance Speed : mm/min (metr
Page 6467.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 7.1.7 Override 7.1.7.1 Rapid traverse override Overview The rapid traverse rate can be overridden as follows: F0, F1%, 50%, 100% F0:Feedrate to be set for each axis (parameter No. 1421) F1:Percentage (parameter No. 1412) or, 0%
Page 647B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL Signal Rapid traverse override signal ROV1, ROV2 [Classification] Input signal [Function] These signals override the rapid traverse rate [Operation] These code signals correspond to the rates as follows (Table. 7.1.
Page 6487.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1402 ROV /8; * " " * " 0: The override is F0, F1, 50%, or 100%, as specified by input signals ROV1 and ROV2. 1: Th
Page 649B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.1.7.2 Feedrate override General A programmed feedrate can be reduced or increased by a percentage (%) selected by the override dial. This feature is used to check a program. For example, when a feedrate of 100 mm/min is specif
Page 6507.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 The override is regarded as 100%, regardless of this signal, in the following cases: - Override cancel signal OVC(G004#4) is "1". - During cutting in tap cycle of canned cycle; - Tapping mode (63); or - Thread cutting is in prog
Page 651B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.1.7.3 Second feedrate override Overview These signals override the cutting feedrate after the cutting feedrate has been overridden by first override *FV0 to *FV7. There are two types of second feedrate override: - 0 to 254% (i
Page 6527.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 - Signal address #7 #6 #5 #4 #3 #2 #1 #0 G013 *AFV7 *AFV6 *AFV5 *AFV4 *AFV3 *AFV2 *AFV1 *AFV0 #7 #6 #5 #4 #3 #2 #1 #0 G146 *AFV7B *AFV6B *AFV5B *AFV4B *AFV3B *AFV2B *AFV1B *AFV0B G147 *AFV15B *AFV14B *AFV13B *AFV12B *AFV11B *AFV
Page 653B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.1.7.4 Override cancel Overview The override cancel signal fixes the feedrate override to 100%. Signal Override cancel signal OVC [Classification] Input signal [Function] Feedrate override is fixed to 100%. [Operation]
Page 6547.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 7.1.8 Automatic Corner Override Overview - Inner corner automatic override When G62 is specified, and the tool path with cutter compensation applied forms an inner corner, the feedrate is automatically overridden at both ends of
Page 655B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL - Internal circular cutting feedrate change For internally offset circular cutting, the feedrate on a programmed path is set to a specified feedrate (F) by specifying the circular cutting feedrate with respect to F, as indicated
Page 6567.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1402 CAFC > D7 ! $ " $ " "! " "
Page 657B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 6611 Effective angle for internal corner automatic override ( ˘p) / ! :" " $ " " 3 ; !"" $ - )., When θ≤θp, the
Page 6587.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 6614 Distance for ending automatic override (Ls) $ / ! :" 5%( " " 3 ; !"" $ ="$
Page 659B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.1.9 External Deceleration General These signals decelerate the feedrate of the control axes down to the speed which has been set by parameter No. 1426 and 1427. Signal External deceleration signal *+ED1, *+ED2, .
Page 6607.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1005 EDM EDP 3 0 @ 7 35 3 !" ! $ ! * " * !"" $$ " * !" )
Page 661B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.1.10 Feed Stop Function Overview During axis motion, the feed stop function checks a position deviation amount at all times. When the amount exceeds the "feed stop position deviation amount" set by the parameter (No. 1832), th
Page 6627.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 7.1.11 Deceleration Based on Acceleration during Circular Interpolation General When cutting is performed at high speed for circular, helical, or spiral interpolation, the actual tool path will vary slightly from that intended..
Page 663B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL NOTE In fine HPCC mode, an optimum feedrate that causes the accelerations on individual axes to fall within the range of permissible acceleration is calculated even if the permissible accelerations specified for the axes are dif
Page 6647.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 Parameter 1483 Lower feedrate limit for the deceleration function based on the acceleration of fine HPCC
Page 665B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 1663 Allowable acceleration in the deceleration function based on the acceleration of fine HPCC for each axis
Page 6667.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 1665 Allowable acceleration in the deceleration function based on the acceleration during circular interpolation for each axis (for normal mode)
Page 667B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.1.12 Advanced Preview Control General This function is provided to enable high-speed high-precision machining with the FANUC Series 16i. With the FANUC Series 15i, on the other hand, the look-ahead acceleration/deceleration be
Page 6687.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 7.1.13 Nano Interpolation General The output from the NC to the servo is usually in units of detection units. This function allows output to the servo in units of thousandths of detection units, thereby improving machining preci
Page 669B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.1.14 Fine HPCC General This function is designed to achieve high-speed, high-precision machining with a program involving a sequence of very small straight lines and NURBS curved lines, like those used for metal die machining.
Page 6707.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 With the fine HPCC function, the additional functions listed below can be used to achieve high-speed, high-precision machining for very small straight lines and NURBS curved lines: (1) Feedrate determination based on acceleratio
Page 671B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL Feedrate control conditions In automatic feedrate control mode, the feedrate is controlled as described below: (a) From the feedrate difference on each axis at a corner, the feedrate in the corner is determined, and deceleration
Page 6727.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 Example of determining the feedrate from the feedrate difference on each axis The feedrate at a corner is calculated from the feedrate difference on each axis, as described below. he tangent feedrate that does not cause the feed
Page 673B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL NOTE The method of deceleration with the feedrate difference differs depending on the setting of parameter FNW (bit 6 of No. 1517). For details, refer to the section on " Look-ahead acceleration/ deceleration before interpolatio
Page 6747.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 - Example In the following example, the acceleration (gradient of the broken line in the feedrate graph) at too large at corners N2 to N4 and N6 to N8 and, therefore, deceleration is performed. N8 N7 N9 N6 N5 Y N1 X N4 N3 N2 X-a
Page 675B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL The method of determining the feedrate with the acceleration differs depending on the setting of parameter FNW (bit 6 of No. 1517). If "0" is set, the highest feedrate that does not cause the permissible acceleration set for par
Page 6767.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 Example of determining the feedrate with the cutting load This function is enabled when parameter ZAG (bit 4 of No. 7565) is set to 1. Fig. 7.1.14 (d) During ascent on the Z-axis θ Fig. 7.1.14 (e) During descent on the Z-axis Us
Page 677B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL Z XY plane 30° Area1 90° 60° Area4 45° Area3 Area2 CAUTION 1 The function for determining the feedrate with the cutting feed is effective only when the tool is parallel with the Z-axis. Thus, it may not be possible to apply this
Page 6787.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 instead of the modal values of the F commands calculated by automatic feedrate control. Another example of determining the feedrate If the calculated feedrate exceeds either the upper limit (parameter No. 7567) for automatic fee
Page 679B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL Parameter See also the explanation of those parameters for look-ahead acceleration/deceleration before interpolation because this function uses it. 1483 Lower feedrate limit for the deceleration function based on the acceleratio
Page 6807.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 1517 FNW ' 45 62$ % 1 " 7& "
Page 681B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL #7 #6 #5 #4 #3 #2 #1 #0 7565 NOF ZAG % ' 4, 89: % 1 " 8& " / ##) 0: Do not perform
Page 6827.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 7591 Override for area 2 in deceleration based on fine HPCC cutting load 7592 Override for area 3 in deceleration based on fine HPCC cutting load 7593 Override for area 4 in deceleration based on fine HPCC cutting load
Page 683B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.1.15 Machining type in HPCC screen programming General The high-speed high-precision machining setting screen supports three machining parameter sets (FINE, MEDIUM, and ROUGH). The parameter set to use can be selected in MDI m
Page 6847.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 7.1.16 Feedrate Specification on a Virtual Circle for a Rotary Axis This function improves a method of specifying a speed for a machine having a rotation axis. [Conventional method] Y Specified speed Program example (deg/min) N1
Page 685B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL [Method of specifying a speed on a virtual circle for a rotation axis] This method controls the feedrate in such a way that it takes the time T’, calculated using the following expression, to move through the specified distance.
Page 6867.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 Restrictions - Unusable functions This function cannot be used with the following functions: - The following G functions in group 01 Positioning Circular interpolation, helical interpolation, spiral interpolation, and conical in
Page 687B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 2524 Virtual-circle radius in specifying the speed on a virtual circle for a rotation axis &"
Page 6887.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 7.1.17 Automatic Feedrate Control by Area Overview When an area on the XY plane(*1) is specified in cutting mode in automatic operation, the area override can be applied to a specified feedrate(*2) if the tool is in the specifie
Page 689B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL Defining areas - Up to four areas can be set. We’ll use area numbers to call these areas area 1 to area 4. - Each area is set as a quadrangle whose sides are parallel to the X- and Y-axes. Each area includes the border of the qu
Page 6907.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 Determining whether the tool is in an area Whether the tool has entered an area is checked based on the machine coordinates. Setting an area There are three methods for setting an area, that is, for setting two diagonal vertexes
Page 691B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL Parameters 1280 Coordinates of diagonal vertex 1 of area 1 in automatic feedrate control by area 1281 Coordinates of diagonal vertex 2 of area 1 in automatic feedrate control by area 1282 Coordinates of diagonal vertex 1 of area
Page 6927.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 2063 Area override for area 4 in automatic feedrate control by area @ ! (-+; The area overrides for areas 1 to 4 in automatic feedrate control by area are set
Page 693B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.2 ACCELERATION AND DECELERATION CONTROL 7.2.1 Post-interpolation Automatic Acceleration/Deceleration General Acceleration and deceleration is performed when starting and ending movement, resulting in smooth start and stop. Aut
Page 6947.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 - Jog feed JGE(No.1600#5) Acceleration/deceleration type Linear acceleration/deceleration (constant acceleration time) 0 Bell-shaped acceleration/deceleration (constant acceleration time) if the bell-shaped acceleration/decelera
Page 695B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL - Linear acceleration/deceleration With linear acceleration/deceleration, the time required for acceleration/deceleration is the shortest, provided that the acceleration is the same. Note, however, that if the acceleration is la
Page 6967.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 Feedrate Feedrate Bell-shaped Bell-shaped acceleration/deceleration (constant acceleration) acceleration/deceleration ? T2 T T T T Set time constants T1 and T2 for parameters. T::Time constant (The acceleration in the straight-l
Page 697B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL Parameter #7 #6 #5 #4 #3 #2 #1 #0 1600 NEX JGE CTE REX !" " # $ %" #
Page 6987.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 1620 Time constant (T) for linear acceleration/deceleration or time constant (T1) for bell-shaped acceleration/deceleration for rapid traverse along each axis ( ; <
Page 699B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 1621 FL feedrate for linear or bell-shaped acceleration/deceleration for rapid traverse along each axis ; )' ) ( 6 ' 8 > '
Page 7007.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 1622 Cutting feed acceleration/deceleration time constant for each axis ( ; < ( #. For each axis, set the time constant used for acceleration/deceleration du
Page 701B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 1624 Jog acceleration/deceleration time constant for each axis ( ; < ( #. = ' ) ' (4 ( $ 1625 FL fee
Page 7027.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 1636 Time constant for bell-shaped acceleration/deceleration for rapid traverse along each axis (T2) ( ; < ( #% 0, 7 #'
Page 703B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.2.2 Look-ahead Acceleration/Deceleration Before interpolation General When acceleration/deceleration after interpolation is used, acceleration/deceleration is applied to the interpolated data. Consequently, the interpolated da
Page 7047.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 Acceleration/deceleration types There are two types of acceleration/deceleration, the linear acceleration/deceleration type and the bell-shaped acceleration/ deceleration type. By setting a non-zero value for parameter No. 1656,
Page 705B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL - Example of acceleration Acceleration is performed so that the feedrate specified for a block is attained when the block is executed. Feedrate Programmed speed Feedrate obtained by F3 acceleration/deceleration before interpolat
Page 7067.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 EMethod of determining the tangent acceleration Acceleration/deceleration is performed with the largest tangent acceleration/deceleration that does not exceed the acceleration set for each axis. (Example) X-axis permissible acce
Page 707B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL - Acceleration Acceleration is performed so that the feedrate programmed for a block is attained at the beginning of the block. Feedrate Speed control by bell-shaped acceleration/deceleration before interpolation Programmed spee
Page 7087.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 - Deceleration based on a distance If the total distance of the blocks read ahead becomes shorter than or equal to the deceleration distance obtained from the current feedrate, deceleration starts. If the total distance of the b
Page 709B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL (b) If A + B > Remaining amount of travel in the block being executed when the single-block command is executed A stop state may continue over several blocks. The stop is made as described later. Feedrate Single-block command St
Page 7107.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 (b) If A > Remaining amount of travel in the block being executed when the single-block command is executed A stop state may continue over several blocks. The stop is made as described later. Feedrate Single-block command Stop s
Page 711B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL (Example) Program N1 G01 G91 X100. F5000 N2 Y100. N2 N1 Tangent feedrate Tangent feedrate The deceleration based on the feedrate difference is used. X-axis feedrate X-axis feedrate The feedrate difference The tangent feedrate is
Page 7127.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 The method of deceleration based on the feedrate difference differs depending on the setting made for parameter FNW (bit 6 of No. 1517). If "0" is set, the largest feedrate that does not exceed the permissible feedrate differenc
Page 713B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL - When bit 6 (OVR) of parameter No. 1403 = 0 The conventional specifications apply. Override is invalid for deceleration functions such as deceleration based on feedrate difference and deceleration based on acceleration rate. -
Page 7147.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 before interpolation mode, execute the desired function, then set look- ahead acceleration/deceleration before interpolation mode again. - Cs contour axis control function - Hypothetical axis interpolation function - Electronic
Page 715B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL Parameter #7 #6 #5 #4 #3 #2 #1 #0 1403 OVR [Input type] Parameter input [Data type] Bit #6 OVR In look-ahead acceleration/deceleration before interpolation and fine HPCC: 0: Override is disabled for deceleration functions such a
Page 7167.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 1517 FCC FNW + =*& !' ' ' ' (' 7 ' @# ' 7 ' '
Page 717B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 1656 Acceleration change time of bell-shaped acceleration/deceleration before interpolation ( ; < ( #, 0' ' ' ( 7 #'
Page 7187.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 1660 Maximum allowable acceleration of acceleration/deceleration before interpolation for each axis ; )' ) ( 6 ' 8 >
Page 719B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL Note NOTE 1 If the permissible acceleration set for one axis is two or more times greater than that set for another, the feedrate may decrease temporarily at those corners where the travel direction changes abruptly. 2 If the ma
Page 7207.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 7.2.3 Corner Control 7.2.3.1 In-position check General Whether the position of the servo motor is within a specified range is checked. If the in-position check function is enabled, the CNC checks the position during deceleration
Page 721B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL In-position signals INP1, INP2, ... [Classification] Output signal [Function] These signals indicate that the control axes are set to the in-position condition. They are provided for each control axis, and the numb
Page 7227.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1000 CSZ CIP / !' !' # ' @$ " > ' ' ' C ( 6'
Page 723B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL 7.2.4 Feed Forward in Rapid Traverse General Feed-forward control can be performed even during rapid traverse. In this case, the servo position error is reduced, thus reducing the time required for positioning to within the spec
Page 7247.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 7.2.5 Acceleration/Deceleration before Interpolation of Linear Type Rapid Traverse Conventionally, only acceleration/deceleration after interpolation could be applied to rapid traverse. This function allows acceleration/decelera
Page 725B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL Restrictions - Conditions for acceleration/deceleration before interpolation When the conditions listed below are all satisfied, acceleration/deceleration before interpolation becomes valid for rapid traverse. The acceleration u
Page 7267.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL B-63323EN-1/03 -Look-ahead acceleration/deceleration before interpolation (or fine HPCC) mode is currently set. -The conditions for look-ahead acceleration/deceleration before interpolation are satisfied. If the conditions listed above are not
Page 727B-63323EN-1/03 7.FEEDRATE CONTROL/ACCELERATION AND DECELERATION CONTROL Tangential feedrate Maximum acceleration is calculated automatically so that maximum allowable acceleration for each axis set in parameter No. 1671 is not exceeded. (A) (B) (C) (B) (A) (B) (C) (B) (A) Set period of time in param
Page 7288.MISCELLANEOUS FUNCTION B-63323EN-1/03 8 MISCELLANEOUS FUNCTION - 712 -
Page 729B-63323EN-1/03 8.MISCELLANEOUS FUNCTION 8.1 MISCELLANEOUS FUNCTION/2ND AUXILIARY FUNCTION General - Miscellaneous Function (M code) When a numeral of up to 10 digits is specified following address M, code signal and a strobe signal are sent to the machine. The machine uses these signals to turn on o
Page 7308.MISCELLANEOUS FUNCTION B-63323EN-1/03 (1) Suppose that Mxxx is specified in a program. The maximum allowable number of digits can be specified for each function by using parameter No. 2030 to 2033. A command longer than the maximum allowable number of digits causes an alarm (PS0003). (2) Code sign
Page 731B-63323EN-1/03 8.MISCELLANEOUS FUNCTION Example2) Move command and miscellaneous function in the same block a. Execution of a miscellaneous function without waiting for move command completion (1) (2) (3) (5) (6) (7) (8) M command (independent) Mxxx Move command Code signals M00-M31 Strobe signal MF
Page 7328.MISCELLANEOUS FUNCTION B-63323EN-1/03 Signal Miscellaneous function code signals M00-M31 Miscellaneous function strobe signal MF [Classification] Output signal [Function] These signals report the specification of miscellaneous functions. [Output condition] For the output condi
Page 733B-63323EN-1/03 8.MISCELLANEOUS FUNCTION Spindle-speed code signals S00 to S31 Spindle-speed strobe signal SF [Classification] Output signal [Function] These signals report that spindle speed functions have been specified. [Output condition] For the output conditions and procedu
Page 7348.MISCELLANEOUS FUNCTION B-63323EN-1/03 Distribution end signal DEN IPEN [Classification] Output signal [Function] These signals report that all commands (such as move commands and dwell) are completed except those miscellaneous functions, spindle- speed functions, 2nd auxiliary func
Page 735B-63323EN-1/03 8.MISCELLANEOUS FUNCTION F009 DM30 DM02 DM01 DM00 F016 M07 M06 M05 M04 M03 M02 M01 M00 F017 M15 M14 M13 M12 M11 M10 M09 M08 F018 M23 M22 M21 M20 M19 M18 M17 M16 F019 M31 M30 M29 M28 M27 M26 M25 M24 F020 S07 S06 S05 S04 S03 S02 S01 S00 F021 S15 S14 S13 S12 S11 S10 S09 S08 F022 S23 S22
Page 7368.MISCELLANEOUS FUNCTION B-63323EN-1/03 + , ! "#$ $ "%& ' " , ( ) 0: Cannot be used 1: Can be used - ! "#$ $ "%& ' " $ " ! ((!$ + . ! () 0: Cannot be used 1: Can be used 2010 Delay time of the MF, SF
Page 737B-63323EN-1/03 8.MISCELLANEOUS FUNCTION 2030 Allowable number of digits in an M code ** Specify the allowable number of digits in an M code. 2031 Allowable number of digits in an S code *
Page 7388.MISCELLANEOUS FUNCTION B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 2403 M02 + 2$ +" " ( ( ( 0: M02 is only sent to the machine, and reset and rewind signal (RRW) is used for program heading. 1: M02 is sent out to the machine,
Page 739B-63323EN-1/03 8.MISCELLANEOUS FUNCTION 2450 Range of M codes without buffering (1) (lower limit) 2451 Range of M codes without buffering (1) (upper limit) 2452 Range of M codes without buffering (2) (lower limit) 2453 Range of M codes without buffering (2) (upper limit) [Input type] Parameter input
Page 7408.MISCELLANEOUS FUNCTION B-63323EN-1/03 Note NOTE 1 When a move command and miscellaneous function are specified in the same block, the commands are executed in one of the following two ways: i) Simultaneous execution of the move command and miscellaneous function commands. ii) Executing miscellaneo
Page 741B-63323EN-1/03 8.MISCELLANEOUS FUNCTION 8.2 AUXILIARY FUNCTION LOCK General Inhibits execution of a specified M, S, T and B function. That is, code signals and strobe signals are not issued. This function is used to check a program. Signal Auxiliary function lock signal AFL [Classification]
Page 7428.MISCELLANEOUS FUNCTION B-63323EN-1/03 8.3 MULTIPLE M COMMANDS IN A SIGLE BLOCK General So far, one block has been able to contain only one M code. However, this function allows up to three M codes to be contained in one block. Up to five M codes specified in a block are simultaneously output to th
Page 743B-63323EN-1/03 8.MISCELLANEOUS FUNCTION (5) When the completion signal stays "1" for a time (TFIN) set by parameter No. 2011, all strobe signals (MF, MF2, MF3, MF4, and MF5) are set to "0" at the same time and the reception of completion signal is reported. (6) On the PMC side, when MF, MF2, MF3, MF
Page 7448.MISCELLANEOUS FUNCTION B-63323EN-1/03 Signal address #7 #6 #5 #4 #3 #2 #1 #0 F045 MF5 MF4 MF3 MF2 #7 #6 #5 #4 #3 #2 #1 #0 F144 M207 M206 M205 M204 M203 M202 M201 M200 #7 #6 #5 #4 #3 #2 #1 #0 F145 M215 M214 M213 M212 M211 M210 M209 M208 #7 #6 #5 #4 #3 #2 #1 #0 F146 M307 M306 M305 M304 M303 M302 M30
Page 745B-63323EN-1/03 8.MISCELLANEOUS FUNCTION Note NOTE 1 CNC allows up to three M codes to be specified in one block. However, some M codes cannot be specified at the same time due to mechanical operation restrictions. 2 The 1st M code can be up to ten digits. (The allowable number of digits is specified
Page 7468.MISCELLANEOUS FUNCTION B-63323EN-1/03 8.4 HIGH-SPEED M/S/T/B INTERFACE General To accelerate M/S/T/B function execution, the high-speed M/S/T/B interface has simplified the transfer of the strobe and completion signals of the M/S/T/B functions. Whether to use the usual system or high-speed system
Page 747B-63323EN-1/03 8.MISCELLANEOUS FUNCTION Next block Code signal Mxx Myy Strobe signal MF PMC side operation Miscellaneous function completion signal MFIN Fig. 8.4 (a) Timing chart of the high-speed system Next block Code signal Mxx Myy Strobe signal MF PMC side operation Completion signal FIN Fig. 8.
Page 7488.MISCELLANEOUS FUNCTION B-63323EN-1/03 Spindle function completion signal SFIN [Classification] Input signal [Function] Reports that the execution of a spindle speed function using the high- speed M/S/T/B interface is completed. [Operation] For the operation and procedure of the control uni
Page 749B-63323EN-1/03 8.MISCELLANEOUS FUNCTION Parameter #7 #6 #5 #4 #3 #2 #1 #0 2004 MHI 3 ,$ " (' ( (" "!( $ 4 4,4( ( " " $ 1 0: Normal system. 1: High-speed system. Note NOTE 1 The strobe signals MF, SF, TF, an
Page 7509.SPINDLE FUNCTION B-63323EN-1/03 9 SPINDLE FUNCTION CAUTION The signal notations used in this section are explained below: The names of DI/DO signals for each spindle are followed by one of the following alphabetic characters to indicate a spindle number: First spindle : A Second spindle : B Third
Page 751B-63323EN-1/03 9.SPINDLE FUNCTION 9.1 SPINDLE SPEED FUNCTION (S CODE OUTPUT) General When up to ten digits are specified after address S, code and strobe signals are sent out and used to control the spindle speed. The code signals areretained until another S code is issued. One S code is used for ea
Page 7529.SPINDLE FUNCTION B-63323EN-1/03 2031 Allowable number of digits in an S code % & ' % " '' ' % ! NOTE To set the allowable number of digits in an S code to 10, the use of a minus "-" in an S code must be disabl
Page 753B-63323EN-1/03 9.SPINDLE FUNCTION 9.2 SPINDLE SERIAL OUTPUT/SPINDLE ANALOG OUTPUT General There are two types of spindle motor control interfaces, spindle serial output and spindle analog output. The spindle serial output interface can control four serial spindles. The spindle analog output interfac
Page 7549.SPINDLE FUNCTION B-63323EN-1/03 NOTE 1 Using parameter No. 5850, select the spindle to be controlled. Each function controls a selected spindle. 2 These functions are provided by the spindle control unit. Whether these functions are actually available depends on whether the spindle control unit su
Page 755B-63323EN-1/03 9.SPINDLE FUNCTION ( ' ' % ' Motor number 1 (serial) First serial path CNC Motor number 3 (analog) For each spindle, set the type of motor in bit 0 (A/S) of parameter No. 5606, and the motor number in parameter No. 5841. Make the settings in the orde
Page 7569.SPINDLE FUNCTION B-63323EN-1/03 Example 5 : Using one serial spindle and one analog spindle 1st 2nd 3rd 4th Parameter spindle spindle spindle spindle 5606#A/S 1 0 0 0 5841 1 3 0 0 - Selecting a spindle to be controlled When there are two or more spindles, you must select a spindle that is currentl
Page 757B-63323EN-1/03 9.SPINDLE FUNCTION Spindle control unit for spindle serial Spindle control unit for spindle analog output output interface interface Control signal for the Addresses for the third spindle Connected to the PMC via an external contact spindle control unit G204 to 205 G210 to 213 F196 to
Page 7589.SPINDLE FUNCTION B-63323EN-1/03 4 Change the setting of parameter No. 5850 for spindle selection by using functions such as the NC window function. 5 After completing all the processing required for spindle switching, return completion signal FIN for M61 or M62. M61 ; .............................
Page 759B-63323EN-1/03 9.SPINDLE FUNCTION Timing chart M61 M62 M command M61/M62 Strobe signal MF Spindle switch processing Auxiliary function completion signal FIN Spindle control confirmation signal SPN0,SPN1,SPN2 1 2 Spindle selection Parameter (No. 5850) 1 2 Signal address - Common to analog and serial
Page 7609.SPINDLE FUNCTION B-63323EN-1/03 - For 2nd SERIAL SPINDLE #7 #6 #5 #4 #3 #2 #1 #0 G202 G203 G234 RCHB RSLB INTGB SOCNB MCFNB SPSLB *ESPB ARSTB G235 MRDYB ORCMB SFRB SRVB CTH1B CTH2B TLMHB TLMLB G236 MPOFB SLVB G237 INCMDB OVRIDB NRROB ROTAB INDXB F244 SLVSB RCFNB RCHPB CFINB CHIPB F245 ORARB TLMB L
Page 761B-63323EN-1/03 9.SPINDLE FUNCTION - For 4th SERIAL SPINDLE #7 #6 #5 #4 #3 #2 #1 #0 G206 G207 G218 RCHD RSLD INTGD SOCND MCFND SPSLD *ESPD ARSTD G219 MRDYD ORCMD SFRD SRVD CTH1D CTH2D TLMHD TLMLD G220 MPOFD SLVD G221 INCMDD OVRIDD NRROD ROTAD INDXD F212 SLVSD RCFND RCHPD CFIND CHIPD F213 ORARD TLMD L
Page 7629.SPINDLE FUNCTION B-63323EN-1/03 5845 Suffix for serial spindle (main spindle) or analog spindle display % ' & ' % " )) Set a suffix for spindle speed display on a screen such as the position display screen. % $ - "./) '
Page 763B-63323EN-1/03 9.SPINDLE FUNCTION - Connecting an analog spindle control unit 5613 Compensation value for the offset voltage of the spindle speed analog output % ' 6 & ' & ' % "), "), Set the compensation value for the offset voltage of
Page 7649.SPINDLE FUNCTION B-63323EN-1/03 5614 Data for adjusting the gain of the spindle speed analog output % ' & ' % 4"" )3" :% % ' ' % ! * : < 0 : '' % -' '
Page 765B-63323EN-1/03 9.SPINDLE FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 5607 PLD ' " 8 ' ' ' '' ! "# * '' ! # '' ! "
Page 7669.SPINDLE FUNCTION B-63323EN-1/03 - When the spindle switch function is not used - Main spindle at spindle switching CNC Spindle Description side side 3000 Bit parameter (NOTE1) 000 3001 Bit parameter (NOTE1) 3002 Bit parameter (NOTE1) 001 3003 Bit parameter (NOTE1) 3004 Bit parameter (NOTE1) 002 30
Page 767B-63323EN-1/03 9.SPINDLE FUNCTION CNC Spindle Description side side 3040 030 Proportional gain of the velocity loop in normal operation mode (high-speed gear) 3041 031 Proportional gain of the velocity loop in normal operation mode (low-speed gear) 3042 032 Proportional gain of the velocity loop in
Page 7689.SPINDLE FUNCTION B-63323EN-1/03 CNC Spindle Description side side 3071 061 Position gain in Cs contour control mode (medium low-speed gear) 3072 062 Position gain in Cs contour control mode (low-speed gear) 3073 063 Grid shift in servo mode 3074 064 Feedrate for reference position return in Cs con
Page 769B-63323EN-1/03 9.SPINDLE FUNCTION CNC Spindle Description side side 3108 098 Velocity at which current loop integral gain is zero 3109 099 Velocity factor for integral gain of current loop 3110 100 Current conversion constant 3111 101 Secondary current factor for activating current 3112 102 Expected
Page 7709.SPINDLE FUNCTION B-63323EN-1/03 - When the spindle switch function is not used - For low-speed characteristics of the output switch function for the main spindle at spindle switching CNC Spindle Description side side 3136 128 Motor voltage setting in normal rotation mode 3137 129 Motor voltage set
Page 771B-63323EN-1/03 9.SPINDLE FUNCTION - Sub-spindle at spindle switching CNC Spindle Description side side 3176 Bit parameter (NOTE1) 168 3177 Bit parameter (NOTE1) 3178 Bit parameter (NOTE1) 169 3179 Bit parameter (NOTE1) 3180 Bit parameter (NOTE1) 170 3181 Bit parameter (NOTE1) 3182 Bit parameter (NOT
Page 7729.SPINDLE FUNCTION B-63323EN-1/03 CNC Spindle Description side side 3225 207 3226 208 Detection level for the orientation completion signal 3227 209 Motor speed limit in orientation 3228 210 Stop position shift in orientation by a position coder 3229 211 MS signal constant 3230 212 MS signal gain ad
Page 773B-63323EN-1/03 9.SPINDLE FUNCTION CNC Spindle Description side side 3268 250 Compensation constant for high-speed-rotation slip 3269 251 Compensation constant for voltage applied to motor in the dead zone 3270 252 Compensation factor for electromotive force 3271 253 Compensation factor for the phase
Page 7749.SPINDLE FUNCTION B-63323EN-1/03 - For low-speed characteristics of the output switch function for the sub-spindle at spindle switching CNC Spindle Description side side 3284 266 Motor voltage setting in normal rotation mode 3285 267 Motor voltage setting in servo mode 3286 268 Base speed for motor
Page 775B-63323EN-1/03 9.SPINDLE FUNCTION CNC Spindle Description side side 3326 310 Width of the deceleration switch pulse for spindle orientation (main spindle) 3327 311 Width of deceleration switch pulse for spindle orientation (sub-spindle) 3328 312 Command multiplication for orientation by a position c
Page 7769.SPINDLE FUNCTION B-63323EN-1/03 - For expansion CNC Spindle Description side side 3352 Bit parameter (NOTE1) 336 3353 Bit parameter (NOTE1) 3354 337 3355 338 3356 339 3357 340 3358 341 3359 342 3360 343 3361 344 3362 345 3363 346 3364 347 3365 348 3366 349 3367 350 3368 351 3369 352 3370 353 3371
Page 777B-63323EN-1/03 9.SPINDLE FUNCTION Note 1) The data list at the CNC side corresponds to that at the spindle side, as follows: CNC parameter numbers : Cn, Cn+1 Spindle parameter number : Sm Sm Cn Cn+1 Note 2) The data list at the CNS side corresponds to that at the spindle side, as follows: CNC parame
Page 7789.SPINDLE FUNCTION B-63323EN-1/03 Number Message Contents SP0015 SSPA:15 SPINDLE SWITCHING An alarm (AL-15) occurred on the spindle amplifier unit FAULT For details, refer to the Serial Spindle User’s Manual. SP0016 SSPA:16 RAM ERROR An alarm (AL-16) occurred on the spindle amplifier unit For detail
Page 779B-63323EN-1/03 9.SPINDLE FUNCTION Number Message Contents SP0045 SSPA:XX DECODED ALARM An alarm (AL-45) occurred on the spindle amplifier unit For details, refer to the Serial Spindle User’s Manual. SP0046 SSPA:46 ILLEGAL 1REV SIGN OF An alarm (AL-46) occurred on the spindle amplifier unit SCREW CUT
Page 7809.SPINDLE FUNCTION B-63323EN-1/03 Number Message Contents SP0229 COMMUNICATION ERROR SERIAL A communications error occurred between serial spindle SPINDLE AMP. amplifiers (motor Nos. 1 and 2, or motor Nos. 3-4). SP0230 MOTOR NUMBER OUT OF RANGE The setting of parameter No. 5841 is out of range. SP02
Page 781B-63323EN-1/03 9.SPINDLE FUNCTION Reference item Series15i/150i- Connection Manual 9.3 Spindle control MODEL A (This manual) FANUC SERVO AMPLIFIER αseries B-65162E Descriptions FANUC AC SPINDLE MOTOR α series B-65160E Parameter Manual FANUC AC SPINDLE MOTOR α series B-65152E Descriptions FANUC SERVO
Page 7829.SPINDLE FUNCTION B-63323EN-1/03 9.3 SPINDLE CONTROL General This section describes spindle speed control. It also explains the position coder. -Command flow of spindle speed control Outlines of spindle speed control for analog and serial spindles are shown below. - 766 -
Page 783B-63323EN-1/03 9.SPINDLE FUNCTION Analog spindle Gear change Spindle motor Position coder mechanism Spindle Spindle amp. Orientation, gear switching, addition circuit Gear selection, Speed arrival signal, orientation alarm signal, etc. command, etc. Return pulse, one-rotation signal Operator’s Spind
Page 7849.SPINDLE FUNCTION B-63323EN-1/03 Serial spindle Position coder, Gear change Spindle motor Cs detector mechanism Spindle Spindle amp. Gear switching, addition circuit Return pulse, Gear selection, Addition circuit, etc. one-rotation etc. signal Spindle motor command Operator’s Return pulse, one-rota
Page 785B-63323EN-1/03 9.SPINDLE FUNCTION - S command The S command specifies the spindle speed entered from machining programs, etc. for the CNC. The CNC outputs the specified S command as an S code to the PMC as is. If constant surface speed control is not performed, the CNC outputs the specified value to
Page 7869.SPINDLE FUNCTION B-63323EN-1/03 - Gear change processing In response to a specified spindle speed, gear selection and change processing is normally performed by the PMC. According to the gear selected by the PMC, gear change is performed by the gear change function via contact signal input/output.
Page 787B-63323EN-1/03 9.SPINDLE FUNCTION -Electrical specification of analog spindle interface The signals related to analog spindle interface are described below. The ENB1/2 signal is set to 1 if the command output to the spindle is a non-zero value. If the command output to the spindle is 0, the ENB1/2 s
Page 7889.SPINDLE FUNCTION B-63323EN-1/03 Signal Signals common to analog and serial spindles Spindle speed command signal RO0A-RO15A:For 1st spindle RO0B-RO15B:For 2nd spindle RO0C-RO15C:For 3rd spindle RO0D-RO15D:For 4th spindle [Classification] Output signal [F
Page 789B-63323EN-1/03 9.SPINDLE FUNCTION Spindle motor command voltage signal RISGNA,RI0A to RI15A:For 1st spindle RISGNB,RI0B to RI15B:For 2nd spindle RISGNC,RI0C to RI15C:For 3rd spindle RISGND,RI0D to RI15D:For 4th spindle [Classification] Input signal [Functi
Page 7909.SPINDLE FUNCTION B-63323EN-1/03 Signal related to analog spindles Spindle gear select signal GS1A,GS2A,GS4A:For 1st spindle GS1B,GS2B,GS4B:For 2nd spindle GS1C,GS2C,GS4C:For 3rd spindle GS1D,GS2D,GS4D:For 4th spindle [Classification] Input si
Page 791B-63323EN-1/03 9.SPINDLE FUNCTION Serial spindle motor torque signal SLDM0A to SLDM15A:For 1st spindle SLDM0B to SLDM15B:For 2nd spindle SLDM0C to SLDM15C:For 3rd spindle SLDM0D to SLDM15D:For 4th spindle [Classification] Output signal [Function] Posts mot
Page 7929.SPINDLE FUNCTION B-63323EN-1/03 Other signals Miscelaneous function code signal M0 to M31 Miscelaneous function strobeignal MF Fnish signal FIN See Sec. 8.1. Spindle speed function code signal S0 to S31 Spindle speed function strobe signal SF Fin
Page 793B-63323EN-1/03 9.SPINDLE FUNCTION -For first spindle #7 #6 #5 #4 #3 #2 #1 #0 G024 RI7A RI6A RI5A RI4A RI3A RI2A RI1A RI0A G025 RISGNA RI12A RI11A RI10A RI9A RI8A G026 GS4A GS2A GS1A G227 CTH1A CTH2A F010 RO7A RO6A RO5A RO4A RO3A RO2A RO1A RO0A F011 RO15A RO14A RO13A RO12A RO11A RO10A RO9A RO8A F014
Page 7949.SPINDLE FUNCTION B-63323EN-1/03 -For 2nd spindle #7 #6 #5 #4 #3 #2 #1 #0 G232 RI7B RI6B RI5B RI4B RI3B RI2B RI1B RI0B G233 RISGNB RI12B RI11B RI10B RI9B RI8B G235 CTH1B CTH2B G272 GS4B GS2B GS1B F248 SLDM7B SLDM6B SLDM5B SLDM4B SLDM3B SLDM2B SLDM1B SLDM0B F249 SLDM15B SLDM14B SLDM13B SLDM12B SLDM1
Page 795B-63323EN-1/03 9.SPINDLE FUNCTION -For 3rd spindle #7 #6 #5 #4 #3 #2 #1 #0 G208 RI7C RI6C RI5C RI4C RI3C RI2C RI1C RI0C G209 RISGNC RI12C RI11C RI10C RI9C RI8C G211 CTH1C CTH2C G273 GS4C GS2C GS1C F200 SLDM7C SLDM6C SLDM5C SLDM4C SLDM3C SLDM2C SLDM1C SLDM0C F201 SLDM15C SLDM14C SLDM13C SLDM12C SLDM1
Page 7969.SPINDLE FUNCTION B-63323EN-1/03 -For 4th spindle #7 #6 #5 #4 #3 #2 #1 #0 G216 RI7D RI6D RI5D RI4D RI3D RI2D RI1D RI0D G217 RISGND RI12D RI11D RI10D RI9D RI8D G219 CTH1D CTH2D G274 GS4D GS2D GS1D F216 SLDM7D SLDM6D SLDM5D SLDM4D SLDM3D SLDM2D SLDM1D SLDM0D F217 SLDM15D SLDM14D SLDM13D SLDM12D SLDM1
Page 797B-63323EN-1/03 9.SPINDLE FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 2402 SMX 5
Page 7989.SPINDLE FUNCTION B-63323EN-1/03 5612 Unit of spindle speed to be output by DO signals % ' 6 +"CC & ' % " / Set the unit of output by the specified spindle speed signal, actual spindle speed signal, and maximum spindle speed signa
Page 799B-63323EN-1/03 9.SPINDLE FUNCTION 5848 Number of teeth on the spindle gear in speed control (feed per revolution, threading, and so forth) % ' & ' % 1111 Set the number of teeth on the spindle gear in speed control (feed per revolution, threading
Page 8009.SPINDLE FUNCTION B-63323EN-1/03 5613 Compensation value for the offset voltage of the spindle speed analog output % ' 6 & ' & ' % "), "), Set the compensation value for the offset voltage of the spindle speed analog output. * :
Page 801B-63323EN-1/03 9.SPINDLE FUNCTION 5614 Data for adjusting the gain of the spindle speed analog output % ' & ' % 4"" )3" Set data for adjusting the gain of the spindle speed analog output. * : < 0 : '' % -'
Page 8029.SPINDLE FUNCTION B-63323EN-1/03 Alarm and message -PS alarm Number Message Contents PS0223 ILLEGAL SPINDLE SELECT An attempt was made to execute an instruction that uses the spindle although the spindle to be controlled has not been set correctly. -SP alarm Number Message Contents SP0224 ILLEGAL S
Page 803B-63323EN-1/03 9.SPINDLE FUNCTION 9.4 CONSTANT SURFACE SPEED CONTROL General When a surface speed (m/min or feet/min) is specified after an S code, the spindle speed is controlled to keep the surface speed constant, regardless of the position of the tool. Spindle speed N r Surface speed S = 2πrN Spe
Page 8049.SPINDLE FUNCTION B-63323EN-1/03 Signal Spindle speed command signal RO0A-RO15A:For 1st spindle RO0B-RO15B:For 2nd spindle RO0C-RO15C:For 3rd spindle RO0D-RO15D:For 4th spindle [Classification] Output signal [Function] Posts a specified spindle speed. Whe
Page 805B-63323EN-1/03 9.SPINDLE FUNCTION Signal address #7 #6 #5 #4 #3 #2 #1 #0 F001 CSS #7 #6 #5 #4 #3 #2 #1 #0 F010 RO7A RO6A RO5A RO4A RO3A RO2A RO1A RO0A #7 #6 #5 #4 #3 #2 #1 #0 F011 RO15A RO14A RO13A RO12A RO11A RO10A RO09A RO08A #7 #6 #5 #4 #3 #2 #1 #0 F014 MR7A MR6A MR5A MR4A MR3A MR2A MR1A MR0A #7
Page 8069.SPINDLE FUNCTION B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 2402 SMX !" #$ % 0: The maximum spindle speed command is assumed. 1: The maximum spindle speed command is not assum
Page 807B-63323EN-1/03 9.SPINDLE FUNCTION '4 ( ) ( # " 55$ ( - 0: Use. 1: Do not use. Instead, the coordinates of an end point are used for constant surface speed control. 5850 Spindle number to
Page 8089.SPINDLE FUNCTION B-63323EN-1/03 5844 Axis number subject to constant surface speed control # 6 # 5+ 2 2 Specify the ordinal number of an axis that is subject to constant surface speed control. If an axis is specified in the program (G96P_)
Page 809B-63323EN-1/03 9.SPINDLE FUNCTION Note NOTE 1 The S value specified in G96 mode is stored even when G97 mode is set. The S value is restored when G96 mode is set again. G96 S50: 50 m/min or 50 feet/min -1 G97 S1000: 1000 min G96 X3000: 50 m/min or 50 feet/min 2 If S (min-1) is not specified in a G97
Page 8109.SPINDLE FUNCTION B-63323EN-1/03 9.5 ACTUAL SPINDLE SPEED OUTPUT General Based on a feedback signal from a position coder mounted on a spindle, the CNC calculates the spindle speed and outputs it to the PMC. When a serial spindle is used, the spindle speed can also be calculated based on the speed
Page 811B-63323EN-1/03 9.SPINDLE FUNCTION - For fourth spindle #7 #6 #5 #4 #3 #2 #1 #0 F334 AR7D AR6D AR5D AR4D AR3D AR2D AR1D AR0D F335 AR15D AR14D AR13D AR12D AR11D AR10D AR9D AR8D Parameter 5612 Unit of spindle speed to be output by DO signals # 7( 8985
Page 8129.SPINDLE FUNCTION B-63323EN-1/03 9.6 SPINDLE POSITIONING General This function positions the spindle using the spindle motor and position coder. The function has a coarser least command increment compared with the Cs contour control function and has no interpolation capability with other axes. Howe
Page 813B-63323EN-1/03 9.SPINDLE FUNCTION - Control block diagram Spindle control Spindle Error Spindle motor amplifier counter Gear ratio n:m Position Gear ratio N:M Spindle coder The spindle positioning function is enabled only when the number of pulses from the position coder is 4096, and the gear ratio
Page 8149.SPINDLE FUNCTION B-63323EN-1/03 Controlled- Parameter Parameter Parameter axis No. 1020 1023 1027 1 w 1 0 2 89( x) 2 0 3 90( y) 3 0 4 67( b) 0 1 Setting example 2: Servo axis: X, Z Spindle positioning axis: C (S1), B (S2) Number of spindles: 2 Controlled- Parameter Parameter Parameter axis No
Page 815B-63323EN-1/03 9.SPINDLE FUNCTION - Orientation speed When an analog spindle is used, the tool moves at the rapid traverse rate set in parameter No. 5977 until a speed that allows orientation is reached. After a one-rotation signal is detected, spindle orientation is performed at the FL feedrate set
Page 8169.SPINDLE FUNCTION B-63323EN-1/03 - Program origin The orientation position is regarded as a program origin. It is possible to modify the program origin using the coordinates system(G92). Command system The command system comes in two types: The first positions a semi- fixed angle; the second positi
Page 817B-63323EN-1/03 9.SPINDLE FUNCTION Program origin 90° A 180° B Address used and Command of A-B Command method G-code on the above Fig. Absolute command Direct the end point position by the distance from the program G90,C G90C180.0 ; origin. Incremental Command by the distance G91,C G91C90.0 ; command
Page 8189.SPINDLE FUNCTION B-63323EN-1/03 Signal Signals for the spindle positioning function Spindle unclamp signal SUCLPA:for 1st spindle SUCLPB:for 2nd spindle SUCLPC:for 3rd spindle SUCLPD:for 4th spindle [Classification] Output signal [Function] This signal specifies tha
Page 819B-63323EN-1/03 9.SPINDLE FUNCTION Signals related to miscellaneous function code output Miscellaneous code signal M0-M31 Miscellaneous strobe signal MF Finish signal FIN See Sec. 8.1. Signals related to gear change Spindle gear select signal GS1A,GS2A,GS4A:fo
Page 8209.SPINDLE FUNCTION B-63323EN-1/03 Other signals Spindle stop confirmation signal SPSTPA:for 1st spindle SPSTPB:for 2nd spindle SPSTPC:for 3rd spindle SPSTPD:for 4th spindle [Classification] Input signal [Function] After checking that this signal has been set to 1, the
Page 821B-63323EN-1/03 9.SPINDLE FUNCTION - For 1st spindle #7 #6 #5 #4 #3 #2 #1 #0 G026 GS4A GS2A GS1A *SECLPA*SEUCLA SPSTPA G227 CTH1A CTH2A F042 SCLPA SUCLPA - For 2nd spindl #7 #6 #5 #4 #3 #2 #1 #0 G272 GS4B GS2B GS1B *SECLPB *SEUCLB SPSTPB G235 CTH1B CTH2B F338 SCLPB SUCLPB - For 3rd spindl #7 #6 #5 #4
Page 8229.SPINDLE FUNCTION B-63323EN-1/03 ways. Firstly, in response to the Mxx command, the PMC may stop spindle rotation. Secondly, the PMC may issue an alarm by using the external data input/output function, assuming that the Mxx command is not permitted during spindle rotation. Generally, the second res
Page 823B-63323EN-1/03 9.SPINDLE FUNCTION and spindle clamp completion signal *SECLPs, explained above, are not transmitted between the CNC and PMC. Timing chart for orientation (sequence pattern 1) M COMMAND Mxx Strobe signal MF Spindle stop confirmation signal SPSTPs Spindle position control Spindle posit
Page 8249.SPINDLE FUNCTION B-63323EN-1/03 Timing chart for orientation (sequence pattern 2) M command Mxx Strobe signal MF Spindle stop confirmation signal SPSTPs Spindle position control Spindle position control servo-on Spindle unclamp signal SUCLPs Spindle unclamp confirmation signal *SEUCLs Spindle rota
Page 825B-63323EN-1/03 9.SPINDLE FUNCTION Timing chart for orientation (sequence pattern 3) M command Mxx Strobe signal MF Spindle stop confirmation signal SPSTPs Spindle position control Spindle position control servo-on Spindle unclamp signal SUCLPs Spindle unclamp confirmation signal *SEUCLs Spindle rota
Page 8269.SPINDLE FUNCTION B-63323EN-1/03 Timing chart for orientation (sequence pattern 4) M command Mxx Strobe signal MF Spindle stop confirmation signal SPSTPs Spindle position control Spindle position control servo-on Spindle rotation Reference position return completion signal ZPj Miscellaneous functio
Page 827B-63323EN-1/03 9.SPINDLE FUNCTION Spindle positioning In spindle positioning mode, positioning is performed using one of the following two methods: 1) Semi-fixed angle positioning by specifying Myy 2) Arbitrary angle positioning by specifying an axis address The above operations are the same except
Page 8289.SPINDLE FUNCTION B-63323EN-1/03 13. When spindle clamp completion signal *SECLPs is set to 0, the CNC sets spindle clamp signal SCLPs to 0 to indicate that the CNC has received *SECLPs. 14. If sequence pattern 2 is set, the CNC places spindle position control in the servo-off state. 15. When spind
Page 829B-63323EN-1/03 9.SPINDLE FUNCTION Timing chart for positioning (sequence pattern 1) M command Myy Strobe signal MF Spindle stop confirmation signal SPSTPs Spindle position control Spindle position control servo-on Spindle unclamp signal SUCLPs Spindle unclamp confirmation signal *SEUCLs Spindle rota
Page 8309.SPINDLE FUNCTION B-63323EN-1/03 Timing chart for positioning (sequence pattern 2) M command Myy Strobe signal MF Spindle stop confirmation signal SPSTPs Spindle position control Spindle position control servo-on Spindle unclamp signal SUCLPs Spindle unclamp confirmation signal *SEUCLs Spindle rota
Page 831B-63323EN-1/03 9.SPINDLE FUNCTION Timing chart for positioning (sequence pattern 3) M command Myy Strobe signal MF Spindle stop confirmation signal SPSTPs Spindle position control Spindle position control servo-on Spindle unclamp signal SUCLPs Spindle unclamp confirmation signal *SEUCLs Spindle rota
Page 8329.SPINDLE FUNCTION B-63323EN-1/03 Timing chart for positioning (sequence pattern 4) M command Myy Strobe signal MF Spindle stop confirmation signal SPSTPs Spindle position control Spindle position control servo-on Spindle rotation Miscellaneous function completion signal FIN - 816 -
Page 833B-63323EN-1/03 9.SPINDLE FUNCTION Canceling spindle positioning To cancel spindle positioning mode and enter spindle rotation mode, specify Mzz in a program. zz must be set in parameter No. 5681 in advance. A sequence pattern is set in parameter No. 5895. 1. Suppose that Mzz is specified in a progra
Page 8349.SPINDLE FUNCTION B-63323EN-1/03 Timing chart for canceling positioning (sequence patterns 1 and 2) M command Mzz Strobe signal MF Spindle stop confirmation signal SPSTPs Spindle position control Spindle position control servo-on Spindle unclamp signal SUCLPs Spindle unclamp confirmation signal *SE
Page 835B-63323EN-1/03 9.SPINDLE FUNCTION Timing chart for canceling positioning (sequence patterns 3) M command Mzz Strobe signal MF Spindle stop confirmation signal SPSTPs Spindle position control Spindle position control servo-on Spindle unclamp signal SUCLPs Spindle unclamp confirmation signal *SEUCLs M
Page 8369.SPINDLE FUNCTION B-63323EN-1/03 Timing chart for canceling positioning (sequence patterns 4) M command Mzz Strobe signal MF Spindle stop confirmation signal SPSTPs Spindle position control Spindle position control servo-on Miscellaneous function completion signal FIN CAUTION The CNC performs servo
Page 837B-63323EN-1/03 9.SPINDLE FUNCTION Parameter - Common to analog and serial spindles #7 #6 #5 #4 #3 #2 #1 #0 1005 PLZ ALZ ZMG ZRN !"# $% % & & & % & '& &$(&
Page 8389.SPINDLE FUNCTION B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 1006 DIA ROP ROS ROT "68 $% % % 2 %9 & &+ 0: Axis requires inch/metric conversion (linear axis). 1: Axis does not require inch/metric conversion (rotatio
Page 839B-63323EN-1/03 9.SPINDLE FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 1012 ISE ISD ISC ISA NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective. 0 : 4
Page 8409.SPINDLE FUNCTION B-63323EN-1/03 1020 Program axis name for each axis ) < ) =>(? The programmed axis name of each controlled axis is set according to the following table: Axis name Setting X 88 Y 89 Z 90 A 65 B 66 C 67 U 85 V 86 W 87 N
Page 841B-63323EN-1/03 9.SPINDLE FUNCTION 1027 Spindle number of a spindle positioning axis NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective. ) < ) (7 % '
Page 8429.SPINDLE FUNCTION B-63323EN-1/03 1260 Movement of one rotation of a rotary axis " 3 & ) , & & % & % < ) && ? ) & & & %
Page 843B-63323EN-1/03 9.SPINDLE FUNCTION 1621 FL feedrate for linear or bell-shaped acceleration/deceleration for rapid traverse along each axis " 3 & 9 / %9 /)9 % , & & % & %
Page 8449.SPINDLE FUNCTION B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 5605 IOR 7 6" $% % & % & & )&& + - && + - : + 5680 M code for specifying spindle orientation
Page 845B-63323EN-1/03 9.SPINDLE FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 5809 IOE AIT 08 $% % &'& ' ('( & 5& & & ) + - '+ - ;'+ 6; $% % & % & & )&
Page 8469.SPINDLE FUNCTION B-63323EN-1/03 5853 Backlash compensation in the servo mode (first stage) ) 3 & & < ) (????(???? ' 5 % & & % && ) )/ & & )/ && %
Page 847B-63323EN-1/03 9.SPINDLE FUNCTION 5858 Number of teeth on the spindle gear in the servo mode (third stage) ) < ) (4B=B %'& %& % ) % && ) )/ & & )/ && %
Page 8489.SPINDLE FUNCTION B-63323EN-1/03 5863 Number of teeth on the position coder gear in the servo mode (fifth stage) ) < ) (4B=B %'& %& %& & &) % && ) )/ & & )/
Page 849B-63323EN-1/03 9.SPINDLE FUNCTION 5868 Backlash compensation in the servo mode (sixth stage) ) 3 & & < ) (????(???? ' 5 % & & % && ) )/ & & )/ && % %
Page 8509.SPINDLE FUNCTION B-63323EN-1/03 5873 Number of teeth on the spindle gear in the servo mode (eighth stage) ) < ) (4B=B %'& %& % ) % && ) )/ & & )/ && %
Page 851B-63323EN-1/03 9.SPINDLE FUNCTION 5895 Operation sequence pattern for the spindle positioning axis ) < ) (7 & & 2 & % & & ) + D - 3 % & ) &$% %
Page 8529.SPINDLE FUNCTION B-63323EN-1/03 5897 M code for semi-fixed angular positioning (Max) ) < ) =(?B , & ) % ( )& & )& % & & ) + NOTE - When specifying an M code for semi-fix
Page 853B-63323EN-1/03 9.SPINDLE FUNCTION 5960 Position gain in the servo mode ) 3 & + 9 < ) (???? &) & &) % && ) )/ & & )/ && %+ 8% & &)
Page 8549.SPINDLE FUNCTION B-63323EN-1/03 5962 Drift compensation value (first stage) ) 3 & <& < ) (> (> Set the drift compensation value of the analog spindle for gear 1 in the servo mode (rigid tapping, spindle positioning,
Page 855B-63323EN-1/03 9.SPINDLE FUNCTION 5964 Drift compensation value (second stage) ) 3 & <& < ) (> (> Set the drift compensation value of the analog spindle for gear 2 in the servo mode (rigid tapping, spindle positioning,
Page 8569.SPINDLE FUNCTION B-63323EN-1/03 5966 Drift compensation value (third stage) ) 3 & <& < ) (> (> Set the drift compensation value of the analog spindle for gear 3 in the servo mode (rigid tapping, spindle positioning,
Page 857B-63323EN-1/03 9.SPINDLE FUNCTION 5968 Drift compensation value (fourth stage) ) 3 & <& < ) (> (> Set the drift compensation value of the analog spindle for gear 4 in the servo mode (rigid tapping, spindle positioning,
Page 8589.SPINDLE FUNCTION B-63323EN-1/03 5970 Drift compensation value (fifth stage) ) 3 & <& < ) (> (> Set the drift compensation value of the analog spindle for gear 5 in the servo mode (rigid tapping, spindle positioning,
Page 859B-63323EN-1/03 9.SPINDLE FUNCTION 5972 Drift compensation value (sixth stage) ) 3 & <& < ) (> (> Set the drift compensation value of the analog spindle for gear 6 in the servo mode (rigid tapping, spindle positioning,
Page 8609.SPINDLE FUNCTION B-63323EN-1/03 5974 Drift compensation value (seventh stage) ) 3 & <& < ) (> (> Set the drift compensation value of the analog spindle for gear 7 in the servo mode (rigid tapping, spindle positioning
Page 861B-63323EN-1/03 9.SPINDLE FUNCTION 5976 Drift compensation value (eighth stage) ) 3 & <& < ) (> (> Set the drift compensation value of the analog spindle for gear 8 in the servo mode (rigid tapping, spindle positioning,
Page 8629.SPINDLE FUNCTION B-63323EN-1/03 5979 FL feedrate for orientation " 3 & )9 , & & % & % < ) " & % ) ': C% %
Page 863B-63323EN-1/03 9.SPINDLE FUNCTION 3044 Proportional gain of the velocity loop in the servo mode/synchronization control mode (high-speed gear) ) 3 & + 9 < ) (4B=B %&& &) & % & &&& %%
Page 8649.SPINDLE FUNCTION B-63323EN-1/03 3056 Gear ratio (high-speed gear) ) 3 & ,& & & &F < ) (4B=B ) &' $ % & && %% )%( )+ %)& %
Page 865B-63323EN-1/03 9.SPINDLE FUNCTION 3065 Position gain in servo mode/synchronization control mode (high-speed gear) ) 3 & + 9 < ) (4B=B %& &) & %% )%( ) && ) )/ &
Page 8669.SPINDLE FUNCTION B-63323EN-1/03 3073 Grid shift in servo mode ) 3 & & < ) (7 ?= % & % % & & && ) )/ & & )/ && %+ Alarm and message - PS ala
Page 867B-63323EN-1/03 9.SPINDLE FUNCTION Number Message Contents SP0235 ORIENTATION COMMAND The orientation speed is too fast. OVERFLOW SP0236 DUPLICATE SPINDLE CONTROL An attempt was made to change the spindle mode during MODE (CHANGING) spindle mode switching. SP0237 DUPLICATE SPINDLE CONTROL An attempt
Page 8689.SPINDLE FUNCTION B-63323EN-1/03 CAUTION 7. For the spindle positioning axis, set the following parameters as axis attributes: 1 The increment system is IS-B (0.001 deg). Bit 0 (ISA) of parameter No. 1012 = 0 Bit 1 (ISC) of parameter No. 1012 = 0 Bit 2 (ISD) of parameter No. 1012 = 0 Bit 3 (ISE) of
Page 869B-63323EN-1/03 9.SPINDLE FUNCTION Note NOTE 1. An M code related to spindle positioning must be specified in a block containing no other commands. In that block, no other commands may be specified. 2. An axis address for spindle positioning must be specified in a block containing no other commands.
Page 8709.SPINDLE FUNCTION B-63323EN-1/03 Reference item Series15i/150i- Connection Manual 8.1 Miscelaneous MODEL A (This manual) function/second auxiliary function 9.2 Spindle serial output/analog output 9.3 Spindle control FANUC SERVO AMPLIFIER α series B-65162E Descriptions FANUC AC SPINDLE MOTOR α serie
Page 871B-63323EN-1/03 9.SPINDLE FUNCTION 9.7 Cs CONTOUR CONTROL General A spindle motor controlled by the spindle serial output function is called a serial spindle. For a serial spindle, positioning and interpolation with other servo axes can be performed. In other words, linear interpolation, circular int
Page 8729.SPINDLE FUNCTION B-63323EN-1/03 Command address Any address can be selected for a Cs contour control move command. The value set for parameter No. 1020 is used as the axis name. Switching between spindle rotation control and Cs contour control - Switching from the spindle rotation control mode to
Page 873B-63323EN-1/03 9.SPINDLE FUNCTION Switching from spindle rotation control to Cs contour control or vice versa may be performed in a block during automatic operation. In this case, the position gain is not switched immediately. The CNC automatically sets the position gain after confirming that all co
Page 8749.SPINDLE FUNCTION B-63323EN-1/03 Set the direction of reference position return using CSO (bit 3 of parameter No. 3000). - Stopping reference position return (i) For manual operation When the reset, emergency stop, or feed axis and direction selection signal is set to "0," reference position return
Page 875B-63323EN-1/03 9.SPINDLE FUNCTION Cs contour control mode switching confirmation signals MSCNTR1, MSCNTR2, MSCNTR3, ... [Classification] Output signal [Function] Indicates that switching between the spindle rotation control mode and Cs contour control mode is complete.
Page 8769.SPINDLE FUNCTION B-63323EN-1/03 Serial spindle clutch/gear signals CTH1A, CTH2A: for 1st spindle CTH1B, CTH2B: for 2nd spindle CTH1C, CTH2C: for 3rd spindle CTH1D, CTH2D: for 4th spindle [Classification] Input signal [Operation] When a serial spindle
Page 877B-63323EN-1/03 9.SPINDLE FUNCTION Signal address #7 #6 #5 #4 #3 #2 #1 #0 G067 SCNTR1 G227 CTH1A CTH2A G235 CTH1B CTH2B G211 CTH1C CTH2C G219 CTH1D CTH2D F064 ZP1 F067 MSCNTR1 Parameter Main related parameters are shown below. In addition, parameters related to feedrates for axes, acceleration/decele
Page 8789.SPINDLE FUNCTION B-63323EN-1/03 4 1! % & && ) %$&5 && $% & & &+ 0: Preset only when in reset state (e.g. OP signal is off). 1: Always preset. See ZNP, bit 2 of parameter No. 2402, which is common to all axes.
Page 879B-63323EN-1/03 9.SPINDLE FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 1012 ISE ISD ISC ISA 0 : 4 ; & % 4 ; : 0 (0 ( (: ( (; 8%: & &
Page 8809.SPINDLE FUNCTION B-63323EN-1/03 1020 Program axis name for each axis ) < ) =>(? The programmed axis name of each controlled axis is set according to the following table: Axis name Setting X 88 Y 89 Z 90 A 65 B 66 C 67 U 85 V 86 W 87 N
Page 881B-63323EN-1/03 9.SPINDLE FUNCTION 1028 Spindle number of a Cs contour control axis NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective. ) < ) I7 8% /
Page 8829.SPINDLE FUNCTION B-63323EN-1/03 1260 Movement of one rotation of a rotary axis " 3 & ) , & & % & % < ) && ? ) & & & %
Page 883B-63323EN-1/03 9.SPINDLE FUNCTION 1621 FL feedrate for linear or bell-shaped acceleration/deceleration for rapid traverse along each axis " 3 & 9 / %9 /)9 % , & & % & %
Page 8849.SPINDLE FUNCTION B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 2203 MCN ,:# 8% % & & & %:"8- - & % & % & % % & % & + - &
Page 885B-63323EN-1/03 9.SPINDLE FUNCTION 3054 Integral gain of the velocity loop in Cs contour control mode (high-speed gear) 3055 Integral gain of the velocity loop in Cs contour control mode (low-speed gear) ) 3 & + 9 < ) (
Page 8869.SPINDLE FUNCTION B-63323EN-1/03 3105 Proportional gain data of the current loop in Cs contour control mode 3107 Integral gain data of the current loop in Cs contour control mode ) 3135 Grid shift in Cs contour control mode
Page 887B-63323EN-1/03 9.SPINDLE FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 5821 STJ 8K $% & & ) %: & & & & & % & &+ - 0 &) & - 0 /) &/&$% % &
Page 8889.SPINDLE FUNCTION B-63323EN-1/03 5881 Positional deviation limit during a stop under Cs contour control ) 3 & & < ) (???????? & & & ) &: & & & &+ 5882 Positional dev
Page 889B-63323EN-1/03 9.SPINDLE FUNCTION Caution CAUTION 1 In Cs contour control mode, do not switch the spindle gear. Switch the spindle gear in spindle rotation control mode when required. 2 Straightness compensation and gradient compensation These functions are invalid for Cs contour control axes. 3 The
Page 8909.SPINDLE FUNCTION B-63323EN-1/03 9.8 RIGID TAPPING General In tapping, the feed amount along the Z-axis per spindle rotation must equal the thread pitch of the tapper. Therefore, the most desirable tapping satisfies the following equation: P = F/S where, P: Thread pitch of the tapper (mm, inch) F:
Page 891B-63323EN-1/03 9.SPINDLE FUNCTION Connection Among Spindle, Spindle Motor, and Position Coder As shown in the figure below a gear can be inserted between the spindle and spindle motor (n:m), and between the spindle and position coder (N:M). Spindle control Spindle Spindle motor Error amplifier count
Page 8929.SPINDLE FUNCTION B-63323EN-1/03 Example) For position coder built-in type spindle motor Built-in position coder Spindle motor 1st gear set 2nd gear set 3rd gear set 1st gear set 30 : 70 2nd gear set 50 : 50 3rd gear set 70 : 30 Spindle Parameter Set value Meaning No. 5852 70 Number of teeth of the
Page 893B-63323EN-1/03 9.SPINDLE FUNCTION Spindle speed range (normal machining) Gear Lower limit Upper limit Low- 1 revolution Maximum low-speed gear speed speed Maximum spindle motor speed×L% gear = Low-speed gear ratio Medium Maximum low-speed Maximum medium-speed gear speed speed gear speed + 1 Maximum
Page 8949.SPINDLE FUNCTION B-63323EN-1/03 Rigid Tapping Specification - Feed rate In rigid tapping mode, the tapping axis is fed at a rate specified by F; the spindle speed is S times 360(deg/min). Override is invalid for both of them. The speed of extraction can be overridden by 1% to 200% depending on the
Page 895B-63323EN-1/03 9.SPINDLE FUNCTION Acceleration/deceleration time Acceleration/deceleration time TC4 TC4 TC3 TC3 TC2 TC2 TC1 TC1 S1 S2 S3 S command S1 S2 S3 S command Linear acceleration/deceleration Exponential acceleration/deceleration Example : Linear acceleration/deceleration when the time consta
Page 8969.SPINDLE FUNCTION B-63323EN-1/03 If S2000 is specified, the acceleration/deceleration time is 400 msec. If S1000 is specified, the acceleration/deceleration time is 200 msec. This means that, in linear acceleration/deceleration in rigid tapping, the acceleration is constant. - Override Override is
Page 897B-63323EN-1/03 9.SPINDLE FUNCTION - Backlash compensation In rigid tapping mode, backlash compensation is performed to compensate for lost motion upon forward and reverse spindle rotation. Set the amount of backlash compensation in parameter Nos. 5853 to 5874. For the tapping axis, backlash compensa
Page 8989.SPINDLE FUNCTION B-63323EN-1/03 - Positional deviation limits In rigid tapping mode, the position gain for the tapping axis is changed. The following illustrates when the position gain is changed, and the limits of the positional deviation in each movement. Positional deviation limits in rigid tap
Page 899B-63323EN-1/03 9.SPINDLE FUNCTION Command format - G84 .2 (Rigid tapping cycle) G84.2 X_ Y_ Z_ R_ P_ F_ L_ S_ ; X_ Y_: Hole position data Z_ : The distance from point R to the bottom of the hole and the position of the bottom of the hole R_ : The distance from the initial level to point R level P_ :
Page 9009.SPINDLE FUNCTION B-63323EN-1/03 - G84 .3 (Left-handed Rigid Tapping Cycle) G84.3 X_ Y_ Z_ R_ P_ F_ L_ S_ ; X_ Y_: Hole position data Z_ : The distance from point R to the bottom of the hole and the position of the bottom of the hole R_ : The distance from the initial level to point R level P_ : Dw
Page 901B-63323EN-1/03 9.SPINDLE FUNCTION - Orientation function G84.2 (or G84.3) X_Y_Z_R_P_F_L_I_ ; X_ Y_: Hole position data Z_ : Distance from point R to a hole bottom, and hole position R_ : Distance from initial level to point R P_ : Dwell duration at a hole bottom and upon return to point R F_ : Cutti
Page 9029.SPINDLE FUNCTION B-63323EN-1/03 CAUTION 1 The orientation function is enabled only when the number of pulses from the position coder is 4096, and the gear ratio between the spindle and position coder is as follows: n 1 : 2 (n: Integer not less than 0) 2 When a serial interface spindle is used, ori
Page 903B-63323EN-1/03 9.SPINDLE FUNCTION - Peck Rigid Tapping Cycle G84.2 (or G84.3) X_ Y_ Z_ R_ P_ Q_ F_ L_ S_ ; X_ Y_ : Hole position data Z_ : The distance from point R to the bottom of the hole and the position of the bottom of the hole R_ : The distance from the initial level to point R level P_ : Dwe
Page 9049.SPINDLE FUNCTION B-63323EN-1/03 CAUTION The peck rigid tapping cycle command is valid within a block containing G84.2 (G84.3), or it is made valid by specifying the Q command in rigid tapping or reverse rigid tapping cycle mode. Rigid tapping command in feed-per-minute/feed-per-revolution mode Rig
Page 905B-63323EN-1/03 9.SPINDLE FUNCTION Signal Signals for the rigid tapping function Rigid tapping in-progress signal RTAP [Classification] Output signal [Function] This signal notifies the PMC that rigid tapping mode is set. RTAP 1 : Rigid tapping mode is currently set. 0 : Rigid tapping mode is
Page 9069.SPINDLE FUNCTION B-63323EN-1/03 Reverse spindle rotation signal RSPR [Classification] Input signal [Function] When the rigid tapping cycle (G84.2) or reverse rigid tapping cycle (G84.3) command is executed in canned cycle cancel mode (G80), the direction of the spindle rotation can be reve
Page 907B-63323EN-1/03 9.SPINDLE FUNCTION CAUTION Even when the status of the reverse spindle rotation signal is changed in rigid tapping mode, the change is ignored. To change the direction of the spindle rotation, specify a cancel command (G80), change the status of the reverse spindle rotation signal, th
Page 9089.SPINDLE FUNCTION B-63323EN-1/03 Signals related to S code output Spindle function code signal S0-S31 Spindle function strobe signal SF Completion signal FIN See Sec. 8.1. Signals related to gear change Spindle gear select signal GS1A,GS2A,GS4A:For 1st spind
Page 909B-63323EN-1/03 9.SPINDLE FUNCTION Other signals Spindle stop confirmation signal SPSTPA:For 1st spindle SPSTPB:For 2nd spindle SPSTPC:For 3rd spindle SPSTPD:For 4th spindle [Classification] Input signal [Function] When the CNC confirms that this signal has been set to
Page 9109.SPINDLE FUNCTION B-63323EN-1/03 - For 3rd spindle #7 #6 #5 #4 #3 #2 #1 #0 G211 CTH1C CTH2C G273 GS4C GS2C GS1C SPSTPC - For 4th spindle #7 #6 #5 #4 #3 #2 #1 #0 G219 CTH1D CTH2D G274 GS4D GS2D GS1D SPSTPD Sequence(Time chart) The following is an example of the PMC processing procedure used when rig
Page 911B-63323EN-1/03 9.SPINDLE FUNCTION 1. Assume that the G84.2 command is specified. The spindle speed must be specified with an S command in the block containing G84.2 or in a block before that block. 2. The CNC starts movement along the X- and Y-axes to the tapped hole position and simultaneously sets
Page 9129.SPINDLE FUNCTION B-63323EN-1/03 of the Z-axis and spindle, the CNC sets the same position gain. These values are set in parameters in advance. 7. Linear interpolation between the Z-axis and spindle is executed. 8. After dwell, if required, is performed at the bottom of the hole, linear interpolati
Page 913B-63323EN-1/03 9.SPINDLE FUNCTION G84.2 command G80 S100 M04 command Signal RTAP Moving of the X and Y axes, Moving of the Z axis to R point RI0s to RI12s SFR SRV SST (TLML) (for analog amp.) Signal SPSTPs Spindle position control Moving from R point to Z point and Spindle CW 400msec or more (for an
Page 9149.SPINDLE FUNCTION B-63323EN-1/03 Parameter - Common to analog and serial spindles 1837 Positioning deviation limit while the tool is moving in the rigid tapping mode ! " #
Page 915B-63323EN-1/03 9.SPINDLE FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 5608 RSR * +7 8!8 ! $" " " "'7%.'7%9& # & " : *% 0: Type A 1: Type B Ty
Page 9169.SPINDLE FUNCTION B-63323EN-1/03 5752 FL feedrate at acceleration/deceleration of the spindle and drilling axis in rigid tapping (fixed) 8 .&".& .0" 1 < " "
Page 917B-63323EN-1/03 9.SPINDLE FUNCTION 5757 Spindle speed for determining acceleration/deceleration for cutting feed in rigid tapping (fixed) 96;6 Set a spindle speed when a fixed acceleration/deceleration time constant/FL f
Page 9189.SPINDLE FUNCTION B-63323EN-1/03 5804 Allowable range for constant spindle speed signal output in exponential acceleration/deceleration The constant spindle speed signal is output when the difference in the num
Page 919B-63323EN-1/03 9.SPINDLE FUNCTION 5842 Number of pulses of the position coder 96;6 Set the number of pulses of the position coder. 5851 Number of teeth on the position coder gear in the servo mode (first stage)
Page 9209.SPINDLE FUNCTION B-63323EN-1/03 5855 Number of teeth on the spindle gear in the servo mode (second stage) 96;6 ! " ( " " " # 0 & & "10 1% 5
Page 921B-63323EN-1/03 9.SPINDLE FUNCTION 5860 Number of teeth on the position coder gear in the servo mode (fourth stage) 96;6 ! " ( " " " # 0 & & "10
Page 9229.SPINDLE FUNCTION B-63323EN-1/03 5865 Backlash compensation in the servo mode (fifth stage) ! (? " " # 0 & & "10 " 1% 5866 Numb
Page 923B-63323EN-1/03 9.SPINDLE FUNCTION 5870 Number of teeth on the spindle gear in the servo mode (seventh stage) 96;6 ! " ( " " " # 0 & & "10 # " 1%
Page 9249.SPINDLE FUNCTION B-63323EN-1/03 5875 Effective area in the servo mode using a position coder ! # " # 0 & & "1 % - 9
Page 925B-63323EN-1/03 9.SPINDLE FUNCTION 5876 Positional deviation limit during movement in the servo mode using a position coder ! # # " # 0 &
Page 9269.SPINDLE FUNCTION B-63323EN-1/03 5877 Positional deviation limit during a stop in the servo mode using a position coder ! # " # 0 &
Page 927B-63323EN-1/03 9.SPINDLE FUNCTION 5886 Spindle speed for determining cutting feed acceleration/deceleration in rigid tapping (S1) 96;6 Set a spindle speed at the first stage when the acceleration/deceleration time con
Page 9289.SPINDLE FUNCTION B-63323EN-1/03 5889 Spindle speed for determining cutting feed acceleration/deceleration in rigid tapping (S2) 96;6 Set a spindle speed at the second stage when the acceleration/deceleration time co
Page 929B-63323EN-1/03 9.SPINDLE FUNCTION 5892 Spindle speed for determining cutting feed acceleration/deceleration in rigid tapping (S3) 96;6 Set a spindle speed at the third stage when the acceleration/deceleration time con
Page 9309.SPINDLE FUNCTION B-63323EN-1/03 5894 Cutting feed FL feedrate for the drilling axis in rigid tapping (FL4) 8 .&".& .0" 1 < " " 8
Page 931B-63323EN-1/03 9.SPINDLE FUNCTION Acceleration/deceleration time Acceleration/deceleration time TC4 TC4 TC3 TC3 TC2 TC2 TC1 TC1 S1 S2 S3 S S1 S2 S3 S command command Relationship between S command and Relationship between S command and actual acceleration/deceleration time actual acceleration/decele
Page 9329.SPINDLE FUNCTION B-63323EN-1/03 +9 83: ! $" " 3 " " % / % / % +6 83, ! "$ "
Page 933B-63323EN-1/03 9.SPINDLE FUNCTION 5961 Position gain multiplier (first stage) 96;6 Set the position gain multiplier of the analog spindle for gear 1 in the servo mode (rigid tapping, spindle positioning, and so forth). Position gain mul
Page 9349.SPINDLE FUNCTION B-63323EN-1/03 5963 Position gain multiplier (second stage) 96;6 Set the position gain multiplier of the analog spindle for gear 2 in the servo mode (rigid tapping, spindle positioning, and so forth). Position gain mu
Page 935B-63323EN-1/03 9.SPINDLE FUNCTION 5965 Position gain multiplier (third stage) 96;6 Set the position gain multiplier of the analog spindle for gear 3 in the servo mode (rigid tapping, spindle positioning, and so forth). Position gain mul
Page 9369.SPINDLE FUNCTION B-63323EN-1/03 5967 Position gain multiplier (fourth stage) 96;6 Set the position gain multiplier of the analog spindle for gear 4 in the servo mode (rigid tapping, spindle positioning, and so forth). Position gain mu
Page 937B-63323EN-1/03 9.SPINDLE FUNCTION 5969 Position gain multiplier (fifth stage) 96;6 Set the position gain multiplier of the analog spindle for gear 5 in the servo mode (rigid tapping, spindle positioning, and so forth). Position gain mul
Page 9389.SPINDLE FUNCTION B-63323EN-1/03 5971 Position gain multiplier (sixth stage) 96;6 Set the position gain multiplier of the analog spindle for gear 6 in the servo mode (rigid tapping, spindle positioning, and so forth). Position gain mul
Page 939B-63323EN-1/03 9.SPINDLE FUNCTION 5973 Position gain multiplier (seventh stage) 96;6 Set the position gain multiplier of the analog spindle for gear 7 in the servo mode (rigid tapping, spindle positioning, and so forth). Position gain m
Page 9409.SPINDLE FUNCTION B-63323EN-1/03 5975 Position gain multiplier (eighth stage) 96;6 Set the position gain multiplier of the analog spindle for gear 8 in the servo mode (rigid tapping, spindle positioning, and so forth). Position gain mu
Page 941B-63323EN-1/03 9.SPINDLE FUNCTION 5977 Rapid traverse rate for orientation 8 . < " " 8 " ( 021 0=" "
Page 9429.SPINDLE FUNCTION B-63323EN-1/03 5980 Grid shift value for orientation 7 7 ! " # " " " # 0 & &
Page 943B-63323EN-1/03 9.SPINDLE FUNCTION 3045 Proportional gain of the velocity loop in servo mode /synchronization control mode (low-speed gear) % . 96;6 Set the proportional gain of the velocity loop for the low-speed gear i
Page 9449.SPINDLE FUNCTION B-63323EN-1/03 3057 Gear ratio (medium high-speed gear) < ~ 96;6 Set a gear ratio between the spindle and spindle motor for the medium high-speed gear. Set the gear or clutch
Page 945B-63323EN-1/03 9.SPINDLE FUNCTION 3066 Position gain in servo mode/synchronization control mode (medium high-speed gear) % . 96;6 Set the position gain for the medium high-speed gear in servo mode (rigid tapping, spindl
Page 9469.SPINDLE FUNCTION B-63323EN-1/03 Alarm and message - PS alarm Number Message Contents PS0223 ILLEGAL SPINDLE SELECT An attempt was made to execute an instruction that uses the spindle although the spindle to be controlled has not been set correctly. PS0531 ILLEGAL USE OF DECIMAL When the feedrate i
Page 947B-63323EN-1/03 9.SPINDLE FUNCTION Caution NOTES ON SPINDLES Caution CAUTION 1 When an analog spindle is used, set drift compensation parameters (parameter Nos. 5962 to 5976) accurately. If an inappropriate drift compensation value is used, the following may occur at point R and at the bottom of the
Page 9489.SPINDLE FUNCTION B-63323EN-1/03 Position control loop gain switching and serial spindle parameters In rigid tapping, the position gain for the tapping axis is changed according to the position gain for the spindle so that the position gains for position control of the spindle and tapping axis matc
Page 949B-63323EN-1/03 9.SPINDLE FUNCTION 3044 Proportional gain of the velocity loop in servo mode /synchronization control mode (high-speed gear) 3045 Proportional gain of the velocity loop in servo mode /synchronization control mode (low-speed gear) 3052 Integral gain of the velocity loop in servo mode /
Page 9509.SPINDLE FUNCTION B-63323EN-1/03 9.8.1 Rigid Tapping Additional Function - Overview - A parameter can be used to specify whether to perform spindle orientation when rigid tapping is started. - A parameter can be used to specify to check whether the specified S command exceeds the maximum spindle ro
Page 951B-63323EN-1/03 9.SPINDLE FUNCTION 5711 Maximum spindle speed during rigid tapping (first stage) 5712 Maximum spindle speed during rigid tapping (second stage) 5713 Maximum spindle speed during rigid tapping (third stage) 5714 Maximum spindle speed during rigid tapping (fourth stage) 5715 Maximum spi
Page 9529.SPINDLE FUNCTION B-63323EN-1/03 - Diagnostic data 1600 Rigid tapping spindle positional deviation ! )" # % 1601 Rigid tapping spindle positional deviation (peak
Page 953B-63323EN-1/03 9.SPINDLE FUNCTION 9.9 SPINDLE ORIENTATION General This function stops the spindle at a specified position. The spindle can be stopped in either of the following two ways. - The spindle is mechanically stopped by using stoppers. - The spindle is stopped by applying a function of the s
Page 9549.SPINDLE FUNCTION B-63323EN-1/03 Signal address - For 1st spindle #7 #6 #5 #4 #3 #2 #1 #0 G230 SH7A SH6A SH5A SH4A SH3A SH2A SH1A SH0A G231 SH12A SH11A SH10A SH9A SH8A - For 2nd spindle #7 #6 #5 #4 #3 #2 #1 #0 G238 SH7B SH6B SH5B SH4B SH3B SH2B SH1B SH0B G239 SH12B SH11B SH10B SH9B SH8B - For 3rd s
Page 955B-63323EN-1/03 9.SPINDLE FUNCTION Caution CAUTION 1 To perform spindle orientation by using the spindle control unit, the signals of the spindle control unit must be used. To perform serial spindle orientation by using a position coder (to perform serial spindle orientation with the stop position se
Page 9569.SPINDLE FUNCTION B-63323EN-1/03 9.10 SPINDLE OUTPUT SWITCHING General Spindle output switching switches between the two windings, one for low speed and the other for high speed, incorporated into the special spindle motors. This ensures that the spindle motor demonstrates stable output characteris
Page 957B-63323EN-1/03 9.SPINDLE FUNCTION 9.11 SPINDLE SPEED FLUCTUATION DETECTION General If the actual spindle speed becomes lower or higher than that specified because of the condition of the machine, an overheat alarm (SP0242) is issued, and spindle speed fluctuation detection alarm signal SPAL is outpu
Page 9589.SPINDLE FUNCTION B-63323EN-1/03 - Specified spindle speed A spindle speed to be specified for spindle speed fluctuation detection is determined as described below. For the spindle motor and each spindle gear, the spindle speed corresponding to the maximum output is set in parameter Nos. 5621 to 56
Page 959B-63323EN-1/03 9.SPINDLE FUNCTION - Actual spindle speed The actual spindle speed is calculated from the feedback pulse received from the position coder mounted on the spindle. - Conditions for starting spindle speed fluctuation detection If the specified spindle speed changes after G26 is issued or
Page 9609.SPINDLE FUNCTION B-63323EN-1/03 - Examples of alarms issued for spindle speed fluctuation detection 1) Example where an alarm is issued after the specified spindle speed is reached Actual spindle speed r i q Specified spindle speed A check No check is A check is made. is made. made. Time The speci
Page 961B-63323EN-1/03 9.SPINDLE FUNCTION - System with more than one spindle In a system with more than one spindle, spindle speed fluctuation detection is performed for the spindle described below. 1) If the system has no spindle control switching function Spindle speed fluctuation detection is performed
Page 9629.SPINDLE FUNCTION B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 2409 G26 [Input type] Parameter input [Data type] Bit #4 G26 Specifies whether G25 or G26 mode is selected when the power is switched on, or in a cleared condition, as follows: 0: G25 mode (spindle speed fluctuation detection disabl
Page 963B-63323EN-1/03 9.SPINDLE FUNCTION 5722 Time (p) allowed from when the specified spindle speed is changed until spindle speed fluctuation detection begins [Input type] Parameter input [Data type] Integerspindle [Unit of data] msec [Valid data range] 0 - 32767 This parameter specifies the time (p) all
Page 9649.SPINDLE FUNCTION B-63323EN-1/03 Note NOTE 1 If a spindle speed fluctuation is detected, the message "SP0242 OVERHEAT" is displayed on the alarm screen. 2 If the "SP0242 OVERHEAT" alarm occurs, automatic operation is stopped within a single block. 3 If parameter G26 (bit 4 of parameter No. 2409) is
Page 965B-63323EN-1/03 10.TOOL FUNCTION 10 TOOL FUNCTION - 949 -
Page 96610.TOOL FUNCTION B-63323EN-1/03 10.1 TOOL FUNCTION General A tool can be selected by specifying its tool number following address T. The tool number consists of a numeric value of no more than 10 digits. When a T code is specified, the code signal for a specified tool number and strobe signal are se
Page 967B-63323EN-1/03 10.TOOL FUNCTION Signal See Section 8.1. Parameter #7 #6 #5 #4 #3 #2 #1 #0 2003 TSN ! " #$ % ! &$ % NOTE To enable the use of a minus (-) in a T code, the allowable number o
Page 96810.TOOL FUNCTION B-63323EN-1/03 10.2 TOOL COMPENSATION VALUE/TOOL COMPENSATION NUMBER/TOOL COMPENSATION MEMORY General Tool compensation values include tool geometry compensation values and tool wear compensation values. Standard position OFSG OFSW OFSG : Geometry compensation value OFSW : Wear comp
Page 969B-63323EN-1/03 10.TOOL FUNCTION - NUMBER OF TOOL COMPENSATION SETTINGS (1) 32 tool compensation settings Applicable offset Nos. (D code/H code) are 0 to 32. D00 to D32 or H00 to H32 (2) 99 tool compensation settings Applicable offset Nos. (D code/H code) are 0 to 99. D00 to D64 or H00 to H99 (3) 200
Page 97010.TOOL FUNCTION B-63323EN-1/03 In addition, separate memories are provided for cutter compensation (for D code) and for tool length compensation (for H code). Parameter #7 #6 #5 #4 #3 #2 #1 #0 6000 PNH EVO # *(+ ! ' , )
Page 971B-63323EN-1/03 10.TOOL FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 6002 OFC OFA #7 #6 #5 #4 #3 #2 #1 #0 6004 OFD #7 #6 #5 #4 #3 #2 #1 #0 6007 OFE [Input type] Parameter input [Data type] Bit The increment system and valid setting range of tool offsets are determined. Metric input OFE OFD OFC OFA Unit Geometric
Page 97210.TOOL FUNCTION B-63323EN-1/03 10.2.1 Specification of Diameter Entry for Tool Compensation Value Explanation of specification The tool compensation value recorded in CNC offset memory can be used as the diameter. By setting bit 0 (ODI) of parameter No. 6008 to 1, you can use the tool compensation
Page 973B-63323EN-1/03 10.TOOL FUNCTION 10.3 TOOL LIFE MANAGEMENT FUNCTION General Tools are grouped and the tool life (use count or use time) is predetermined for each group. Each time a tool belonging to a group is used, its life value is incremented. Once the predetermined tool life value is reached, a n
Page 97410.TOOL FUNCTION B-63323EN-1/03 Tool life management data Tool life management data consists of tool group numbers, tool numbers, codes specifying tool compensation values, and tool life value. - Tool group number The Max. number of groups and the number of tools per group that can be registered are
Page 975B-63323EN-1/03 10.TOOL FUNCTION - Tool offset specification code Two types of tool offset specification codes are used: H code (for tool length compensation) and D code (for cutter compensation). A number not exceeding three digits (999) can be specified as a tool offset specification code, but a sp
Page 97610.TOOL FUNCTION B-63323EN-1/03 Tool service life count and tool selection A count-based or time-based tool service life count system is selected using bit 3 (LTM) of parameter No. 7400. Service life counting is performed group by group. Service life count data is not lost when the power is turned o
Page 977B-63323EN-1/03 10.TOOL FUNCTION Tool life count restart M code With the count-based tool life count system, when the tool life count restart M code is specified and the life of at least one tool group has expired, the tool change signal is output. When a tool group command (T code) is specified afte
Page 97810.TOOL FUNCTION B-63323EN-1/03 subsequently specified in a program, the first tool is selected again. If a group specified by the tool group signal (TL1 to TL512) contains a tool whose service life has not yet been reached, no operation is performed. NOTE Change the status of tool change reset sign
Page 979B-63323EN-1/03 10.TOOL FUNCTION Tool skip signal TLSKP [Classification] Input signal [Function] Directs the control unit to skip a tool whose service life has not been reached and selects the next tool. The following two methods can be used, one of which can be selected by specifying bit 2 (
Page 98010.TOOL FUNCTION B-63323EN-1/03 New tool select signal @TLCHB [Classification] Output signal [Function] This signal notifies the PMC that a new tool in a group is selected. This signal is used when, for example, the tool length compensation amount of a new tool is to be measured automaticall
Page 981B-63323EN-1/03 10.TOOL FUNCTION TL512 TL256 TL128 TL64 TL32 TL16 TL8 TL4 TL2 TL1 Tool grpup number 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1 2 0 0 0 0 0 0 0 0 1 0 3 0 0 0 0 0 0 0 0 1 1 4 0 0 0 0 0 0 0 1 0 0 5 0 0 0 0 0 0 1 0 0 1 10 0 0 0 0 0 0 1 1 1 0 15 0 0 0 0 0 1 0 0 1 1 20 0 0 0 0 0 1 1 1 0 1 30
Page 98210.TOOL FUNCTION B-63323EN-1/03 Tool life count override signals *TLV0 to *TLV9 [Classification] Input signal [Function] If time is specified as the life count type, the life count can be overridden by setting bit 3 (LFV) of parameter No. 7401 to 1. This signal consists of ten
Page 983B-63323EN-1/03 10.TOOL FUNCTION Life end group select signalTLEGS [Classification] Output signal [Function] Posts notification that a tool group whose life has expired is selected. [Output condition] This signal is set to 1 in the following cases: - When time is specified as the life count t
Page 98410.TOOL FUNCTION B-63323EN-1/03 Life arrival signal TLARV [Classification] Output signal [Function] Posts that the service life of a selected tool group has ended. [Output condition] This signal is set to 1 in the following cases: - When time is specified as the life count type: The tool gro
Page 985B-63323EN-1/03 10.TOOL FUNCTION Signal address #7 #6 #5 #4 #3 #2 #1 #0 G009 TLSKP TL64 TL32 TL16 TL08 TL04 TL02 TL01 G010 TLRST G042 TL256 G043 TL128 TL512 G154 *TLV7 *TLV6 *TLV5 *TLV4 *TLV3 *TLV2 *TLV1 *TLV0 G155 *TLV9 *TLV8 #7 #6 #5 #4 #3 #2 #1 #0 F007 TLCHB TLCHA F043 TLEGS TLARV Parameter #7 #6
Page 98610.TOOL FUNCTION B-63323EN-1/03 0 ! ' ! ! !!). ' ' )" #$ !! " &$ " NOTE If no group number is specified using a signal, tool skip is performed for the tool of the group currently used. : ;4
Page 987B-63323EN-1/03 10.TOOL FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 7401 TRU TRS LFV EMD CT2 CT1 # %& & % 9!!) ' ! '! !))!' ) $ - Tool life management CT2 CT1 Tool Description (#1) (#0) change Tool group number Tool
Page 98810.TOOL FUNCTION B-63323EN-1/03 2 =5 !! ) ' ) & ! ) !' ! ;4D& 6 ) ! , )& ! B%+D# " 0: A cutting time less than 1 second is truncated, and is not counted. 1: A cutting time less than 1
Page 989B-63323EN-1/03 10.TOOL FUNCTION 7442 M code used to restart tool life counting ' ( ) ' B !# !'FFFFFFFF *-) '#&6#6:#6F36FF ))'4 ! C !!)) ! !!) 6 !!) ' ' )
Page 99010.TOOL FUNCTION B-63323EN-1/03 Alarm and message Number Message Contents PS0437 ILLEGAL LIFE GROUP NUMBER A tool group number exceeded the maximum value. The tool group No. (P after G10 L3:) or the group No. assigned by the T code instruction for tool life management in the machining program exceed
Page 991B-63323EN-1/03 10.TOOL FUNCTION 10.4 TOOL COMPENSATION FUNCTION 10.4.1 Tool Length Offset General This function can be used by setting the difference between the tool length assumed during programming and the actual tool length of the tool used into the offset memory. It is possible to compensate th
Page 99210.TOOL FUNCTION B-63323EN-1/03 - Specification of the tool length offset value The tool length offset value assigned to the number (offset number) specified in the H code is selected from offset memory and added to or subtracted from the moving command in the program. The tool length offset value m
Page 993B-63323EN-1/03 10.TOOL FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 2409 K43 & ' ( ! ) * ) + % ,- . % /- 0 * % #7 #6 #5 #4 #3 #2 #1 #0 6000 LXY
Page 99410.TOOL FUNCTION B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 6007 ZMV & 9#2 < !! ! ) ) "678$ ! 0%=,,, , ,"123$! 0%=,,, / !! * ! - 0: A block to
Page 995B-63323EN-1/03 10.TOOL FUNCTION 10.4.2 Tool Offset General The programmed travel distance of the tool can be increased or decreased by a specified tool offset value or by twice the offset value. The tool offset function can also be applied to an additional axis. Workpiece Tool center path Programmed
Page 99610.TOOL FUNCTION B-63323EN-1/03 - Increase and decrease As shown in Fig. 10.4.2(a), the travel distance of the tool is increased or decreased by the specified tool offset value. In the absolute mode, the travel distance is increased or decreased as the tool is moved from the end position of the prev
Page 997B-63323EN-1/03 10.TOOL FUNCTION Parameter #7 #6 #5 #4 #3 #2 #1 #0 6000 PCI PNH EVO , 123 ( ! !! ) * ) 4 5 + ! 4 5 !! % ,- 2 ) 4 5 +
Page 99810.TOOL FUNCTION B-63323EN-1/03 10.4.3 Cutter Compensation General When the tool is moved, the tool path can be shifted by the radius of the tool (Fig. 10.4.3(a)). To make an offset as large as the radius of the tool, CNC first creates an offset vector with a length equal to the radius of the tool (
Page 999B-63323EN-1/03 10.TOOL FUNCTION - Offset cancel mode At the beginning when power is applied the control is in the cancel mode. In the cancel mode, the vector is always 0, and the tool center path coincides with the programmed path. - Start Up When a cutter compensation command (G41 or G42, nonzero d
Page 100010.TOOL FUNCTION B-63323EN-1/03 - Setting the cutter compensation value Assign a cutter compensation values to the D codes on the MDI panel. - Offset vector The offset vector is the two dimensional vector that is equal to the cutter compensation value assigned by D code. It is calculated inside the
Page 1001B-63323EN-1/03 10.TOOL FUNCTION Parameter #7 #6 #5 #4 #3 #2 #1 #0 6001 CNI CNC CSU , .(? @ A".(.$! 0%=,, B ! % CSC CSU Type Operation 0 0 Type A A compensation vector perpendicul
Page 100210.TOOL FUNCTION B-63323EN-1/03 / .0. @ =".0$! 0%=,,/ ! 5) ! 5 % CNI CNC Operation 0 0 Interference check is enabled. The direction and the anlgle of an arc are checked. 0 1 Interference check is
Page 1003B-63323EN-1/03 10.TOOL FUNCTION / ;# ( ! ! # % 0: Issue no alarm. (In this case, cutter compensation is enabled for commands in the MDI mode, and an intersection calculation is made. If MDI intervention is performed, howe
Page 100410.TOOL FUNCTION B-63323EN-1/03 6009 Number of blocks to be read in the cutter compensation mode ( ) ) 2 ) :> ( ! ! 5 % ! * E ! ! ! 5
Page 1005B-63323EN-1/03 10.TOOL FUNCTION 6010 Limit for ignoring the small movement resulting from cutter compensation ( ) G ?! "$ #! ! ! 4 2 ) )!! " !
Page 100610.TOOL FUNCTION B-63323EN-1/03 Alarm and message Number Message Contents PS0270 CRC:START_UP /CANCEL BY An attempt was made to execute the cutter compensation CIRCLE startup or cancel block in the circular interpolation mode or involute interpolation mode. PS0271 CRC:PLANE CHANGE An attempt was mad
Page 1007B-63323EN-1/03 10.TOOL FUNCTION 10.4.4 Three-dimensional Tool Compensation General In cutter compensation, two-dimensional offset is performed for a selected plane. In three-dimensional tool compensation, the tool can be shifted three-dimensionally when a three-dimensional offset direction is progra
Page 100810.TOOL FUNCTION B-63323EN-1/03 - Three-dimensional tool compensation vector In three-dimensional tool compensation mode, the following three- dimensional tool compensation vector is generated at the end of each block: Programmed path Path after three-dimensional tool compensation Three-dimensional
Page 1009B-63323EN-1/03 10.TOOL FUNCTION - Specifying I, J, and K Addresses I, J, and K must all be specified at startup to start three- dimensional tool compensation. When even one of the three addresses is omitted, two-dimensional cutter compensation is activated. When a block specified in three-dimensiona
Page 101010.TOOL FUNCTION B-63323EN-1/03 NOTE 1 When bit 0 (ONI) of parameter No. 6029 is 1, the functions using the I, J, and K commands listed below must not be used in three-dimensional tool compensation mode. Otherwise, the PS0282 alarm is issued. Exponential interpolation (I, J, and K commands of G02.3/
Page 1011B-63323EN-1/03 10.TOOL FUNCTION Parameter 6011 Constant denominator for three-dimensional tool compensation or tool length compensation in a specified direction
Page 101210.TOOL FUNCTION B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 6030 OKI 3 & +* ,0 . /0 % 2 0: The conventional specifications. - When the I, J, and K commands are all omitted in three-dimension
Page 1013B-63323EN-1/03 10.TOOL FUNCTION 10.4.5 Tool Offsets Based on Tool Numbers General Cutter compensation data, tool length compensation data, and the tool pot number can be set for a specific tool number (T code). Up to 300 sets of data can be set. If a certain tool number is specified, the pot number
Page 101410.TOOL FUNCTION B-63323EN-1/03 - Adding and modifying tool data Format Meaning of command G10L71; G10L71:Starts the addition to or modification of registered T-P-K-R-; tool data. T-P-K-R-; T-:Tool number(0~99999999) : P-:Pot number(0~9999) T-P-K-R-; K-:Tool length offset (Caution) G11; R-:Cutter co
Page 1015B-63323EN-1/03 10.TOOL FUNCTION Tool Offset Based on Tool Numbers - Tool pot number output When a tool number (T code) is specified, the corresponding tool pot number is read from the tool data file, then is output to the machine as a tool function code signal (T0 to T31) together with the tool func
Page 101610.TOOL FUNCTION B-63323EN-1/03 - Tool change methods The execution of an M code for tool change and tool number (T code) that are specified in the same block depends on the settings of bit 1 (CT2) and bit 0 (CT1) of parameter No. 7401, as indicated in the table below. The method that is used depend
Page 1017B-63323EN-1/03 10.TOOL FUNCTION Example - Tool change method A Example: N01 T10 ; : The tool pot number corresponding to T10 is output as a code signal. N02 M06 T11 ; : The cutter compensation value and tool length compensation value corresponding to T10 become valid. The T11 tool is returned to the
Page 101810.TOOL FUNCTION B-63323EN-1/03 - Notification output to the machine when tools having the same pot number are specified If there are two or more programmed tool numbers having the same pot number, the pot number duplication signal (TDUP) is output to the machine. Example: Tool data setting N01 G10
Page 1019B-63323EN-1/03 10.TOOL FUNCTION Relationships with Other Functions - Tool life management When tool offset based on tool numbers is enabled (when bit 5 (NOT) of parameter No. 0011 is set to 0), a D code and H code cannot be registered as tool life management data. Compensation enable commands (such
Page 102010.TOOL FUNCTION B-63323EN-1/03 - Automatic tool length measurement With the automatic tool length measurement command (G37), the tool length compensation value for the currently valid tool number is updated. Never specify the automatic tool length measurement command in a block in which an M code f
Page 1021B-63323EN-1/03 10.TOOL FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 2203 TLN 3 & +8 .9- . : . " 1 ) " 0: Pot numbers 1: Tool numbers 2429 M code for tool replacement 3
Page 102210.TOOL FUNCTION B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 7401 CT2 CT1 3 & +* @.7 +7 @.< # 1 " 2 - Tool offset by tool number CT2 CT1 Tool (#1) (#0) change Description type 0 0 A The offset value cor
Page 1023B-63323EN-1/03 10.TOOL FUNCTION Alarm and message Number Message Contents PS0421 SETTING COMMAND ERROR The instruction for setting tool data (G10L70 to G11, G10L71 to G11) is in error. PS0422 NOT FOUND TOOL DATA The specified tool No. pot No. , for the tool No. , tool length compensation data, and c
Page 102410.TOOL FUNCTION B-63323EN-1/03 10.4.6 Tool Axis Direction Tool Length Compensation General When a five-axis machine that has two axes for rotating the tool is used, tool length compensation can be performed in a specified tool axis direction on a rotation axis. When a rotation axis is specified in
Page 1025B-63323EN-1/03 10.TOOL FUNCTION - Examples of machine configuration and rotation axis calculation formats Let Vx, Vy, Vz, Lc, a, b, and c be as follows: Vx,Vy,Vz : Tool compensation vectors along the X-axis, Y- axis, and Z-axis Lc : Offset value a,b,c : Absolute coordinates on the A-axis, B-axis and
Page 102610.TOOL FUNCTION B-63323EN-1/03 (2) B-axis and C-axis, with the tool axis on the Z-axis B C Z Workpiece C B Y X Vx = Lc * sin(b) * cos(c) Vy = Lc * sin(b) * sin(c) Vz = Lc * cos(b) (3) A-axis and B-axis, with the tool axis on the X-axis A B Z A Workpiece X B Y Vx = Lc * cos(b) Vy = Lc * sin(b) * sin
Page 1027B-63323EN-1/03 10.TOOL FUNCTION (4) A-axis and B-axis, with the tool axis on the Z-axis, and the B-axis used as the master B A Z B X Workpiece Y A Vx = Lc * cos(a) * sin(b) Vy = -Lc * sin(a) Vz = Lc * cos(a) * cos(b) (5) A-axis and B-axis, with the tool axis on the Z-axis, and the A-axis used as the
Page 102810.TOOL FUNCTION B-63323EN-1/03 - Tool holder offset The machine-specific length from the rotation center of the tool rotation axes (A- and B-axes, A- and C-axes, and B- and C-axes) to the tool mounting position is referred to as the tool holder offset. Unlike a tool length offset value, a tool hold
Page 1029B-63323EN-1/03 10.TOOL FUNCTION - Rotation axis offset Set offsets relative to the rotation angles of the rotation axes in parameter No. 7517. The compensation vector calculation formula is the same as that used for rotation axis origin compensation, except that Bp and Cp are changed to rotation axi
Page 103010.TOOL FUNCTION B-63323EN-1/03 - Machine coordinate system positioning (G53) When machine coordinate system positioning (G53) is performed, the compensation vector is temporarily cancelled in the block, but is applied when movement is next performed. G53 Specified point G00 Specified Workpiece coor
Page 1031B-63323EN-1/03 10.TOOL FUNCTION 1029 Axis number of the linear axis to which a rotation axis belongs 3 *% When a rotation axis turns about a linear axis, the linear axis is referred to as an axis to which the rotation axis belongs, and i
Page 103210.TOOL FUNCTION B-63323EN-1/03 7514 Tool axis direction 3 7%= Enter the tool axis direction when the two rotation axes are set at 0 degree. Data Tool axis direction 1 X-axis 2 Y-axis 3 Z-axis 7515 Master rotation axis number 3
Page 1033B-63323EN-1/03 10.TOOL FUNCTION 7517 Offset value for angular displacement of a rotation axis 3 ! "
Page 103410.TOOL FUNCTION B-63323EN-1/03 Alarm and message Number Message Contents PS0360 PARAMETER OUT OF RANGE Illegal parameter setting. (Set value is out of range.) (TLAC) PS0361 PARAMTER SETTING ERROR 1 Illegal parameter setting. (axis of rotation setting) (TLAC) PS0362 PARAMETER SETTING ERROR 2 Illegal
Page 1035B-63323EN-1/03 10.TOOL FUNCTION 10.4.7 Rotary Table Dynamic Fixture Offset General If the position of a workpiece is set as a reference fixture offset with respect to the position of the rotary table, a fixture offset after rotation of the rotary table can be automatically calculated from the angula
Page 103610.TOOL FUNCTION B-63323EN-1/03 - Operation upon a reset The setting of the KWZ bit (bit 6 of parameter 2409) determines whether the fixture offset is cancelled upon a reset. If the setting is 1, the vector before the reset is held. If the setting is 0, the vector is cleared. Clearing the vector, ho
Page 1037B-63323EN-1/03 10.TOOL FUNCTION When 0 is specified, movement is made. (The workpiece coordinates of the current position do not change, and the corresponding machine coordinates change.) When 1 is specified, no movement is made. (The workpiece coordinates of the current position change, but the cor
Page 103810.TOOL FUNCTION B-63323EN-1/03 NOTE This operation requires a reader/punch interface and a programmable data input function. (5) Input from external equipment When the read soft key is selected on the fixture offset screen, data can be input from external equipment such as a Floppy Cassette via the
Page 1039B-63323EN-1/03 10.TOOL FUNCTION - Movement resulting from a change in the vector of the fixture offset The movement resulting from a change in the vector of the fixture offset is made according to the current modal G code of group 01. If the G code is not G00 or G01 (if the code is G02, G03, etc.),
Page 104010.TOOL FUNCTION B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1007 FAX 3 & +* ;#C 1 ) ' *2 ) ' 72 ' #7 #6 #5 #4 #3 #2 #1 #0 2409 KWZ 3 & +? 0$D
Page 1041B-63323EN-1/03 10.TOOL FUNCTION 6068 Rotation axis for fixture offset (first group) 6069 Linear axis 1 for fixture offset (first group) 6070 Linear axis 2 for fixture offset (first group) 6071 Rotation axis for fixture offset (second group) 6072 Linear axis 1 for fixture offset (second group) 6073 L
Page 104210.TOOL FUNCTION B-63323EN-1/03 10.4.8 Three-dimensional Cutter Compensation General The three-dimensional cutter compensation function is used with machines that can control the direction of tool axis movement by using rotation axes (such as the B- and C-axes). This function performs cutter compens
Page 1043B-63323EN-1/03 10.TOOL FUNCTION Parameter (1) Parameters setting the relationship between the rotation axis and rotation plane with which the tool is controlled (1) Relationship between the rotation axis and rotation plane Parameter iNo.6080 to 6089 j (2) Direction of the tool axis Parameter iNo.610
Page 104410.TOOL FUNCTION B-63323EN-1/03 6080 Rotation axis for three-dimensional cutter compensation and so forth (first group) 6081 Linear axis 1 for three-dimensional cutter compensation and so forth (first group) 6082 Linear axis 2 for three-dimensional cutter compensation and so forth (first group) 6083
Page 1045B-63323EN-1/03 10.TOOL FUNCTION 6088 Linear axis 3 for three-dimensional cutter compensation and so forth (second group) &
Page 104610.TOOL FUNCTION B-63323EN-1/03 6089 Angle of inclination for the rotation axis for three-dimensional cutter compensation and so forth (second group) # $ %
Page 1047B-63323EN-1/03 10.TOOL FUNCTION 1) Set axis numbers for the rotation axis, linear axis 1, and linear axis 2. 2) Set the linear axis 3 and the angle of inclination to 0. 3) The rotation axis is defined as follows: -The rotation axis rotates about an axis that perpendicularly intersects the plane form
Page 104810.TOOL FUNCTION B-63323EN-1/03 Z B Y α α: Angle of inclination X 6104 Reference angle for the rotation axis for three-dimensional cutter compensation and so forth (first group) 6105 Reference angle for the rotation axis for three-dimensional cutter compensation and so forth (second group)
Page 1049B-63323EN-1/03 10.TOOL FUNCTION 6106 Reference angle for the tool axis in the plane formed by linear axes 2 and 3 (RA) 6107 Reference angle for the tool axis in the plane formed by linear axes 3 and 1 (RB) # $
Page 105010.TOOL FUNCTION B-63323EN-1/03 When tool axis and linear axis 3 match Linear axis 3 Linear axis 2 RA = 0.0 RB = 0.0 Linear axis 1 When tool axis and linear axis 1 match Linear axis 3 Linear axis 2 RA = 0.0 RB = 90.0 Linear axis 1 6114 Limit for assuming the block as a non-movement block in intersec
Page 1051B-63323EN-1/03 10.TOOL FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 0014 NIC ) 9: -; , 8, , " 4 " /4 " 6261 Effective angle in an interference c
Page 105210.TOOL FUNCTION B-63323EN-1/03 6115 Angle determination fluctuation value for leading edge offset # $ % & '!! (
Page 1053B-63323EN-1/03 10.TOOL FUNCTION Alarm and message Number Message Contents PS0271 CRC:PLANE CHANGE An attempt was made to change the plane in the cutter compensation mode. To change the plane, cancel the cutter compensation mode. PS0272 CRC:INTERFERENCE The depth of the cut is too great during cutter
Page 105410.TOOL FUNCTION B-63323EN-1/03 10.4.8.1 Three-dimensional cutter compensation at tool center point For machines with a rotation axis for rotating a tool, this function performs three-dimensional cutter compensation at the tool tip position if the program-specified point is specified with a pivot po
Page 1055B-63323EN-1/03 10.TOOL FUNCTION 3D cutter compensation vector according to this specification Program-specified point (pivot point) Conventional 3D cutter compensation vector Vector from program-specified point (pivot point) to tool tip position (cutting point) Distance from program-specified Tool c
Page 105610.TOOL FUNCTION B-63323EN-1/03 Parameters (1) Parameters defining the relationship between the rotation axis for controlling the tool and the rotation plane 1. Relationship between rotation axis and rotation plane Parameters No. 6080 to 6089 2. Direction of the tool axis Parameters No. 6106 to 6107
Page 1057B-63323EN-1/03 10.TOOL FUNCTION 10.4.9 Designation Direction Tool Length Compensation In a five-axis machine tool having three basic axes and two rotation axes for turning the tool, tool length compensation can be applied in the direction of the tool axis. The tool axis direction is specified with I
Page 105810.TOOL FUNCTION B-63323EN-1/03 NOTE 1 The format of specified-direction tool length compensation is the same as that for three- dimensional tool compensation. When using specified-direction tool length compensation, set bit 0 (DDT) of parameter No. 7711 to 1. 2 A three-dimensional space in which sp
Page 1059B-63323EN-1/03 10.TOOL FUNCTION - Operation in the specified-direction tool length compensation mode (1) Movement is made on all five axes simultaneously to the position ( x, y , z, b, c ) calculated as shown below. ( x, y, z ) x, y , z : Tool center position b, c : Rotation axis position X ,Y , Z :
Page 106010.TOOL FUNCTION B-63323EN-1/03 NOTE 1 In a block in which all of I, J, and K are omitted, the compensation vector for the previous block is used. 2 If any one of I, J, or K is omitted, 0 is assumed in place of the omitted value. 3 Shortcut control is exercised on the amount of movement on a rotatio
Page 1061B-63323EN-1/03 10.TOOL FUNCTION - Example of machine configuration and expression for rotation axis calculation (1) When the rotation axes are the A- and C-axes, and the tool axis is the Z-axis A C Z Workpiece C A Y X I2 + J2 a = tan −1 K I c = tan −1 −J (2) When the rotation axes are the B- and C-a
Page 106210.TOOL FUNCTION B-63323EN-1/03 (3) When the rotation axes are the A- and B-axes, and the tool axis is the X-axis A B Z A Workpiece X B Y J a = tan −1 −K J 2 + K2 b = tan −1 I (4) When the rotation axes are the A- and B-axes, and the tool axis is the Z-axis (master axis: B-axis) B A Z B X Workpiece
Page 1063B-63323EN-1/03 10.TOOL FUNCTION (5) When the rotation axes are the A- and B-axes, and the tool axis is the Z-axis (master axis: A-axis) A B Z Y B Workpiece X A −J a = tan −1 K I b = tan −1 J + K2 2 - 1047 -
Page 106410.TOOL FUNCTION B-63323EN-1/03 Limitation - Rotation axis specification A rotation axis must not be specified in specified-direction tool length compensation mode. Otherwise, an alarm (PS0809) is issued. - Commands related to reference position return The specified-direction tool length compensatio
Page 1065B-63323EN-1/03 10.TOOL FUNCTION Parameter #7 #6 #5 #4 #3 #2 #1 #0 1014 RAP RAM ) 9 #' , * *
Page 106610.TOOL FUNCTION B-63323EN-1/03 6011 Constant denominator for three-dimensional tool compensation or tool length compensation in a specified direction # $ * !
Page 1067B-63323EN-1/03 10.TOOL FUNCTION Caution CAUTION Always set the following parameters to 1 for the rotation axis for designation direction tool length compensation: Parameter ROT iNo.1006#0 j Parameter ROL iNo.1009#2 j Alarm and message Number Message Contents PS0809 ILLEGAL COMMAND IN G41/G42 Specifi
Page 106810.TOOL FUNCTION B-63323EN-1/03 10.4.10 Tool Center Point Control On a five-axis machine having two rotation axes that turn a tool, tool length compensation can be performed momentarily even in the middle of a block. This tool length compensation is classified into two types by the difference in pro
Page 1069B-63323EN-1/03 10.TOOL FUNCTION NOTE The length from the tool tip to tool pivot point must equal the sum of the tool length compensation and tool holder offset. The difference between tool center point control (type 2) and designation direction tool length compensation is also the same as shown in F
Page 107010.TOOL FUNCTION B-63323EN-1/03 Description - Specification of tool center point control The tool compensation vector changes in the following cases: Type 1 : The offset value is changed, or the rotation axis position (B, C) is specified. Type 2 : The offset value is changed, or the tool axis orient
Page 1071B-63323EN-1/03 10.TOOL FUNCTION - Programmed point In programming, the position of the tool tip center is specified. Ball-end mill Tool tip center Programmed path Flat-end mill Tool tip center Programmed path Corner-radius-end mill Tool tip center Programmed path - Linear interpolation (G01) When li
Page 107210.TOOL FUNCTION B-63323EN-1/03 - Specification of rotation axes (1) Type 1 When only the rotation axes are specified in tool center point control (type 1) mode, the feedrate of the rotation axes is set to the maximum cutting feedrate (parameter No. 1422). (2) Type 2 In tool center point control (ty
Page 1073B-63323EN-1/03 10.TOOL FUNCTION - Operation of tool center point control (type 2) The following item is the same as for tool length compensation along the tool axis: - Tool holder offset The following items are the same as for tool length compensation in a specified direction: - Operation in tool le
Page 107410.TOOL FUNCTION B-63323EN-1/03 control, therefore, the compensation vector is calculated with B set to 30.0. - Look-ahead acceleration/deceleration before interpolation When using tool center point control, also use look-ahead acceleration/deceleration before interpolation. If look-ahead accelerati
Page 1075B-63323EN-1/03 10.TOOL FUNCTION -Feed per revolution (G95) -Inverse time feed (G93) - Unavailable functions 1 In tool center point control mode, the functions listed below cannot be used. If these functions are used, the compensation vector of the previous block is used as is. -The following G funct
Page 107610.TOOL FUNCTION B-63323EN-1/03 Parameters for type 1 Parameter No. Data type Description 7516 Real Angular displacement of the rotation number axis axes 7517 Real Offset of angular displacement of the number axis rotation axes 7518 Real Rotation axis reference position number axis compensation amou
Page 1077B-63323EN-1/03 10.TOOL FUNCTION 10.4.11 Control Point Compensation of Tool Length Compensation Along Tool Axis Normally, the control point of tool length compensation along the tool axis is the point of intersection of the centers of two rotation axes. The machine coordinates also indicate this cont
Page 107810.TOOL FUNCTION B-63323EN-1/03 According to the machine type, set the values listed in the following table: Table 10.4.11 (a) Setting the Tool Holder Offset and Rotation Center Compensation Vector Machine type Tool holder offset Rotation center Parameter No. 7548 compensation vector Parameter No. 7
Page 1079B-63323EN-1/03 10.TOOL FUNCTION Second rotation axis center (control point) Rotation center compensation vector parameter iNo. 7519 j First rotation axis center Spindle center compensation vector parameter (No. 7520 j Spindle center Tool holder offset parameter (No. 7548 j Tool mounting position Too
Page 108010.TOOL FUNCTION B-63323EN-1/03 Ordinary tool length Tool length compensation along Tool length compensation along compensation iG43 j tool axis (G43.1 j: tool axis iG43.1 jF When tool is not tilted When tool is tilted Control point before shift Shift vector Control Control point point Tool length c
Page 1081B-63323EN-1/03 10.TOOL FUNCTION - Equation for each machine type Vx, Vy, Vz :Tool length compensation vector A, B, C :Absolute coordinates of A-, B-, and C-axes To :Tool offset value Ho :Tool holder offset value Jx, Jy, Jz :Rotation center compensation vector Cx, Cy, Cz :Spindle center compensation
Page 108210.TOOL FUNCTION B-63323EN-1/03 - Tool center point control Control point compensation of tool length compensation along the tool axis is also enabled for tool center point control. Parameters 7519 Rotation center compensation vector in tool length compensation along tool axis
Page 1083B-63323EN-1/03 10.TOOL FUNCTION 9: ; * 4 0: Not shifted. 1: Shifted. The shift method is specified with bit 4 (SBP) of parameter No. 7540. 7719 Rotation center compensation vector for head 2 in parallel axis control and twin-ta
Page 108410.TOOL FUNCTION B-63323EN-1/03 7745 Shift vector in tool length compensation along tool axis # & $ * ! 1 ? , " -
Page 1085B-63323EN-1/03 10.TOOL FUNCTION 10.4.12 Grinding Wheel Wear Compensation On a specified compensation plane, a compensation vector is created on an extension of a straight line starting from a specified point (compensation center) toward a command end point. Compensation vector Compensation center Pr
Page 108610.TOOL FUNCTION B-63323EN-1/03 Description - Grinding wheel wear compensation (start of grinding wheel wear compensation) Up to three compensation center positions can be set. Set the coordinates (in the workpiece coordinate system) of these compensation center positions in parameter Nos. 6050 to 6
Page 1087B-63323EN-1/03 10.TOOL FUNCTION - Canceling grinding wheel wear compensation When G40 and D0 are specified at the same time, the compensation vector is canceled, movement due to the cancellation takes place, then grinding wheel wear compensation is canceled. When D0 has been canceled, specifying G40
Page 108810.TOOL FUNCTION B-63323EN-1/03 CAUTION The offset value is used as a radius. It can also be used as a diameter by setting bit 0 (ODI) of parameter No. 6008 to 1. Compensation vector Z Tool center path Compensation Programmed path center Y Fig. 10.4.12 (b) Offset Value (-) Compensation vector Z Comp
Page 1089B-63323EN-1/03 10.TOOL FUNCTION - Compensation plane and plane selection by G17/G18/G19 Creation of a compensation vector is not related to plane selection by G17/G18/G19. For example, while circular interpolation is being performed on the XY (G17) plane, compensation can be applied to a compensatio
Page 109010.TOOL FUNCTION B-63323EN-1/03 - Circular interpolation/helical interpolation When circular interpolation (G02/G03) is specified in grinding wheel wear compensation mode, the radius at the start point of an arc differs from the radius at the end point, which prevents a correct arc from being formed
Page 1091B-63323EN-1/03 10.TOOL FUNCTION - Available compensation functions The commands listed below can be used in grinding wheel wear compensation mode. In these command modes, grinding wheel wear compensation can also be used. - Tool length compensation (G43, G44, G49) - Position offset (G45 to G48) Rest
Page 109210.TOOL FUNCTION B-63323EN-1/03 - Relation with compensation functions The commands listed below cannot be used in grinding wheel wear compensation function mode. Before using these commands, cancel grinding wheel wear compensation. Also, grinding wheel wear compensation cannot be used in a mode of
Page 1093B-63323EN-1/03 10.TOOL FUNCTION Parameters 6050 First axis coordinate of compensation center 1 in grinding wheel wear compensation 6051 Second axis coordinate of compensation center 1 in grinding wheel wear compensation 6052 First axis coordinate of compensation center 2 in grinding wheel wear compe
Page 109410.TOOL FUNCTION B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 6008 WCD ) 93 (; 2 2 , , " Offset value in D code Negative Positive 6008#3 0 From compensatio
Page 1095B-63323EN-1/03 10.TOOL FUNCTION Alarms and messages No. Message Description PS0618 ILLEGAL P-DATA (WHEEL WEAR The P data for selecting the compensation center in COMPENSATION) grinding wheel wear compensation is illegal. PS0619 ILLEGAL AXIS(WHEEL WEAR A compensation axis has been changed in grinding
Page 109610.TOOL FUNCTION B-63323EN-1/03 10.4.13 Cutter Compensation for Rotary Table For machines having a rotary table, such as that shown in the figure below, cutter compensation can be performed. C A ' 1 & ) B C
Page 1097B-63323EN-1/03 10.TOOL FUNCTION Description - Cutter compensation The cutter compensation for Rotary table basically performs operations in conformance with cutter compensation. The operations different from those of cutter compensation are described below. For a description of the specifications an
Page 109810.TOOL FUNCTION B-63323EN-1/03 Example - Parameter specification example On the machine shown in Fig.10.4.13 (a) parameters must be specified as follows: The axis numbers are assumed as follows: X = 1, Y = 2, Z = 3, A = 4, B =5 Parameter Setting Description No. 6140 1 (X) Axis number of linear axis
Page 1099B-63323EN-1/03 10.TOOL FUNCTION 1 0 0  cos b2 0 − sin b2   M 2 = 0 cos a 2 sin a2   0 1 0  0 − sin a2 cos a2   sin b2 0 cos b2  P3 conversion matrix 1 0 0  cos b3 0 − sin b3  M 3 = 0 cos a3 sin a3   0 1 0  0 − sin a3 cos a3   sin b3 0 cos b3  (3) Calculation o
Page 110010.TOOL FUNCTION B-63323EN-1/03 Parameters 6140 Axis number of linear axis 1 in the cutter compensation for Rotary table 6141 Axis number of linear axis 2 in the cutter compensation for Rotary table 6142 Axis number of linear axis 3 in the cutter compensation for Rotary table
Page 1101B-63323EN-1/03 10.TOOL FUNCTION 6146 Axis number of the linear axis corresponding to the rotation axis in the cutter compensation for Rotary table (second set) 2 > / & Set the axis numbers of the rotation axes used fo
Page 110210.TOOL FUNCTION B-63323EN-1/03 6150 Reference angle of the rotation axis in the cutter compensation for Rotary table (first set) 6151 Reference angle of the rotation axis in the cutter compensation for Rotary table (second set) # $
Page 1103B-63323EN-1/03 10.TOOL FUNCTION Reference item FANUC Series OPERATOR’S II.14.3 CUTTER 15i/150i-MA MANUAL(PROGRAM COMPENSATION C MING) (B-63324EN) - 1087 -
Page 110411.PROGRAM COMMAND B-63323EN-1/03 11 PROGRAM COMMAND - 1088 -
Page 1105B-63323EN-1/03 11.PROGRAM COMMAND 11.1 DECIMAL POINT PROGRAMMING/POCKET CALCULATOR TYPE DECIMAL POINT PROGRAMMING General Numerical values can be entered with a decimal point. A decimal point can be used when entering a distance, time, or speed. Decimal points can be specified with the following add
Page 110611.PROGRAM COMMAND B-63323EN-1/03 Alarm And message Number Message Contents PS0007 ILLEGAL USE OF DECIMAL POINT A decimal point (.) was specified at an address where no decimal point may be specified, or two decimal points were specified. Reference item Series15i/150i-MA Operator’s Manual II-8.4 Dec
Page 1107B-63323EN-1/03 11.PROGRAM COMMAND 11.2 PROGRAM CONFIGURATION General A program consists of the following components: Table. 11.2 Program components Components Descriptions Tape start Symbol indicating the start of a program file Leader section Used for the title of a program file, etc. Program start
Page 110811.PROGRAM COMMAND B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 2200 NM9 NPE , - . / % $01$0,$ 022 3 % # - % $ + % %
Page 1109B-63323EN-1/03 11.PROGRAM COMMAND 2431 M code to execute external device subprogram calls ( % % ) % ;22222222 ( 0 ' ' 5 % / $0#28 0#$01$0,$028$ 022 '
Page 111011.PROGRAM COMMAND B-63323EN-1/03 11.3 INCH/METRIC CONVERSION General Either inch or metric input can be selected by G code. Signal Inch input signal INCH [Classification] Output signal [Function] This signal indicates that inch input mode is in progress. [Output condition] "1"indicates that
Page 1111B-63323EN-1/03 11.PROGRAM COMMAND NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective. #7 #6 #5 #4 #3 #2 #1 #0 1006 ROP ROS ROT ' NOTE After this parameter has been set, the power must be off
Page 111211.PROGRAM COMMAND B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 2400 G70 F41 # &4# & A24 " $ #> # #> $
Page 1113B-63323EN-1/03 11.PROGRAM COMMAND 11.4 DIAMETER SPECIFICATION AND RADIUS SPECIFICATION If the CNC is programmed to control a lathe, the dimension of the workpiece, which generally has a round cross section, can be specified by a diameter or radius. X A B R2 D1 D2 R1 Z D1 , D2 - - - - Diameter Specif
Page 111411.PROGRAM COMMAND B-63323EN-1/03 Reference item Series15i/150i-MA Operator’s Manual II-8.5 Diameter specification (Programming) and radius specification (B-63324EN) - 1098 -
Page 1115B-63323EN-1/03 11. PROGRAM COMMAND 11.5 CUSTOM MACRO 11.5.1 Custom Macro General Although subprograms are useful for repeating the same operation, the custom macro function also allows use of variables, arithmetic and logic operations, and conditional branches for easy development of general program
Page 111611. PROGRAM COMMAND B-63323EN-1/03 Bolt hole circles as shown in the above figure can be made easily. Once a custom macro body for the bolt hole circle is programmed and registered, the CNC can operate as if it has the bolt hole circle cutting function. Programmers can use the bolt hole circle funct
Page 1117B-63323EN-1/03 11. PROGRAM COMMAND Custom Macro Output Signal UO000 to UO031, UO000 to UO031 UO200 to UO231, UO300 to UO331 [Classification] Output signal [Function] No function is provided for the control unit. These signals can be read or wri
Page 111811. PROGRAM COMMAND B-63323EN-1/03 Signal address Signal address #7 #6 #5 #4 #3 #2 #1 #0 G045 CCT G048 UI007 UI006 UI005 UI004 UI003 UI002 UI001 UI000 G049 UI015 UI014 UI013 UI012 UI011 UI010 UI009 UI008 G050 UI023 UI022 UI021 UI020 UI019 UI018 UI017 UI016 G051 UI031 UI030 UI029 UI028 UI027 UI026 UI
Page 1119B-63323EN-1/03 11. PROGRAM COMMAND #7 #6 #5 #4 #3 #2 #1 #0 F048 UO007 UO006 UO005 UO004 UO003 UO002 UO001 UO000 F049 UO015 UO014 UO013 UO012 UO011 UO010 UO009 UO008 F050 UO023 UO022 UO021 UO020 UO019 UO018 UO017 UO016 F051 UO031 UO030 UO029 UO028 UO027 UO026 UO025 UO024 F052 UO107 UO106 UO105 UO104
Page 112011. PROGRAM COMMAND B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 0010 SBM SB8 SB7 !!!" # " $# " %
Page 1121B-63323EN-1/03 11. PROGRAM COMMAND $ .( & 1 & ( (!!!" # 1 &" $# & 1 &" 2 && 1 &-
Page 112211. PROGRAM COMMAND B-63323EN-1/03 3 5 &1 & " # &1 & " $# 5 &1 & " *6/ 6& & & ,
Page 1123B-63323EN-1/03 11. PROGRAM COMMAND #7 #6 #5 #4 #3 #2 #1 #0 7002 DPG 0 ) 06 6& & &" # " $# ; " #7 #6 #5 #4 #3 #2 #1 #0 7003 DSM ATN 0 $
Page 112411. PROGRAM COMMAND B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 7010 [7 [6 [5 [4 [3 [2 [1 [0 7011 ]7 ]6 ]5 ]4 ]3 ]2 ]1 ]0 7012 #7 #6 #5 #4 #3 #2 #1 #0 7013 *7 *6 *5 *4 *3 *2 *1 *0 7014 =7 =6 =5 =4 =3 =2 =1 =0 7015 ?7 ?6 ?5 ?4 ?3 ?2 ?1 ?0 7016 @7 @6 @5 @4 @3 @2 @1 @0 7017 &7 &6 &5 &4 &3 &2 &1 &0 7018 _7 _
Page 1125B-63323EN-1/03 11. PROGRAM COMMAND 7036 Start number of common variables to be protected among the common variables (#500 to #999) 7037 End number of common variables to be protected among the common variables (#500 to #999) 0 4 && ) F!!! ;
Page 112611. PROGRAM COMMAND B-63323EN-1/03 7050 G code used to call the custom macro of program number 9010 7051 G code used to call the custom macro of program number 9011 7052 G code used to call the custom macro of program number 9012 7053 G code used to call the custom macro of program number 9013 7054
Page 1127B-63323EN-1/03 11. PROGRAM COMMAND 7060 G code with a decimal point used to call the custom macro of program number 9040 7061 G code with a decimal point used to call the custom macro of program number 9041 7062 G code with a decimal point used to call the custom macro of program number 9042 7063 G
Page 112811. PROGRAM COMMAND B-63323EN-1/03 7071 M code used to call the subprogram of program number 9001 7072 M code used to call the subprogram of program number 9002 7073 M code used to call the subprogram of program number 9003 7074 M code used to call the subprogram of program number 9004 7075 M code u
Page 1129B-63323EN-1/03 11. PROGRAM COMMAND 7080 M code used to call the custom macro of program number 9020 7081 M code used to call the custom macro of program number 9021 7082 M code used to call the custom macro of program number 9022 7083 M code used to call the custom macro of program number 9023 7084
Page 113011. PROGRAM COMMAND B-63323EN-1/03 7090 Start G code used to call a custom macro 7091 Start program number of a custom macro called by G code 7092 Number of G codes used to call custom macros 0 4 && ." ! #F!!!!!! ." !$#$!!!!!!!! ."
Page 1131B-63323EN-1/03 11. PROGRAM COMMAND 7093 Start G code with a decimal point used to call a custom macro 7094 Start program number of a custom macro called by G code with a decimal point 7095 Number of G codes with a decimal point used to call custom macros 0 4
Page 113211. PROGRAM COMMAND B-63323EN-1/03 7096 Start M code used to call a subprogram 7097 Start program number of a subprogram called by M code 7098 Number of M codes used to call subprograms (number of subprograms called by M codes) 0 4 && ." !9#F!
Page 1133B-63323EN-1/03 11. PROGRAM COMMAND 7099 Start M code used to call a custom macro 7100 Start program number of a custom macro called by M code 7101 Number of M codes used to call custom macros (number of custom macros called by M codes) 0 4 && ." !!
Page 113411. PROGRAM COMMAND B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 7710 CTM 0 ' 5%* & , 7." $ &$ ':& - # 0: Condition a 1: Condition b Condition a (CTM = 0) Co
Page 1135B-63323EN-1/03 11. PROGRAM COMMAND Alarm And message Number Message Contents PS0090 DUPLICATE NC,MACRO An NC statement and macro statement were specified in STATEMENT the same block. PS0091 DUPLICATE SUB-CALL WORD More than one subprogram call instruction was specified in the same block. PS0092 DUPL
Page 113611. PROGRAM COMMAND B-63323EN-1/03 Number Message Contents PS0120 ILLEGAL ARGUMENT FORMAT PS0120 The specified argument in the argument function (ATAN, POW) is in error. PS0121 OO MANY SUB,MACRO NESTING The total number of subprogram and macro calls exceeds the permissible range. Another subprogram
Page 1137B-63323EN-1/03 11. PROGRAM COMMAND Caution CAUTION Machine tool builders: You are requested to attach your custom macro program tape or program list to the CNC unit without fail. If it is necessary to replace part program storage memory due to a failure, FANUC servicemen or end user in charge of mai
Page 113811.PROGRAM COMMAND B-63323EN-1/03 11.5.2 Interruption Type Custom Macro General When a program is being executed, another program can be called by inputting an interrupt signal (UINT) from the machine. This function is referred to as an interruption type custom macro function. Program an interrupt c
Page 1139B-63323EN-1/03 11.PROGRAM COMMAND When M96Pxxxx is specified in a program, subsequent program operation can be interrupted by an interrupt signal (UINT) input to execute the program specified by Pxxxx. When the interrupt signal (UINT, marked by * in Fig. 11.5.2 is input during execution of the inter
Page 114011.PROGRAM COMMAND B-63323EN-1/03 ) * $ $ #! $ #! +,-+. $ ' / .00 / .01( 0 23 $% %% %% % !
Page 1141B-63323EN-1/03 11.PROGRAM COMMAND 11.6 CANNED CYCLE SPINDLE CONTROL General Canned cycles make it easier for the programmer to create programs. With a canned cycle, a frequently-used machining operation can be specified in a single block with a G function; without canned cycles, normally more than o
Page 114211.PROGRAM COMMAND B-63323EN-1/03 - Basic transmission procedure The following four functions require spindle control: Table. 11.6 (b) Dedicated Signals for Spindle Control Function Input Output signal signal Spindle stop SSP Reverse spindle rotation SRV Canned cycle auxiliary signal FMF read Canned
Page 1143B-63323EN-1/03 11.PROGRAM COMMAND Using the FIN signal instead of the FFIN signal When bit 4 (FIN) of parameter No. 6201 is set to 1, completion signal FIN, normally used for ordinary auxiliary functions, can be used instead of the FFIN signal. In this case, the FIN signal is also used as the comple
Page 114411.PROGRAM COMMAND B-63323EN-1/03 - Canned cycle I (G86 : Boring cycle) X,Y X,Y +Z +R Z -R -Z SSP FMF FFIN Stop Spindle CW CW rotation - Canned cycle I (G88 : Boring cycle) This cycle is the same as the G86 cycle except that dwell is inserted after -Z cutting. Canned cycle II - Functions requiring s
Page 1145B-63323EN-1/03 11.PROGRAM COMMAND - Sending M05 when rotating the spindle in the reverse direction When the spindle is rotated in the reverse direction (from M03 to M04 or vice versa), whether to send M05 can be selected by setting bit 1 (NM5) of parameter No. 6201. - Canned cycle II (G84 : Tapping
Page 114611.PROGRAM COMMAND B-63323EN-1/03 - Canned cycle II (G87 : Back boring cycle) Shift Shift X,Y Reverse shift Reverse shift X,Y +Z Z -R Initial point DEN M05 M19 M03 M05 M19 M03 M code MF FIN - Canned cycle II (G76 : Fine boring cycle) Shift X,Y Reverse shift X,Y +Z,+R Z -R -Z DEN M05 M19 M03 M code M
Page 1147B-63323EN-1/03 11.PROGRAM COMMAND Canned cycle auxiliary signal read signal FMF [Classification] Output signal [Function] Enables read of the spindle stop command signal and spindle reverse command signal. By means of handshaking using this signal and the FFIN signal, the completion of spind
Page 114811.PROGRAM COMMAND B-63323EN-1/03 ;& # $$ !! $ % $! " !$ / " !$ 7 !$ ) @ ! $ $$ $! # % # 6# % $! !
Page 1149B-63323EN-1/03 11.PROGRAM COMMAND /D D $ $! % $ $'0( " '1( " " $! ED 2 9D # 0 1 'D 1 D 0( D
Page 115011.PROGRAM COMMAND B-63323EN-1/03 6211 Clearance in canned cycle G83 % * ! $ 9'( $ $ 4 7 !$$ % +$% $ ' $ $ % #! '?(
Page 1151B-63323EN-1/03 11.PROGRAM COMMAND Alarm And message Number Message Contents PS0196 ILLEGAL DRILLING AXIS SELECTED An illegal axis was specified for drilling in a canned cycle for drilling. If the zero point of the drilling axis is not specified or parallel axes are specified in a block containing a
Page 115211.PROGRAM COMMAND B-63323EN-1/03 11.7 EXTERNAL MOTION FUNCTION General Upon completion of positioning in each block in the program, an external operation function signal can be output to allow the machine to perform specific operation. G81 IP ; (The IP_ is axis move command ) Every time positioning
Page 1153B-63323EN-1/03 11.PROGRAM COMMAND Signal address #7 #6 #5 #4 #3 #2 #1 #0 F008 EF Parameter #7 #6 #5 #4 #3 #2 #1 #0 6200 EXC D 3<5 C: $ $! 4 ! $ 0: G81 specifies a canned cycle. 1: G81 spec
Page 115411.PROGRAM COMMAND B-63323EN-1/03 11.8 INDEX TABLE INDEXING FUNCTION General By specifying indexing positions (angles) for the indexing axis (one rotation axis, A, B, or C), the index table of the machining center can be indexed. Before and after indexing, the index table is automatically unclamped
Page 1155B-63323EN-1/03 11.PROGRAM COMMAND This completes the sequence. The time charts for these operations are shown in the figures below. (1) (2) (3) (4) (5) (6) (7) (8) (9) B command (independent) B axis servo on for position control B axis unclamp signal BUCLP B axis unclamp completion signal *BEUCL B a
Page 115611.PROGRAM COMMAND B-63323EN-1/03 B axis manual feed selection signal +Jα B axis position control servo ON B axis unclamp signal BUCLP B axis unclamp completion signal *BEUCL B axis rotation B axis deceleration signal *DECα B axis return completion signal ZPα B axis clamp signal BCLP B axis clamp co
Page 1157B-63323EN-1/03 11.PROGRAM COMMAND A Command value from A to B (when parameter G90 (bit 3 of parameter No. 7602) = 0) G90 B-45.0; or G91 B-105.0; +60° 0° -45° B Fig. 11.8 (d) Absolute/Incremental Programming - Indexing direction If a value other than 0 is set in the M code for specifying negative dir
Page 115811.PROGRAM COMMAND B-63323EN-1/03 - Index table indexing function and other functions Item Explanation Relative position display This value can be rounded by setting bit 2 (REL) of parameter No. 7602. Absolute position display This value is rounded at all times. Automatic return from the reference R
Page 1159B-63323EN-1/03 11.PROGRAM COMMAND Signal B axis clamp signal BCLP [Classification] Output signal [Function] Instructs the PMC side to clamp the B axis mechanically with a clutch or shot pin. [Output condition] The output condition and procedure are the same as those described in the basic pr
Page 116011.PROGRAM COMMAND B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 7602 DDP INC G90 REL TYB 2= G $ 4 #! $ 4% 4 ? 2 ? 2 ) *3& $$ 4
Page 1161B-63323EN-1/03 11.PROGRAM COMMAND 7632 M code used to specify the negative-direction rotation of an index table indexing axis % 7 !$$ % ). 2 $ $ 4 #! $ 4% 4$ $ # % $ $
Page 116211.PROGRAM COMMAND B-63323EN-1/03 Alarm And message Number Message Contents PS0560 INDEX TABLE AXIS ERROR A conflict has arisen in the CNC during the execution of an index table axis command. PS0561 ILLEGAL INDEXING ANGLE The specified angle of rotation is not an integer multiple of the minimum inde
Page 1163B-63323EN-1/03 11.PROGRAM COMMAND Reference item Series15i/150i-MA Operator’s Manual II-13.6 Index table indexing (Programming) function (B-63324EN) - 1147 -
Page 116411.PROGRAM COMMAND B-63323EN-1/03 11.9 MULTIPLE ROTARY CONTROL AXIS FUNCTION General A rotary axis is specified in the ROT bit (bit 1 of parameter 1008). When incremental programming is specified for the rotary axis, a specified value directly determines the travel distance. When absolute programmin
Page 1165B-63323EN-1/03 11.PROGRAM COMMAND 1 *3& ! 4 ! " $ $! $ " ! $ $ / $ $ D /5 4 !9 /5 " $" ! $
Page 116611.PROGRAM COMMAND B-63323EN-1/03 11.10 SCALING General A programmed figure can be magnified or reduced (scaling). Two types of scaling are supported. One type applies the same rate of magnification to all axes (X, Y, and Z). The other type applies a different rate of magnification to each axis. Unl
Page 1167B-63323EN-1/03 11.PROGRAM COMMAND - Scaling along each axis at a different rate of magnification Set bit 4 (XSC) of parameter No. 7611 to 1. If scaling magnification rates I, J, and K are not specified, the magnification set in parameter No. 6421 is used. Set a non-zero value in parameter No. 6421.
Page 116811.PROGRAM COMMAND B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 0012 SCL ! "# ! # $ ! #7 #6 #5 #4 #3 #2 #1 #0 6400 SCR %&
Page 1169B-63323EN-1/03 11.PROGRAM COMMAND #7 #6 #5 #4 #3 #2 #1 #0 7611 XSC 0 6 2-2 & 5 ! "# .5 ! # 1 ! Reference item Series15i/150i-MA Operator’s Manual II-14.9 Scaling (Programming) (B-63324EN) - 1153 -
Page 117011.PROGRAM COMMAND B-63323EN-1/03 11.11 COORDINATE SYSTEM ROTATION (G68,G69) General A programmed shape can be rotated. By using this function it becomes possible, for example, to modify a program using a rotation command when a workpiece has been placed with some angle rotated from the programmed p
Page 1171B-63323EN-1/03 11.PROGRAM COMMAND - Least input increment for specifying coordinate system rotation angles The least input increment for specifying coordinate system rotation angles is 0.001 degree or 0.00001 degree. When bit 2 (RTR) of parameter No. 6400 is set to 0, 0.00001 degree is used; when th
Page 117211.PROGRAM COMMAND B-63323EN-1/03 Reference item Series15i/150i-MA Operator’s Manual II-14.10 Coordinate system (Programming) rotation (B-63324EN) - 1156 -
Page 1173B-63323EN-1/03 11.PROGRAM COMMAND 11.12 THREE-DIMENSIONAL COORDINATE CONVERSION General Coordinate conversion about an axis can be carried out if the center of rotation, direction of the axis of rotation, and angular displacement are specified. This function is very useful in three-dimensional machi
Page 117411.PROGRAM COMMAND B-63323EN-1/03 Z Z’ X Y Y X’ X, Y ,Z : Coordinate system before conversion (workpiece coordinate system) X’, Y’ ,Z’ : Coordinate system after conversion (program coordinate system) When manual movement is made along the Z-axis: (1) A movement is made in the Z direction. (2) A move
Page 1175B-63323EN-1/03 11.PROGRAM COMMAND Three-dimensional coordinate conversion manual interrupt switch signal NOT3DM [Classification] Input signal [Function] Specifies whether to perform three-dimensional coordinate conversion for manual interrupt in three-dimensional coordinate conversion mode.
Page 117611.PROGRAM COMMAND B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 1200 DSC %& * - : && &5 - *"/*"7"(; <%+ 2 & 5
Page 1177B-63323EN-1/03 11.PROGRAM COMMAND #7 #6 #5 #4 #3 #2 #1 #0 1404 D3E %& " 9> 5 2 & 5 & ! "# 4
Page 117811.PROGRAM COMMAND B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 2204 DAK %& 8 ;< & & : &- 2 & 5 & ! "#
Page 1179B-63323EN-1/03 11.PROGRAM COMMAND 0 9' 2 & 5 & ! "# 4 2 & 5 & - )/3 && >' > %''= & %,! # 4 2 & 5 &
Page 118011.PROGRAM COMMAND B-63323EN-1/03 Alarm And message Number Message Contents PS0625 TOO MANY G68 NESTING 3-dimensional coordinate conversion was specified more than twice. Cancel 3-dimensional coordinate conversion before executing new coordinate conversion. PS0626 G68 FORMAT ERROR There is a format
Page 1181B-63323EN-1/03 11.PROGRAM COMMAND 11.13 AXIS INTERCHANGE General Machine axes along which actual movement is made by the X, Y, and Z commands specified in memory operation, DNC operation, and MDI operation are changed by setting data (No. 1049) or input signals AXC4, AXC2, and AXC1. This is useful w
Page 118211.PROGRAM COMMAND B-63323EN-1/03 The relationships between the specification with the setting data and that with the switches on the machine operator’s panel are as given below. Setting data Switch on machine Valid specification (No. 1049) operator’s panel 1 0 0 Axis interchange is disabled. 2 1 to
Page 1183B-63323EN-1/03 11.PROGRAM COMMAND Signal Axis switch signals AXC4, AXC2, AXC1 [Classification] Input signal [Function] Post an axis switch number to the control unit. [Operation] A binary code is set as the axis switch number. Axis interchange Signal number AXC4 AXC2 AXC1 0 0 0
Page 118411.PROGRAM COMMAND B-63323EN-1/03 1049 Axis switching number 1 "2* &- 5 - ! 4 & &- ! 4 & B & 6C D
Page 1185B-63323EN-1/03 11.PROGRAM COMMAND Note NOTE 1 If the same program is used with and without axis interchange, the amount of travel and the direction assumed with axis interchange differ from those assumed without axis interchange, depending on the start position and whether the command is an incremen
Page 118611.PROGRAM COMMAND B-63323EN-1/03 11.14 OILING SIGNAL (CANNED CYCLE) Overview A oiling(lubrication) signal, OIL, can be issued to the PMC during movement from point R to point Z in hole making canned cycles (G73, G74, G76, and G81 to G89). Two modes, types A and B, can be used to issue the OIL signa
Page 1187B-63323EN-1/03 11.PROGRAM COMMAND Function details Type A The OIL signal is set to "1" simultaneously with the start of operation 3. It is reset to "0" when the time e has elapsed. The time e is specified using address word E. If operation 3 ends before the time e elapses, however, the OIL signal be
Page 118811.PROGRAM COMMAND B-63323EN-1/03 NOTE 1 When the OIL signal is "1", executing a reset turns the OIL signal to "0" regardless of the state of the OILF signal. 2 The OIL signal is valid even if a hole making canned cycle is specified in three-dimensional coordinate conversion mode (G68). 3 In type A,
Page 1189B-63323EN-1/03 11.PROGRAM COMMAND Parameters #7 #6 #5 #4 #3 #2 #1 #0 6400 OLT OLN %& / ?. ? ! 0: Do not issue. 1: Issue. NOTE Once this parameter is re-set, switch the power off and on again. E ?4 &
Page 119011.PROGRAM COMMAND B-63323EN-1/03 Signal address #7 #6 #5 #4 #3 #2 #1 #0 G31 OILF F156 OIL - 1174 -
Page 1191B-63323EN-1/03 12.DISPLAY/SET/EDIT 12 DISPLAY/SET/EDIT - 1175 -
Page 119212.DISPLAY/SET/EDIT B-63323EN-1/03 12.1 DISPLEY/SET 12.1.1 Clock Function General The function displays the current date and time on all screens. The date and time can be read by using a system variable of a custom macro. The PMC can read the date and time through a window. Table 12.1.1 System Varia
Page 1193B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.1.2 Operation/Alarm History Screen General Operations performed by the operator and any alarms that are issued are recorded. The history can be viewed and downloaded into a Memory Card or to the host computer. Parameter #7 #6 #5 #4 #3 #2 #1 #0 0013 HDE HKE
Page 119412.DISPLAY/SET/EDIT B-63323EN-1/03 0130 Time by which to go back to delete alarms from the history 1* 2 & 3' && 45"" 6 7/ &$78 7/ + * * 7/ &$99+ & * && '
Page 1195B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.1.3 Alarm Display General When an alarm is issued, an alarm message appears on the alarm message screen. Signal Alarm signal AL [Classification] Output signal [Function] Posts that an alarm has been issued. [Output condition] This signal is set to 1 when:
Page 119612.DISPLAY/SET/EDIT B-63323EN-1/03 Alarm class signal OTALM [Classification] Output signal [Function] Used to inform the operator that an OT alarm has occurred. [Output condition] The signal goes to 1 when: - An OT alarm occurs. The signal is held to 0 when: - No OT alarm is present. Alarm cla
Page 1197B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.1.4 Operator Message Display General When the display of an operator message is specified by external data input/output or custom macro system variable #3006, the message appears on the operator message screen. Parameter #7 #6 #5 #4 #3 #2 #1 #0 2217 NOM
Page 119812.DISPLAY/SET/EDIT B-63323EN-1/03 12.1.5 Servo Adjustment Screen General This screen shows the parameter and status monitor required for basic servo motor adjustment for each axis. Parameter #7 #6 #5 #4 #3 #2 #1 #0 0015 SVS 3 & '
Page 1199B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.1.6 Spindle Adjustment Screen General This screen shows the parameters and status monitor required for basic spindle adjustment. Parameter #7 #6 #5 #4 #3 #2 #1 #0 0015 SPS ! 1 & ' &'
Page 120012.DISPLAY/SET/EDIT B-63323EN-1/03 12.1.7 Waveform Diagnosis Display General The waveform diagnosis function traces data such as servo position deviation, torque, and machine signals and displays the changes in their values as waveforms. This facilitates the adjustment of servo motors and spindle mo
Page 1201B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.1.8 Self-diagnosis General If a failure occurs, it is first necessary to check whether the failure has originated in the CNC, PMC, or machine, in order to perform quick troubleshooting. In some external signal wait states or the like, the operation of the machin
Page 120212.DISPLAY/SET/EDIT B-63323EN-1/03 12.1.9 Hardware/Software System Configuration Screen General The software and hardware configuration necessary for maintenance of the CNC can be displayed on the screen. The system configuration screen displays the following: 1. Printed circuit board configuration
Page 1203B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.1.10 Machined Part Count and Operation Time Display General The total number of machined parts, required number of parts, and number of machined parts are displayed. The values of the total number of machined parts and the number of machined parts are incremente
Page 120412.DISPLAY/SET/EDIT B-63323EN-1/03 Parameter 0100 Time accumulated since power-on 1* 2 & * 3' && 4AAAAAAAAA * *' & 4 0101 Time 1 accumulated during automatic operation
Page 1205B-63323EN-1/03 12.DISPLAY/SET/EDIT 0104 Time 2 accumulated during cutting 2 & * 3' && 4AAAAAAAAA * *' && B' * ) ' * *' &&
Page 120612.DISPLAY/SET/EDIT B-63323EN-1/03 0109 Number of parts required 3' && 4AAAAAAAAA *+ B & 6 '*+ * & < & :' * 8 ' & *+ B &
Page 1207B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.1.11 Tool Path Drawing and Background Drawing General - Tool path drawing This function draws the tool path of the current machining program. With this function, the progress of machining and the current position of the tool can be checked. - Background drawing
Page 120812.DISPLAY/SET/EDIT B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 4820 BGG 5 DD + & ) +' ) '& ! && 4831 Initial value of horizontal angular displacement 1*
Page 1209B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.1.12 Operating Monitor Screen General The load value of the servo motor and the spindle motor is in real time displayed in the bar chart. Moreover, the load value of selected servo motor or only one spindle motor displays the shape of waves as a change situation
Page 121012.DISPLAY/SET/EDIT B-63323EN-1/03 12.1.13 Machining Time Stamp General This function measures and displays the machining time of a program executed in memory operation and stamps (inserts) the result as a program comment. Measurement results are displayed on the machining time display screen. The m
Page 1211B-63323EN-1/03 12.DISPLAY/SET/EDIT #7 #6 #5 #4 #3 #2 #1 #0 2400 M30 $ % % ! ! & % " ' ( )**+, #! %
Page 121212.DISPLAY/SET/EDIT B-63323EN-1/03 12.1.14 Menu Switches General With the menu switch function, some DI signals entered with the signal (BMI interface) from the machine can be set by CNC screen operation. If a menu switch and the corresponding machine signal are used at the same time, the input stat
Page 1213B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.1.15 Software Operator’s Panel General Operations performed on the MDI panel can replace the operation of a switch on the machine operator’s panel. For instance, mode selection or jog feedrate override selection can be made by operation on the MDI panel. The cor
Page 121412.DISPLAY/SET/EDIT B-63323EN-1/03 Signal Group Function Output signal Related input signal 1 Mode selection EDTO EDT MEMO MEM TO T MDIO MDI JO J HO H SO S ZRNO ZRN 2 Memory protect KEYO KEY1 to KEY4 3 Feed hold SPO
Page 1215B-63323EN-1/03 12.DISPLAY/SET/EDIT Signal address #7 #6 #5 #4 #3 #2 #1 #0 F128 ZRNO SPO F129 EDTO MEMO TO MDIO JO HO SO F130 MLKO SBKO BDT1O DRNO F131 KEYO HS1DO HS1CO HS1BO HS1AO F132 RTO ROV2O ROV1O MP4O MP2O MP1O F133 *FV7O *FV6O *FV5O *FV4O *FV3O *FV2O *FV1O *FV0O F134 *JV7O *JV6O *JV5O *JV4O *J
Page 121612.DISPLAY/SET/EDIT B-63323EN-1/03 The following override values can be selected by job feedrate override: *JV00 to *JV150 Override (%) 15 8 7 0 0 1111 1111 1111 1111 0.1 1111 1111 1111 0101 0.14 1111 1111 1111 0001 0.2 1111 1111 1110 1011 0.27 1111 1111 1110 0100 0.37 1111 1111 1101 1010 0.52 1111
Page 1217B-63323EN-1/03 12.DISPLAY/SET/EDIT The following override values can be selected by spindle speed override: *SPV0O to *SPV7O Override (%) 7 0 0 1111 1111 10 1111 1101 20 1110 1011 30 1110 0001 40 1101 0111 50 1100 1101 60 1100 0011 70 1011 1001 80 1010 1111 90 1010 0101 100 1001 1011 110 1001 0001 1
Page 121812.DISPLAY/SET/EDIT B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 7603 OPUS OPSP OPKY OPAT OPOV OPHD OPJG OPMD $ NOTE After this parameter has been set, the power must be off turned off then back on for the setting to become effective. &$
Page 1219B-63323EN-1/03 12.DISPLAY/SET/EDIT ? &$ $ ( ( 2 ! $ #! @ &$A ( B ( ( 2 ! A #! 2020 Positive (+) direction command b
Page 122012.DISPLAY/SET/EDIT B-63323EN-1/03 2021 Negative (-) direction command button on the software operator’s panel $ . : BC Specify the number of the numeric (arrow) key on the MDI panel which instructs manual feed in the negative (-) direction on
Page 1221B-63323EN-1/03 12.DISPLAY/SET/EDIT Character-Code Correspondence Table NOTE A voiced sound symbol or p-sound symbol added to a Katakana is counted as a single character. Reference item Series15i/150i-MA Operator’s Manual II-9.13 Display and setting the (Operation) software operator’s (B-63324EN-1) p
Page 122212.DISPLAY/SET/EDIT B-63323EN-1/03 12.1.16 National Language Display Overview The screens can be displayed in the language specified in a parameter. Parameter #7 #6 #5 #4 #3 #2 #1 #0 2205 SPA ITA FRE GER JPN ENG #7 #6 #5 #4 #3 #2 #1 #0 2206 SWE $
Page 1223B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.1.17 Screen Clear Function and Automatic Screen Clear Function General The life of the LCD is reduced if the same characters are displayed in the same position for a long time. To avoid this, the CNC screen can be cleared. The screen clear function clears the sc
Page 122412.DISPLAY/SET/EDIT B-63323EN-1/03 - Erasing the screen by pressing the CAN key and a function key When parameter 0016 is set to a non-zero value, the function for clearing the screen by pressing the CAN key and a function key is disabled. CAUTION When a key is pressed while a screen is being cleare
Page 1225B-63323EN-1/03 12.DISPLAY/SET/EDIT Reference item Series15i/150i-MA Operator’s Manual II-11 Erasing the display (Operation) (B-63324EN-1) - 1209 -
Page 122612.DISPLAY/SET/EDIT B-63323EN-1/03 12.1.18 Touch Panel Overview A pen-driven input device/touch panel, manufactured by Fujitsu Limited, can be connected to the display unit of the FANUC Series 15i (hereafter called FS15i). This configuration enables the keys displayed on the touch panel to be used t
Page 1227B-63323EN-1/03 12.DISPLAY/SET/EDIT Compensation Compensation involves the following: (1) Linearity compensation (2) Matching between the panel input position and the display position on the display unit Compensation processing must be performed when: (1) A panel is newly installed. (2) The panel is
Page 122812.DISPLAY/SET/EDIT B-63323EN-1/03 4. Pressing the [COMPENSATION] soft key displays the following compensation screen. 5. Press the provided pen against all the compensation points (nine points). If the selected point is detected as a normal compensation point, the symbol at the point changes from "
Page 1229B-63323EN-1/03 12.DISPLAY/SET/EDIT Parameter #7 #6 #5 #4 #3 #2 #1 #0 2219 TPC [Input type] Parameter input [Data type] Bit #0 TPC Specifies whether to display the touch panel compensation screen. 0: Not displayed. 1: Displayed. Usually, set this bit to 0. Touch panel compensation is required only wh
Page 123012.DISPLAY/SET/EDIT B-63323EN-1/03 12.1.19 Periodic Maintenance Screen Overview The periodic maintenance screen function provides guidelines as to when consumables such as the backup battery of the control unit and the backlight of the LCD unit are to be replaced and checked if the lifetimes of thes
Page 1231B-63323EN-1/03 12.DISPLAY/SET/EDIT ? 3 ( 75 9 -; A03 ! -; A0 #! 3 NOTE When data is already registered and the data contains kanji/hiragana characters, characters are
Page 123212.DISPLAY/SET/EDIT B-63323EN-1/03 12.1.20 Maintenance Information Screen The machine history of maintenance work performed by FANUC service personnel and the machine tool builder can be record on the maintenance information screen. For details, refer to "FANUC Series 15i/150i-MODEL A Maintenance Ma
Page 1233B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.1.21 High-speed High-precision Machining Setting Screen Overview Parameters related to high-speed high-precision machining are summarized on this setting screen. Three types of parameter sets with different finish levels can be stored and edited. With the automa
Page 123412.DISPLAY/SET/EDIT B-63323EN-1/03 % *&A ( )*&A48, ' 8$00) E 4, ! E' #! ' 1519 Active parameter set number $ : B/ 6 A "
Page 1235B-63323EN-1/03 12.DISPLAY/SET/EDIT Reference item Series15i/150i-MA Operator’s Manual II-9.18 High-speed and high- (Operation) precision machining (B-63324EN-1) setting screen - 1219 -
Page 123612.DISPLAY/SET/EDIT B-63323EN-1/03 12.1.22 Pitch Error Compensation Screen General The pitch error compensation data is set according to the characteristics of the machine connected to the CNC. The pitch error compensation data varies from machine to machine. Changing the data degrades the machine a
Page 1237B-63323EN-1/03 12.DISPLAY/SET/EDIT - Moving the cursor Move the cursor to the desired pitch error compensation data. Method 1 PAGE Use the PAGE page keys and cursor keys to move the cursor. Method 2 (1) Press the [NUMBER SEARCH] soft key. (2) Enter a pitch error compensation data number. (3) Enter a
Page 123812.DISPLAY/SET/EDIT B-63323EN-1/03 12.1.23 Power Mate CNC Manager Function When power motion series units are used as CNC additional (slave) axes, the Power Mate CNC manager function enables the data for the slave axes to be displayed and specified on the CNC side. Specifically, the following displa
Page 1239B-63323EN-1/03 12.DISPLAY/SET/EDIT - Slave state display and selection operations The following information related to the connected slaves (up to 8) is displayed at the top of the screen. - I/O Link group numbers (0 to 15) - Alarm conditions The cursor is positioned to the slave number of a display
Page 124012.DISPLAY/SET/EDIT B-63323EN-1/03 - Display position selection The current position type to be displayed is selected using soft keys: - Absolute coordinate display: Press soft key [ABSOLUTE]. - Machine coordinate display: Press soft key [MACHINE]. - Axis name display The name of a slave axis can be
Page 1241B-63323EN-1/03 12.DISPLAY/SET/EDIT - Parameter selection and search To select a desired parameter number, position the cursor to the parameter number by pressing the cursor keys and the page keys. PAGE PAGE Alternatively, search for a desired parameter by means of the following procedures. Method 1
Page 124212.DISPLAY/SET/EDIT B-63323EN-1/03 NOTE If a program corresponding to the selected program number is already in program memory, the new data overwrites the program. If the program is currently selected, however, no overwriting occurs. Instead, a warning is issued to reject editing. (2) Parameter out
Page 1243B-63323EN-1/03 12.DISPLAY/SET/EDIT PAGE - Diagnostic data search PAGE Pressing the page keys scrolls the screen. Alternatively, diagnostic data can be searched for using the following procedures. Method 1 (1) Press soft key [NUMBER SEARCH]. (2) Enter a diagnostic data number. (3) Press soft key [EXE
Page 124412.DISPLAY/SET/EDIT B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 2080 PPE PMN SLV [Input type] Setting input [Data type] Bit #0 SLV Specifies whether to use multiple-slave displays (for up to four slaves) in the Power Mate CNC manager function, as follows: 0: Do not use. 1: Use. #3 PMN Specifies
Page 1245B-63323EN-1/03 12.DISPLAY/SET/EDIT 2090 Axis name for Power Mate CNC manager function slave 1 2091 Axis name for Power Mate CNC manager function slave 2 2092 Axis name for Power Mate CNC manager function slave 3 2093 Axis name for Power Mate CNC manager function slave 4 2094 Axis name for Power Mate
Page 124612.DISPLAY/SET/EDIT B-63323EN-1/03 Caution - I/O Link connection When a power motion series unit is used as an I/O Link slave, the CNC assigns an I/O address to the slave. Because the data input to and output from the slave is in 16-byte blocks, 128 input/output points must be specified. Up to eight
Page 1247B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.1.24 DI/DO Monitor Function If a failure occurs, or the machine halts while waiting for an external signal such that it appears as if a failure has occurred, it is necessary to check the internal status of the CNC using the CNC self-diagnosis function, or to fin
Page 124812.DISPLAY/SET/EDIT B-63323EN-1/03 - Signal-by-signal display A signal extending over more than one bit is displayed using a single decimal number (one-bit signals are displayed using binary numbers (0 and 1), however). In addition, axis type signals are grouped by axis, and spindle type signals are
Page 1249B-63323EN-1/03 12.DISPLAY/SET/EDIT 3. Bit axis type signal This is a one-bit axis type signal. Its start address and bit number for the first axis are displayed as the signal address. 4. Integer axis type signal This is an integer type signal extending over more than one bit. Its f
Page 125012.DISPLAY/SET/EDIT B-63323EN-1/03 6. Integer spindle type signal This is an integer type signal extending over more than one bit. Its first-axis address and bit number are displayed as the signal address. Screen manipulation - DI/DO signal switching To switch the display from DI signals to DO signa
Page 1251B-63323EN-1/03 12.DISPLAY/SET/EDIT Example of address entry 1. Address entry for bit display "G67" A page containing signals related to G67 appears. "67" If DI signals are displayed, a page containing signals related to G67 appears. If DO signals are displayed, a page containing signals related to F
Page 125212.DISPLAY/SET/EDIT B-63323EN-1/03 12.1.25 Brightness Adjustment Screen for Monochrome Display Unit with Graphic Function Overview This function is available only for monochrome display unit with graphic function. It is used to make the settings for the background and cursor brightness (color bright
Page 1253B-63323EN-1/03 12.DISPLAY/SET/EDIT NOTE The LCD brightness is lowered at low ambient temperatures. (Particularly, the LCD screen is dark immediately after power-up.) This is a characteristic of the LCD, and not a failure. As the ambient temperature rises, the LCD screen becomes brighter. Parameters
Page 125412.DISPLAY/SET/EDIT B-63323EN-1/03 12.1.26 Fine Torque Sensing Overview The CNC stores the disturbance torque data detected by a servo motor or spindle motor to internal memory. The following manipulations are possible for the stored torque data. 1. The stored torque data can be represented graphica
Page 1255B-63323EN-1/03 12.DISPLAY/SET/EDIT Storing interval 8ms 16ms 32ms Number of target axes 1 About 69.9 About 139.8 About 279.6 minutes minutes minutes 2 About 34.9 About 69.9 About 139.8 minutes minutes minutes 3 or 4 About 17.4 About 34.9 About 69.9 minutes minutes minutes NOTE 1 The disturbance load
Page 125612.DISPLAY/SET/EDIT B-63323EN-1/03 Parameters #7 #6 #5 #4 #3 #2 #1 #0 4660 ATL SPL TQ2 TQ1 [Input type] Parameter input [Data type] Bit #0 TQ1 #1 TQ2 This parameter specifies the intervals at which the fine sensing function stores data. Storing interval TQ2 TQ1 8ms 0 0 16ms 0 1 32ms 1 0 #2 SPL Speci
Page 1257B-63323EN-1/03 12.DISPLAY/SET/EDIT NOTE 1 If a fine torque sensing target axis, N, is specified as 0, target axis N+1 and those that follow it are ignored and assumed to be 0. 2 If a servo axis is a target axis for fine torque sensing, it is necessary to set bit 0 of parameter No. 1958 for the targe
Page 125812.DISPLAY/SET/EDIT B-63323EN-1/03 Alarm and message Number Message Description SR1055 ILLEGAL FINE TORQUE SENSING The setting of a fine torque sensing parameter is invalid. PARAMETER An invalid controlled-axis number was specified for a target axis. - 1242 -
Page 1259B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.1.27 2-LCD-unit Connection Function Description Until now, it was only possible to display screens on a single LCD unit. By using this function, it is now possible to simultaneously display the same screen on two LCD units. Optical fiber cable 1st LCD 2nd LCD 1s
Page 126012.DISPLAY/SET/EDIT B-63323EN-1/03 NOTE 3 If a card is inserted into the memory card interface of the first LCD unit after the system is switched to the second LCD unit, the system can be switched to the first LCD unit at a later time. In this case, the memory card interface of the first LCD unit is
Page 1261B-63323EN-1/03 12.DISPLAY/SET/EDIT Parameters #7 #6 #5 #4 #3 #2 #1 #0 2219 MLC ! * " ! #+ ,-. &%/(-."( 0 0: the LCD unit specified for parameter No.2221. 1: the LCD unit selected before the power was disconnected
Page 126212.DISPLAY/SET/EDIT B-63323EN-1/03 12.1.28 Changing Blinking Displays in G05.1 Q1 Mode Overview In G05.1 Q1 mode (acceleration/deceleration mode before look-ahead interpolation and fine HPCC mode), it is possible to display "STRT" instead of "HPCC," which blinks in the status bar at the top of the s
Page 1263B-63323EN-1/03 12.DISPLAY/SET/EDIT Fig. 12.1.28 (b) Display of "HPCC" Parameters 2590 First character to be made to blink in G05.1 Q1 mode 2591 Second character to be made to blink in G05.1 Q1 mode 2592 Third character to be made to blink in G05.1 Q1 mode 2593 Fourth character to be made to blink in
Page 126412.DISPLAY/SET/EDIT B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 7697 WNM [Input type] Setting input [Data type] Bit #2 WNM Specifies whether to enable a manual numeric command for tool length/workpiece origin measurement and an automatic reference position return after measurement as follows: 0: Enable.
Page 1265B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.2 EDITING 12.2.1 Tape Length for Part Program Storage General The following tape lengths are supported: 80, 160, 320, 640, 1280, 2560, and 5120 m Alarm and message WARNING message Contents NO MORE SPACE There is no enough program memory. Delete unnecessary progr
Page 126612.DISPLAY/SET/EDIT B-63323EN-1/03 12.2.2 Number of Programs Stored General The following lists the number of NC programs that can be stored for each tape length: Tape length (mm) 80 160 320 640 1280 2560 5120 Number of programs stored 100(100) 100(200) 100(400) 100(1000) 100(1000) 100(1000) 100(100
Page 1267B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.2.3 Memory Protection Keys General Memory protection keys can be provided so as not to inadvertently store, change, or delete programs, offset values, parameters, settings, and so forth. Signal Memory protection signals KEY1-KEY4 [Classification] Inp
Page 126812.DISPLAY/SET/EDIT B-63323EN-1/03 12.2.4 Program Encryption General A password can be set by setting parameter No. 2210 (PSW) and parameter No. 2211 (KEY) to lock program memory. When program memory is locked (when PSW is other than 0, and PSW ad KEY do not match), NC program display, editing, and
Page 1269B-63323EN-1/03 12.DISPLAY/SET/EDIT Parameter 2210 Password (PSW) ! - 1 " ! $ ! (22222222 & *3' 3% %% % & ' 3%% & % % 1
Page 127012.DISPLAY/SET/EDIT B-63323EN-1/03 2212 Minimum value for the program protection range (PMIN) 2213 Maximum value for the program protection range (PMAX) [Input type] Locked parameter [Data type] Integer [Valid data range] 0 - 99999999 Programs in the range specified by these parameters can be protec
Page 1271B-63323EN-1/03 12.DISPLAY/SET/EDIT Alarm and message WARNING message Contents WRITE PROTECT An attempt was made to create a program having a program number within the protected range. Set the unlocked state before creating programs. INVISIBLE PROGRAM An attempt was made to select a program within th
Page 127212.DISPLAY/SET/EDIT B-63323EN-1/03 12.2.5 Background Editing General Editing a program while another program is being executed or edited is referred to as background editing. In background editing, program operations such as search, editing, registration, and deletion can be performed in the same ma
Page 1273B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.2.6 Playback General With the playback function, desired machine positions set by making manual movements along axes in teach-in mode can be registered in a machining program. Teach-in mode, which is set when EDIT mode and manual mode are selected at the same ti
Page 127412.DISPLAY/SET/EDIT B-63323EN-1/03 Teach-in select confirmation signal MTCHIN [Classification] Output signal [Function] Posts notification that teach-in mode is selected. [Output condition] This signal is set to 1 when teach-in mode is set. Signal address #7 #6 #5 #4 #3 #2 #1 #0 G002 TCHIN F
Page 1275B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.2.7 Automatic Sequence Number Insertion General Each time a block is inserted during program creation, a sequence number is inserted automatically. Parameter #7 #6 #5 #4 #3 #2 #1 #0 0010 SQN ! " ! # :; &%%
Page 127612.DISPLAY/SET/EDIT B-63323EN-1/03 12.2.8 Editing a Running Program General When a program running in automatic operation mode is edited, the program can be stopped by the feed hold or single block function. After editing, automatic operation can be restarted. Parameter #7 #6 #5 #4 #3 #2 #1 #0 2201
Page 1277B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.2.9 DO Signal Output by Soft Key Overview A DO signal can be output by pressing a soft key. When any CNC screen is displayed, a DO signal can be output by soft key operation. This allows the machine tool builder to assign desired functions to soft keys. The char
Page 127812.DISPLAY/SET/EDIT B-63323EN-1/03 NOTE 1 When bit 1 (NAP) of parameter No. 8000 is 0, an alarm causes the screen to switch to the alarm message screen, placing the soft keys in the alarm cancel state. If such a condition is encountered when a one-shot type custom soft key is held on, the DO signal
Page 1279B-63323EN-1/03 12.DISPLAY/SET/EDIT Method 2 Press MDI SYSTEM key several times until the custom soft key setting screen appears. Page No. Signal output type Soft key name Soft key No. Fig. 12.2.9 (a) Custom Soft Key Setting Screen - Setting soft key names Set the names to be displayed on custom soft
Page 128012.DISPLAY/SET/EDIT B-63323EN-1/03 Input of half-size katakana characters When the display language of the CNC is Japanese, pressing soft key -*@ ;=,7 .H6 ; ! switches between half-size alphanumeric input mode and half-size katakana input mode. The current input mode is indicated in the lower left
Page 1281B-63323EN-1/03 12.DISPLAY/SET/EDIT Table for Conversion between Half-Size Katakana and Roman Characters (1) Table for Conversion between Half-Size Katakana and Roman Characters (2) - 1265 -
Page 128212.DISPLAY/SET/EDIT B-63323EN-1/03 In the conversion of a choked sound, double consonants (except N and M) after the choked sound. Example: "IPPAI" ¤ " " Setting data input/output Custom soft key setting data may be output to an external input/output device. Output data may be input to the CNC by fo
Page 1283B-63323EN-1/03 12.DISPLAY/SET/EDIT - Procedures for inputting setting data Method 1 (when neither the file name nor file number of an input file is specified) (1) Press soft key 7 "!. (2) Press soft key 7G7.!. Method 2 (when an input file is specified with a file name) (1) Press soft key 7 "!. (2)
Page 128412.DISPLAY/SET/EDIT B-63323EN-1/03 Signals Custom soft key function signals CTSF00 to CTSF79 [Classification] Output signal [Function] In the soft key DO signal output function, each signal posts that the corresponding custom soft key is pressed. CTSFmn: The (n+1)th custom soft key on
Page 1285B-63323EN-1/03 12.DISPLAY/SET/EDIT 12.3 READER/PUNCHER INTERFACE Overview The following data input/output operations can be done using the reader/punch interface. - Part program registration/output - Tool compensation and workpiece origin offset input/output - Tool life management data input - Custo
Page 128612.DISPLAY/SET/EDIT B-63323EN-1/03 Input/output ports The CNC has several ports for connecting input/output devices. Name Reader/punch interface A Reader/punch interface B Reader/punch interface C RS-232-C × 1 RS-232-C × 1 Interface type RS-232-C × 2 RS-422 × 1 RS-422 × 1 Installation location Main
Page 1287B-63323EN-1/03 12.DISPLAY/SET/EDIT Parameters Transferring data (such as programs and parameters) with external input/output devices via an I/O device interface (RS-232C serial port) or remote buffer interface requires that the parameters described below be set up. Of the devices connected to the fo
Page 128812.DISPLAY/SET/EDIT B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 0000 EIA NCR ISP CTV TVC ! " ! # 4$. &%%14$ % 1 & 0 0: Do not make a check. 1: Make a check. # .4$ &%% % 4$ % 1&%
Page 1289B-63323EN-1/03 12.DISPLAY/SET/EDIT 0020 Interface number for a foreground input device ! " ! $ ! / This parameter specifies an interface number for a foreground input device. The device numbers for each device are listed below: Device number Dev
Page 129012.DISPLAY/SET/EDIT B-63323EN-1/03 0023 Interface number for a background output device ! " ! $ ! / This parameter specifies an interface number for a background output device. See the descriptions about parameter No. 0020 for the device numbers
Page 1291B-63323EN-1/03 12.DISPLAY/SET/EDIT 5020 Device number for a reader/punch attached to JD5C on the additional-axis board ! " ! $ ! C This parameter specifies the device number for a reader/punch attached to connector JD5C. The specification data nu
Page 129212.DISPLAY/SET/EDIT B-63323EN-1/03 Specification Reader/punch unit specification number 1 Control codes (DC1 to DC4) are used. Feed codes are punched. Tape reader. 2 Control codes (DC1 to DC4) are not used. Feed codes are punched. 3 Control codes (DC1 to DC4) are used. Feed codes are not punched. 4
Page 1293B-63323EN-1/03 12.DISPLAY/SET/EDIT 5120 Specification number for a reader/punch unit corresponding to device number 2 5121 Number of stop bits for a reader/punch unit corresponding to device number 2 5122 Baud rate for a reader/punch unit corresponding to device number 2 5130 Specification number fo
Page 129412.DISPLAY/SET/EDIT B-63323EN-1/03 Number Message Contents SR0823 FRAMING ERROR(1) The stop bit of the character received from the I/O device connected to reader/punch interface 1 was not detected. SR0824 BUFFER OVERFLOW(1) The NC received more than 10 characters of data from the I/O device connecte
Page 1295B-63323EN-1/03 13.MEASUREMENT 13 MEASUREMENT - 1279 -
Page 129613.MEASUREMENT B-63323EN-1/03 13.1 TOOL LENGTH MANUAL MEASUREMENT General The value displayed as a relative position can be set in the offset memory as an offset value by a soft key. Call offset value display screen on the CRT. Relative positions are also displayed on this screen. Then select the re
Page 1297B-63323EN-1/03 13.MEASUREMENT 13.2 WORKPIECE ORIGIN MANUAL SETTING General By directly entering the value of the deviation measured between the workpiece coordinate system assumed during programming and the actual coordinate system, the offset required to change the actually measured value into a sp
Page 129813.MEASUREMENT B-63323EN-1/03 13.3 TOOL LENGTH/WORKPIECE ORIGIN MEASUREMENT General As the functions for measuring the tool length, the following methods are provided: method by which the tool length is automatically measured with the program command (G37) (automatic tool length measurement (See Ope
Page 1299B-63323EN-1/03 13.MEASUREMENT Tool offset number selection signals OFN0-OFN9 [Classification] Input signal [Function] Selects a tool offset number. [Operation] In tool offset measurement mode, the cursor automatically moves to the tool offset number selected by the tool offs
Page 130013.MEASUREMENT B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 6002 QNI ! "# $ ! % # #&'( &')%%
Page 1301B-63323EN-1/03 13.MEASUREMENT < -"= 3 ! ! ! ! * (+ 5! * ,+ ! ! * ) -". ; 3 !
Page 130213.MEASUREMENT B-63323EN-1/03 6024 Distance (L) from reference tool tip position to the reference measurement surface 8 ; 7 ! # % " ! ! ! ; > !! ?!
Page 1303B-63323EN-1/03 13.MEASUREMENT #7 #6 #5 #4 #3 #2 #1 #0 7697 WNM 0 -" 6 ! 2 3 @ @ + 0: Valid. 1: Invalid. Reference item Series15i/150i-MA Operator
Page 130413.MEASUREMENT B-63323EN-1/03 13.4 AUTOMATIC TOOL LENGTH MEASUREMENT (G37) By issuing G37 the tool starts moving to the measurement position and keeps on moving till the approach end signal from the measurement device is output. Movement of the tool is stopped when the tool tip reaches the measureme
Page 1305B-63323EN-1/03 13.MEASUREMENT - Changing the offset value When the MDC bit (bit 0 of parameter 7300) is set to 1 (default), the difference between the coordinate value of the position where the tool reaches the measurement position and the coordinate value specified by G37 is added to the current to
Page 130613.MEASUREMENT B-63323EN-1/03 Feedrate Coordinate value commanded in G37 Rapid traverse rate Rapid traverse Measuring speed ε ˆ Start point γ Measuring position reached signal [Operation] When the signal is turned "1", the control unit works as follows: - Reads the position of the tool along the axi
Page 1307B-63323EN-1/03 13.MEASUREMENT NOTE 1 The measuring position reached signal requires at least 10 msec. 2 The delay and dispersion of measurement position reach signal detection is 0 to 2 msec on the CNC alone, excluding those on the PCM. Thus, the measurement error is equal to the sum of 2 msec and t
Page 130813.MEASUREMENT B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 7300 SEB MDC ( ". ! !! ! 1 * (+ !* ,+ 6!! !* NOTE The standard setting is 1.
Page 1309B-63323EN-1/03 13.MEASUREMENT 7321 Deceleration position in automatic tool length measurement (value of `) 8 7 ! # % " ! ! ; > !! ( 1 ?!
Page 131013.MEASUREMENT B-63323EN-1/03 Alarm and message Number Message Contents PS0410 G37 IMPROPER AXIS COMMAND No axis or 2 or more axes were specified in the automatic tool measurement instruction (G37) block. PS0411 G37 SPECIFIED WITH H CODE An H code was specified in the same block as an automatic tool
Page 1311B-63323EN-1/03 13.MEASUREMENT 13.4.1 High-speed Measuring Position Reached Signal General The skip function operates based on a high-speed skip signal (HAE1 to HAE8 : connected directly to the CNC; not via the PMC) instead of an ordinary measuring position reached signal. In this case, up to eight s
Page 131213.MEASUREMENT B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 7301 1A8 1A7 1A6 1A5 1A4 1A3 1A2 1A1 ,6, ,6E 6 $ ! 1 ! F4B# !% * Parameter Corresponding high-speed measurement pos
Page 1313B-63323EN-1/03 13.MEASUREMENT 13.5 SKIP FUNCTION 13.5.1 Skip Function General Linear interpolation can be commanded by specifying axial move following the G31 command, like G01. If an external skip signal is input during the execution of this command, execution of the command is interrupted and the
Page 131413.MEASUREMENT B-63323EN-1/03 Pnc Q P Origin of the coordinate system Skip signal input position Pnc : Current position within the CNC when the skip signal turns on (in mm or inches) P : Distance to be measured (in mm or inches) Q : Servo delay (in mm or inches) Using parameter SEB (bit 7 of No. 730
Page 1315B-63323EN-1/03 13.MEASUREMENT NOTE 4 The CNC directly reads the skip signal SKIP from the machine tool; the PMC no longer requires to process the signal. 5 If the skip function G31 is not used, the PMC can use the signal terminal SKIP< X011#6> corresponding to the skip signal as a general pu
Page 131613.MEASUREMENT B-63323EN-1/03 1428 Skip function (G31) feedrate 8 7 ! 2 2 ! 2# % " ! ! ; > !! 8 ! ! #.% #-
Page 1317B-63323EN-1/03 13.MEASUREMENT Alarm and message Number Message Contents PS0151 CANNOT USE G31 The alarm occurs in the following cases: - The G31 code cannot be specified. The G code in group 07 (e.g. cutter compensation) is not canceled. - The torque limit was not specified by the torque limit skip
Page 131813.MEASUREMENT B-63323EN-1/03 13.5.2 High-speed Skip Signal General The skip function operates based on a high-speed skip signal (HDI0 to HDI7 : connected directly to the CNC; not via the PMC) instead of an ordinary skip signal. In this case, up to eight signals can be input. Delay and error of skip
Page 1319B-63323EN-1/03 13.MEASUREMENT 13.5.3 Multi-step Skip General In a block specifying G31.1 to G31.4, the multi-step skip function stores coordinates in a custom macro variable and cancels the remaining distance that the block was supposed to be moved when a skip signal (4 points) or high-speed skip si
Page 132013.MEASUREMENT B-63323EN-1/03 Signal Skip Signals SKIP1 SKIP2 SKIP3 SKIP4 [Classification] Input signal [Function] These signals terminate skip cutting. That is, the position where a skip signal turns to "1" in a command program block containing G31, G31.2, G31.3, or
Page 1321B-63323EN-1/03 13.MEASUREMENT NOTE 1 The skip signal width requires at least 10 msec. 2 The delay and dispersion of skip signal detection is 0 to 2 msec on the CNC alone, excluding those on the PCM. Thus, the measurement error is equal to the sum of 2 msec and the delay and dispersion of the transfe
Page 132213.MEASUREMENT B-63323EN-1/03 Parameter #7 #6 #5 #4 #3 #2 #1 #0 7200 SRE SFN HSS < = $ !3 3 $ 3 !* (+ !* #/ 3 1
Page 1323B-63323EN-1/03 13.MEASUREMENT #7 #6 #5 #4 #3 #2 #1 #0 7205 1S8 1S7 1S6 1S5 1S4 1S3 1S2 1S1 ,, ,E 63 ! F4,3 ! F4,*, $ 3 ! * E3 !#F4,% Corresponding skip signal Parameter High-speed
Page 132413.MEASUREMENT B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 7206 2S8 2S7 2S6 2S5 2S4 2S3 2S2 2S1 0, 0E 63 ! F4,*0 $ 3 ! * Corresponding skip signal Parameter High-speed skip signal DI signal i HSS(No.7200#4)=
Page 1325B-63323EN-1/03 13.MEASUREMENT #7 #6 #5 #4 #3 #2 #1 #0 7208 4S8 4S7 4S6 4S5 4S4 4S3 4S2 4S1 <, <E 63 ! F4,*< $ 3 ! * Corresponding skip signal Parameter High-speed skip signal DI signal i HSS(No.7200#4)=
Page 132613.MEASUREMENT B-63323EN-1/03 7211 Feedrate of the skip function (G31 or G31.1) 7212 Feedrate of the skip function (G31.2) 7213 Feedrate of the skip function (G31.3) 7214 Feedrate of the skip function (G31.4) 8 7 ! 2 2 ! 2# % "
Page 1327B-63323EN-1/03 13.MEASUREMENT 13.5.4 Torque Limit Skip General When a move command following G31P99 (or G31P98) is executed with the torque limit(*1) of a servo motor overridden, cutting feed can be performed in the same manner as when linear interpolation (G01) is applied. During movement with this
Page 132813.MEASUREMENT B-63323EN-1/03 Example: N1 G31 P99 Q50 Z400.0 F100.0 ; N2 G01 X300.0 F500.0 ; X A : Machine stop position 300.0 B : Current CNC position when the torque limit has been attained N2 C : N1 command end position 200.0 Error amount 100.0 N1 A a b 100.0 200.0 300.0 400.0 Z (1) At point A, t
Page 1329B-63323EN-1/03 13.MEASUREMENT - Torque limit command If no torque limit override value is specified with address Q in the torque limit skip command, and no torque limit command is specified in the PMC window and so forth, a PS alarm (PS151) is issued. When no torque limit is specified, the torque li
Page 133013.MEASUREMENT B-63323EN-1/03 - Custom macro variables When a torque limit skip command is executed, the coordinates of the end point of skip operation are stored in custom macro system variables (#5061 to #5080: Skip signal position; for a system consisting of 20 axes or more, variables #100151 to
Page 1331B-63323EN-1/03 13.MEASUREMENT Parameter #7 #6 #5 #4 #3 #2 #1 #0 7203 TSE , /5 3 ! 1 #)(, )(E(% C 3 !#F4, ?E2 ??% !* (+ 1 # ! 1
Page 133213.MEASUREMENT B-63323EN-1/03 1843 Position deviation limit at torque limit skip ; 7 ! ! > !! ($40BB( ! 1 ! C 3 ! ;* ! 1 ; !
Page 1333B-63323EN-1/03 13.MEASUREMENT 13.6 CHANGING ACTIVE OFFSET VALUE WITH MANUAL MOVE If you want to perform roughing or semi-finishing with a single tool, you may fine-adjust the tool length compensation or cutter compensation. Moreover, you may want to fine-adjust the setting of the workpiece origin of
Page 133413.MEASUREMENT B-63323EN-1/03 Example The compensation at offset number 10 becomes 54.700 + (-2.583) = 52.117 mm under the following conditions: - Specified H code: H10 - Value set at offset number 10: 54.700 mm - Amount of movement caused by manual feed along the Z-axis: -2.583 mm - Changing the cu
Page 1335B-63323EN-1/03 13.MEASUREMENT any axis (regardless of axis types, such as basic three axes, parallel axes, and rotation axes) can change the workpiece origin offset. Moreover, manual feed can be made along more than one axis at a time, when the workpiece origin offset is being changed. Example Assum
Page 133613.MEASUREMENT B-63323EN-1/03 - Operations specific to individual tool offset memory types The offset to be changed varies with what tool offset memory (A, B, or C) is used, as listed below. Tool offset Offset to be changed memory A The tool length compensation and cutter compensation are processed
Page 1337B-63323EN-1/03 13.MEASUREMENT - Emergency stop and SV alarm If the servo power is switched off (for example, when the machine is brought to an emergency stop or an SV alarm occurs), axis movement caused by follow-up is reflected to the offset during active offset change mode. NOTE If the tool length
Page 133813.MEASUREMENT B-63323EN-1/03 Active offset selection signal AOFS1,AOFS2 [Classification] Input signal [Function] This signal selects the type of an offset to be changed in the manual feed-based active offset change mode. [Operation] Tool length compensation, cutter compensation, or workp
Page 1339B-63323EN-1/03 13.MEASUREMENT A command such as Hxxx, Dxxx, or G54 specifies what tool length/cutter Operation is put at pause (stop) Operation restarts with compensation numbe r or workpiece to change the offset. the new offset. coordinate system is to be made valid. Automatic operation starting si
Page 134013.MEASUREMENT B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 2214 APL ; B 6 A 1 ! !$ ! 1 ! ! + 0: Do not preset. 1: Preset. This bit
Page 1341B-63323EN-1/03 13.MEASUREMENT Caution CAUTION 1 The handling of the changed tool offset amount depends on the parameter EVO (No.6000#0). 2 The handling of the manual intervention amount for the tool offset changing depends on the manual absolute switch and the parameter ABS (No.2409#3). 3 The tool l
Page 134214.PMC CONTROL FUNCTION B-63323EN-1/02 14 PMC CONTROL FUNCTION - 1326 -
Page 1343B-63323EN-1/02 14.PMC CONTROL FUNCTION 14.1 PMC AXIS CONTROL General The PMC can directly control any given axis, independently of the CNC. In other words, moving the tool along axes that are not controlled by the CNC is possible by entering commands, such as those specifying moving distance and fee
Page 134414.PMC CONTROL FUNCTION B-63323EN-1/02 The names of the input/output signals related to PMC axis control contain lowercase letter x. An example is PMCAx. In reality, however, a signal named PMCAx does not exist. PMCA1, PMCA2, PMCA3, and so on, with the x replaced by 1, 2, 3, and so on, actually exis
Page 1345B-63323EN-1/02 14.PMC CONTROL FUNCTION The figure below shows that command [1] is being executed, [2] is placed in the buffer in the CNC, and [3] has already been specified (the axis control block data signal has been set). Setting of axis control PMC command block data signal Registers in CNC Block
Page 134614.PMC CONTROL FUNCTION B-63323EN-1/02 completion signal CNCAx which is an output signal from the CNC. PMCAx CNCAx Exclusive OR Buffer status in CNC (XOR) 0 0 The previous command block has been read, and 0 1 1 the PMC can specify another block. The previous command block has not yet been read. The
Page 1347B-63323EN-1/02 14.PMC CONTROL FUNCTION NOTE 1 If this function is used, perform a manual reference position return after the command mode is switched from velocity to position. 2 This function cannot be used with an absolute position detector. - Diameter/radius programming for the PMC axis A paramet
Page 134814.PMC CONTROL FUNCTION B-63323EN-1/02 No. Symbol Signal name (24) ±EOTx PMC axis overtravel signal NOTE Lowercase letter n denotes an auxiliary function selection number (n= 1, 2, 3). Signal details (1) PMC axis control signal PCAX1, PCAX2, ... [Classification] Input signal [Function]
Page 1349B-63323EN-1/02 14.PMC CONTROL FUNCTION (2) Axis control command code signal CD1X7 - CD1X0, CD2X7 - CD2X0, ... [Classification] Input signal [Function] Specifies the operations listed below for each axis. CD0X7 - CDX0 : 1 ..... Axis control command code for the first axis
Page 135014.PMC CONTROL FUNCTION B-63323EN-1/02 Axis control command Operation (hex code) Skip--feed per minute 13h Performs the same operation as "G31 G01" for the CNC. Continuous feed (exponential acceleration/deceleration) Continuously feeds the tool along the controlled axis in a 16h fixed direction. Per
Page 1351B-63323EN-1/02 14.PMC CONTROL FUNCTION - Feedrate command PMC BMI CNC Axis Axis control Axis management block data (rotation axis) control signal Feedrate Feedrate command Velocity Servo command Rotation Motor control control speed data Axis control data Feedrate Stop command Signal command skip sig
Page 135214.PMC CONTROL FUNCTION B-63323EN-1/02 When the skip signal is set to 1, the feedrate Feedrate changes without stopping movement. Time N1 N2 (Example) Suppose that the following commands are issued: M80 ; M function selecting a feedrate command S200 ; Specify a rotation speed of 200 rpm. : : S300 ;
Page 1353B-63323EN-1/02 14.PMC CONTROL FUNCTION (2) Acceleration/deceleration for a feedrate command When the feedrate command function of the PMC axis control function is used, linear acceleration/deceleration can be applied to the specified feedrate at the start and end of a movement. As a result, a moveme
Page 135414.PMC CONTROL FUNCTION B-63323EN-1/02 control is to be performed. In this parameter, the motor- specific value is set automatically. b. Position management in torque control mode Whether to perform follow-up in torque control mode can be specified by bit 3 (TQF) of parameter No. 1409. When the para
Page 1355B-63323EN-1/02 14.PMC CONTROL FUNCTION 2) PMC axis control signal PCAXx is set to 0 to switch from PMC axis control to CNC axis control. 3) Reset signal RSTx is set to 1. 4) A servo alarm is issued. 5) An OT alarm is issued on an axis subjected to torque control. 6) An emergency stop occurred. 7) A
Page 135614.PMC CONTROL FUNCTION B-63323EN-1/02 - Feed per revolution Cutting feed--Specifying feed per revolution (CDxX7 to CDxX0: 12h) requires the specification of the threading and feed-per-revolution options. - Skip--feed per minute This operation does not save the skip position in a macro variable, unl
Page 1357B-63323EN-1/02 14.PMC CONTROL FUNCTION - Correspondence between axis control commands and specified data The following table lists the axis control commands and corresponding command data: Command block Axis control command Operation code signal Command data CDxX7 to CDxX0 Rapid traverse 00h Total t
Page 135814.PMC CONTROL FUNCTION B-63323EN-1/02 (3) Feedrate specification signal FD1X15 - FD1X0 , FD2X15 - FD2X0 , ... [Classification] Input signal [Function] FDX15 - FDX0 : 1 ..... Feedrate for the first axis 2 ..... Feedrate for the second axis 3 ..... Feedrate for t
Page 1359B-63323EN-1/02 14.PMC CONTROL FUNCTION [Unit of data] When bit 1 (F10) of parameter No. 1409 is set to 0 Unit of data unit IS-A IS-B IS-C IS-D IS-E Linear Metric input 10.0 1.0 0.1 0.01 0.001 mm/min axis Inch input 1.0 0.1 0.01 0.001 0.0001 inch/min Rotary axis 10.0 1.0 0.1 0.01 0.001 deg/min When b
Page 136014.PMC CONTROL FUNCTION B-63323EN-1/02 FDxX0: Controlled axis 1 FDxX5: Controlled axis 6 FDxX1: Controlled axis 2 FDxX6: Controlled axis 7 FDxX2: Controlled axis 3 FDxX7: Controlled axis 8 FDxX3: Controlled axis 4 FDxX8: Controlled axis 9 FDxX4: Controlled axis 5 FDxX9: Controlled axis 10 Once the s
Page 1361B-63323EN-1/02 14.PMC CONTROL FUNCTION (11)Feedrate command (CDxX7 to CDxX0: 0Dh) When a feedrate command is specified, the servo motor speed is set using binary code. For forward rotation, a positive value is set. For reverse rotation, a negative value (2’s complement) is set. When a new servo moto
Page 136214.PMC CONTROL FUNCTION B-63323EN-1/02 NOTE 1 A feedrate error is generated as follows: Feedrate command Amplifier Motor ↑ (b) Axis Detector ↑ (a) (a) When a feedrate command of PMC axis control is specified, a feedrate for the servo motor is given as the feedrate. When there is gearing between an a
Page 1363B-63323EN-1/02 14.PMC CONTROL FUNCTION (12) Torque control command (CDxX7 to CDxX0: 0Eh) The maximum speed in torque control is specified in rpm. If there is no object for torque generation, or if the movement speed exceeds a specified value in torque control mode, servo alarm SV0125 is issued. The
Page 136414.PMC CONTROL FUNCTION B-63323EN-1/02 makes the newly specified continuous feed rate valid. In the same way as a cutting feed--feed per minute, the specified feedrate can be multiplied by 10 according to the setting of parameter F10 (bit 1 of parameter No. 1409). In continuous feed, the feedrate ca
Page 1365B-63323EN-1/02 14.PMC CONTROL FUNCTION NOTE If specification by diameter is selected in parameter DIA (bit 3 of parameter No. 1006), parameter NDI (bit 7 of parameter No. 1404) can be used to specify the value (radius or diameter) that is to be used. (4) Axis control data signal DT1X31 - DT1X0
Page 136614.PMC CONTROL FUNCTION B-63323EN-1/02 (9) Override change (CDxX7 to CDxX0: 0Ch) The override value to be applied to the cutting feed under PMC axis control is specified using two-digit binary code. DTxX07 to DTxX00 = override value Unit of data: % NOTE 1 Override is maintained until the change comm
Page 1367B-63323EN-1/02 14.PMC CONTROL FUNCTION (5) Axis control command read strobe signal PMCA1, PMCA2, ... [Classification] Input signal [Function] Requests the CNC to read the PMC axis control command data for one block. For the operation and procedure when this signal makes a 0-to- 1 or 1-
Page 136814.PMC CONTROL FUNCTION B-63323EN-1/02 (8) Axis control stop signal STP1, STP2, ... [Classification] Input signal [Function] When this signal is set to 1: (1) During movement along the axis: Movement along the axis is decelerated then stopped. (2) During dwell: Execution is stopped. (3
Page 1369B-63323EN-1/02 14.PMC CONTROL FUNCTION 8 msec or longer SBKx iinput j [1] [2] [3] Command block iinput j PMCAx iinput j CNCAx ioutput j Execution [1] [2] wait buffera Execution- [1] in-progress Start register (11) Auxiliary function BCD code signal AF1X7 - AF1X0, AF2X7
Page 137014.PMC CONTROL FUNCTION B-63323EN-1/02 Auxiliary function command Next command Command block iinput j AFnX7 ‘AFnX0 ioutput j MFnX ioutput j FINnX iinput j - 1354 -
Page 1371B-63323EN-1/02 14.PMC CONTROL FUNCTION (14) PMC axis control rapid traverse override signal ROV1E, ROV2E [Classification] Input signal [Function] Overrides the feedrate set for rapid traverse, reference position return, and positioning in the machine coordinate system in axis control b
Page 137214.PMC CONTROL FUNCTION B-63323EN-1/02 (15) Distribution end signal DEN1, DEN2, ... [Classification] Output signal [Function] While movement along an axis is being made by a command from the PMC, this signal state is 0. When movement is stopped, the signal is set to 1. When execution o
Page 1373B-63323EN-1/02 14.PMC CONTROL FUNCTION (17) External deceleration signal *+ED 1, *+ED2, ... *-ED1, *-ED2, ... [Classification] Input signal [Function] This signal is also used with the CNC. Whether to apply external deceleration in a particular direction of a particular c
Page 137414.PMC CONTROL FUNCTION B-63323EN-1/02 (18) Feedrate command skip signal VCSKP1, VCSKP2, ... [Classification] Input signal [Function] When this signal is set to 1, the following operation is performed: (1) When a feedrate command (CDxX7 to CDxX0: 0Dh) is executed, the rotation by the f
Page 1375B-63323EN-1/02 14.PMC CONTROL FUNCTION [Operation] In actual operation, a feedrate specified in PMC axis control is overridden by the value selected by this signal. When movement is being made along an axis in response to a feedrate command, the feedrate can be overridden by this signal. Feedrate Ti
Page 137614.PMC CONTROL FUNCTION B-63323EN-1/02 (20) PMC axis control override signal in simultaneous start mode OVA7 - OVA0 [Classification] Input signal [Function] In simultaneous start mode, the feedrate in PMC axis control can be overridden by using this signal. This signal is an 8-bit binary
Page 1377B-63323EN-1/02 14.PMC CONTROL FUNCTION (23) Separate detector disconnection alarm ignore signal NDCAL1, NDCAL2, ... [Classification] Input signal [Function] If this signal is 1 in velocity command mode, no alarm is issued in the event of a hardware disconnection in the separate detecto
Page 137814.PMC CONTROL FUNCTION B-63323EN-1/02 First set the reset signal RSTx to 1, then reset it to 0. This resets the overtravel signal to 0. Move the axis to within the stroke limit using the PMC axis control command, then reset the CNC. Only the following commands can be used to move the axis back to w
Page 1379B-63323EN-1/02 14.PMC CONTROL FUNCTION Signal address PMC→CNC Non-axis type signals #7 #6 #5 #4 #3 #2 #1 #0 G045 PCSKP ROV2E ROV1E G046 FIN3X FIN2X FIN1X G383 OVA7 OVA6 OVA5 OVA4 OVA3 OVA2 OVA1 OVA0 Axis-type signals #7 #6 #5 #4 #3 #2 #1 #0 G064 *-ED1 *+ED1 G066 PMCA1 RST1 STP1 SBK1 PCAX1 G067 VCSKP
Page 138014.PMC CONTROL FUNCTION B-63323EN-1/02 CNC→PMC Non-axis type signals #7 #6 #5 #4 #3 #2 #1 #0 F046 MF3X MF2X MF1X F141 AF1X7 AF1X6 AF1X5 AF1X4 AF1X3 AF1X2 AF1X1 AF1X0 F142 AF2X7 AF2X6 AF2X5 AF2X4 AF2X3 AF2X2 AF2X1 AF2X0 F143 AF3X7 AF3X6 AF3X5 AF3X4 AF3X3 AF3X2 AF3X1 AF3X0 Axis type signals #7 #6 #5 #
Page 1381B-63323EN-1/02 14.PMC CONTROL FUNCTION Parameter #7 #6 #5 #4 #3 #2 #1 #0 1001 PED [Input type] Setting input [Data type] Bit #6 PED Specifies whether to enable the external deceleration function in PMC axis control. 0: Disables the external deceleration function. 1: Enables the external deceleration
Page 138214.PMC CONTROL FUNCTION B-63323EN-1/02 #7 #6 #5 #4 #3 #2 #1 #0 1404 NDI POV PRO [Input type] Parameter input [Data type] Bit #1 PRO Specifies whether to enable override for rapid traverse, reference position return, and positioning in the machine coordinate system in axis control by PMC. 0: Disables
Page 1383B-63323EN-1/02 14.PMC CONTROL FUNCTION #7 NDI Specifies the behavior of PMC-based axis control when diameter programming is used for the PMC controlled axis, as follows: 0: The actual amount of travel becomes twice the specified value, but the feedrate remains as specified. 1: The actual amount of t
Page 138414.PMC CONTROL FUNCTION B-63323EN-1/02 CAUTION 1 This parameter is valid only when parameter DIA (bit 3 of parameter No. 1006) = 1. 2 If a programmable diameter/radius switching is used, that is, parameter PDC (bit 5 of parameter No. 1001) = 1, parameter PDA (bit 3 of parameter No. 1009) usually spe
Page 1385B-63323EN-1/02 14.PMC CONTROL FUNCTION #3 TQF Specifies whether to perform follow-up for torque control. 0: Not performed. 1: Performed. #5 FR1 #6 FR2 FR1 and FR2 specify the unit of the feedrate data specified in the cutting feed (feed per revolution) command under PMC axis control. FR2 FR1 Metric
Page 138614.PMC CONTROL FUNCTION B-63323EN-1/02 1421 F0 feedrate for each axis for rapid traverse override [Input type] Parameter input [Data type] Realaxis [Unit of data] mm/min, inch/min, degree/min (machine unit) [Minimum unit of data] Depend on the increment system of the applied axis [Valid data range]
Page 1387B-63323EN-1/02 14.PMC CONTROL FUNCTION 1644 Parameter 1 to set acceleration/deceleration for each axis when a constant feedrate command for PMC axis control is specified [Input type] Parameter input [Data type] Integeraxis [Unit of data] rpm [Valid data range] 0 - 32767 Feedrate Parameter 1 (No.1644
Page 138814.PMC CONTROL FUNCTION B-63323EN-1/02 #7 #6 #5 #4 #3 #2 #1 #0 1959 HNG [Input type] Parameter input [Data type] Bitaxis #4 HNG Specifies whether to detect a separate detector disconnection alarm in feedrate command mode under PMC axis control, as follows: 0: Separate detector disconnection alarm to
Page 1389B-63323EN-1/02 14.PMC CONTROL FUNCTION #7 #6 #5 #4 #3 #2 #1 #0 2405 NPA [Input type] Parameter input [Data type] Bit #5 NPA When movement along the PMC control axis is specified by an NC program: 0: The alarm PS0450 occurs. 1: The alarm PS0450 does not occur. NOTE If 1 is selected, the CNC move comm
Page 139014.PMC CONTROL FUNCTION B-63323EN-1/02 Alarm and message Number Message Contents PS0450 IN PMC AXIS MODE The PMC axis control mode, the CNC issued a move instruction for the PMC axis. A move instruction can be issued on one axis from only either the PMC or the CNC. This alarm is generated when a mov
Page 1391B-63323EN-1/02 14.PMC CONTROL FUNCTION Caution CAUTION 1 Movements and operations under PMC axis control are not affected by the CNC states such as mode selection, CNC reset, feed hold, and single-block mode. 2 Emergency stop, machine lock, and machine lock for each axis can be used. 3 The mirror im
Page 139214.PMC CONTROL FUNCTION B-63323EN-1/02 Note NOTE 1 The use of the actual feedrate indication axis selection signal *ACTFx allows the indication of the actual feedrate without considering movement along the PMC-controlled axes. 2 The distance to go is not displayed in PMC axis control mode. (The corr
Page 1393B-63323EN-1/02 14.PMC CONTROL FUNCTION 14.2 EXTERNAL DATA INPUT General Data can be input and output between CNC and PMC, using signals such as the following: External data input External data output Input signal Output signal Input signal Output signal Address signal EIA0-EIA7 EOA0-EOA7 Data signal
Page 139414.PMC CONTROL FUNCTION B-63323EN-1/02 - Basic procedure for external data output The basic external data output procedure is described below: 1. PMC sets address EIA0 to EIA7 indicating the type of data required. Data output request signal ERDRQ must always be set to "1." Depending on the data, par
Page 1395B-63323EN-1/02 14.PMC CONTROL FUNCTION These steps are shown in the timing chart in the figure below. (1) (2) (3) (4) (5) (6) Address signal EIA0-7 Data signal EID0-47 Data output signal ERDRQ Strobe signal EISTB Data input (NC) Input end signal EIREND (7) (8) (9) (10) (11) (12) (13) Data set (CNC)
Page 139614.PMC CONTROL FUNCTION B-63323EN-1/02 2 Sequence number [Input] A sequence number can be specified to search for the block to be executed in memory command mode. A sequence number within the range of 1 to 99999999 can be specified, using binary codes. NOTE A search can be performed only when the fo
Page 1397B-63323EN-1/02 14.PMC CONTROL FUNCTION 4 Workpiece origin offset [Input] A controlled axis number and a coordinate system number can be specified to change the workpiece origin offset. The specification of whether a value is absolute or incremental is possible. For an absolute value, the value speci
Page 139814.PMC CONTROL FUNCTION B-63323EN-1/02 compensation amount is specified with binary codes in the range of 0 to ±999999999, with the least input increment being used as the units. [Output] A controlled axis number and a coordinate system number can be specified to output the current workpiece origin
Page 1399B-63323EN-1/02 14.PMC CONTROL FUNCTION 7 Operator message [Input] A message number can be input to register an external operator message with the CNC. Then, message text can be sent to display the message on the operator message screen on the display unit (setting of an operator message). In additio
Page 140014.PMC CONTROL FUNCTION B-63323EN-1/02 9 Tool offset with a tool number (tool number) [Input] To input and output a pot number and tool offset value, the target tool data must be specified using the tool number. Once input, the tool number is effective until the next tool number is input or the powe
Page 1401B-63323EN-1/02 14.PMC CONTROL FUNCTION 1 Program number #7 #6 #5 #4 #3 #2 #1 #0 ERDRQ (G32#6) 0/1 EIA(G33) / EOA(F33) 0 0 0 0 0 0 0 0 (G34/F34) - - - - - - - - (G35/F35) - - - - - - - - EID/EOD (G36/F36) (G37/F37) Program number (G38/F38) (1 to 99999999) (G39/F39) 2 Sequence number #7 #6 #5 #4 #3 #2
Page 140214.PMC CONTROL FUNCTION B-63323EN-1/02 4 Work origin offset value When G54 to G59 #7 #6 #5 #4 #3 #2 #1 #0 ERDRQ (G32#6) 0/1 EIA(G33) / EOA(F33) 0 0 1 0 Axis number (0,1,2,3,4...) (G34/F34) a/i - - - - - - - (G35/F35) Specify whether the tool offset value (M system) is a cutter compensation amount (r
Page 1403B-63323EN-1/02 14.PMC CONTROL FUNCTION 7 oerator message #7 #6 #5 #4 #3 #2 #1 #0 ERDRQ (G32#6) 0 EIA(G33) / EOA(F33) 0 1 0 0 0 1 0 c/s (G34/F34) - - - - - - - - (G35/F35) - - - - - - - - EID/EOD (G36/F36) (G37/F37) Operator message number (G38/F38) (0 to 4095) (G39/F39) c/s : clear(1)/set(0) Specify
Page 140414.PMC CONTROL FUNCTION B-63323EN-1/02 01 ... Output of the number of the tool for which compensation is currently enabled. 10 ... Output of the selected tool number 10 Tool offset with a tool number (pot number) #7 #6 #5 #4 #3 #2 #1 #0 ERDRQ (G32#6) 0/1 EIA(G33) / EOA(F33) 0 1 1 0 0 0 0 1 (G34/F34)
Page 1405B-63323EN-1/02 14.PMC CONTROL FUNCTION 12 Nmuber of required parts #7 #6 #5 #4 #3 #2 #1 #0 ERDRQ (G32#6) 0/1 EIA(G33) / EOA(F33) 0 1 1 0 0 0 0 1 (G34/F34) - - - - - - - - (G35/F35) 0 1 1 0 0 0 0 0 EID/EOD (G36/F36) (G37/F37) Nmuber of required parts (G38/F38) (0 to 999999999) (G39/F39) 13 Total numb
Page 140614.PMC CONTROL FUNCTION B-63323EN-1/02 Read end signal for external data input EIREND [Classification] Output signal [Function] This signal reports that the CNC has read external data input. The output conditions and procedure are as described in the "Basic procedure." Request signal for ext
Page 1407B-63323EN-1/02 14.PMC CONTROL FUNCTION External search end signal ESEND [Classification] Output signal [Function] This signal reports that the program number search or sequence search specified by external data input has been completed. [Output condition] The signal is set to "1" if: - The p
Page 140814.PMC CONTROL FUNCTION B-63323EN-1/02 Parameter #7 #6 #5 #4 #3 #2 #1 #0 2217 NOM !!"" !"!"" # "" # !$%&"" " " '
Page 1409B-63323EN-1/02 14.PMC CONTROL FUNCTION 14.3 EXTERNAL WORKPIECE NUMBER SEARCH General Several machining programs can be stored in program memory and can be started using external signals. When, in a reset state, automatic operation is started in memory operation mode, the system searches for a progra
Page 141014.PMC CONTROL FUNCTION B-63323EN-1/02 Workpiece number search signal Workpiece WN16 WN8 WN4 WN2 WN1 number 1 1 1 0 0 28 1 1 1 0 1 29 1 1 1 1 0 30 1 1 1 1 1 31 Workpiece number 00 is used for special designation "no search". Thus, a workpiece number ranges from 01 to 31. The correspondence between t
Page 1411B-63323EN-1/02 14.PMC CONTROL FUNCTION [Operation] These signals operate in the same way as external workpiece number search signals. Signal address #7 #6 #5 #4 #3 #2 #1 #0 G019 WN16 WN8 WN4 WN2 WN1 G140 EWN7 EWN6 EWN5 EWN4 EWN3 EWN2 EWN1 EWN0 G141 EWN15 EWN14 EWN13 EWN12 EWN11 EWN10 EWN9 EWN8 G142
Page 141214.PMC CONTROL FUNCTION B-63323EN-1/02 2049 Correspondence between a workpiece number and a program number in an external workpiece number search (PN) # %%# 6-6555555 7!#" ! %%#"!"' "
Page 1413B-63323EN-1/02 14.PMC CONTROL FUNCTION 14.4 KEY INPUT FROM PMC General By changing the input signals from the PMC to the CNC from "0" to "1," operations equivalent to those achieved by using the keys on the MDI panel can be performed. Signal The signal addresses for key entries are as follows. The b
Page 141414.PMC CONTROL FUNCTION B-63323EN-1/02 Note NOTE 1 By changing the signal for operating a soft key from "0" to "1," the soft key can be operated from the PMC. Note, however, the following: The soft keys change their roles depending on the situation. The number of these roles is so large that the cur
Page 1415APPENDI
Page 1416
Page 1417B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC A INTERFACE BETWEEN CNC AND PMC
Page 1418A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 A.1 ADDRESS LIST A.1.1 PMC to NC #7 #6 #5 #4 #3 #2 #1 #0 G000 ERS RRW *SP *ESP SKIP1 UINT *CSL *IT G001 SKIP4 SKIP3 SKIP2 AE3 AE2 AE1 *BSL *AIT G002 ZRN BRN SRN MOVL TCHIN G003 AGJ EDT MEM T D J H S G004 MLK DLK ABS OVC SBK BDT1 DRN AFL G005 KEY4 KEY3
Page 1419B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 G025 RISGNA RI12A RI11A RI10A RI9A RI8A G026 GS4A GS2A GS1A *SECLPA*SEUCLA DVAL SPSTPA G027 G028 GOQSM WOQSM OFN5 OFN4 OFN3 OFN2 OFN1 OFN0 G029 RVS SPCA SPBA SPAA G030 OFN7 OFN6 OFN9 OFN8 G031 M3R OILF TRRTN TRESC G032 EISTB ERD
Page 1420A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 G050 UI023 UI022 UI021 UI020 UI019 UI018 UI017 UI016 G051 UI031 UI030 UI029 UI028 UI027 UI026 UI025 UI024 G052 UI107 UI106 UI105 UI104 UI103 UI102 UI101 UI100 G053 UI115 UI114 UI113 UI112 UI111 UI110 UI109 UI108 G054 UI123 UI122
Page 1421B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 G075 SCNTR3 VCSKP3 NDCAL3 *ACTF3 DVAL3 RAST3 G076 DTCH4 *SVF4 *DEC4 *IT4 *-ED4 *+ED4 *-L4 *+L4 G077 *CL4 PK4 MLK4 MI4 -J4 +J4 G078 PMCA4 RST4 STP4 SBK4 PCAX4 SYNC4 -MIT4 +MIT4 G079 SCNTR4 VCSKP4 NDCAL4 *ACTF4 DVAL4 RAST4 G080 DT
Page 1422A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 G100 DTCH10 *SVF10 *DEC10 *IT10 *-ED10 *+ED10 *-L10 *+L10 G101 *CL10 PK10 MLK10 MI10 -J10 +J10 G102 PMCA10 RST10 STP10 SBK10 PCAX10 SYNC10 -MIT10 +MIT10 G103 SCNTR10 VCSKP10 NDCAL10 *ACTF10 DVAL10 RAST10 G104 DTCH11 *SVF11 *DEC1
Page 1423B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 G125 *CL16 PK16 MLK16 MI16 -J16 +J16 G126 PMCA16 RST16 STP16 SBK16 PCAX16 SYNC16 -MIT16 +MIT16 G127 SCNTR16 VCSKP16 NDCAL16 *ACTF16 DVAL16 RAST16 G128 G129 G130 G131 G132 G133 G134 G135 G136 G137 G138 G139 G140 EWN7 EWN6 EWN5 EW
Page 1424A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 G150 G151 G152 G153 AOFS2 AOFS1 CHGAO G154 *TLV7 *TLV6 *TLV5 *TLV4 *TLV3 *TLV2 *TLV1 *TLV0 G155 *TLV9 *TLV8 G156 TLHD2B TLHD2A TLHD1B TLHD1A CNGTL RNDH RGHTH ALNGH G157 NOT3DM BCAN G158 NSYNCA G159 PWFL G160 G161 THSTB THML G162
Page 1425B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 G175 G176 G177 HCREQ HCABT G178 THD07 THD06 THD05 THD04 THD03 THD02 THD01 THD00 G179 THD15 THD14 THD13 THD12 THD11 THD10 THD09 THD08 G180 G181 G182 G183 G184 G185 G186 G187 G188 G189 G190 G191 G192 G193 G194 G195 G196 G197 G198
Page 1426A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 G200 G201 G202 G203 G204 G205 G206 G207 G208 RI7C RI6C RI5C RI4C RI3C RI2C RI1C RI0C G209 RISGNC RI12C RI11C RI10C RI9C RI8C G210 RCHC RSLC INTGC SOCNC MCFNC SPSLC *ESPC ARSTC G211 MRDYC ORCMC SFRC SRVC CTH1C CTH2C TLMHC TLMLC G
Page 1427B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 G225 G226 RCHA RSLA INTGA SOCNA MCFNA SPSLA *ESPA ARSTA G227 MRDYA ORCMA SFRA SRVA CTH1A CTH2A TLMHA TLMLA G228 MPOFA SLVA MORCMA G229 RCHHGA MFNHGA INCMDA OVRIDA DEFMDA NRROA ROTAA INDXA G230 SH7A SH6A SH5A SH4A SH3A SH2A SH1A
Page 1428A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 G250 PMCA19 RST19 STP19 SBK19 PCAX19 SYNC19 -MIT19 +MIT19 G251 SCNTR19 VCSKP19 NDCAL19 *ACTF19 DVAL19 RAST19 G252 DTCH20 *SVF20 *DEC20 *IT20 *-ED20 *+ED20 *-L20 *+L20 G253 PK20 MLK20 MI20 -J20 +J20 G254 PMCA20 RST20 STP20 SBK20
Page 1429B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 G275 SPCB SPBB SPAB G276 SPCC SPBC SPAC G277 SPCD SPBD SPAD G278 G279 G280 G281 G282 G283 G284 G285 G286 G287 G288 G289 G290 G291 G292 MSBK17 *NZ17 -LM17 +LM17 -EXL17 +EXL17 G293 CD17X7 CD17X6 CD17X5 CD17X4 CD17X3 CD17X2 CD17X1
Page 1430A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 G300 MSBK18 *NZ18 -LM18 +LM18 -EXL18 +EXL18 G301 CD18X7 CD18X6 CD18X5 CD18X4 CD18X3 CD18X2 CD18X1 CD18X0 G302 FD18X7 FD18X6 FD18X5 FD18X4 FD18X3 FD18X2 FD18X1 FD18X0 G303 FD18X15 FD18X14 FD18X13 FD18X12 FD18X11 FD18X10 FD18X9 FD
Page 1431B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 G325 CD21X7 CD21X6 CD21X5 CD21X4 CD21X3 CD21X2 CD21X1 CD21X0 G326 FD21X7 FD21X6 FD21X5 FD21X4 FD21X3 FD21X2 FD21X1 FD21X0 G327 FD21X15 FD21X14 FD21X13 FD21X12 FD21X11 FD21X10 FD21X9 FD21X8 G328 DT21X7 DT21X6 DT21X5 DT21X4 DT21X3
Page 1432A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 G350 FD24X7 FD24X6 FD24X5 FD24X4 FD24X3 FD24X2 FD24X1 FD24X0 G351 FD24X15 FD24X14 FD24X13 FD24X12 FD24X11 FD24X10 FD24X9 FD24X8 G352 DT24X7 DT24X6 DT24X5 DT24X4 DT24X3 DT24X2 DT24X1 DT24X0 G353 DT24X15 DT24X14 DT24X13 DT24X12 DT
Page 1433B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 G375 OV8X7 OV8X6 OV8X5 OV8X4 OV8X3 OV8X2 OV8X1 OV8X0 G376 OV9X7 OV9X6 OV9X5 OV9X4 OV9X3 OV9X2 OV9X1 OV9X0 G377 OV10X7 OV10X6 OV10X5 OV10X4 OV10X3 OV10X2 OV10X1 OV10X0 G378 OV11X7 OV11X6 OV11X5 OV11X4 OV11X3 OV11X2 OV11X1 OV11X0
Page 1434A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 G400 MSBK3 *NZ3 -LM3 +LM3 -EXL3 +EXL3 G401 CD3X7 CD3X6 CD3X5 CD3X4 CD3X3 CD3X2 CD3X1 CD3X0 G402 FD3X7 FD3X6 FD3X5 FD3X4 FD3X3 FD3X2 FD3X1 FD3X0 G403 FD3X15 FD3X14 FD3X13 FD3X12 FD3X11 FD3X10 FD3X9 FD3X8 G404 DT3X7 DT3X6 DT3X5 DT
Page 1435B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 G425 CD6X7 CD6X6 CD6X5 CD6X4 CD6X3 CD6X2 CD6X1 CD6X0 G426 FD6X7 FD6X6 FD6X5 FD6X4 FD6X3 FD6X2 FD6X1 FD6X0 G427 FD6X15 FD6X14 FD6X13 FD6X12 FD6X11 FD6X10 FD6X9 FD6X8 G428 DT6X7 DT6X6 DT6X5 DT6X4 DT6X3 DT6X2 DT6X1 DT6X0 G429 DT6X1
Page 1436A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 G450 FD9X7 FD9X6 FD9X5 FD9X4 FD9X3 FD9X2 FD9X1 FD9X0 G451 FD9X15 FD9X14 FD9X13 FD9X12 FD9X11 FD9X10 FD9X9 FD9X8 G452 DT9X7 DT9X6 DT9X5 DT9X4 DT9X3 DT9X2 DT9X1 DT9X0 G453 DT9X15 DT9X14 DT9X13 DT9X12 DT9X11 DT9X10 DT9X9 DT9X8 G454
Page 1437B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 G475 FD12X15 FD12X14 FD12X13 FD12X12 FD12X11 FD12X10 FD12X9 FD12X8 G476 DT12X7 DT12X6 DT12X5 DT12X4 DT12X3 DT12X2 DT12X1 DT12X0 G477 DT12X15 DT12X14 DT12X13 DT12X12 DT12X11 DT12X10 DT12X9 DT12X8 G478 DT12X23 DT12X22 DT12X21 DT12
Page 1438A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 G500 DT15X7 DT15X6 DT15X5 DT15X4 DT15X3 DT15X2 DT15X1 DT15X0 G501 DT15X15 DT15X14 DT15X13 DT15X12 DT15X11 DT15X10 DT15X9 DT15X8 G502 DT15X23 DT15X22 DT15X21 DT15X20 DT15X19 DT15X18 DT15X17 DT15X16 G503 DT15X31 DT15X30 DT15X29 DT
Page 1439B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC A.1.2 CNC to PMC #7 #6 #5 #4 #3 #2 #1 #0 F000 MA SA OP STL SPL RST AL RWD F001 CSS THRD RPD TAP INCH IPEN DEN F002 MZRN MBRN MSRN MMOVL MTCHIN MTEST F003 MAGJ MEDT MMEM MT MD MJ MH MS F004 MMLK MDLK MABS MSBK MBDT1 MDRN MAFL F005 MBDT9 MBDT8 MBDT7 MBDT
Page 1440A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 F025 T15 T14 T13 T12 T11 T10 T9 T8 F026 T23 T22 T21 T20 T19 T18 T17 T16 F027 T31 T30 T29 T28 T27 T26 T25 T24 F028 B7 B6 B5 B4 B3 B2 B1 B0 F029 B15 B14 B13 B12 B11 B10 B9 B8 F030 B23 B22 B21 B20 B19 B18 B17 B16 F031 B31 B30 B29 B
Page 1441B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 F050 UO023 UO022 UO021 UO020 UO019 UO018 UO017 UO016 F051 UO031 UO030 UO029 UO028 UO027 UO026 UO025 UO024 F052 UO107 UO106 UO105 UO104 UO103 UO102 UO101 UO100 F053 UO115 UO114 UO113 UO112 UO111 UO110 UO109 UO108 F054 UO123 UO122
Page 1442A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 F075 MSCNTR3 F076 MDTCH4 INP4 ZP44 ZP34 MD4 MV4 ZP24 ZP4 F077 +EOT4 +EOT4 FRP4 ZRF4 MMLK4 MMI4 F078 CNCA4 DEN4 BUF4 EGBM4 AMR4 TRQM4 TRQL4 F079 MSCNTR4 F080 MDTCH5 INP5 ZP45 ZP35 MD5 MV5 ZP25 ZP5 F081 +EOT5 +EOT5 FRP5 ZRF5 MMLK5
Page 1443B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 F100 MDTCH10 INP10 ZP410 ZP310 MD10 MV10 ZP210 ZP10 F101 +EOT10 +EOT10 FRP10 ZRF10 MMLK10 MMI10 F102 CNCA10 DEN10 BUF10 EGBM10 AMR10 TRQM10 TRQL10 MSCNTR F103 10 F104 MDTCH11 INP11 ZP411 ZP311 MD11 MV11 ZP211 ZP11 F105 +EOT11 +E
Page 1444A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 F125 +EOT16 +EOT16 FRP16 ZRF16 MMLK16 MMI16 F126 CNCA16 DEN16 BUF16 EGBM16 AMR16 TRQM16 TRQL16 MSCNTR F127 16 F128 ZRNO SPO F129 EDTO MEMO TO MDIO JO HO SO F130 MLKO SBKO BDT1O DRNO F131 KEYO HS1DO HS1CO HS1BO HS1AO F132 RTO ROV
Page 1445B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 F150 M507 M506 M505 M504 M503 M502 M501 M500 F151 M515 M514 M513 M512 M511 M510 M509 M508 F152 F153 SYNER F154 SPN2 MCHAO AQSP4 AQSP3 F155 AQSP2 AQSP1 SPN1 SPN0 AQSV RSPC RSPM RSPP F156 OIL F157 D3MI MBCAN CHPCYL CHPMD F158 SPO7
Page 1446A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 F175 F176 F177 HCEXE HCAB2 F178 F179 F180 F181 F182 F183 F184 F185 F186 F187 F188 F189 F190 F191 F192 F193 F194 F195 F196 MORA2C MORA1C PORA2C SLVSC RCFNC RCHPC CFINC CHIPC F197 ORARC TLMC LDT2C LDT1C SARC SDTC SSTC ALMC F198 F1
Page 1447B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 F200 SLDM7C SLDM6C SLDM5C SLDM4C SLDM3C SLDM2C SLDM1C SLDM0C F201 SLDM15C SLDM14C SLDM13C SLDM12C SLDM11C SLDM10C SLDM9C SLDM8C F202 SSPD7C SSPD6C SSPD5C SSPD4C SSPD3C SSPD2C SSPD1C SSPD0C F203 SSPD15C SSPD14C SSPD13C SSPD12C SS
Page 1448A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 F225 F226 F227 F228 MORA2A MORA1A PORA2A SLVSA RCFNA RCHPA CFINA CHIPA F229 ORARA TLMA LDT2A LDT1A SARA SDTA SSTA ALMA F230 F231 INCSTA PC1DEA F232 SLDM7A SLDM6A SLDM5A SLDM4A SLDM3A SLDM2A SLDM1A SLDM0A F233 SLDM15A SLDM14A SLD
Page 1449B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 F250 SSPD7B SSPD6B SSPD5B SSPD4B SSPD3B SSPD2B SSPD1B SSPD0B F251 SSPD15B SSPD14B SSPD13B SSPD12B SSPD11B SSPD10B SSPD9B SSPD8B F252 SSPA7B SSPA6B SSPA5B SSPA4B SSPA3B SSPA2B SSPA1B SSPA0B F253 F254 F255 F256 F257 F258 F259 F260
Page 1450A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 F275 F276 F277 F278 F279 F280 F281 F282 F283 F284 F285 F286 F287 F288 MDTCH17 INP17 ZP417 ZP317 MD17 MV17 ZP217 ZP17 F289 -EOT17 +EOT17 FRP17 ZRF17 MMLK17 MMI17 F290 CNCA17 DEN17 BUF17 EGBM17 AMR17 TRQM17 TRQL17 MSCNTR F291 17 F
Page 1451B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 F300 MDTCH20 INP20 ZP420 ZP320 MD20 MV20 ZP220 ZP20 F301 -EOT20 +EOT20 FRP20 ZRF20 MMLK20 MMI20 F302 CNCA20 DEN20 BUF20 EGBM20 AMR20 TRQM20 TRQL20 MSCNTR F303 20 F304 MDTCH21 INP21 ZP421 ZP321 MD21 MV21 ZP221 ZP21 F305 -EOT21 +E
Page 1452A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 F325 MR15B MR14B MR13B MR12B MR11B MR10B MR9B MR8B F326 RO7C RO6C RO5C RO4C RO3C RO2C RO1C RO0C F327 RO15C RO14C RO13C RO12C RO11C RO10C RO9C RO8C F328 AR7C AR6C AR5C AR4C AR3C AR2C AR1C AR0C F329 AR15C AR14C AR13C AR12C AR11C A
Page 1453B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 F350 CTSF15 CTSF14 CTSF13 CTSF12 CTSF11 CTSF10 CTSF09 CTSF08 F351 CTSF23 CTSF22 CTSF21 CTSF20 CTSF19 CTSF18 CTSF17 CTSF16 F352 CTSF31 CTSF30 CTSF29 CTSF28 CTSF27 CTSF26 CTSF25 CTSF24 F353 CTSF39 CTSF38 CTSF37 CTSF36 CTSF35 CTSF3
Page 1454A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 F375 F376 F377 F378 F379 F380 F381 F382 F383 F384 F385 F386 F387 F388 F389 F390 F391 F392 F393 F394 F395 F396 F397 F398 F399
Page 1455B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 F400 F401 F402 F403 F404 F405 F406 F407 F408 F409 F410 F411 F412 F413 F414 F415 F416 F417 F418 F419 F420 F421 F422 F423 F424
Page 1456A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 F425 F426 F427 F428 F429 F430 F431 F432 F433 F434 F435 F436 F437 F438 F439 F440 F441 F442 F443 F444 F445 F446 F447 F448 F449
Page 1457B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 F450 F451 F452 F453 F454 F455 F456 F457 F458 F459 F460 F461 F462 F463 F464 F465 F466 F467 F468 F469 F470 F471 F472 F473 F474
Page 1458A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 #7 #6 #5 #4 #3 #2 #1 #0 F475 F476 F477 F478 F479 F480 F481 F482 F483 F484 F485 F486 F487 F488 F489 F490 F491 F492 F493 F494 F495 F496 F497 F498 F499
Page 1459B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC #7 #6 #5 #4 #3 #2 #1 #0 F500 F501 F502 F503 F504 F505 F506 F507 F508 F509 F510 F511
Page 1460A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 A.2 SIGNAL LIST A.2.1 Signal List (In Order of Symbol) Symbol Signal name Address Bit Reference item 1 1-% rapid traverse override signal G040 7 *+ED1 External deceleration signal G064 2 7.1.9, 15.1 *+ED2 External deceleration signal G068 2 7.1.9, 15.1
Page 1461B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item *ACTF11 Actual cutting feedrate display axis select signal G107 4 *ACTF12 Actual cutting feedrate display axis select signal G111 4 *ACTF13 Actual cutting feedrate display axis select signal G115 4 *ACTF14
Page 1462A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item *DEC11 Deceleration signal for reference position return G104 5 4.1 *DEC12 Deceleration signal for reference position return G108 5 4.1 *DEC13 Deceleration signal for reference position return G112 5 4.1 *D
Page 1463B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item *IT8 Axis-by-axis interlock signal G092 4 2.5 *IT9 Axis-by-axis interlock signal G096 4 2.5 *IT10 Axis-by-axis interlock signal G100 4 2.5 *IT11 Axis-by-axis interlock signal G104 4 2.5 *IT12 Axis-by-axis i
Page 1464A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item *-L19 Overtravel signal G248 1 2.3.1 *-L20 Overtravel signal G252 1 2.3.1 *-L21 Overtravel signal G256 1 2.3.1 *-L22 Overtravel signal G260 1 2.3.1 *-L23 Overtravel signal G264 1 2.3.1 *-L24 Overtravel sign
Page 1465B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item *SVF21 Servo off signal G256 6 1.2.8 *SVF22 Servo off signal G260 6 1.2.8 *SVF23 Servo off signal G264 6 1.2.8 *SVF24 Servo off signal G268 6 1.2.8 *TLV0 Tool life management count override signal G155 0 10
Page 1466A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item +J4 Feed axis/direction select signal G077 0 3.1 +J40 Jog feed/manual step feed axis direction selection soft switch F136 6 +J5 Feed axis/direction select signal G081 0 3.1 +J50 Jog feed/manual step feed ax
Page 1467B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item +MIT18 +Minus direction manual feed interlock G246 0 +MIT19 +Minus direction manual feed interlock G250 0 +MIT20 +Minus direction manual feed interlock G254 0 +MIT21 +Minus direction manual feed interlock G
Page 1468A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item -J11 Feed axis/direction select signal G105 1 3.1 -J12 Feed axis/direction select signal G109 1 3.1 -J13 Feed axis/direction select signal G113 1 3.1 -J14 Feed axis/direction select signal G117 1 3.1 -J15 F
Page 1469B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item AF3X3 Auxiliary function BCD code signal F143 3 15.1 AF3X4 Auxiliary function BCD code signal F143 4 15.1 AF3X5 Auxiliary function BCD code signal F143 5 15.1 AF3X6 Auxiliary function BCD code signal F143 6
Page 1470A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item AQSV Servo axis abnormal load detection signal F155 3 2.9 AR0A Actual spindle speed signal F012 0 9.5 AR0B Actual spindle speed signal F322 0 9.5 AR0C Actual spindle speed signal F328 0 9.5 AR0D Actual spin
Page 1471B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item ARSTC Serial spindle alarm reset signal G210 0 ARSTD Serial spindle alarm reset signal G218 0 AXC1 Axis switching signal G041 0 11.13 AXC2 Axis switching signal G041 1 11.13 AXC4 Axis switching signal G041
Page 1472A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item BUF13 Buffer full signal F114 5 15.1 BUF14 Buffer full signal F118 5 15.1 BUF15 Buffer full signal F122 5 15.1 BUF16 Buffer full signal F126 5 15.1 BUF17 Buffer full signal F290 5 15.1 BUF18 Buffer full sig
Page 1473B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item CD16X6 Axis control command code signal G505 6 15.1 CD16X7 Axis control command code signal G505 7 15.1 CD17X0 Axis control command code signal G293 0 15.1 CD17X1 Axis control command code signal G293 1 15.
Page 1474A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item CD24X1 Axis control command code signal G349 1 15.1 CD24X2 Axis control command code signal G349 2 15.1 CD24X3 Axis control command code signal G349 3 15.1 CD24X4 Axis control command code signal G349 4 15.
Page 1475B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item CD9X4 Axis control command code signal G449 4 15.1 CD9X5 Axis control command code signal G449 5 15.1 CD9X6 Axis control command code signal G449 6 15.1 CD9X7 Axis control command code signal G449 7 15.1 CF
Page 1476A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item CTSF13 Custom soft key function signals F350 5 12.1.24 CTSF14 Custom soft key function signals F350 6 12.1.24 CTSF15 Custom soft key function signals F350 7 12.1.24 CTSF16 Custom soft key function signals F
Page 1477B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item D Manual data input select signal G003 3 2.6 D3MI Three-dimensional coordinate conversion manual interrupt mode signal F157 5 3.6, 11.12 D3ROT Three-dimensional coordinate conversion mode signal F159 3 11.1
Page 1478A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item DT10X0 Axis control data signal G460 0 15.1 DT10X1 Axis control data signal G460 1 15.1 DT10X2 Axis control data signal G460 2 15.1 DT10X3 Axis control data signal G460 3 15.1 DT10X4 Axis control data signa
Page 1479B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item DT12X3 Axis control data signal G476 3 15.1 DT12X4 Axis control data signal G476 4 15.1 DT12X5 Axis control data signal G476 5 15.1 DT12X6 Axis control data signal G476 6 15.1 DT12X7 Axis control data signa
Page 1480A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item DT14X6 Axis control data signal G492 6 15.1 DT14X7 Axis control data signal G492 7 15.1 DT14X8 Axis control data signal G493 0 15.1 DT14X9 Axis control data signal G493 1 15.1 DT14X10 Axis control data sign
Page 1481B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item DT16X9 Axis control data signal G509 1 15.1 DT16X10 Axis control data signal G509 2 15.1 DT16X11 Axis control data signal G509 3 15.1 DT16X12 Axis control data signal G509 4 15.1 DT16X13 Axis control data s
Page 1482A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item DT18X12 Axis control data signal G305 4 DT18X13 Axis control data signal G305 5 DT18X14 Axis control data signal G305 6 DT18X15 Axis control data signal G305 7 DT18X16 Axis control data signal G306 0 DT18X1
Page 1483B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item DT1X15 Axis control data signal G389 7 15.1 DT1X16 Axis control data signal G390 0 15.1 DT1X17 Axis control data signal G390 1 15.1 DT1X18 Axis control data signal G390 2 15.1 DT1X19 Axis control data signa
Page 1484A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item DT21X18 Axis control data signal G330 2 DT21X19 Axis control data signal G330 3 DT21X20 Axis control data signal G330 4 DT21X21 Axis control data signal G330 5 DT21X22 Axis control data signal G330 6 DT21X2
Page 1485B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item DT23X21 Axis control data signal G346 5 DT23X22 Axis control data signal G346 6 DT23X23 Axis control data signal G346 7 DT23X24 Axis control data signal G347 0 DT23X25 Axis control data signal G347 1 DT23X2
Page 1486A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item DT2X24 Axis control data signal G399 0 15.1 DT2X25 Axis control data signal G399 1 15.1 DT2X26 Axis control data signal G399 2 15.1 DT2X27 Axis control data signal G399 3 15.1 DT2X28 Axis control data signa
Page 1487B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item DT4X27 Axis control data signal G415 3 15.1 DT4X28 Axis control data signal G415 4 15.1 DT4X29 Axis control data signal G415 5 15.1 DT4X30 Axis control data signal G415 6 15.1 DT4X31 Axis control data signa
Page 1488A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item DT6X30 Axis control data signal G431 6 15.1 DT6X31 Axis control data signal G431 7 15.1 DT7X0 Axis control data signal G436 0 15.1 DT7X1 Axis control data signal G436 1 15.1 DT7X2 Axis control data signal G
Page 1489B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item DT9X1 Axis control data signal G452 1 15.1 DT9X2 Axis control data signal G452 2 15.1 DT9X3 Axis control data signal G452 3 15.1 DT9X4 Axis control data signal G452 4 15.1 DT9X5 Axis control data signal G45
Page 1490A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item DVAL12 V-READY OFF ALARM INVALIDATION SIGNAL G111 3 2.8 DVAL13 V-READY OFF ALARM INVALIDATION SIGNAL G115 3 2.8 DVAL14 V-READY OFF ALARM INVALIDATION SIGNAL G119 3 2.8 DVAL15 V-READY OFF ALARM INVALIDATION
Page 1491B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item EID18 Data signal for external data input G038 2 EID19 Data signal for external data input G038 3 EID20 Data signal for external data input G038 4 EID21 Data signal for external data input G038 5 EID22 Data
Page 1492A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item EOD26 Data signal for external data output F039 2 15.1.1 EOD27 Data signal for external data output F039 3 15.1.1 EOD28 Data signal for external data output F039 4 15.1.1 EOD29 Data signal for external data
Page 1493B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item FD10X8 Feedrate specification signal G459 0 15.1 FD10X9 Feedrate specification signal G459 1 15.1 FD10X10 Feedrate specification signal G459 2 15.1 FD10X11 Feedrate specification signal G459 3 15.1 FD10X12
Page 1494A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item FD14X11 Feedrate specification signal G491 3 15.1 FD14X12 Feedrate specification signal G491 4 15.1 FD14X13 Feedrate specification signal G491 5 15.1 FD14X14 Feedrate specification signal G491 6 15.1 FD14X1
Page 1495B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item FD18X14 Feedrate specification signal G303 6 15.1 FD18X15 Feedrate specification signal G303 7 15.1 FD19X0 Feedrate specification signal G310 0 15.1 FD19X1 Feedrate specification signal G310 1 15.1 FD19X2 F
Page 1496A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item FD22X1 Feedrate specification signal G334 1 15.1 FD22X2 Feedrate specification signal G334 2 15.1 FD22X3 Feedrate specification signal G334 3 15.1 FD22X4 Feedrate specification signal G334 4 15.1 FD22X5 Fee
Page 1497B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item FD3X4 Feedrate specification signal G402 4 15.1 FD3X5 Feedrate specification signal G402 5 15.1 FD3X6 Feedrate specification signal G402 6 15.1 FD3X7 Feedrate specification signal G402 7 15.1 FD3X8 Feedrate
Page 1498A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item FD7X7 Feedrate specification signal G434 7 15.1 FD7X8 Feedrate specification signal G435 0 15.1 FD7X9 Feedrate specification signal G435 1 15.1 FD7X10 Feedrate specification signal G435 2 15.1 FD7X11 Feedra
Page 1499B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item FRP20 Floating reference position return completion signal F301 5 4.6 FRP21 Floating reference position return completion signal F305 5 4.6 FRP22 Floating reference position return completion signal F309 5
Page 1500A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item INCSTD Serial spindle incremental orientation mode signal F215 1 INDXA Serial spindle orientation stop position change command signal G229 0 INDXB Serial spindle orientation stop position change command sig
Page 1501B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item M18 Auxiliary function code signal F018 2 8.1, 9.3, 9.6 M19 Auxiliary function code signal F018 3 8.1, 9.3, 9.6 M20 Auxiliary function code signal F018 4 8.1, 9.3, 9.6 M21 Auxiliary function code signal F01
Page 1502A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item M503 Auxiliary function code signal F150 3 8.3 M504 Auxiliary function code signal F150 4 8.3 M505 Auxiliary function code signal F150 5 8.3 M506 Auxiliary function code signal F150 6 8.3 M507 Auxiliary fun
Page 1503B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item MDTCH7 Controlled-axis removal in progress signal F088 7 1.2.4 MDTCH8 Controlled-axis removal in progress signal F092 7 1.2.4 MDTCH9 Controlled-axis removal in progress signal F096 7 1.2.4 MDTCH10 Controlle
Page 1504A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item -MIT3 -Minus direction manual feed interlock G074 1 -MIT4 -Minus direction manual feed interlock G078 1 -MIT5 -Minus direction manual feed interlock G082 1 -MIT6 -Minus direction manual feed interlock G086
Page 1505B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item MMI18 Mirror image confirmation signal F293 0 1.2.6 MMI19 Mirror image confirmation signal F297 0 1.2.6 MMI20 Mirror image confirmation signal F301 0 1.2.6 MMI21 Mirror image confirmation signal F305 0 1.2.
Page 1506A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item MR11D Maximum spindle speed signal F337 3 9.3, 9.4 MR12A Maximum spindle speed signal F015 4 9.4 MR12B Maximum spindle speed signal F325 4 9.4 MR12C Maximum spindle speed signal F331 4 9.3, 9.4 MR12D Maximu
Page 1507B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item MSBK9 Block stop inhibit signal G448 7 15.1 MSBK10 Block stop inhibit signal G456 7 15.1 MSBK11 Block stop inhibit signal G464 7 15.1 MSBK12 Block stop inhibit signal G472 7 15.1 MSBK13 Block stop inhibit s
Page 1508A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item MV23 Axis travel in progress signal F312 2 1.2.5 MV24 Axis travel in progress signal F316 2 1.2.5 MZRN Manual reference position return selection confirmation signal F002 7 4.1 NDCAL1 Separate detector disc
Page 1509B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item ORCMD Serial spindle orientation command signal G219 6 OTALM Alarm division signal F006 3 12.1.3 OV10X0 Override signal for PMC axis control on each axis G377 0 15.1 OV10X1 Override signal for PMC axis cont
Page 1510A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item OV18X1 Override signal for PMC axis control on each axis G358 1 15.1 OV18X2 Override signal for PMC axis control on each axis G358 2 15.1 OV18X3 Override signal for PMC axis control on each axis G358 3 15.1
Page 1511B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item OV2X4 Override signal for PMC axis control on each axis G369 4 15.1 OV2X5 Override signal for PMC axis control on each axis G369 5 15.1 OV2X6 Override signal for PMC axis control on each axis G369 6 15.1 OV
Page 1512A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item OVA7 Override signal for PMC axis control in simultaneous start mode G383 7 15.1 OVC Override cancellation signal G004 4 7.1.7.4 OVRIDA Serial spindle analog override signal G229 4 OVRIDB Serial spindle ana
Page 1513B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item PMCA7 Axis control command read strobe signal G090 7 15.1 PMCA8 Axis control command read strobe signal G094 7 15.1 PMCA9 Axis control command read strobe signal G098 7 15.1 PMCA10 Axis control command read
Page 1514A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item RCHHGA Serial spindle switching HIGH-side MCC contact state signal G229 7 RCHHGB Serial spindle switching HIGH-side MCC contact state signal G237 7 RCHHGC Serial spindle switching HIGH-side MCC contact stat
Page 1515B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item RO0A Specified spindle speed signal F010 0 9.3, 9.4 RO0B Specified spindle speed signal F320 0 9.3, 9.4 RO0C Specified spindle speed signal F326 0 9.4 RO0D Specified spindle speed signal F332 0 9.4 RO10A Sp
Page 1516A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item command signal ROTAC Serial spindle orientation stop position change-time rotation direction G213 1 command signal ROTAD Serial spindle orientation stop position change-time rotation direction G221 1 comman
Page 1517B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item S11 Spindle function code signal F021 3 8.1, 9.1, 9.3, 9.8 S12 Spindle function code signal F021 4 8.1, 9.1, 9.3, 9.8 S13 Spindle function code signal F021 5 8.1, 9.1, 9.3, 9.8 S14 Spindle function code sig
Page 1518A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item SCNTR12 Spindle contour control mode switching signal G111 7 9.7 SCNTR13 Spindle contour control mode switching signal G115 7 9.7 SCNTR14 Spindle contour control mode switching signal G119 7 9.7 SCNTR15 Spi
Page 1519B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item SLDM0C Serial spindle motor torque signal F200 0 9.3 SLDM0D Serial spindle motor torque signal F216 0 9.3 SLDM10A Serial spindle motor torque signal F233 2 9.3 SLDM10B Serial spindle motor torque signal F24
Page 1520A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item SLVSB Serial spindle subordinate operation state signal F244 4 SLVSC Serial spindle subordinate operation state signal F196 4 SLVSD Serial spindle subordinate operation state signal F212 4 SO Incremental fe
Page 1521B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item SRVD Serial spindle reverse rotation command signal G219 4 SSP Canned cycle spindle stop signal F008 7 11.6 SSPA0A Serial spindle alarm code signal F236 0 9.3 SSPA0B Serial spindle alarm code signal F252 0
Page 1522A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item SSPD2B Serial spindle motor speed signal F250 2 9.3 SSPD2C Serial spindle motor speed signal F202 2 9.3 SSPD2D Serial spindle motor speed signal F218 2 9.3 SSPD3A Serial spindle motor speed signal F234 3 9.
Page 1523B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item SYNC1 Synchronization control select signal G066 2 1.10.5, 1.11 SYNC2 Synchronization control select signal G070 2 1.10.5, 1.11 SYNC3 Synchronization control select signal G074 2 1.10.5, 1.11 SYNC4 Synchron
Page 1524A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item THD04 Thermal growth compensation data G178 4 1.3.13 THD05 Thermal growth compensation data G178 5 1.3.13 THD06 Thermal growth compensation data G178 6 1.3.13 THD07 Thermal growth compensation data G178 7 1
Page 1525B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item TRQL14 Torque limit reach signal output F118 0 14.5.4 TRQL15 Torque limit reach signal output F122 0 14.5.4 TRQL16 Torque limit reach signal output F126 0 14.5.4 TRQL17 Torque limit reach signal output F290
Page 1526A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item UI030 Input signal for custom macros G051 6 11.5.1 UI031 Input signal for custom macros G051 7 11.5.1 UI100 Input signal for custom macros G052 0 11.5.1 UI101 Input signal for custom macros G052 1 11.5.1 UI
Page 1527B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item UI301 Input signal for custom macros G060 1 11.5.1 UI302 Input signal for custom macros G060 2 11.5.1 UI303 Input signal for custom macros G060 3 11.5.1 UI304 Input signal for custom macros G060 4 11.5.1 UI
Page 1528A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item UO103 Output signal for custom macros F052 3 11.5.1 UO104 Output signal for custom macros F052 4 11.5.1 UO105 Output signal for custom macros F052 5 11.5.1 UO106 Output signal for custom macros F052 6 11.5.
Page 1529B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item UO306 Output signal for custom macros F060 6 11.5.1 UO307 Output signal for custom macros F060 7 11.5.1 UO308 Output signal for custom macros F061 0 11.5.1 UO309 Output signal for custom macros F061 1 11.5.
Page 1530A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Symbol Signal name Address Bit Reference item ZP12 Reference position return completion signal F108 0 4.1, 9.6, 9.7 ZP13 Reference position return completion signal F112 0 4.1, 9.6, 9.7 ZP14 Reference position return completion signal F116 0 4.1, 9.6,
Page 1531B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Symbol Signal name Address Bit Reference item ZP323 Third reference position return completion signal F312 4 4.1, 4.5 ZP324 Third reference position return completion signal F316 4 4.1, 4.5 ZP41 Forth reference position return completion signal F064 5
Page 1532A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 A.2.2 Signal List (In Order of Address) Address Signal name Symbol Reference item F000 0 Rewind-in-progress signal RWD 5.2 F000 1 Alarm signal AL 2.4, 12.1.3 F000 2 Reset-in-progress signal RST F000 3 Automatic operation pausing signal SPL 5.1 F000 4 A
Page 1533B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item F009 6 M DECODE SIGNAL DM02 8.1 F009 7 M DECODE SIGNAL DM30 8.1 F010 0 Specified spindle speed signal RO0A 9.3, 9.4 F010 1 Specified spindle speed signal RO1A 9.3, 9.4 F010 2 Specified spindle speed signal RO2A
Page 1534A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item F018 2 Auxiliary function code signal M18 8.1, 9.3, 9.6 F018 3 Auxiliary function code signal M19 8.1, 9.3, 9.6 F018 4 Auxiliary function code signal M20 8.1, 9.3, 9.6 F018 5 Auxiliary function code signal M21
Page 1535B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item F026 6 Tool function code signal T22 8.1 F026 7 Tool function code signal T23 8.1 F027 0 Tool function code signal T24 8.1 F027 1 Tool function code signal T25 8.1 F027 2 Tool function code signal T26 8.1 F027
Page 1536A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item F035 7 Data signal for external data output EOD47 15.1.1 F036 0 Data signal for external data output EOD0 15.1.1 F036 1 Data signal for external data output EOD1 15.1.1 F036 2 Data signal for external data outp
Page 1537B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item F047 6 High-speed skip state signal HDO6 14.5.2 F047 7 High-speed skip state signal HDO7 14.5.2 F048 0 Output signal for custom macros UO000 11.5.1 F048 1 Output signal for custom macros UO001 11.5.1 F048 2 Out
Page 1538A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item F056 2 Output signal for custom macros UO202 11.5.1 F056 3 Output signal for custom macros UO203 11.5.1 F056 4 Output signal for custom macros UO204 11.5.1 F056 5 Output signal for custom macros UO205 11.5.1 F0
Page 1539B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item F064 6 In-position signal INP1 7.2.3.1 F064 7 Controlled-axis removal in progress signal MDTCH1 1.2.4 F065 0 Mirror image confirmation signal MMI1 1.2.6 F065 1 Axis-by-axis machine lock confirmation signal MMLK
Page 1540A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item F077 0 Mirror image confirmation signal MMI4 1.2.6 F077 1 Axis-by-axis machine lock confirmation signal MMLK4 5.3.1 F077 2 Reference position establishment signal ZRF4 4.1, 4.7 F077 5 Floating reference positio
Page 1541B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item F089 2 Reference position establishment signal ZRF7 4.1, 4.7 F089 5 Floating reference position return completion signal FRP7 4.6 F089 6 PMC axis overtravel signal +EOT7 15.1 F089 7 PMC axis overtravel signal -
Page 1542A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item F101 6 PMC axis overtravel signal +EOT10 15.1 F101 7 PMC axis overtravel signal -EOT10 15.1 F102 0 Torque limit reach signal output TRQL10 14.5.4 F102 1 Torque control mode signal TRQM10 15.1 F102 2 Linear moto
Page 1543B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item F114 0 Torque limit reach signal output TRQL13 14.5.4 F114 1 Torque control mode signal TRQM13 15.1 F114 2 Linear motor activation phase establishment signal AMR13 F114 3 EGB MODE SIGNAL EGBM13 1.13.5 F114 5 Bu
Page 1544A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item F126 2 Linear motor activation phase establishment signal AMR16 F126 3 EGB MODE SIGNAL EGBM16 1.13.5 F126 5 Buffer full signal BUF16 15.1 F126 6 Distribution completion signal DEN16 15.1 F126 7 Axis control com
Page 1545B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item F137 5 General-purpose soft switch OPU5 F137 6 General-purpose soft switch OPU6 F137 7 General-purpose soft switch OPU7 F138 0 Jog feed/manual step feed axis direction selection soft switch +J50 F138 1 Jog feed
Page 1546A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item F148 5 Auxiliary function code signal M405 8.3 F148 6 Auxiliary function code signal M406 8.3 F148 7 Auxiliary function code signal M407 8.3 F149 0 Auxiliary function code signal M408 8.3 F149 1 Auxiliary funct
Page 1547B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item F177 7 Hard copy in progress signal HCEXE 13.4 F196 0 Serial spindle power line switching signal CHIPC F196 1 Serial spindle switching completion signal CFINC F196 2 Serial spindle output switching signal RCHPC
Page 1548A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item F213 1 Serial spindle speed zero signal SSTD F213 2 Serial spindle speed detection signal SDTD F213 3 Serial spindle speed arrival signal SARD F213 4 Serial spindle load detection signal 1 LDT1D F213 5 Serial s
Page 1549B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item F232 1 Serial spindle motor torque signal SLDM1A 9.3 F232 2 Serial spindle motor torque signal SLDM2A 9.3 F232 3 Serial spindle motor torque signal SLDM3A 9.3 F232 4 Serial spindle motor torque signal SLDM4A 9.
Page 1550A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item F249 3 Serial spindle motor torque signal SLDM11B 9.3 F249 4 Serial spindle motor torque signal SLDM12B 9.3 F249 5 Serial spindle motor torque signal SLDM13B 9.3 F249 6 Serial spindle motor torque signal SLDM14
Page 1551B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item F294 3 EGB MODE SIGNAL EGBM18 1.13.5 F294 5 Buffer full signal BUF18 15.1 F294 6 Distribution completion signal DEN18 15.1 F294 7 Axis control command read completion signal CNCA18 15.1 F295 7 Spindle contour c
Page 1552A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item F306 6 Distribution completion signal DEN21 15.1 F306 7 Axis control command read completion signal CNCA21 15.1 F307 7 Spindle contour control mode switching confirmation signal MSCNTR21 9.7 F308 0 Reference po
Page 1553B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item F319 7 Spindle contour control mode switching confirmation signal MSCNTR24 9.7 F320 0 Specified spindle speed signal RO0B 9.3, 9.4 F320 1 Specified spindle speed signal RO1B 9.3, 9.4 F320 2 Specified spindle sp
Page 1554A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item F328 3 Actual spindle speed signal AR3C 9.5 F328 4 Actual spindle speed signal AR4C 9.5 F328 5 Actual spindle speed signal AR5C 9.5 F328 6 Actual spindle speed signal AR6C 9.5 F328 7 Actual spindle speed signal
Page 1555B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item F336 7 Maximum spindle speed signal MR7D 9.3, 9.4 F337 0 Maximum spindle speed signal MR8D 9.3, 9.4 F337 1 Maximum spindle speed signal MR9D 9.3, 9.4 F337 2 Maximum spindle speed signal MR10D 9.3, 9.4 F337 3 Ma
Page 1556A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item F353 1 Custom soft key function signals CTSF33 12.1.24 F353 2 Custom soft key function signals CTSF34 12.1.24 F353 3 Custom soft key function signals CTSF35 12.1.24 F353 4 Custom soft key function signals CTSF3
Page 1557B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G003 0 Incremental feed select signal S 2.6 G003 1 Manual handle feed select signal H 2.6 G003 2 Jog feed select signal J 2.6 G003 3 Manual data input select signal D 2.6 G003 4 DNC COMMAND SELECT SIGNAL T 2.6,
Page 1558A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G012 7 Feedrate override signal *FV7 7.1.7.2 G013 0 Second feedrate override signal *AFV0 7.1.7.3 G013 1 Second feedrate override signal *AFV1 7.1.7.3 G013 2 Second feedrate override signal *AFV2 7.1.7.3 G013 3
Page 1559B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G021 4 Incremental feed travel distance select signal DIST12 3.1 G021 5 Incremental feed travel distance select signal DIST13 3.1 G021 6 Incremental feed travel distance select signal DIST14 3.1 G021 7 Incremen
Page 1560A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G033 5 Address signal for external data input EIA5 15.1.1 G033 6 Address signal for external data input EIA6 15.1.1 G033 7 Address signal for external data input EIA7 15.1.1 G034 0 Data signal for external data
Page 1561B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G043 2 Manual handle feed axis select signal HS1E G043 4 Manual arbitrary-angle feed axis select signal AJP1E G043 5 Manual arbitrary-angle feed axis select signal AJP2E G043 6 Tool group signal TL512 10.3 G043
Page 1562A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G053 2 Input signal for custom macros UI110 11.5.1 G053 3 Input signal for custom macros UI111 11.5.1 G053 4 Input signal for custom macros UI112 11.5.1 G053 5 Input signal for custom macros UI113 11.5.1 G053 6
Page 1563B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G061 6 Input signal for custom macros UI314 11.5.1 G061 7 Input signal for custom macros UI315 11.5.1 G062 0 Input signal for custom macros UI316 11.5.1 G062 1 Input signal for custom macros UI317 11.5.1 G062 2
Page 1564A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G071 4 Actual cutting feedrate display axis select signal *ACTF2 G071 5 Separate detector disconnection alarm ignore signal NDCAL2 15.1 G071 6 Velocity command skip signal VCSKP2 15.1 G071 7 Spindle contour con
Page 1565B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G081 2 Mirror image signal MI5 1.2.6 G081 3 Axis-by-axis machine lock signal MLK5 5.3.1 G081 4 Parking signal PK5 1.8 G082 0 +Minus direction manual feed interlock +MIT5 G082 1 -Minus direction manual feed inte
Page 1566A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G091 5 Separate detector disconnection alarm ignore signal NDCAL7 15.1 G091 6 Velocity command skip signal VCSKP7 15.1 G091 7 Spindle contour control mode switching signal SCNTR7 9.7 G092 0 Overtravel signal *+
Page 1567B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G101 3 Axis-by-axis machine lock signal MLK10 5.3.1 G101 4 Parking signal PK10 1.8 G102 0 +Minus direction manual feed interlock +MIT10 G102 1 -Minus direction manual feed interlock -MIT10 G102 2 Synchronizatio
Page 1568A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G111 6 Velocity command skip signal VCSKP12 15.1 G111 7 Spindle contour control mode switching signal SCNTR12 9.7 G112 0 Overtravel signal *+L13 2.3.1 G112 1 Overtravel signal *-L13 2.3.1 G112 2 External decele
Page 1569B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G121 4 Parking signal PK15 1.8 G122 0 +Minus direction manual feed interlock +MIT15 G122 1 -Minus direction manual feed interlock -MIT15 G122 2 Synchronization control select signal SYNC15 1.10.5, 1.11 G122 3 P
Page 1570A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G143 2 Extended external workpiece number search signal EWN26 15.2 G146 0 Second feedrate override signal B *AFV0B 7.1.7.3 G146 1 Second feedrate override signal B *AFV1B 7.1.7.3 G146 2 Second feedrate override
Page 1571B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G208 0 Spindle motor command voltage signal RI0C 9.3 G208 1 Spindle motor command voltage signal RI1C 9.3 G208 2 Spindle motor command voltage signal RI2C 9.3 G208 3 Spindle motor command voltage signal RI3C 9.
Page 1572A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G218 3 Serial spindle power line switching completion signal MCFND G218 4 Serial spindle soft start/stop cancellation signal SOCND G218 5 Serial spindle speed integration control signal INTGD G218 6 Serial spin
Page 1573B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G230 5 Serial spindle orientation stop position command signal SH5A 9.9 G230 6 Serial spindle orientation stop position command signal SH6A 9.9 G230 7 Serial spindle orientation stop position command signal SH7
Page 1574A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G241 1 Feed axis/direction select signal -J17 3.1 G241 2 Mirror image signal MI17 1.2.6 G241 3 Axis-by-axis machine lock signal MLK17 5.3.1 G241 4 Parking signal PK17 1.8 G242 0 +Minus direction manual feed int
Page 1575B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G251 4 Actual cutting feedrate display axis select signal *ACTF19 G251 5 Separate detector disconnection alarm ignore signal NDCAL19 15.1 G251 6 Velocity command skip signal VCSKP19 15.1 G251 7 Spindle contour
Page 1576A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G261 2 Mirror image signal MI22 1.2.6 G261 3 Axis-by-axis machine lock signal MLK22 5.3.1 G261 4 Parking signal PK22 1.8 G262 0 +Minus direction manual feed interlock +MIT22 G262 1 -Minus direction manual feed
Page 1577B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G271 5 Separate detector disconnection alarm ignore signal NDCAL24 15.1 G271 6 Velocity command skip signal VCSKP24 15.1 G271 7 Spindle contour control mode switching signal SCNTR24 9.7 G272 0 Spindle stop conf
Page 1578A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G297 0 Axis control data signal DT17X8 G297 1 Axis control data signal DT17X9 G297 2 Axis control data signal DT17X10 G297 3 Axis control data signal DT17X11 G297 4 Axis control data signal DT17X12 G297 5 Axis
Page 1579B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G305 6 Axis control data signal DT18X14 G305 7 Axis control data signal DT18X15 G306 0 Axis control data signal DT18X16 G306 1 Axis control data signal DT18X17 G306 2 Axis control data signal DT18X18 G306 3 Axi
Page 1580A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G314 4 Axis control data signal DT19X20 G314 5 Axis control data signal DT19X21 G314 6 Axis control data signal DT19X22 G314 7 Axis control data signal DT19X23 G315 0 Axis control data signal DT19X24 G315 1 Axi
Page 1581B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G323 2 Axis control data signal DT20X26 G323 3 Axis control data signal DT20X27 G323 4 Axis control data signal DT20X28 G323 5 Axis control data signal DT20X29 G323 6 Axis control data signal DT20X30 G323 7 Axi
Page 1582A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G332 0 Axis-direction-by-axis-direction stored stroke limit switching signal +EXL22 2.3.2 G332 1 Axis-direction-by-axis-direction stored stroke limit switching signal -EXL22 2.3.2 G332 2 Stroke limit externally
Page 1583B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G341 0 Axis control command code signal CD23X0 15.1 G341 1 Axis control command code signal CD23X1 15.1 G341 2 Axis control command code signal CD23X2 15.1 G341 3 Axis control command code signal CD23X3 15.1 G3
Page 1584A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G349 6 Axis control command code signal CD24X6 15.1 G349 7 Axis control command code signal CD24X7 15.1 G350 0 Feedrate specification signal FD24X0 15.1 G350 1 Feedrate specification signal FD24X1 15.1 G350 2 F
Page 1585B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G358 2 Override signal for PMC axis control on each axis OV18X2 15.1 G358 3 Override signal for PMC axis control on each axis OV18X3 15.1 G358 4 Override signal for PMC axis control on each axis OV18X4 15.1 G35
Page 1586A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G369 6 Override signal for PMC axis control on each axis OV2X6 15.1 G369 7 Override signal for PMC axis control on each axis OV2X7 15.1 G370 0 Override signal for PMC axis control on each axis OV3X0 15.1 G370 1
Page 1587B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G378 2 Override signal for PMC axis control on each axis OV11X2 15.1 G378 3 Override signal for PMC axis control on each axis OV11X3 15.1 G378 4 Override signal for PMC axis control on each axis OV11X4 15.1 G37
Page 1588A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G387 0 Feedrate specification signal FD1X8 15.1 G387 1 Feedrate specification signal FD1X9 15.1 G387 2 Feedrate specification signal FD1X10 15.1 G387 3 Feedrate specification signal FD1X11 15.1 G387 4 Feedrate
Page 1589B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G395 6 Feedrate specification signal FD2X14 15.1 G395 7 Feedrate specification signal FD2X15 15.1 G396 0 Axis control data signal DT2X0 15.1 G396 1 Axis control data signal DT2X1 15.1 G396 2 Axis control data s
Page 1590A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G404 4 Axis control data signal DT3X4 15.1 G404 5 Axis control data signal DT3X5 15.1 G404 6 Axis control data signal DT3X6 15.1 G404 7 Axis control data signal DT3X7 15.1 G405 0 Axis control data signal DT3X8
Page 1591B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G413 2 Axis control data signal DT4X10 15.1 G413 3 Axis control data signal DT4X11 15.1 G413 4 Axis control data signal DT4X12 15.1 G413 5 Axis control data signal DT4X13 15.1 G413 6 Axis control data signal DT
Page 1592A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G422 0 Axis control data signal DT5X16 15.1 G422 1 Axis control data signal DT5X17 15.1 G422 2 Axis control data signal DT5X18 15.1 G422 3 Axis control data signal DT5X19 15.1 G422 4 Axis control data signal DT
Page 1593B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G430 6 Axis control data signal DT6X22 15.1 G430 7 Axis control data signal DT6X23 15.1 G431 0 Axis control data signal DT6X24 15.1 G431 1 Axis control data signal DT6X25 15.1 G431 2 Axis control data signal DT
Page 1594A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G439 4 Axis control data signal DT7X28 15.1 G439 5 Axis control data signal DT7X29 15.1 G439 6 Axis control data signal DT7X30 15.1 G439 7 Axis control data signal DT7X31 15.1 G440 0 Axis-direction-by-axis-dire
Page 1595B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G448 2 Stroke limit externally setting signal +LM9 2.3.2 G448 3 Stroke limit externally setting signal -LM9 2.3.2 G448 4 Reference position proximity signal *NZ9 4.1 G448 7 Block stop inhibit signal MSBK9 15.1
Page 1596A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G457 2 Axis control command code signal CD10X2 15.1 G457 3 Axis control command code signal CD10X3 15.1 G457 4 Axis control command code signal CD10X4 15.1 G457 5 Axis control command code signal CD10X5 15.1 G4
Page 1597B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G466 0 Feedrate specification signal FD11X0 15.1 G466 1 Feedrate specification signal FD11X1 15.1 G466 2 Feedrate specification signal FD11X2 15.1 G466 3 Feedrate specification signal FD11X3 15.1 G466 4 Feedrat
Page 1598A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G474 6 Feedrate specification signal FD12X6 15.1 G474 7 Feedrate specification signal FD12X7 15.1 G475 0 Feedrate specification signal FD12X8 15.1 G475 1 Feedrate specification signal FD12X9 15.1 G475 2 Feedrat
Page 1599B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G483 4 Feedrate specification signal FD13X12 15.1 G483 5 Feedrate specification signal FD13X13 15.1 G483 6 Feedrate specification signal FD13X14 15.1 G483 7 Feedrate specification signal FD13X15 15.1 G484 0 Axi
Page 1600A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G492 2 Axis control data signal DT14X2 15.1 G492 3 Axis control data signal DT14X3 15.1 G492 4 Axis control data signal DT14X4 15.1 G492 5 Axis control data signal DT14X5 15.1 G492 6 Axis control data signal DT
Page 1601B-63323EN-1/03 A. INTERFACE BETWEEN CNC AND PMC Address Signal name Symbol Reference item G501 0 Axis control data signal DT15X8 15.1 G501 1 Axis control data signal DT15X9 15.1 G501 2 Axis control data signal DT15X10 15.1 G501 3 Axis control data signal DT15X11 15.1 G501 4 Axis control data signal
Page 1602A. INTERFACE BETWEEN CNC AND PMC B-63323EN-1/03 Address Signal name Symbol Reference item G509 6 Axis control data signal DT16X14 15.1 G509 7 Axis control data signal DT16X15 15.1 G510 0 Axis control data signal DT16X16 15.1 G510 1 Axis control data signal DT16X17 15.1 G510 2 Axis control data signa
Page 1603B-63323EN-1/03 INDEX INDEX Brightness Adjustment Screen for Monochrome Display Unit with Graphic Function ................................................ 1236 128 straightness compensation points................................. 60 2-LCD-unit Connection Function............................
Page 1604INDEX B-63323EN-1/03 DECIMAL POINT PROGRAMMING/POCKET FEEDRATE CONTROL .................................................... 616 CALCULATOR TYPE DECIMAL POINT FEEDRATE CONTROL/ACCELERATION AND PROGRAMMING.............................................................. 1089 DECELERATION CONTROL.........
Page 1605B-63323EN-1/03 INDEX Number of Programs Stored ............................................... 1250 NURBS INTERPOLATION............................................... 607 LINEAR INTERPOLATION ............................................. 549 NURBS Interpolation Additional Functions..............
Page 1606INDEX B-63323EN-1/03 REGAINING A MANUAL INTERVENTION AMOUNT Spindle Adjustment Screen................................................. 1183 DURING AUTOMATIC OPERATION............................. 528 SPINDLE CONTROL ........................................................ 766 RESET AND REWIND.......
Page 1607B-63323EN-1/03 INDEX TOOL COMPENSATION VALUE/TOOL COMPENSATION NUMBER/TOOL COMPENSATION MEMORY .......................................................................... 952 TOOL FUNCTION............................................................. 949 TOOL FUNCTION..................................
Page 1608Revision Record FANUC Series 15i/150i-MODEL A CONNECTION MANUAL (FUNCTION) (B-63323EN-1) Following functions (STEP 4 to 6) were added : Nano interpolation type error compensation, Smooth backlash compensation, Addition of 5000 pitch error compensation points, Thermal growth compensation along tool v
Page 1609EUROPEAN HEADQUARTERS – BELGIUM / NETHERLANDS GRAND-DUCHÉ DE LUXEMBOURG GE Fanuc Automation Europe S.A. GE Fanuc Automation Europe S.A. - Netherlands Branch - Zone Industrielle Postbus 7230 - NL-4800 GE Breda L-6468 Echternach Minervum 1603A - NL-4817 ZL Breda (+352) 727979 - 1 (+31) 76-5783 201 (CN
Page 1610Printed at GE Fanuc Automation S.A. , Luxembourg October 200
Page 1611TECHNICAL REPORT (MANUAL) NO.TMN 01/086E Date 2001.Jun.15 Genera Manager of Software Laboratory FANUC Series 15i–MA / 150i–MA Enhanced specifications for Step8 1. Communicate this report to: ¤ Your information ¤ GE Fanuc-N, GE Fanuc-E FANUC Robotics CINCINNATI MILACRON ¤ Machine tool builder Sales a
Page 16121. Outline The Step8 of FANUC Series 15i-MA/150i-MA is released. The following information is described here. - The features which are added or enhanced in the Step8 - The revisions of the manuals for the specifications of the features 1.1 The series applied for the Step8 No. Series Software Corresp
Page 16132. Rough Specifications of the new features and enhanced features No. Feature Drawing No. Specifications Series Comments MA MA (MA) 1 A02B-0261- At positioning, O O Optimum Torque J680 Acceleration/Deceleratio Acceleration/Deceler n which is optimum for ation motor torque and machine characteristics
Page 1614No. Feature Drawing No. Specifications Series Comments MA MA (MA) Included in For an axis with Linear Scale O O 7 Linear Scale Distance with Reference Marks, with Reference Coded Linear Straightness Compensation Marks and Scale(637) and is available. Straightness Straightness Compensation( Compensat
Page 1615TECHNICAL REPORT (MANUAL) NO.TMN 03/094E Date 2003 Nov.20 General Manager of Software Laboratory FANUC Series 15i–MA / 150i–MA, FANUC Series 15i–MB / 150i–MB Setting of parameter No.8495#3(LNS),#7(FLP) 1. Communicate this report to: O Your information O GE Fanuc-N, GE Fanuc-E FANUC Robotics CINCINNA
Page 1616FANUC Series 15i/150i–MA Setting of parameter No.8495#3(LNS),#7(FLP) 1.Type of applied technical documents Name FANUC Series 15i/150i–MODEL A CONNECTION MANUAL（FUNCTION） Spec.No./Ed. B-63323EN-1/03 2.Summary of Change New, Add, Applicable Group Name/Outline Correct, Date Delete Basic 7.2.2 Add Immed
Page 1617Add the following description after “PARAMETER” section in “7.2.2. Look-ahead Acceleration/Deceleration Before interpolation Parameter #7 #6 #5 #4 #3 #2 #1 #0 8495 FLP LNS LNS : The linear interpolation blocks with small movement in Look-ahead Acceleration/Deceleration Before interpolation mode will
Page 1618These parameters can change whether the linear interpolation blocks with small movement are interpolated as linear segments or smooth carve. These parameters are available on the following software series and edition. On the software which has the parameter No.8495#7(FLP), the parameter No.8495#3(LN
