B-70265EN/02 APPENDIX H.EXTERNAL GAS LEAKAGE RECORDING TABLE

- 319 -

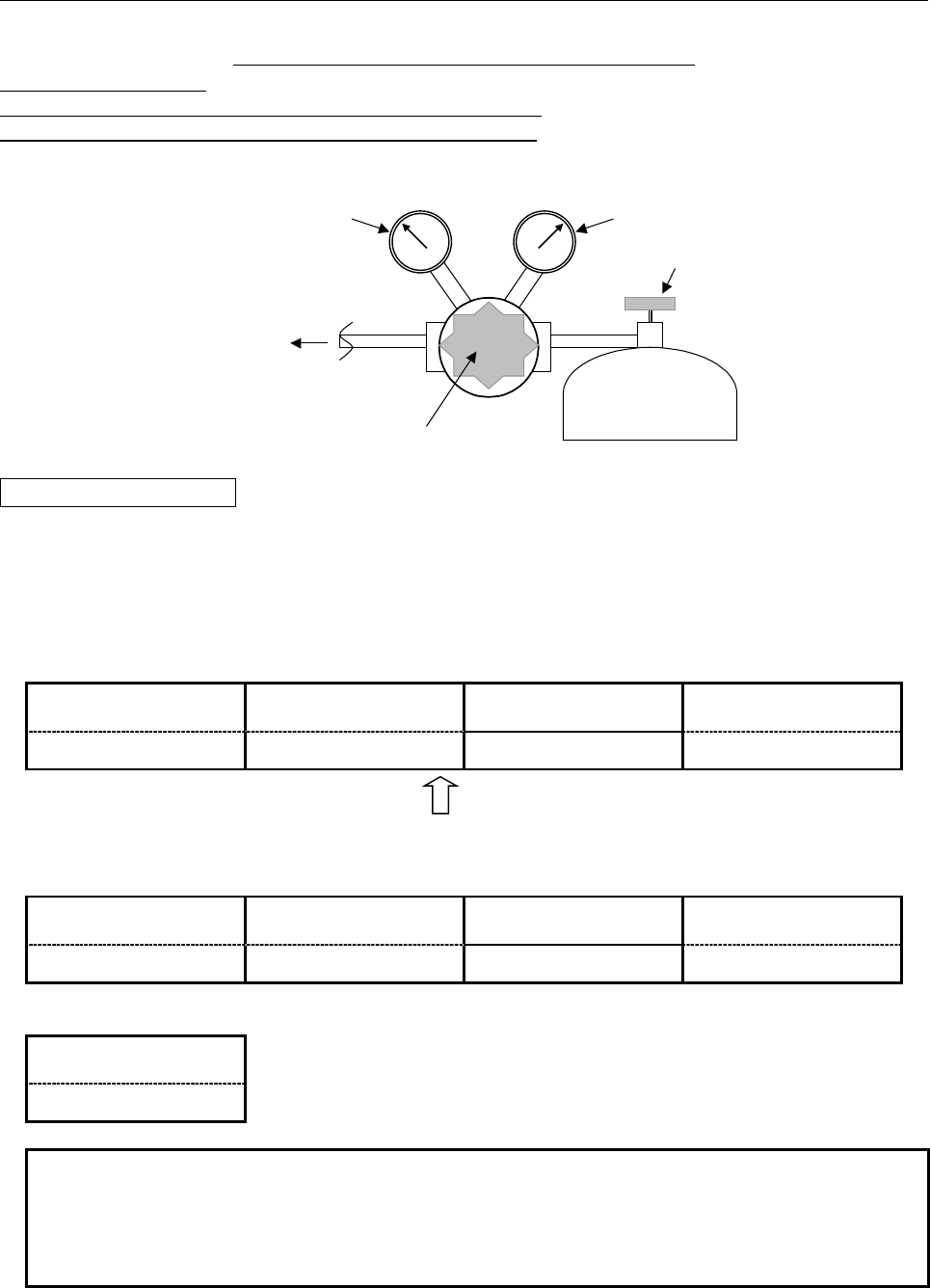

External Gas Leakage Recording Table

Date: / /

Customer Name

Customer Staff in Charge

Record necessary data according to the procedure below.

Primary pressure gage

(C)

Secondary pressure

adjustment handle (A)

Secondary

pressure gage (D)

To laser oscillator

Main cylinder valve

(B)

Gas cylinder

Fig. H Gas regulator

Recording procedure

<1> Stop the oscillator, and complete purging. Then, turn off the power.

<2> When 5 minutes or more has elapsed after the power is turned off, turn the secondary pressure

adjustment handle (A) of the gas regulator in the depressurization direction, and close the main cylinder

valve (B) after closing all adjustment nozzles.

<3> Record the readings of the primary pressure gauge (C) and secondary pressure gauge (D) together with

start time and ambient temperature data.

Primary pressure gauge

(C1)

Secondary pressure

gauge (D1)

Start time (t1) Ambient temperature

(kgf/cm

,Mpa) (kgf/cm

,Mpa)

Day hours minutes °C

(After recording the data above, leave the oscillator for 8

hours as it is, then record the data below.)

<4> Record the readings of the primary pressure gauge (C) and secondary pressure gauge (D) together with

start time and ambient temperature data after a certain time (8 hours as standard, but desirably a period

of time a little bit longer than 8 hours).

Primary pressure gauge

(C2)

Secondary pressure

gauge (D2)

End time (t2) Ambient temperature

(kgf/cm

,Mpa) (kgf/cm

,Mpa)

Day hours minutes °C

<5> Open the main cylinder valve (B) slowly

(Note)

. After the main cylinder valve is fully opened, record the

reading of the primary pressure gauge (C).

Primary pressure gauge

(C3)

(kgf/cm

,Mpa)

NOTE

When opening the main cylinder valve, do not stand in front of the regulator but

stand slantwise relative to the regulator. When the main cylinder valve is opened

if there is a large amount of leakage, the regulator may be destructed because an

abrupt pressure is applied to the regulator, and broken pieces can scatter.

<6> End of measurement
