  2. Manual for Synchronous Spindle Motor Drive

Manual for Synchronous Spindle Motor Drive Additional Manual Page 14

Additional Manual
14
Manual for
Synchronous Spindle Motor Drive
EDT. DATE DESIG. DESCRIPTION PAGE /29
A-63639E-103 /03
NO.
TITLE
NEWLY Y.Toyozawa
K.Takahashi
2003.06.13 01
02 2003.10.15 K.Takahashi
A
dded SSM etc. Y.Toyozawa
03 2004.06.09 K.Takahashi Revised Pole detect, etc. Y.Toyozawa

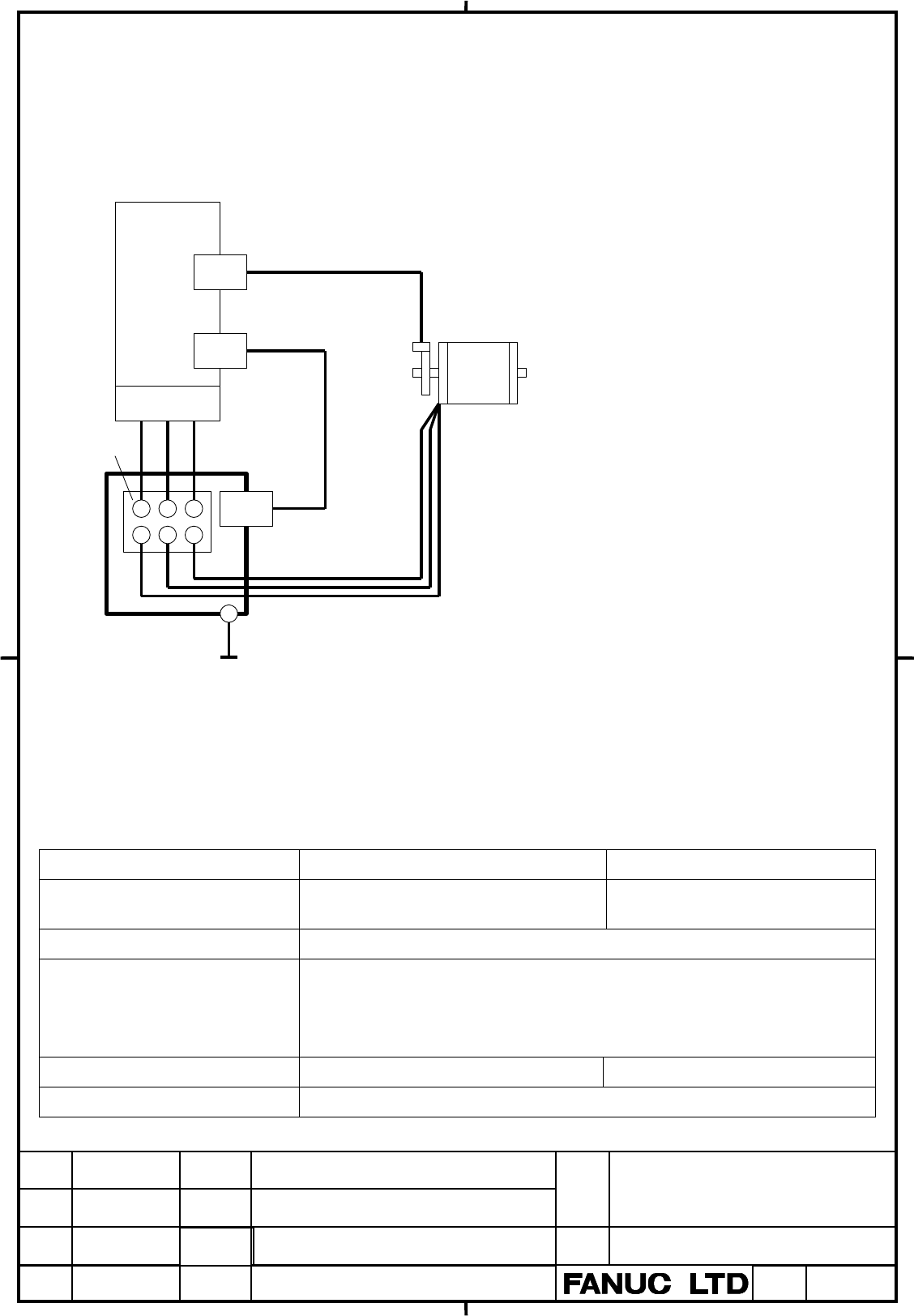

6.5 Specification of SSM hardware
6.5.1 Specification
Connection block diagram
JYA2
Synchronous Spindle Motor
JYA4
CX31
SPM TYPE B
SSM
Control Cable
GND
TB2 or CZ2
Terminal
K86
K17
K10
K70
Please refer to 6.5.4 about the detail of cable K10,K17,K70,K86.
Sub Module SM is selected by the short-circuit current between winding of a synchronous spindle motor (dynamic
brake current). Please check the specification of the synchronous spindle to apply about the short-circuit current
between winding of a motor.
Name of model SSM-100 SSM-200
Short Circuit Current
less than 120sec
100Arms 200Arms
Rated input voltage AC200V - AC480V
Applying SPM alpha i series SPM TYPE B (unit version B and later)
soft version 9D53 (#H553) version B and later
9D70 (#H570) version A and later
Example A06B-6122-H045#H553 (#H570)
Weight 6kg 6.5kg
External dimension W x H x D = 150 x 180 x 210 (mm)
U2 V2 W2
U1
V1 W1
Previous page
Next page

Contents Summary of Manual for Synchronous Spindle Motor Drive Additional Manual
