Manual for Synchronous Spindle Motor Drive Additional Manual Page 17

Additional Manual
17
Manual for
Synchronous Spindle Motor Drive
EDT. DATE DESIG. DESCRIPTION PAGE /29
A-63639E-103 /03
NO.
TITLE
NEWLY Y.Toyozawa
K.Takahashi
2003.06.13 01
02 2003.10.15 K.Takahashi
A
dded SSM etc. Y.Toyozawa
03 2004.06.09 K.Takahashi Revised Pole detect, etc. Y.Toyozawa
6.5.4 Detail of cable K10, K17, K70
Please refer to alpha i series FANUC SERVO AMPLIFIER descriptions B-65282EN, chapter 9, and appendix E.

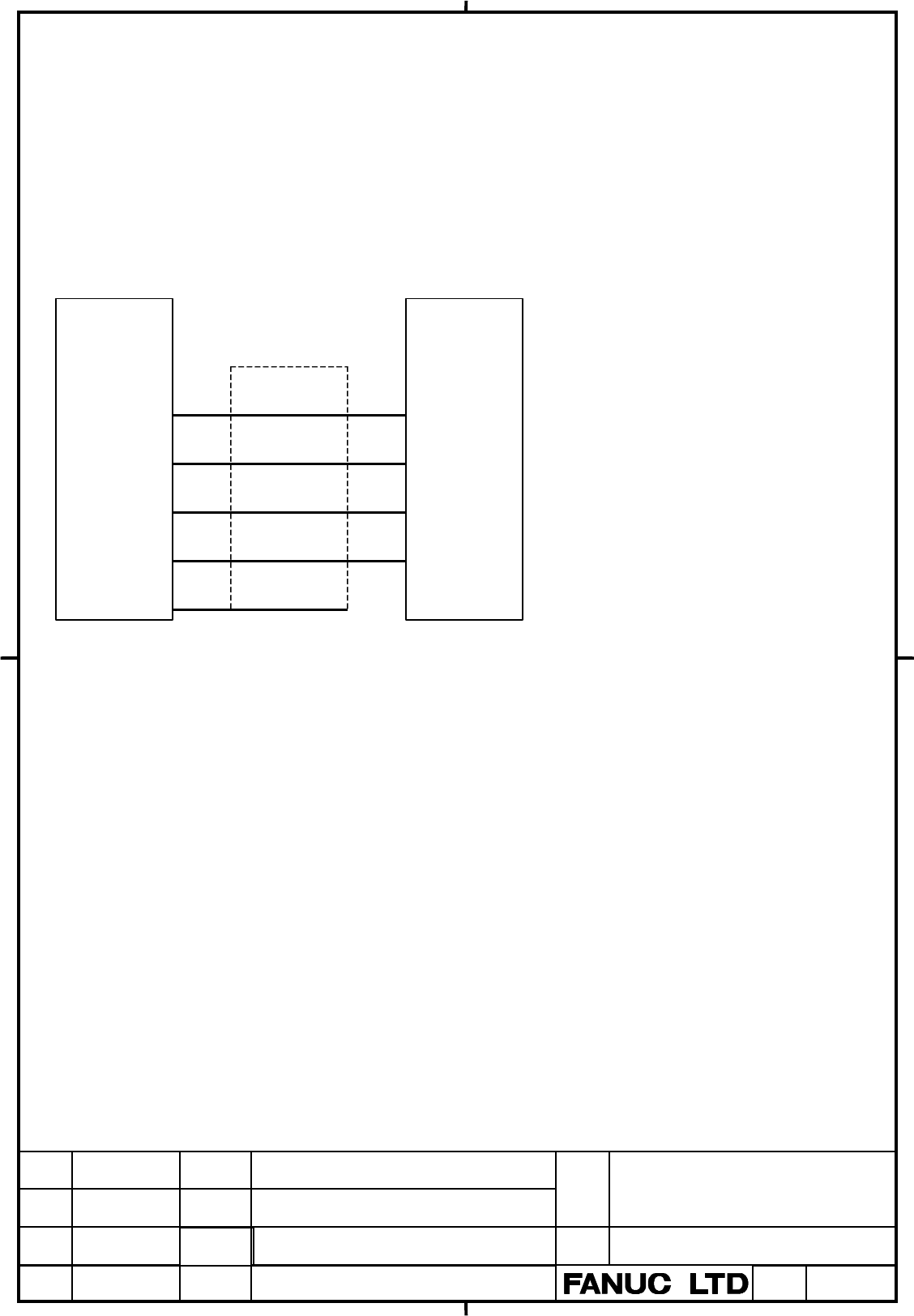

6.5.5 Detail of cable K86
The cable length of K86 should be made within 3m. Moreover, please install SPM and Sub Module SM into the same
cabinet to avoid the noise problem.
24V 24V
XALM
RDY
XALM
RDY
(11)
(13)
(15)
(A4)
(A3)
(A1)
(16) (A2)
SPM
TYPE B
JYA4
Submodule
SM
CX31
0V 0V
Shield
(10) SS
Compatible connector:
JYA4 : Solder type connector : FI40B20S, Housing : FI-20-CVS5, Hirose electric co.
CX31 : D2100 series 8 pin, Housing 1-1318119-4, Contact 1318107-1 (by 4), Tyco electronics AMP
Cable : 0, 24V, XALM,RDY : 0.5mmSQ(less than AWG20), batch shielded cable
About the detail of connector outline, please refer to alpha i series FANUC SERVO AMPLIFIER descriptions
B-65282EN.
