Series 0i - MB Operators manual Page 291

Operators manual

Page of 901

/ 901

PROGRAMMING

B–63844EN/02

14. COMPENSATION FUNCTION

267

NOTE

1 When a G28 or G30 command specifies an axis that is not in the cutter compensation C plane,

a perpendicular vector is generated at the end point of the previous block, and the tool does

not move. In the next block, offset mode is automatically resumed (in the same way as when

two or more continuous blocks do not specify any move commands).

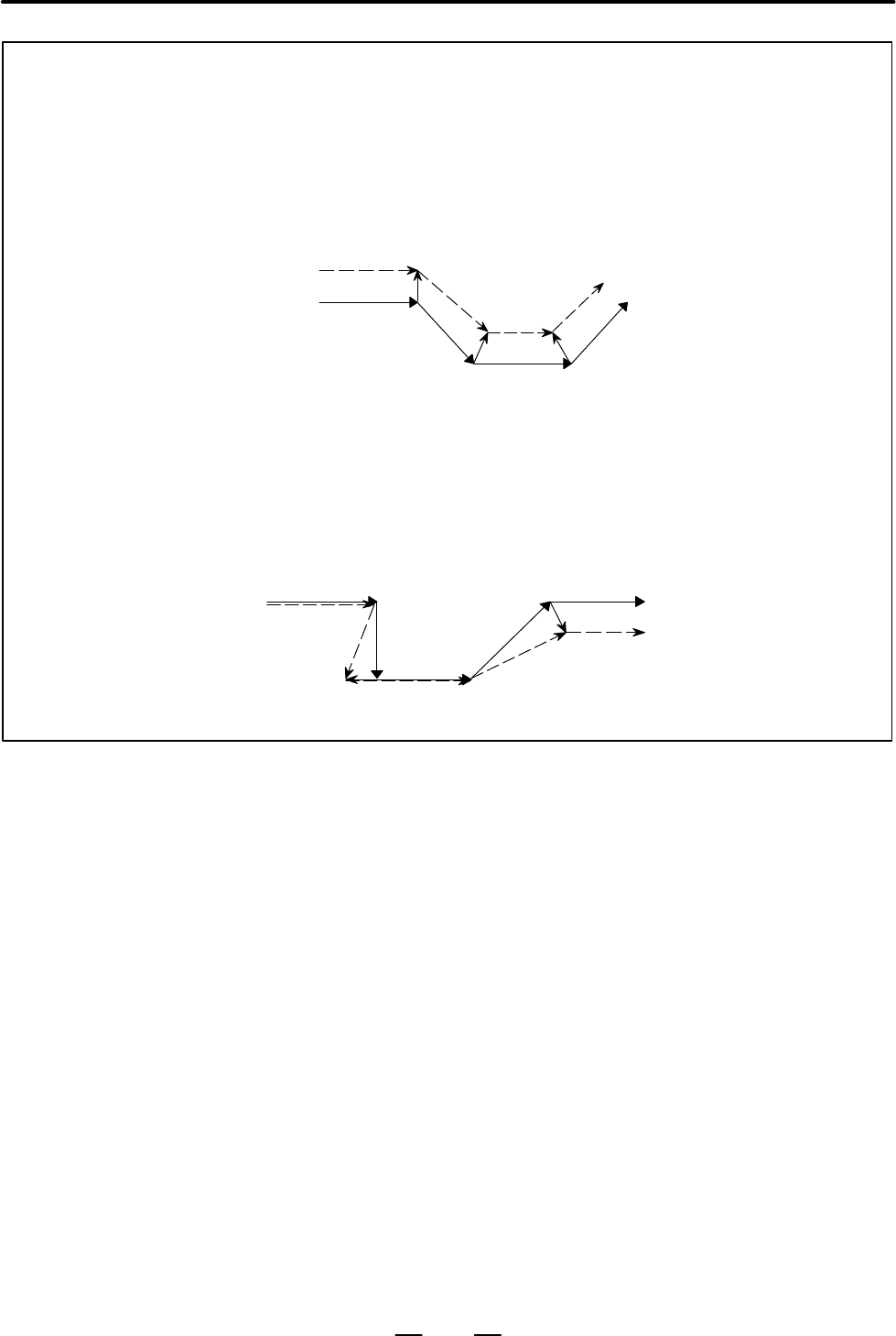

Example: When CCN (bit 2 of parameter No. 5003) = 1

2 When a G28 or G30 block is specified such that the block becomes a start–up block, a vector

perpendicular to the move direction is generated at an intermediate position, then subsequently

canceled at the reference position. In the next block, an intersection vector is generated.

Example: When CCN (bit 2 of parameter No.5003)=1

G28(G30/30.1)Z__

G01

(G41G01X_Y_)

[FS15 Type]

G01

[FS15 Type]

G01

G42G28

G01

Reference position or floating

reference position

Intermediate position
