PROGRAMMING14. COMPENSATION FUNCTION

B–63844EN/02

290

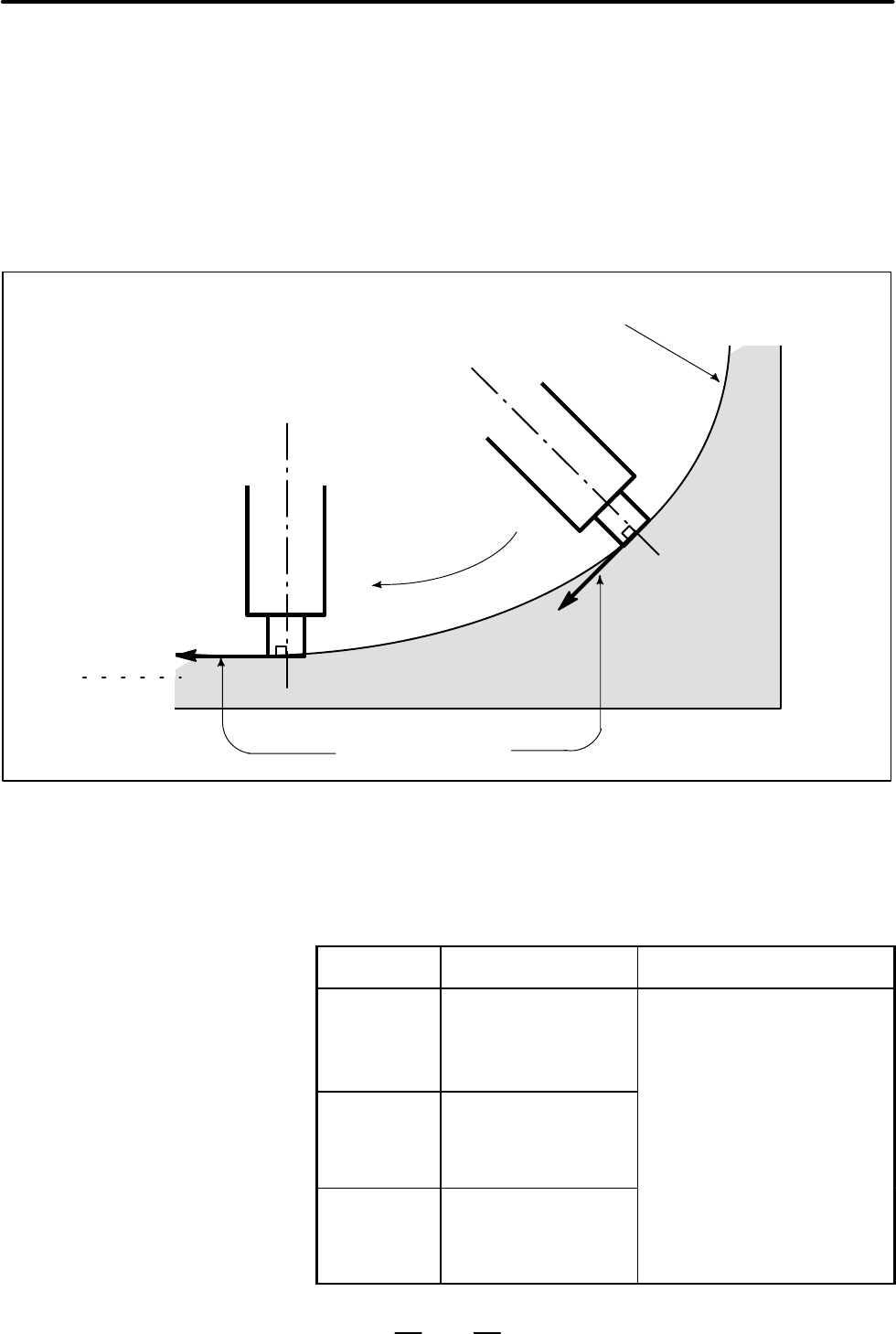

When a tool with a rotation axis (C–axis) is moved in the XY plane during

cutting, the normal direction control function can control the tool so that

the C–axis is always perpendicular to the tool path (Fig. 14.9 (a)).

Tool

Programmed tool path

Normal direction (in

which the tool moves)

C–axis

Fig. 14.9 (a) Sample Movement of the tool

G code Function Explanation

G41.1 or G151

Normal direction

control left

If the workpiece is to the right of the

tool path looking toward the direc-

tion in which the tool advances,

the normal direction control left

G42.1 or G152

Normal direction

control right

(G41.1 or G151) function is speci-

fied.

After G41.1 (or G151) or G42.1 (or

G152) is specified, the normal

direction control function is en-

G40.1 or G150

Normal direction

control cancel

abled (normal direction control

mode).

When G40.1 (or G150) is speci-

fied, the normal direction control

mode is canceled.

14.9

NORMAL DIRECTION

CONTROL

(G40.1, G41.1, G42.1

OR G150, G151,

G152)

Format
