B-63844EN/02 MANUAL GUIDE 0i 1.MANUAL GUIDE 0i

- 759 -

1.5.3.4 Arc that Contacts to both Crossing Lines and Arcs

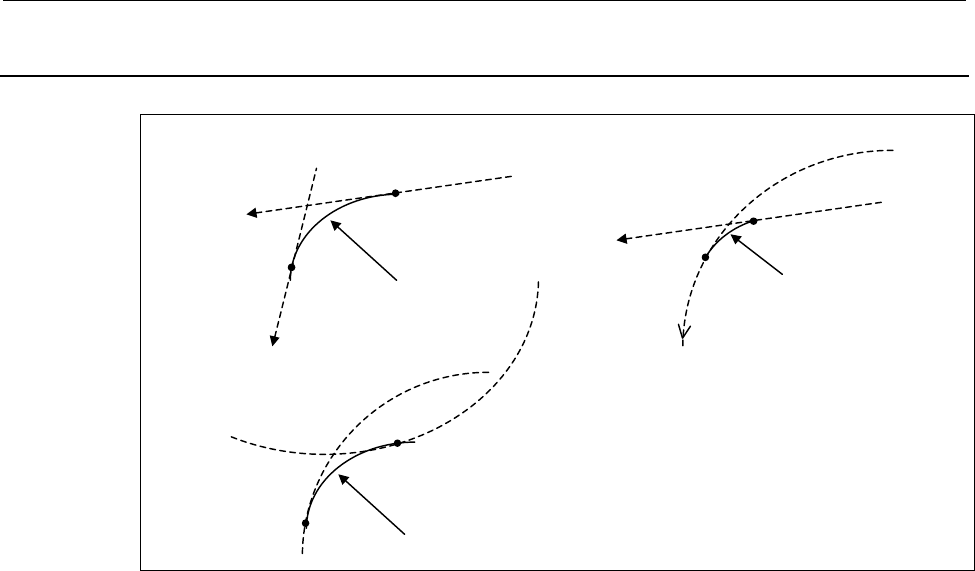

By inputting three successive figures as follows, arc (2) that is

tangential to two lines or arcs can be specified as shown in the above

drawing. The end points of (1) and (2) are determined, while (3) is

left pending. When (3) is a line, it is determined.

Line (1) or Arc (1) :

Line that is pending (for which A is inputted and the start point

has been determined), or Arc that is pending (for which I and J

are inputted and the start point has been determined)

Arc (2) :

R and "TOUCH LAST" are inputted.

Line (3) or Arc (3) :

Line with A, X and, or Arc with R, I, J and "TOUCH LAST"

When either figure (1) or (3) is an arc, or when both of them are arcs,

the selection screen for multiple arcs is displayed, so select a suitable

one.

(

)

(

)

(

)

(3)

Tangential point

(3)

(

)

(

)

(

)

(2)

Tangential point
