Series 0i - MB Operators manual Page 93

Operators manual

Page of 901

/ 901

PROGRAMMING

B–63844EN/02

5. FEED FUNCTIONS

For internally offset circular cutting, the feedrate on a programmed path

is set to a specified feedrate (F) by specifying the circular cutting feedrate

with respect to F, as indicated below (Fig. 5.4.2.2). This function is valid

in the cutter compensation mode, regardless of the G62 code.

Rc : Cutter center path radius

Rp : Programmed radius

It is also valid for the dry run and the one–digit F command.

Programmed path

Cutter center

path

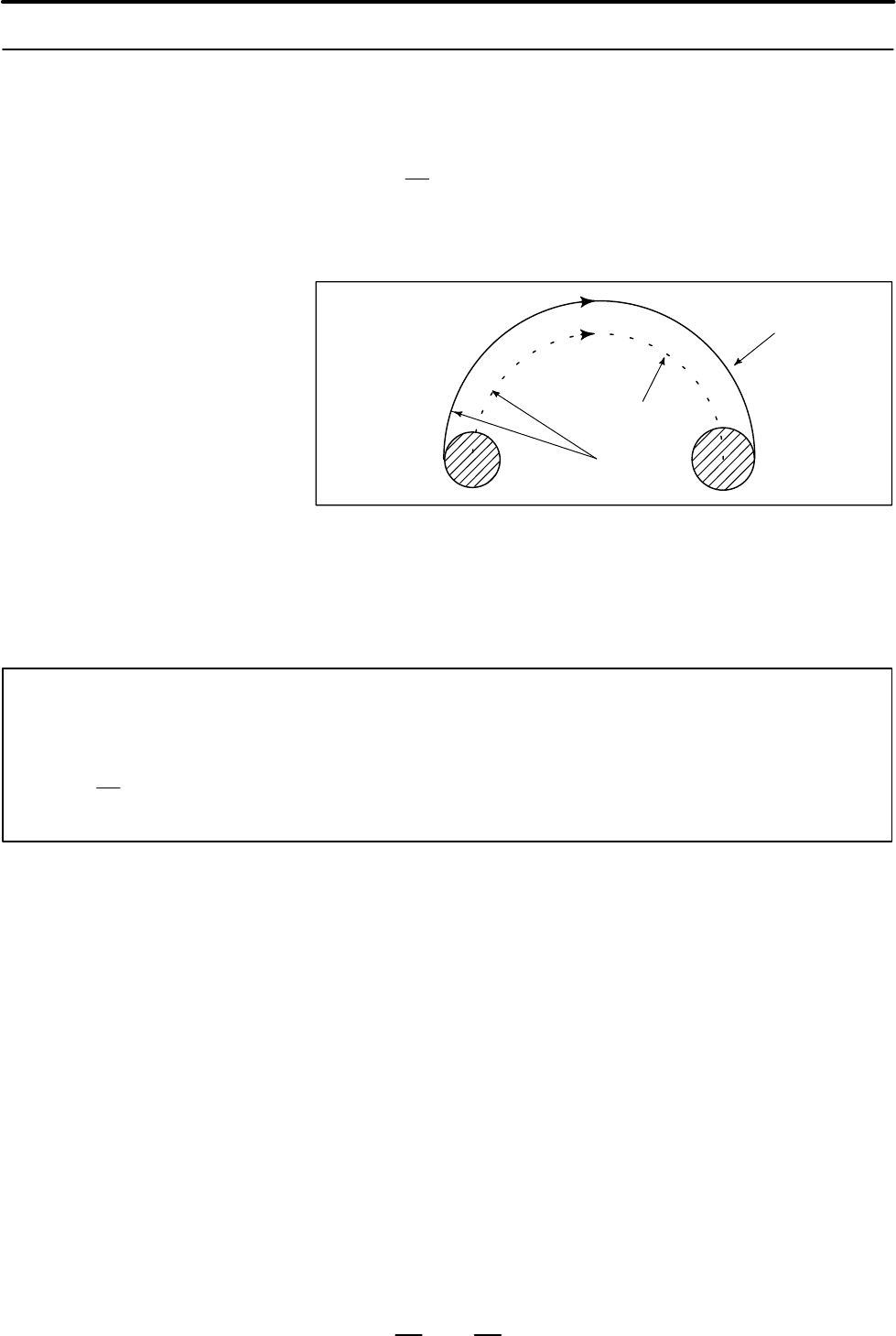

Fig. 5.4.2.2 Internal circular cutting feedrate change

If Rc is much smaller than Rp, Rc/Rp80; the tool stops. A minimum

deceleration ratio (MDR) is to be specified with parameter No. 1710.

When Rc/Rp

xMDR, the feedrate of the tool is (F×MDR).

NOTE

When internal circular cutting must be performed together with override for inner corners, the

feedrate of the tool is as follows:

(override for the inner corners)×(feedrate override)

5.4.2.2

Internal Circular Cutting

Feedrate Change
