7.UNITS B-70315EN/02
- 198 -

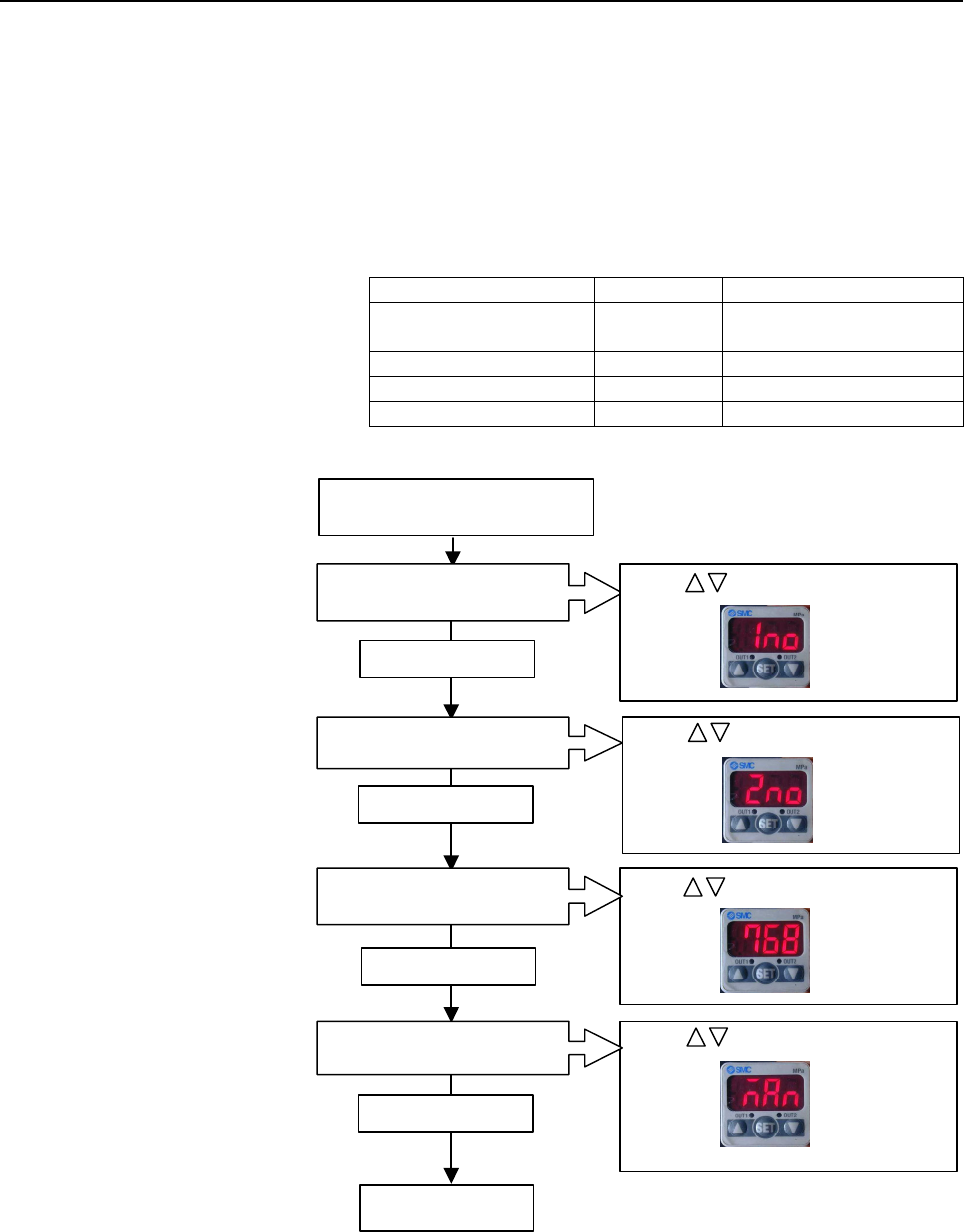

(2) Setting procedure
When setting in each mode, follow the procedure described below.
• Setting in the initial setting mode
Perform basic setting for the sensor. To enter the initial setting
mode, hold down the SET key for 2 to 4 seconds in the
measurement mode. This setting operation is common to the gas
supply pressure sensor and atmospheric pressure sensor.
List of settings (Unit: MPa)
Setting Remarks
Unit setting (Mpa)
Usually, this setting need
not be made.
Output mode setting Normal Open For both OUT1 and OUT2
Response time setting 768 (ms)
Automatic/manual setting Manual
Hold down the SET key for 2 to
4 seconds.
OUT1 output setting becomes
possible.
Press and set Normal Open.
Press the SET key.
OUT2 output setting becomes
p
ossible.
Press and set Normal Open.
Press and set 768 ms.
Press and set the manual mode.
Measurement mode
Press the SET key.
Press the SET key.
Press the SET key.
A
utomatic/manual setting
becomes
p
ossible.
Response time setting
becomes possible.
Previous page
Next page
