8.3.3 Alignment Procedure at Mirror Cleaning Time

When cleaning or replacing mirrors of a laser oscillator already

adjusted using the maximum power method, use the alignment

procedure described in this subsection. All folding mirrors need not be

cleaned each time.

8.3.3.1 Preparation

(1) Record the adjustment screw readings of the output coupler

(O.C.), rear mirror (R.M.), and folding mirrors (F.M.).

(2) Collect a burn pattern. This is used for checking mirror dirt. If

the mode is good, end the adjustment.

Near (3m) :

Cold mode or Hot mode (Internal discharge for three minutes)

Far :

Cold mode or Hot mode (Internal discharge for three minutes)

8.3.3.2 Adjustment method

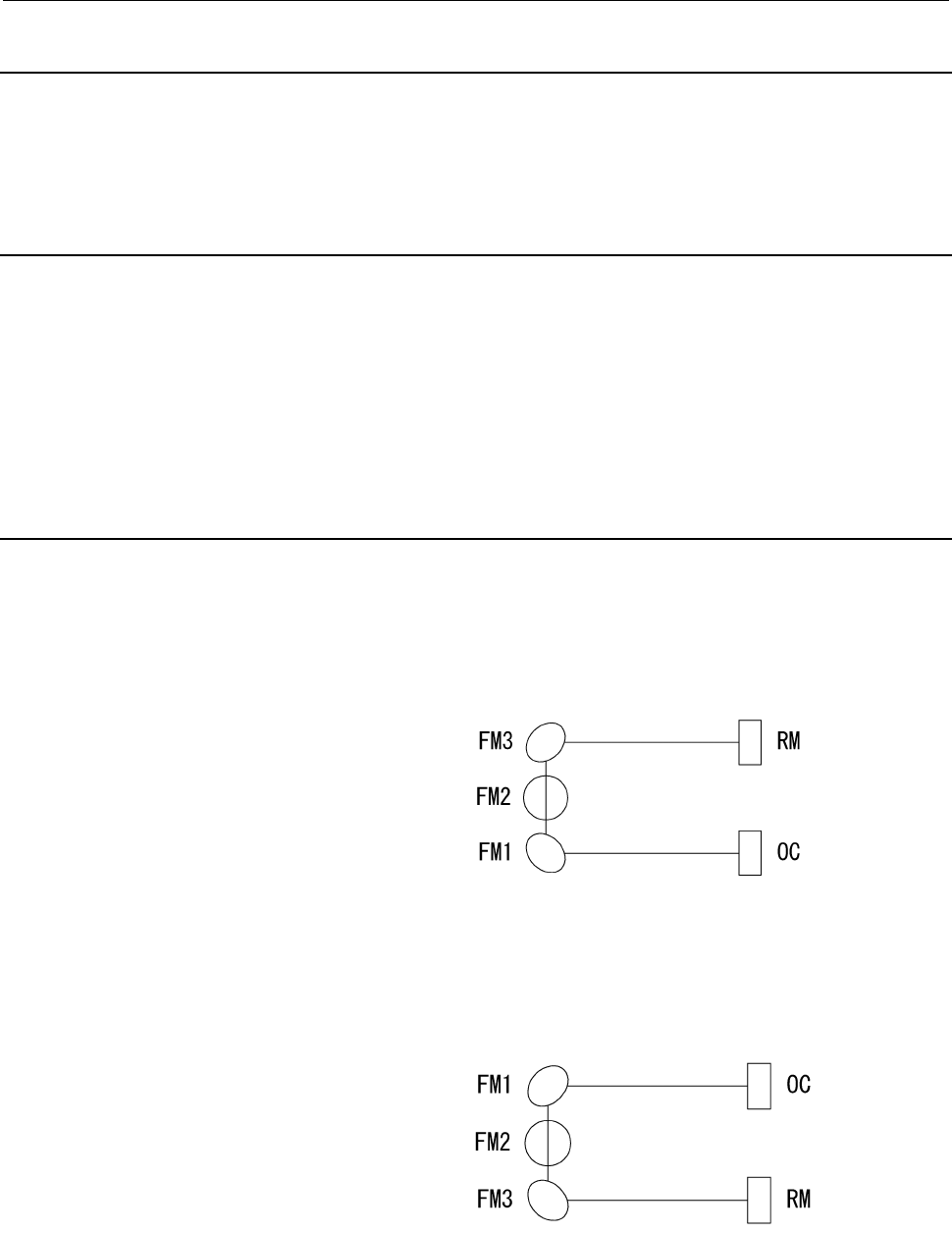

(1) For C1000-E

(a) Clean the O.C. and R.M. mirrors.

(b) Obtain a maximum power based on O.C. by using R.M. as

the reference.

(d) Obtain a maximum power based on FM3.

(2) For C2000-E

(a) Clean the O.C. and R.M. mirrors.

(b) Obtain a maximum power based on O.C. by using R.M. as

the reference.

(d) Obtain a maximum power based on FM1.
