LASER C1000/C2000/C4000/C6000-MODEL E Maintenance manual Page 265

Maintenance manual
B-70315EN/02 8.LASER OPTICAL SYSTEM
- 245 -

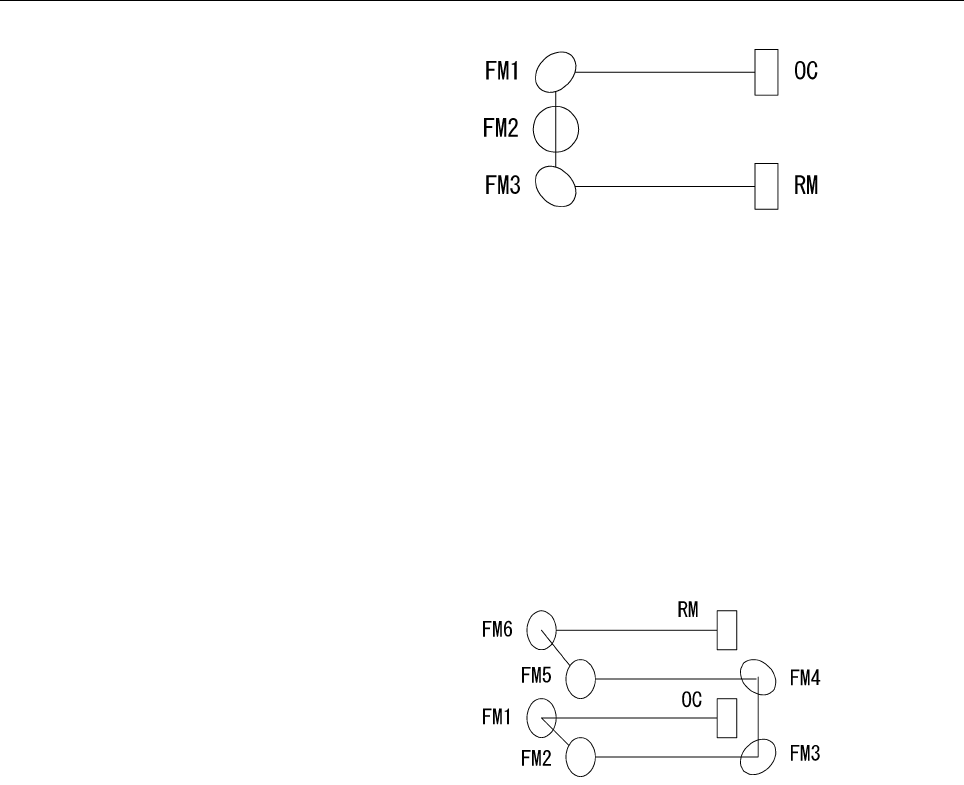

(3) For C4000-E
(a) Obtain a maximum power based on FM4.
(b) Obtain a maximum power based on FM4 by using R.M. as
the reference.
(c) Obtain a maximum power based on FM4 by using O.C. as
the reference.
(d) Obtain a maximum power based on FM2 by using O.C. as
the reference.
(e) Obtain a maximum power based on FM6 by using R.M. as
the reference.
(f) Collect a burn pattern. If the mode is good, end this
procedure. If not, start all over again from step (b). At this
time, collect a burn pattern in each step. If the mode is
finally good, end this procedure.
(4) For C5000-E
(a) Obtain a maximum power based on FM4.
(b) Obtain a maximum power based on FM4 by using R.M. as
the reference.
(c) Obtain a maximum power based on FM4 by using O.C. as
the reference.
(d) Obtain a maximum power based on FM2 by using O.C. as
the reference.
(e) Obtain a maximum power based on FM6 by using R.M. as
the reference.
(f) Collect a burn pattern. If the mode is good, end this
procedure. If not, start all over again from step (b). At this
time, collect a burn pattern in each step. If the mode is
finally good, end this procedure.
