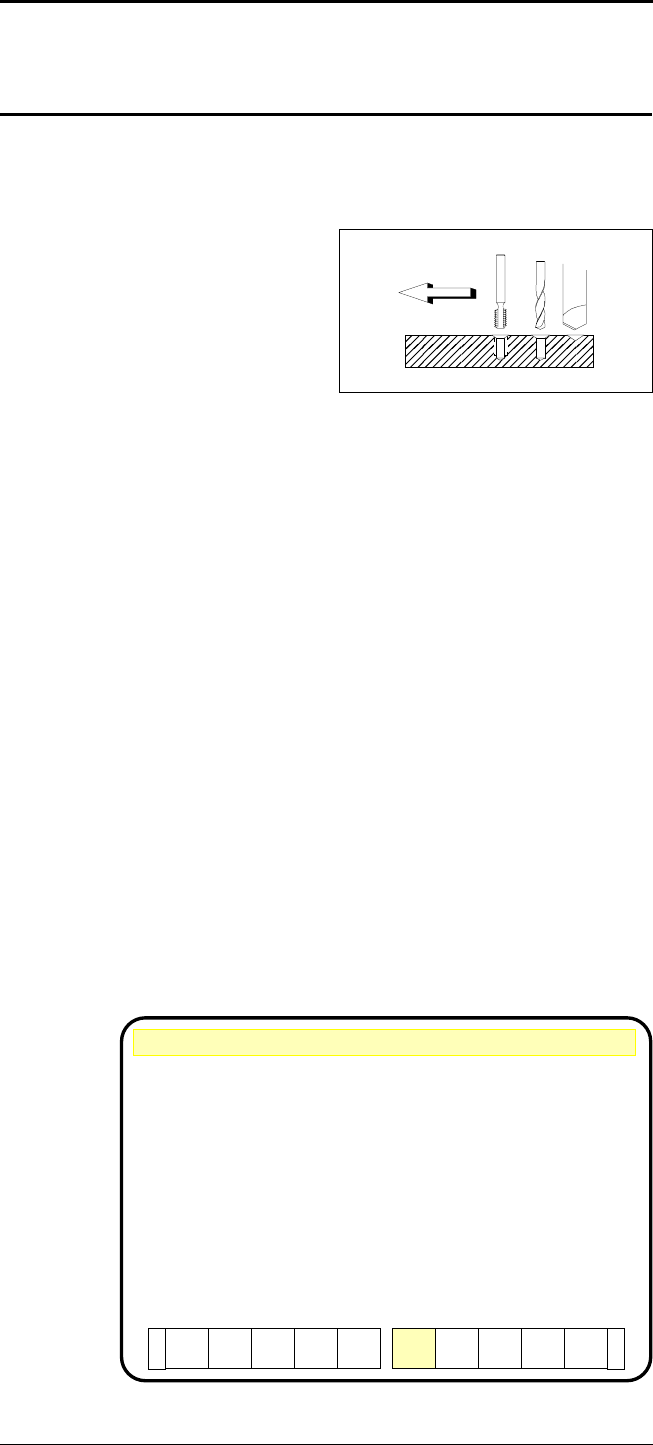

6 PRE TOOL FILE
Often used tools combination can be defined in the
’Pre Tool File’, for instance:
•
Spot-drills
•
Drills for tapping
•
Tap
You only need to state
’FINL TOOL’
the ’Pre Tools’ and all the other relevant datas would be
provided automatically by the CNC controls.
Drilling = max. 10 Tools
Milling = max. 4 Tools
6. 1 Pre Tool File List
A total of 80 combinations could be registered. In case of
drilling tools, it could be specified at the left hand side next to
the following:
’AUX-TOOL’ most left side
’FIN-TOOL’ second position from left
’PRE TOOL’ at the right, max 8, = total 10 tools
For each group 2 rows are provided in the file list.
Fig. 6. 1
LIST PRE-TOOL : 1
F. S.
FILE
DIVIDE
TOLDIR
+
AUX TOOL FIN TOOL
1 TOOL NO.
TOOL NAME
NOMINAL DIA.
TOOL NO.
TOOL NAME
NOMINAL DIA.
2 TOOL NO.
TOOL NAME
NOMINAL DIA.
TOOL NO.
TOOL NAME
NOMINAL DIA.
PRE-TOOL 1
PRE-TOOL 5
PRE-TOOL 2
PRE-TOOL 6
PRE-TOOL 3
PRE-TOOL 7
PRE-TOOL 4
PRE-TOOL 8
FL # 16MA-01\ETOOL-F6
TOOL
USED
PRE-
TOOL
TOOL
DRCTRY
DEF.
FILE
NO.
SEARCH
TOOL
FILE
2010
TAP
10.000
2006
TAP
6.000
1085
DRILL
8.500
1051
DRILL
5.100
0020
CHAMFER
20.000
0020
CHAMFER
20.000
Fig. 6. 2
GEF # FL/ escap-04-012000
GFKE-0041A-EN Pre Tool File
- 29 -
