Super CAPi-M Data Setting Handbook Operation and maintenance handbook Page 60

Operation and maintenance handbook
8. 1. 4 Machining Condition (COEFFICIENT) : 4
Pushing the PAGE key, selects the next list with BORE (Roughing)
data.
Data input in this screen:
BORE Roughing
•
Feedrate will be influenced
Bore diameter set to groups, please see page before (Drill)
All data can be modified, even the group setting. Coefficient values
can be different for different tool materials.
•
Hi-Speed
•
Carbide
•
Special
With this setting table, Super CAPi M becames very
practically oriented and effective.

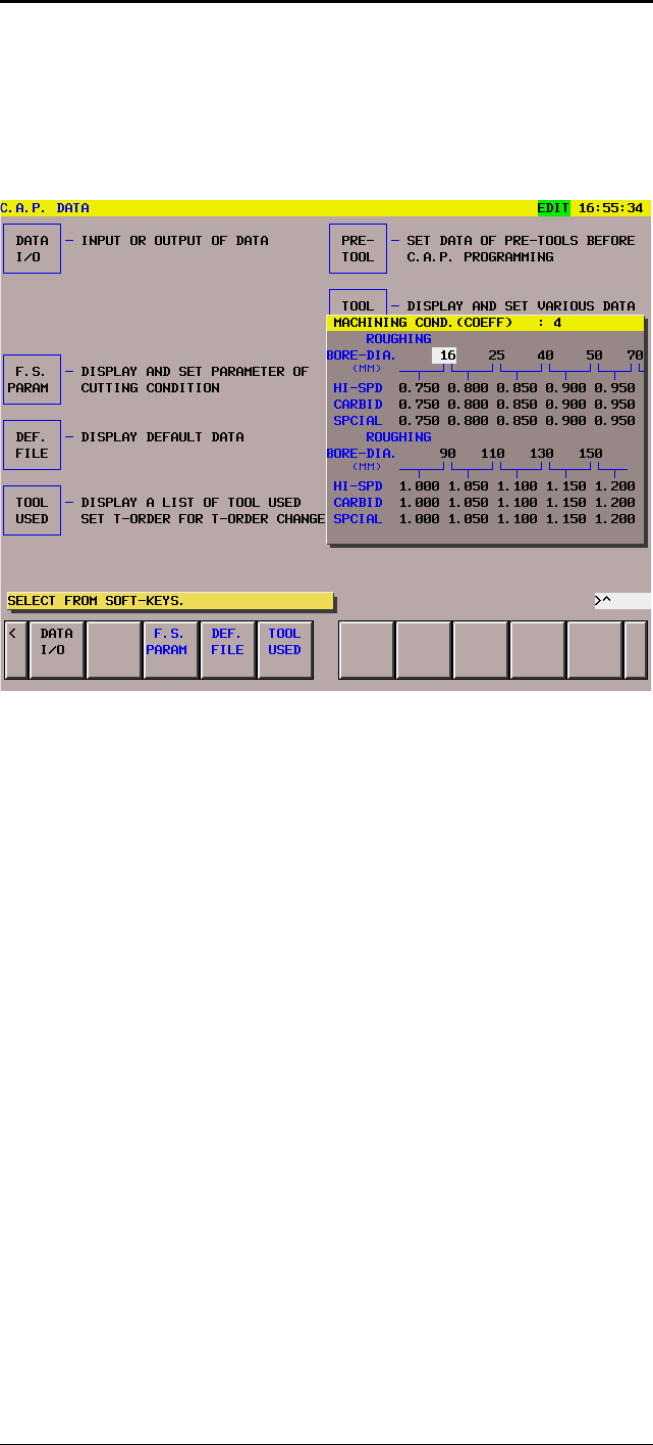

Fig. 8. 5
GEF #FL / escap-55-012000
Cutting Conditions GFKE-0041A-EN
- 54 -
