8. 2 Machining Condition (HOLE)
8. 2. 1 Machining Condition (HOLE-DRILL) : 1
After setting data in the ’Coefficient’ data table, cutting conditions
are input for DRILLING tools. Pushing Softkey (1), Machining
Condition table (HOLE) is selected. In this table softkeys for several
drilling tools are available. Pushing softkey (DRILL), cutting speed
and feedrates for DRILL tools, according to different Workpiece
Materials and Tool Materials can be input.
Data input in this screen:
DRILL
•
Cutting Speed in m/min
•
Feedrate in mm/rev
All data can be inputted for 3 different tool materials.
•
Hi-Speed
•
Carbide
•
Special
With this setting table, Super CAPi M becames very
practically oriented and effective.

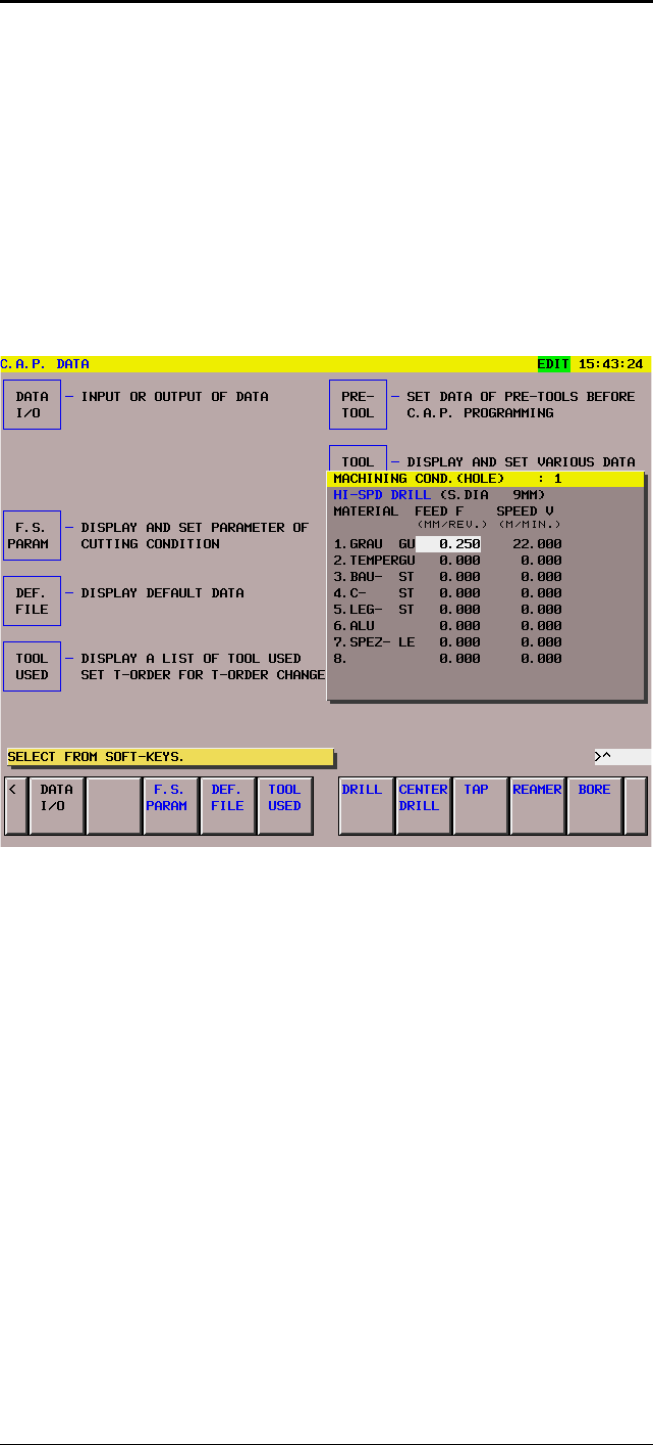

Fig. 8. 11
GEF #FL / escap-55-012000
Cutting Conditions GFKE-0041A-EN
- 60 -
