Super CAPi-M Data Setting Handbook Operation and maintenance handbook Page 70

Operation and maintenance handbook
8. 2. 5 Machining Condition (HOLE-BORE) : 2

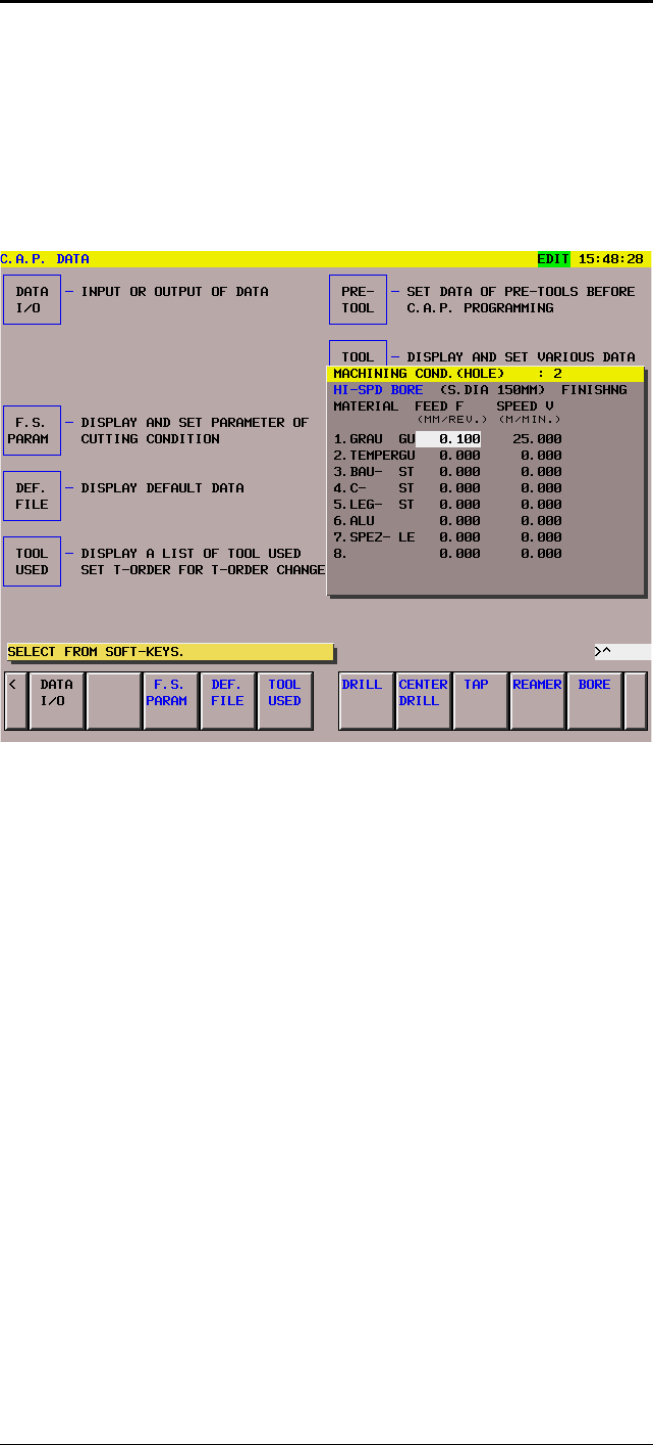

Pushing the Softkey (BORE), the Machining Condition table (BORE)
is selected. Pushing the softkey (BORE), cutting speed and feedrates
for BORING tools, according to different workpiece materials and
tool materials can be input.
Data input in this screen:
BORE, Finishing
•
Cutting Speed in m/min
•
Feedrate in mm/tooth
All data can be inputted for 3 different tool materials.
•
Hi-Speed
•
Carbide
•
Special
With this setting table, Super CAPi M becames very
practically oriented and effective.
Fig. 8. 15
GEF #FL / escap-55-012000
Cutting Conditions GFKE-0041A-EN
- 64 -
