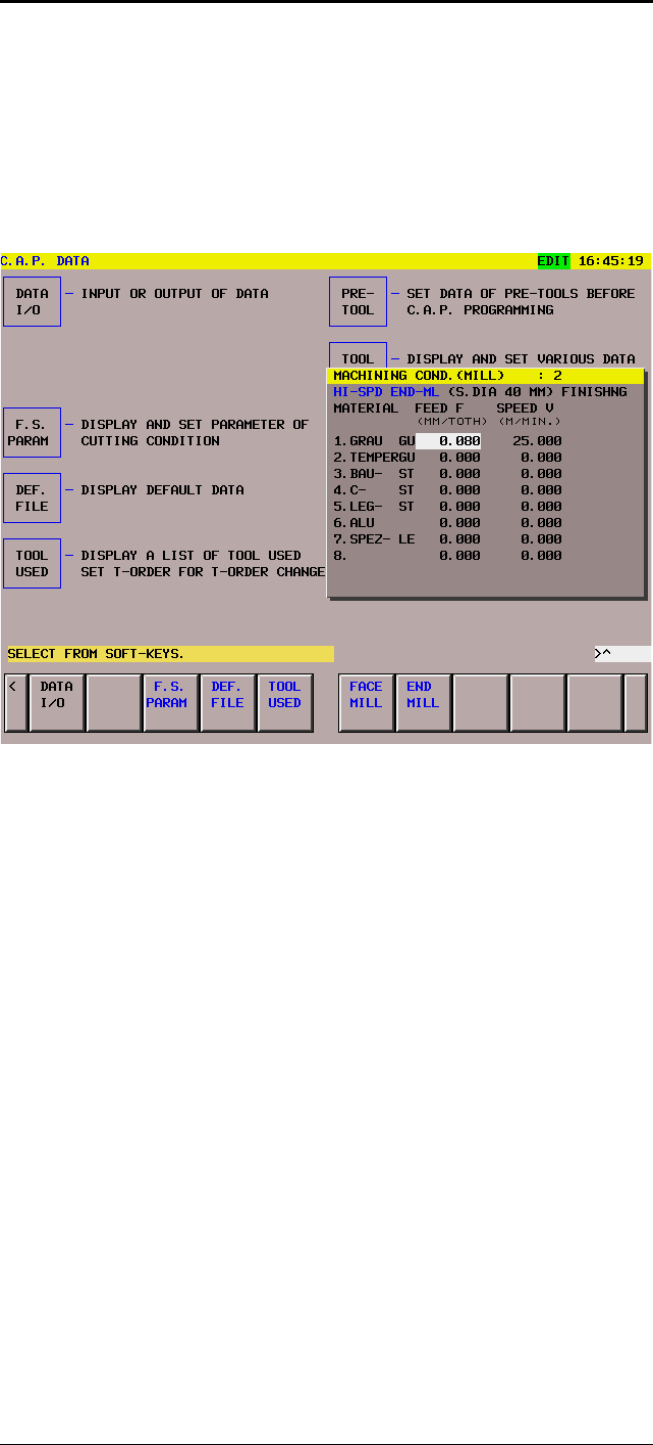

8. 3. 3 Machining Condition (MILL-END MILL) : 1
Pushing the Softkey (END MILL), the machining condition table
(END MILL) is selected. Pushing the softkey (END MILL), cutting
speed and feedrates for END MILL tools, according to different
workpiece materials and tool materials can be input.
Data input in this screen:
END MILL, Roughing
•
Cutting Speed in m/min
•
Feedrate in mm/tooth
All data can be inputted for 3 different tool materials.
•
Hi-Speed
•
Carbide
•
Special
With this setting table, Super CAPi M becames very
practically oriented and effective.
Fig. 8. 18
GEF #FL / escap-55-012000
GFKE-0041A-EN Cutting Conditions
