Super CAPi-M Data Setting Handbook Operation and maintenance handbook Page 57

Operation and maintenance handbook
8. 1 Machining Coefficient (4)

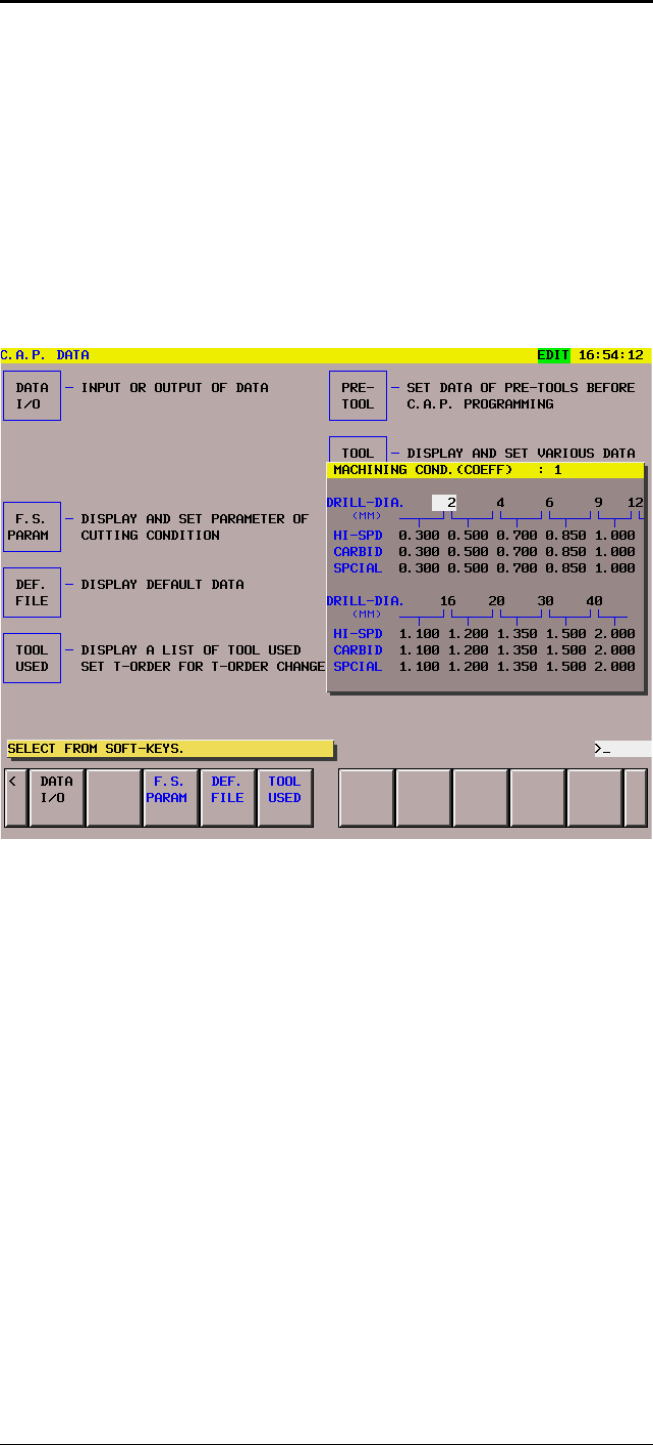

8. 1. 1 Machining Condition (COEFFICIENT) : 1
This screen should be selected first. All types of tools can be set to a
diameter range. This is, to calculate automatically different feed for
different diameter with the same basic feedrate. In case of a Drill tool,
the basic feedrate will be maybe 0.10 mm/rev. If the tool diameter is
only 2.0, the Basic feedrate of 0.10 will be calculated with the
coefficient of 0.5 = 0.10 * 0.5 = 0.05 !
Data input in this screen:
DRILL
•
Feedrate will be influenced
Drill diameter set to groups from 0 to 2.0 - 2.0 to 4.0 - 4.0 to 6.0
6.0 to 9.0 - 9.0 to 12.0 - 12.0 to 16.0 - 16.0 to 20.0 - 20.0 to 30.0
30.0 to 40.0 and 40.0 to bigger diameter.
All data can be modified, even the group setting. Coefficient values
can be different for different tool materials.
•
Hi-Speed
•
Carbide
•
Special
With this setting table, Super CAPi M becames very
practically oriented and effective.
Fig. 8. 2
GEF #FL / escap-55-012000
GFKE-0041A-EN Cutting Conditions
- 51 -
