7. 3. 2 Additional parameters
As complimentary to the actual cutting data parameters, further
parameters would be definded here, which are required for the
calculation of the cutting values or are very closely related to
them.
7. 3. 3 Maximum tool type spindle speed
In the following parameters the maximum tolerated rotation of
the main spindle per tool type could be entered. When the
calculation yields a rotation speed, which is over the given
range, this would also be taken as the spindle speed limit on the
calculation basis for the following feed rate calculation.
These rotation speed limits depends in the first place on the
machine tool itself and also on the tools, which are sometimes
unbalanced.

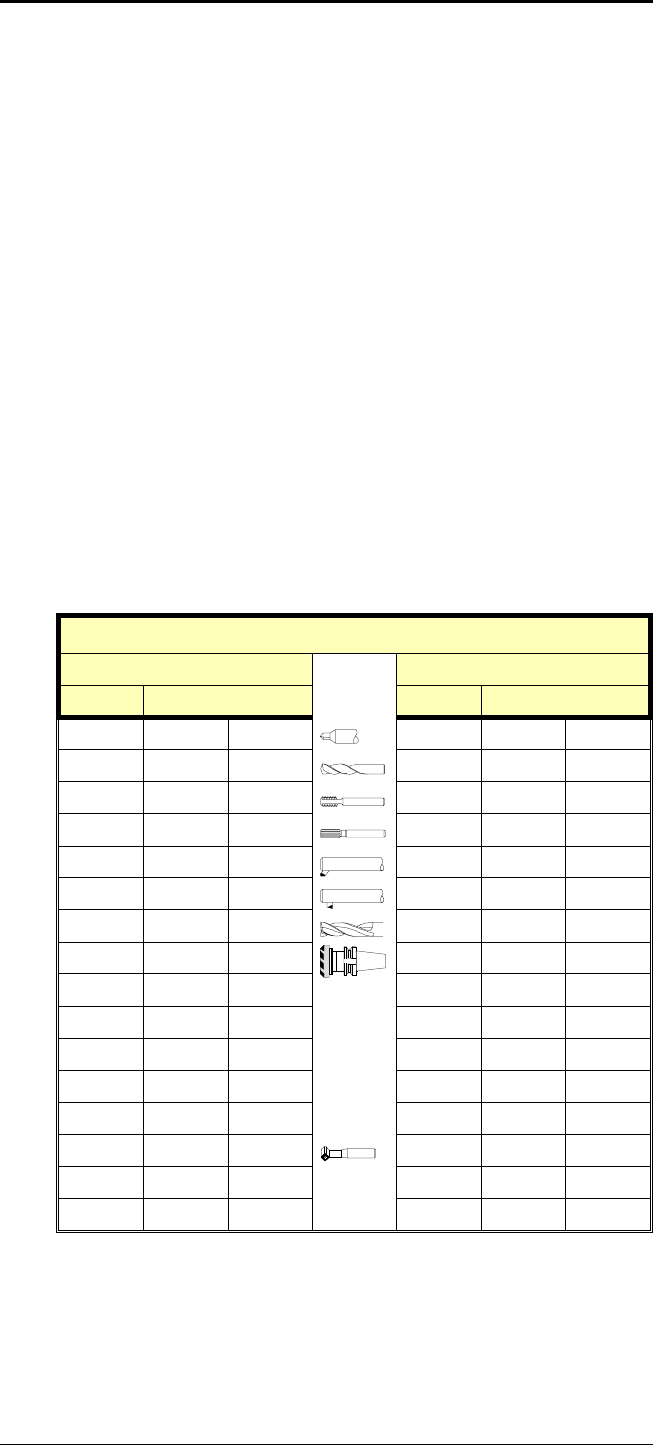

ADDITIONAL PARAMETER
Spindle speed max.
No. Spindle max.
449 5000
450 5000
451 1000
452 5000
453 5000
454 5000
455 5000
456 5000
457 0
458 0
459 0
460 0
461 0
462 5000
463 0
464 0
GEF #FL / escap-55-012000
Cutting Conditions GFKE-0041A-EN
- 46 -
