B-63343EN/02 TYPES OF CYCLE MOTIONS 1.BAR MACHINING (ROUGHING)

- 111 -

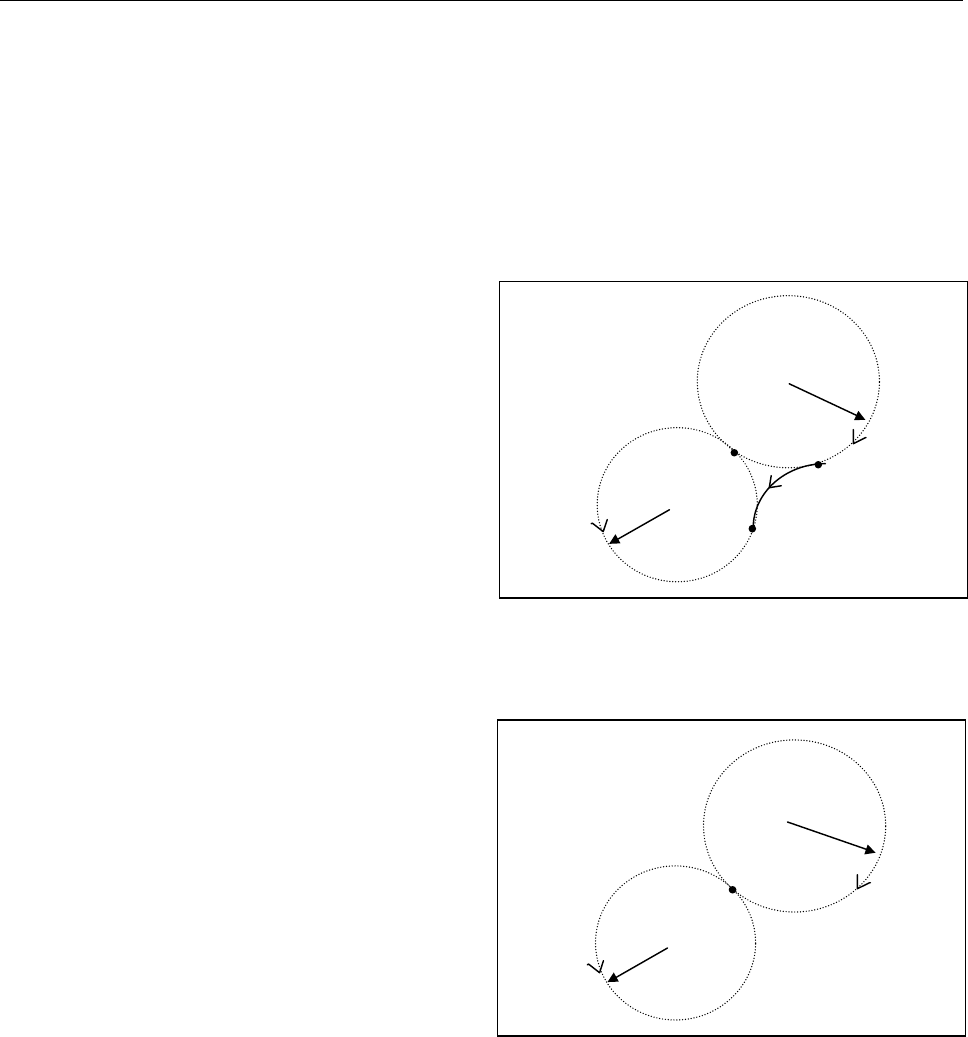

(e) When the preceding figure block “arc” is pending (for which the

start point has been determined and only the R is to be inputted),

and TANGNT is specified

In this case, the directions of two arcs must be the same.

(i) R, X and Z are inputted

-> The tangential selection request window is displayed.

Input number data 1 or 2, but in this case, select a

tangential point to define a minor arc. This arc will be

determined.

(ii) R, I and K are inputted

-> A tangential point is calculated. This arc will be

pending.

Tangential point

Minor arcMajor arc

End point

(X,Z)

Tangential point

Center

(I,K)
