D.ADDITIONAL INFORMATION ON EACH CUTTING MOTION APPENDIX B-63344EN/02

- 306 -

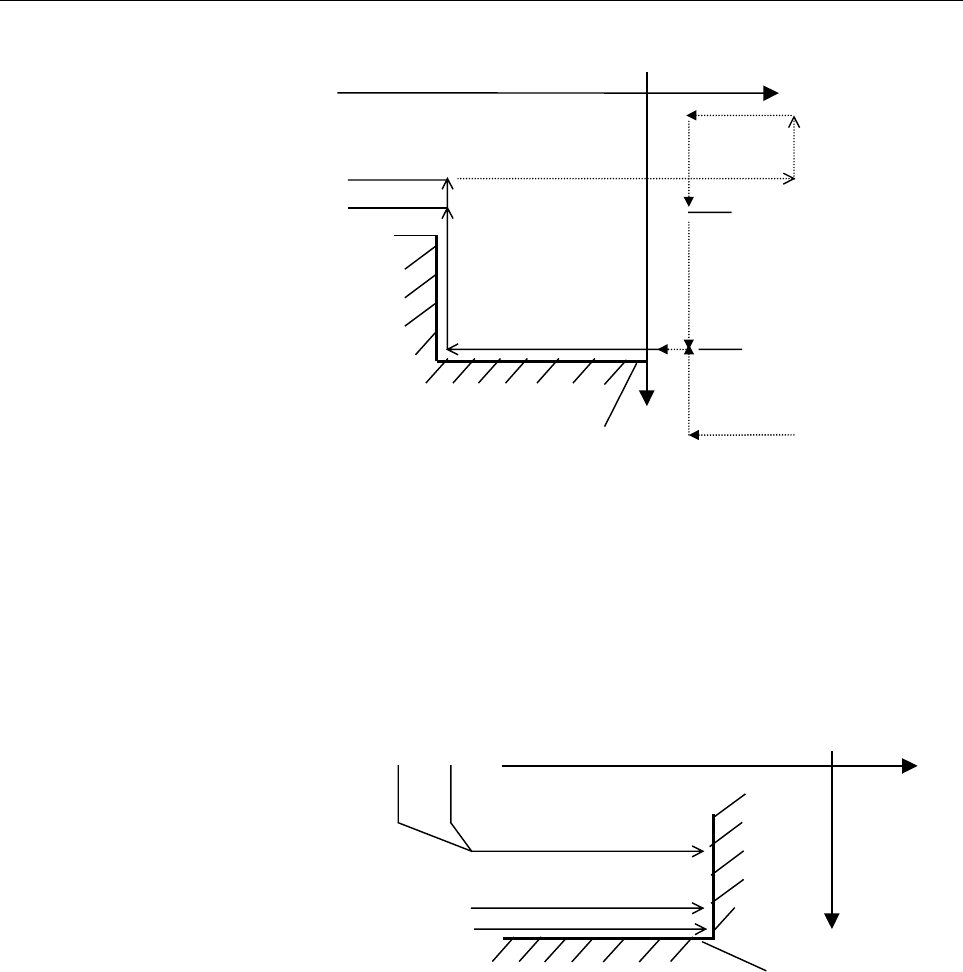

(5) Inner finishing

Input figure

• Approaching point

• Cutting start point

Cutting start X - release amount

Figure end point X + tool-nose radius × 2

Figure end point X

• Approaching point (*)

Figure start point X

<2>

<6>

The release amount is specified as an detail process data item.

(*) When the approaching point is specified outside the cutting start

point (+X side), the tool does not pass through the cutting start

point.

(6) Inner roughing and finishing (reverse)

The input figure is defined from the end face of the chuck to that of

the workpiece as shown in the figure below. For this reason, the

cutting motion is the same as in inner roughing and finishing except

for the machining direction.

Input figure

Figure start point •

•
