B-63343EN/02 TYPES OF CYCLE MOTIONS 1.BAR MACHINING (ROUGHING)
- 113 -
By inputting 3 successive figure as follows, Arc (2) tangential to 2
lines or arcs can be specified as the above drawing. The end points of
(1) and (2) will be determined, and (3) will be pending.
1st figure LINE(1) or ARC(1) :
Line that is pending (for which the start point has been
determined), or
Arc that is pending (for which the start point has been
determined)
2nd figure ARC(2) :
Only R is inputted.
3rd figure LINE(3) or ARC(3) :
Line with A, X and Z, or
Arc with R, I and K

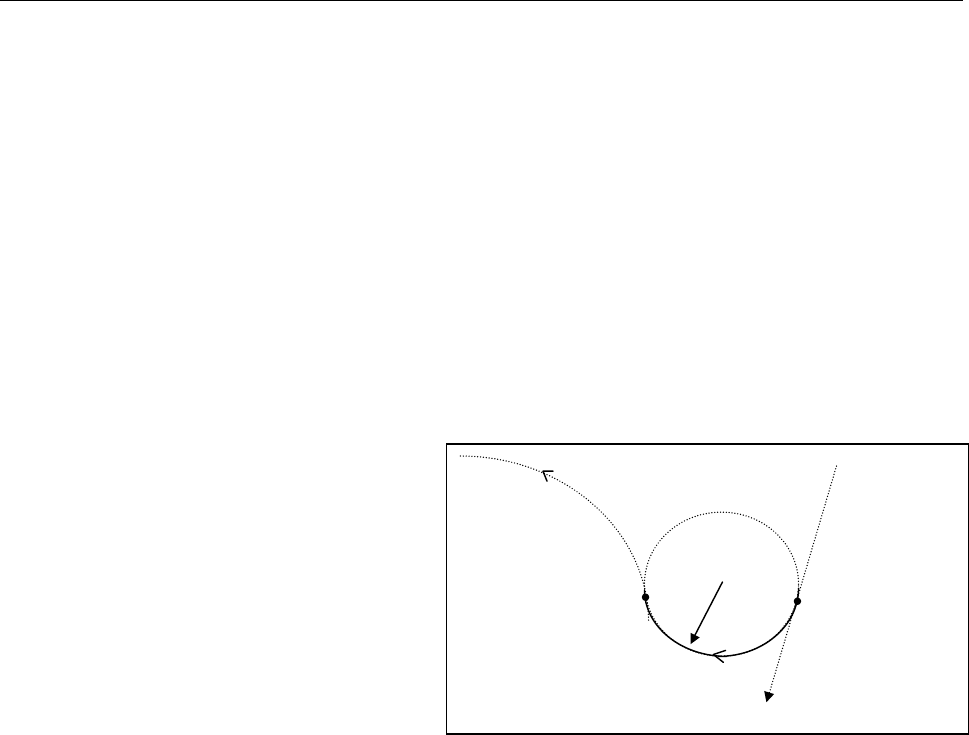

(7) Arc that contacts to uncrossing line and arc
By inputting 3 successive figure as follows, Arc (2) tangential to line
and arc , these 2 figures (1) and (3) do not cross, can be specified as
the above drawing. The end points of (1) and (2) will be determined,
and (3) will be pending.
Among the above 2 arcs possibility, the arc that makes a smooth
connection to the line (1) and arc (3) will be automatically selected.
1st figure LINE(1) :
Line that is pending (for which the start point has been
determined)
2nd figure ARC(2) :
Only R is inputted.
3rd figure ARC(3) :
Arc with R, I and K
(3)
(1)
R
(2)
Tangential
point
Tangential
point
